World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Tough-Track™ - 4" Track for 1 1/4" - 1 1/2" Rails

SKU Copied

SKU: RAP-TRACK-B7-15U

UPC Copied

UPC: 793442906640







RAM® Tough-Track™ - 4" Track for 1 1/4" - 1 1/2" Rails

Copy SKU
RAP-TRACK-B7-15U SKU: RAP-TRACK-B7-15U

Copy UPC
793442906640 | UPC: 793442906640

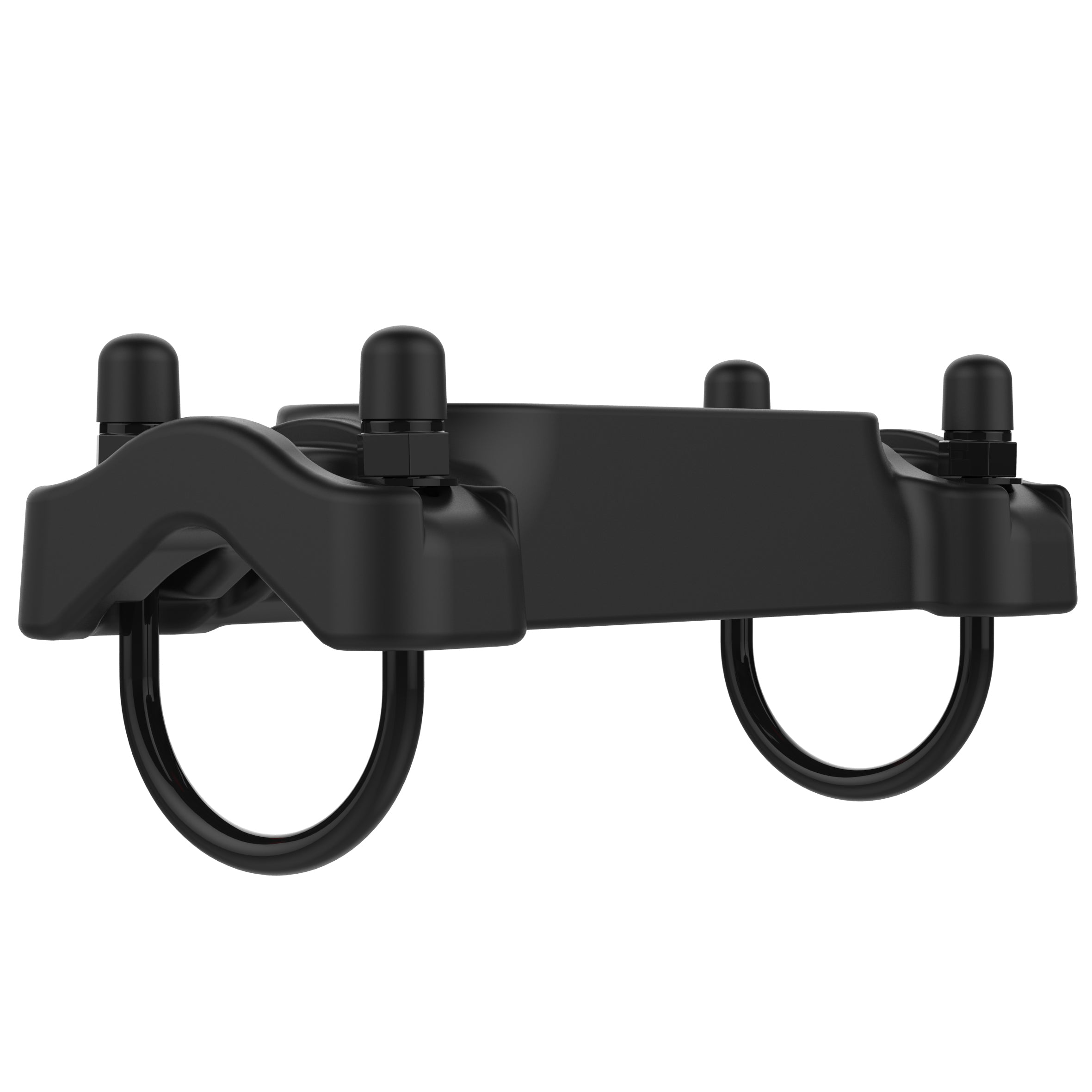

With the RAM Tough-Track for tubes, bars, and rails, create an ideal track mounting surface compatible with a wide variety of RAM Track Ball mounts and components. This 4 RAM Tough-Track includes all necessary U-bolt hardware to attach the RAM Tough-Track from 1.25 to 1.5 tubes, bars, and railsideal for the most common roll cages for UTVs. The overall length of this track mount is 17.78cm (7") with 10.16cm (4") of usable track to mount phones, tablets, action cameras and more.

Features

10.16cm (4") of usable high strength composite track for track mounts: overall length of 17.78cm (7")
RAM® Tough-Track™ utilizes u-bolt hardware for 3.18cm (1.25") - 3.81cm (1.5") diameter rails, representing the most common size for roll cages

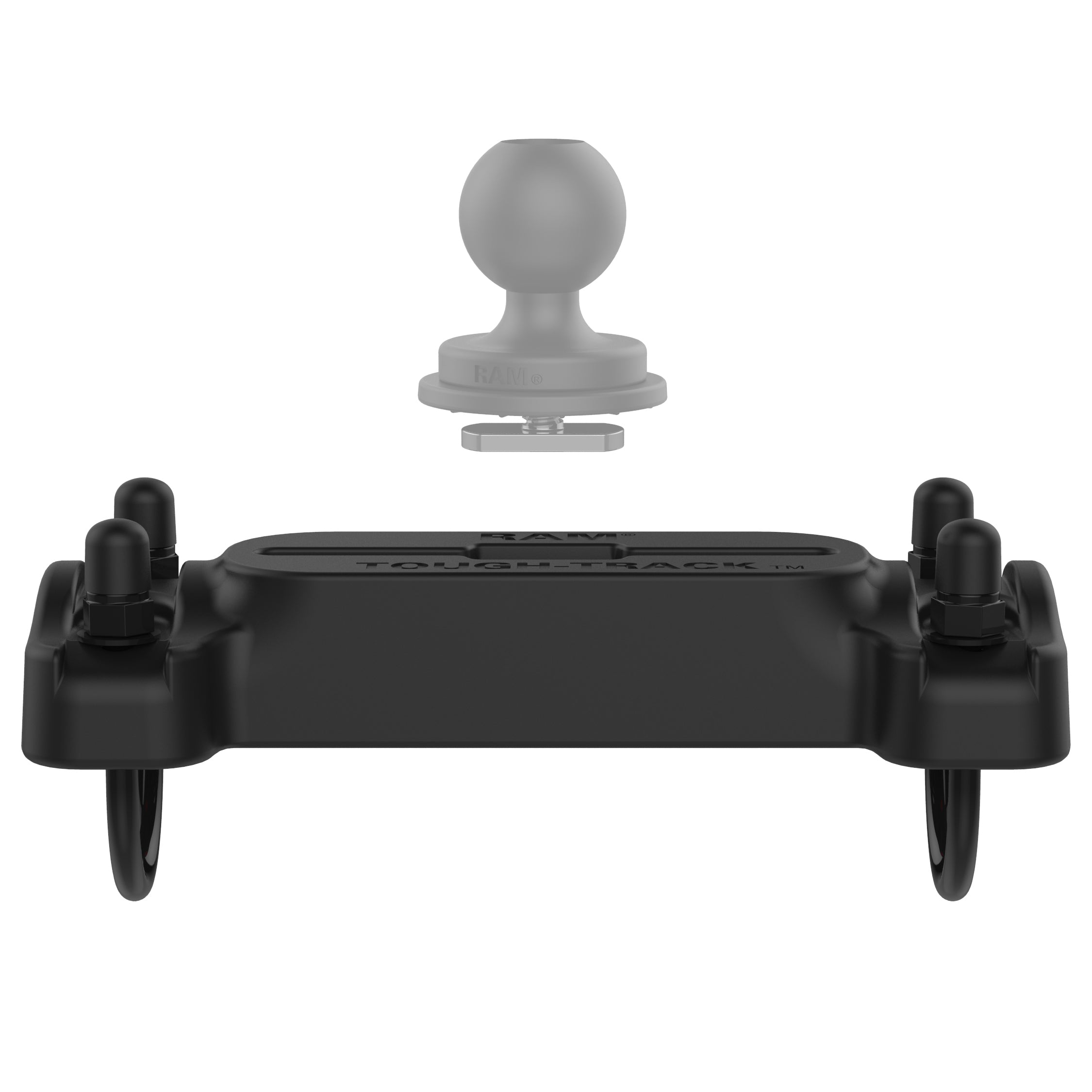

Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts, tablet mounts and more
Backed by a lifetime warranty

Tags: 1.25" - 1.5", 15", Components, Rail, RAP-TRACK-B7-15U, Top-Loading Composite, Tough-Track™, Track

Information

Product Weight

0.25 kg (0.55 lbs)

Hardware Included

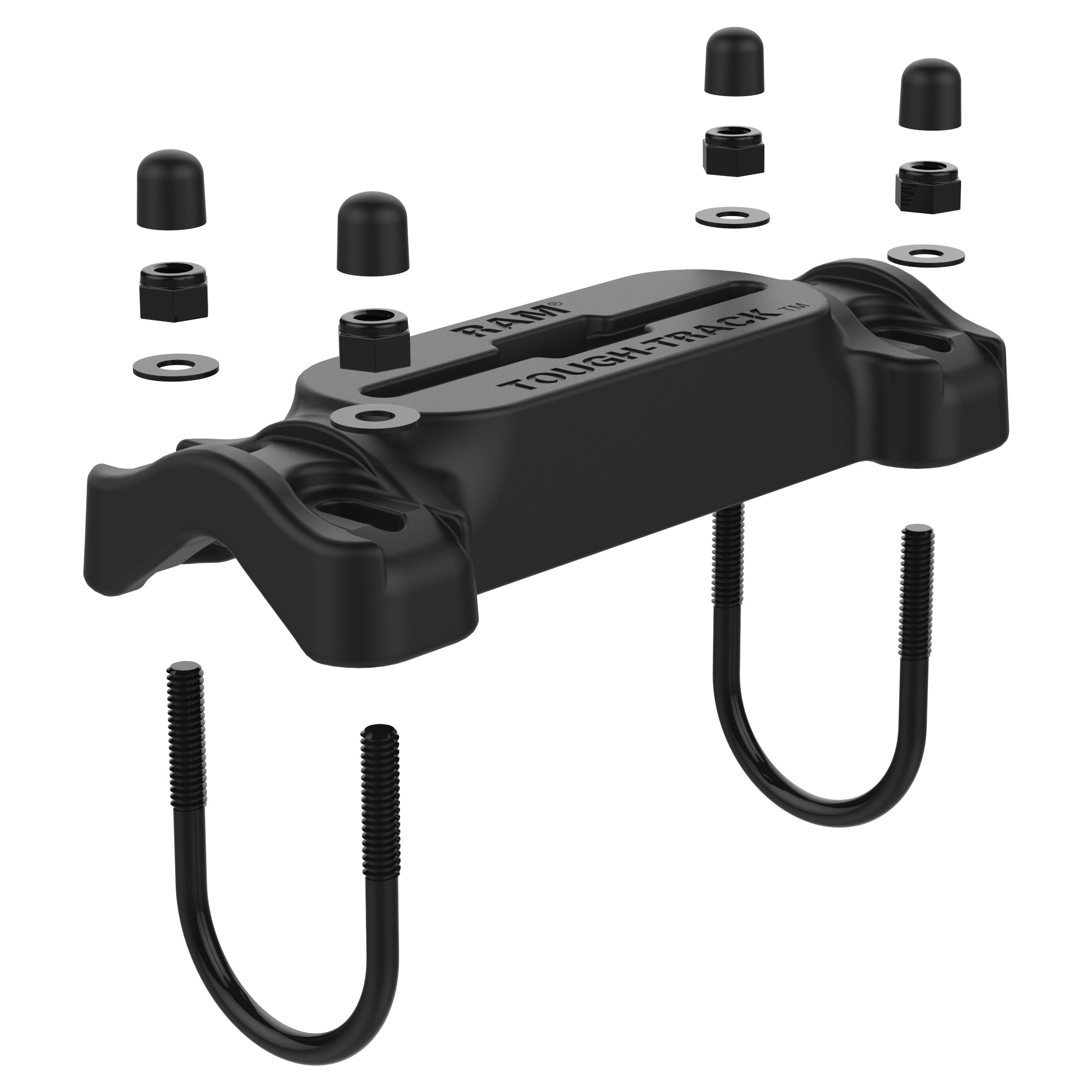

(2) 1/4" -20 U-Bolts for 3.18cm (1.25") - 3.81cm (1.5") Rails(2) U-Bolt Spacers(4) #12 Stainless Steel Washers(4) 1/4" -20 Nylock Washers(4) Rubber Caps

Product Dimensions

Inside Track Length: 10.16cm (4")

Clamp Range

3.18cm (1.25") - 3.81cm (1.5") diameter

Materials

High strength composite

Packaging Type

Poly Bag
