World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel

SKU Copied

SKU: RAP-AAPR-WCT-419-UN7U

UPC Copied

UPC: 793442015168







RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel

Copy SKU
RAP-AAPR-WCT-419-UN7U SKU: RAP-AAPR-WCT-419-UN7U

Copy UPC
793442015168 | UPC: 793442015168

B SIZE

Size Guide

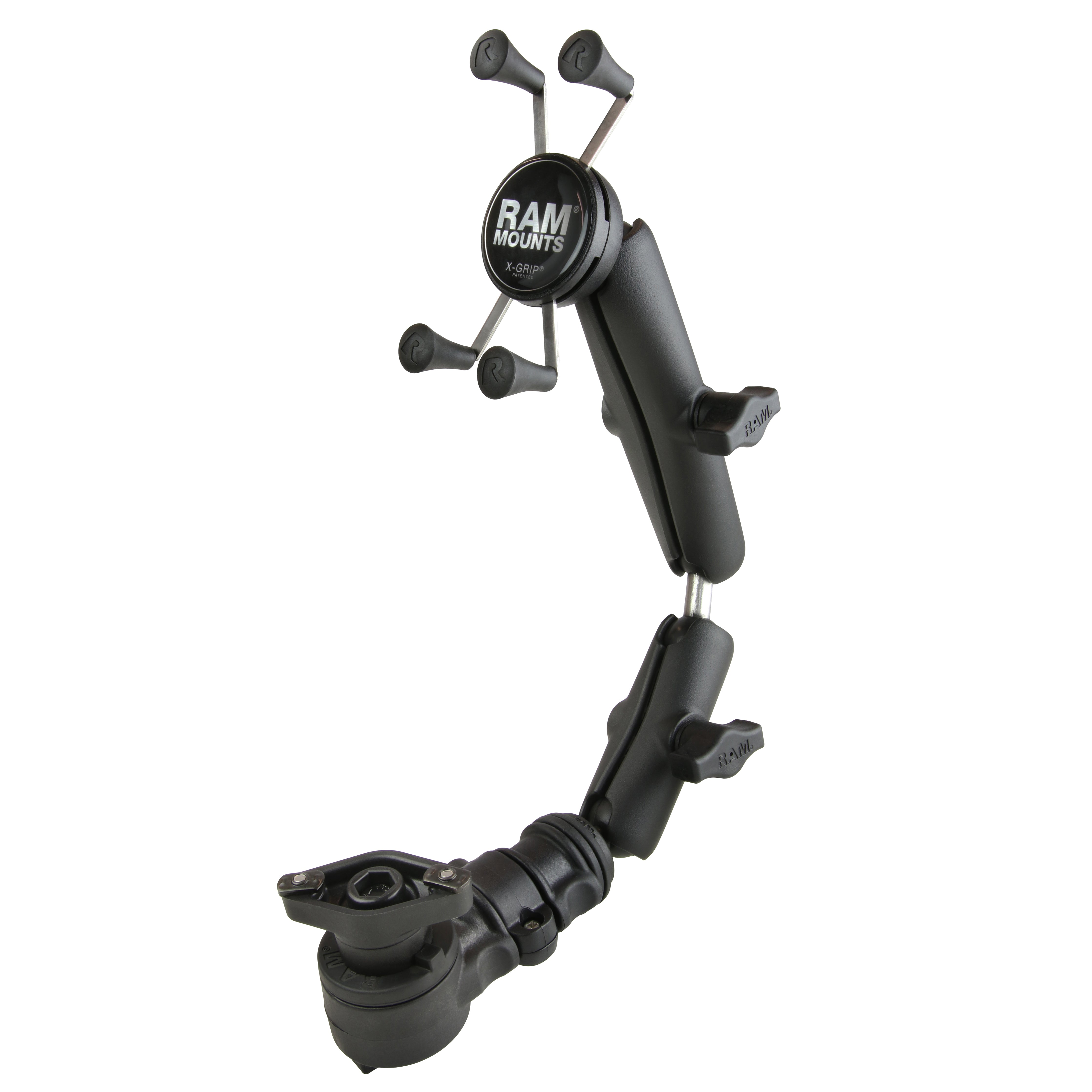

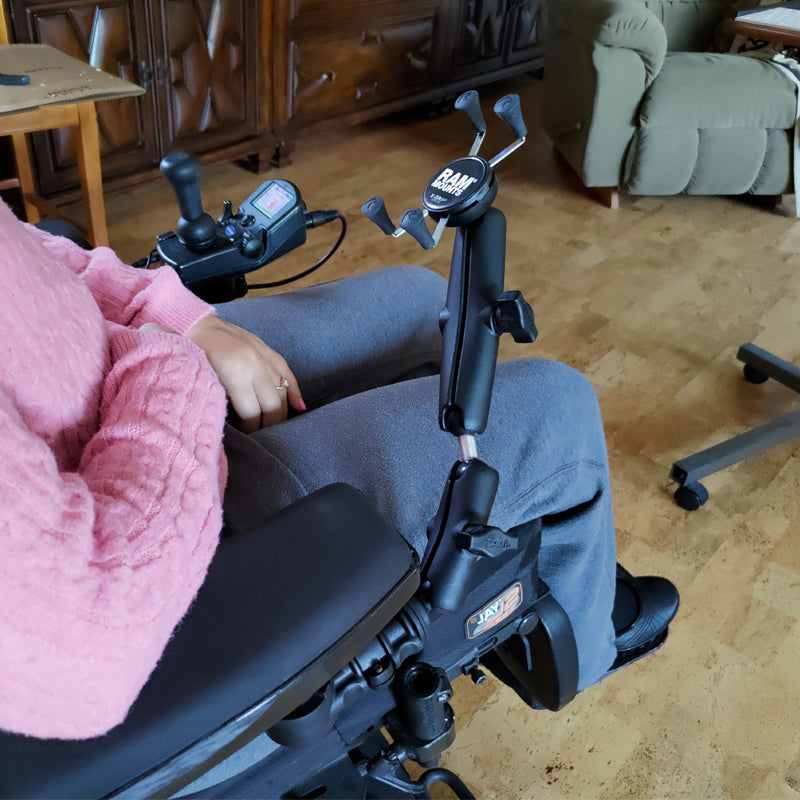

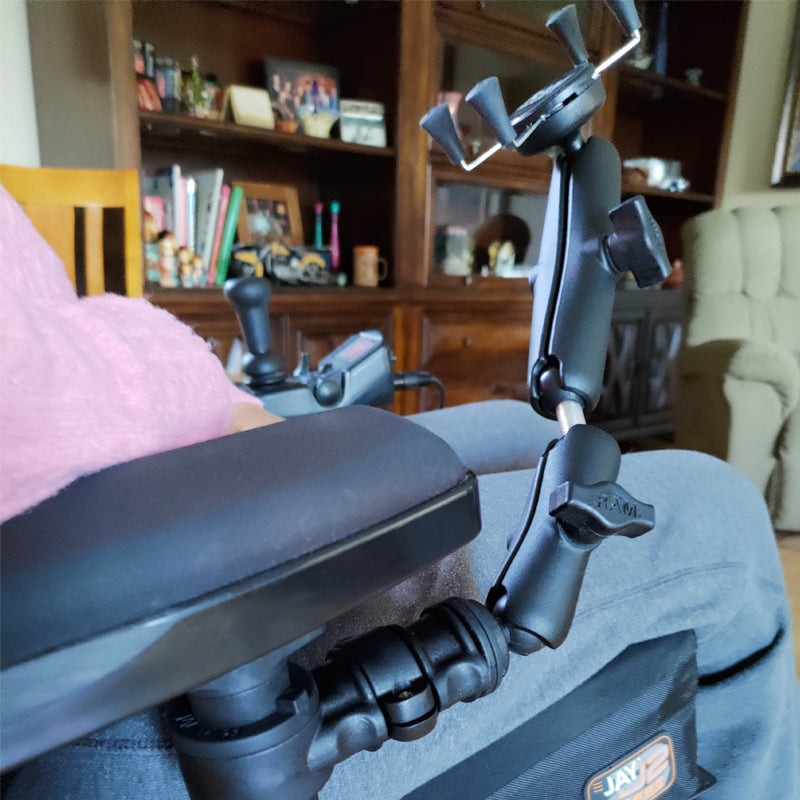

The RAM Phone Mount with Quick Release & Swivel is the perfect solution for mounting virtually any phone to a wheelchair armrest track or Invacare armrest. The system consists of the RAM X-Grip phone holder, double ball & socket extension arms, ball post adapter, and the RAM Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. The compact design of the RAM Universal Wheelchair mounting system stays within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM mounting components are backed by a lifetime warranty.

Features

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
Easy swivel and quick release capabilities without changing ball and socket positioning
Compact design keeps mount within armrest width

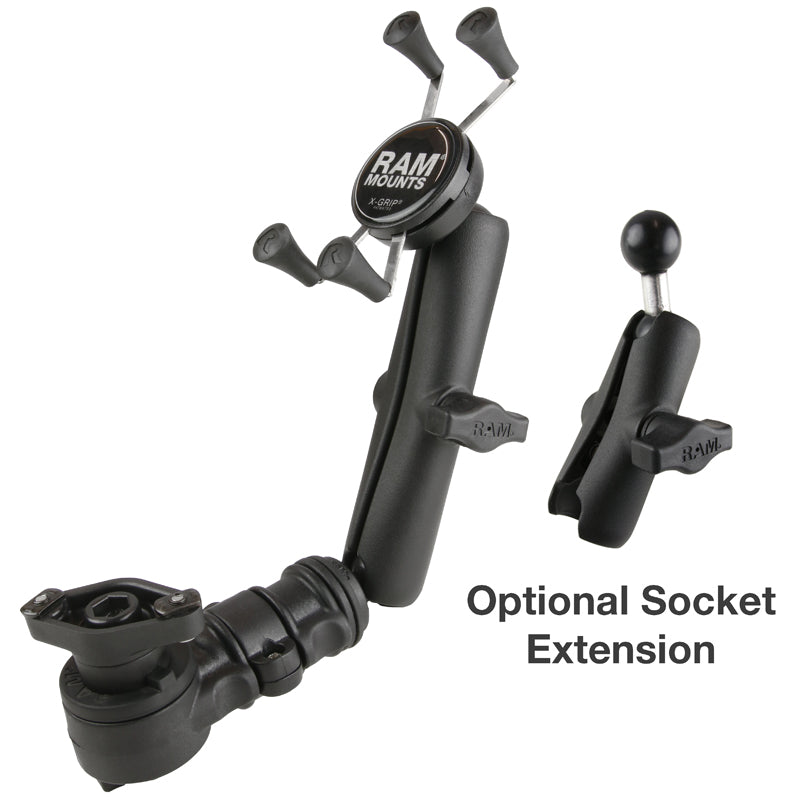

Supports most any phone with or without a case at virtually any angle with optional ball extension
Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight

0.70 kg (1.54 lbs)

Hardware Included

Assembly Hardware(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 17.78 cm (7")/40.64 cm (16") Machine Screws(2) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws(2) #8-32 Nylock Nuts(2) #8 Washers

Holder Dimensions

Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite
