The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® X-Grip® Phone Mount for Wheelchair Seat Tracks

SKU Copied

SKU: RAM-B-238-WCT-9-UN7

UPC Copied

UPC: 793442008139







RAM® X-Grip® Phone Mount for Wheelchair Seat Tracks

Copy SKU
RAM-B-238-WCT-9-UN7 SKU: RAM-B-238-WCT-9-UN7

Copy UPC
793442008139 | UPC: 793442008139

B SIZE

Size Guide

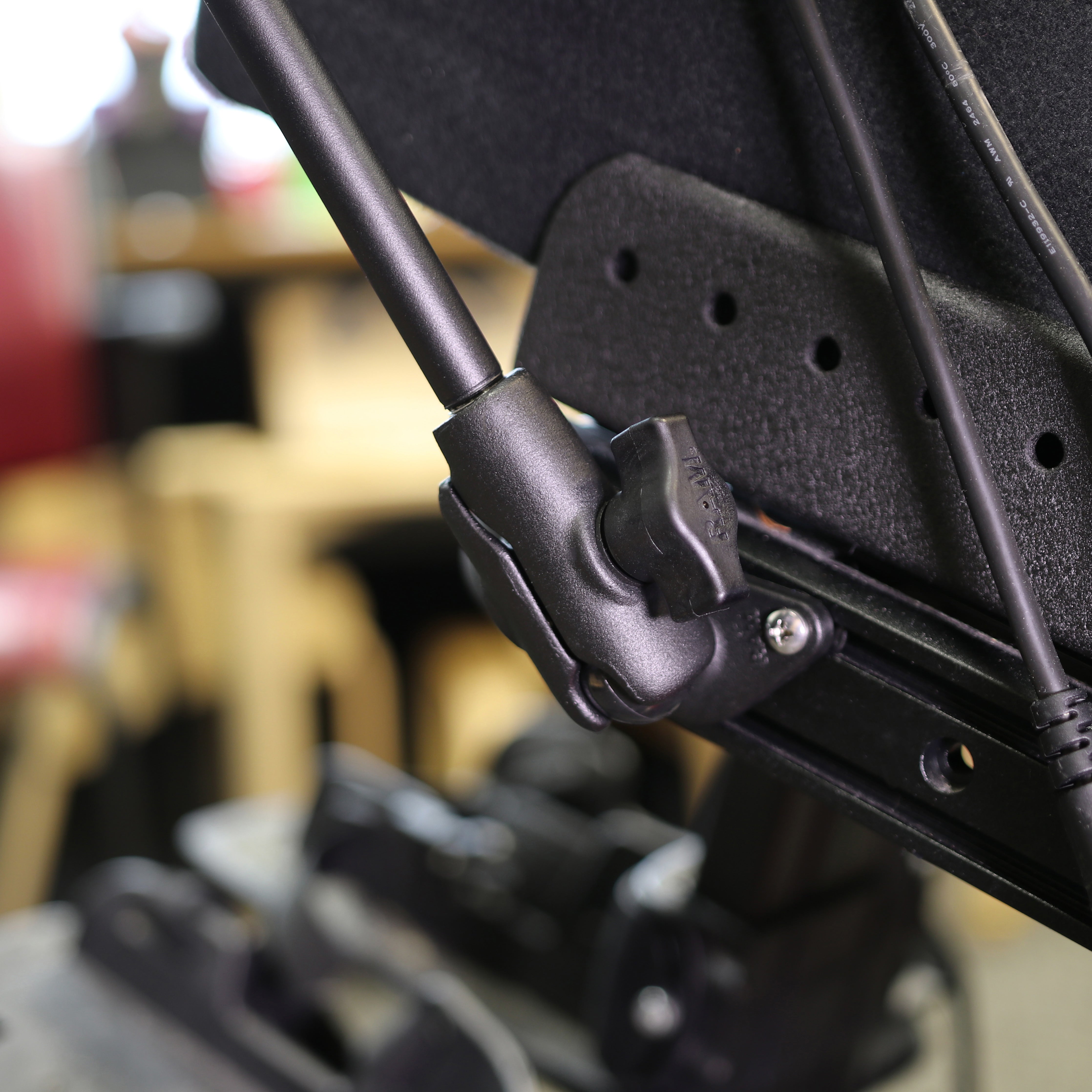

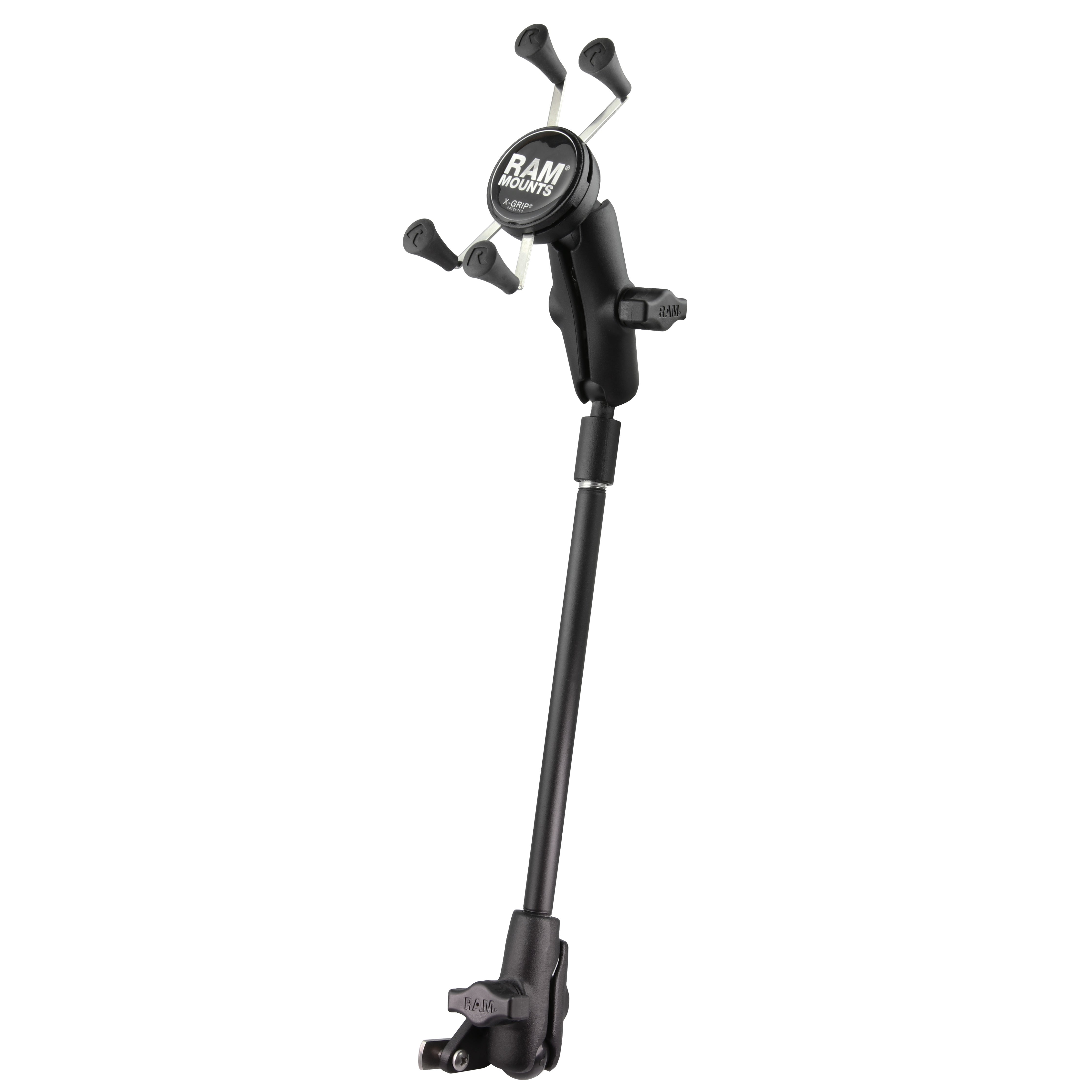

This kit includes a B size RAM diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, 22.86cm (9") pipe extension, and medium double socket arm, connect and adjust the RAM X-Grip universal phone holder to your ideal position. The popular, spring-loaded RAM X-Grip provides a perfect fit for a wide variety of phones.

Tags: AMPS 2-Hole, B Size 1" (Holds 2 lbs), Complete kits, Phone, RAM-B-238-WCT-9-UN7, Supports Device With Case, Wheelchair, Wheelchair - Seat Track

Information

Resources

Compatible Devices

Information

Product Weight

0.50 kg (1.10 lbs)

Hardware Included

(1) Optional Tether(1) Glue Tube for Rubber Caps(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 1.27cm (0.5") Machine Screws(2) M4 x 12mm Machine Screws(2)M4 x 20mm Machine Screws(2) M4 Stainless Steel Washers(2) M4 Nylock Nuts

Holder Dimensions

Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength compositeStainless steel
