The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Universal Wheelchair Track Base with Quick Release & Swivel Feature

SKU Copied

SKU: RAP-AAPR-WCT

UPC Copied

UPC: 793442015137







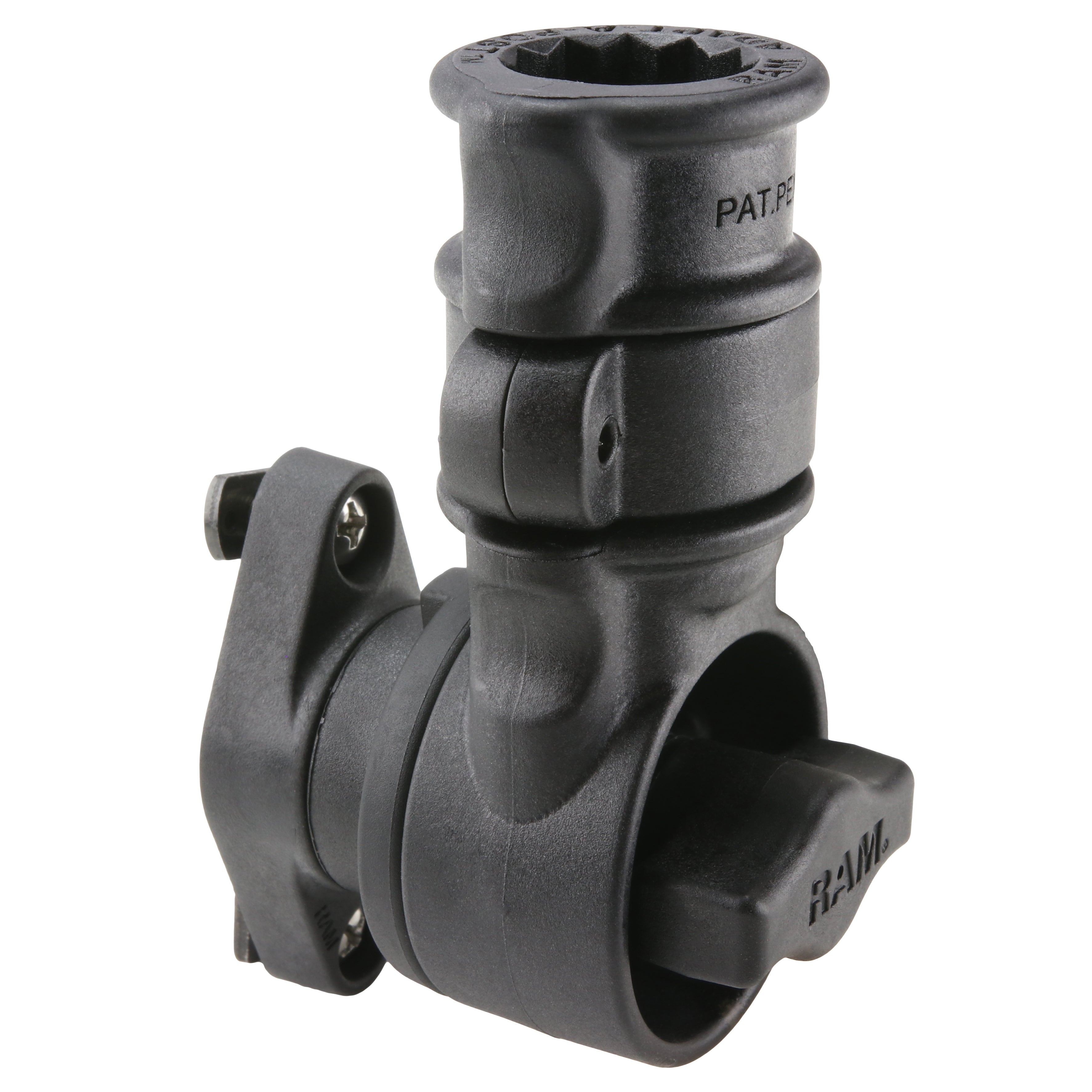

RAM® Universal Wheelchair Track Base with Quick Release & Swivel Feature

Copy SKU
RAP-AAPR-WCT SKU: RAP-AAPR-WCT

Copy UPC
793442015137 | UPC: 793442015137

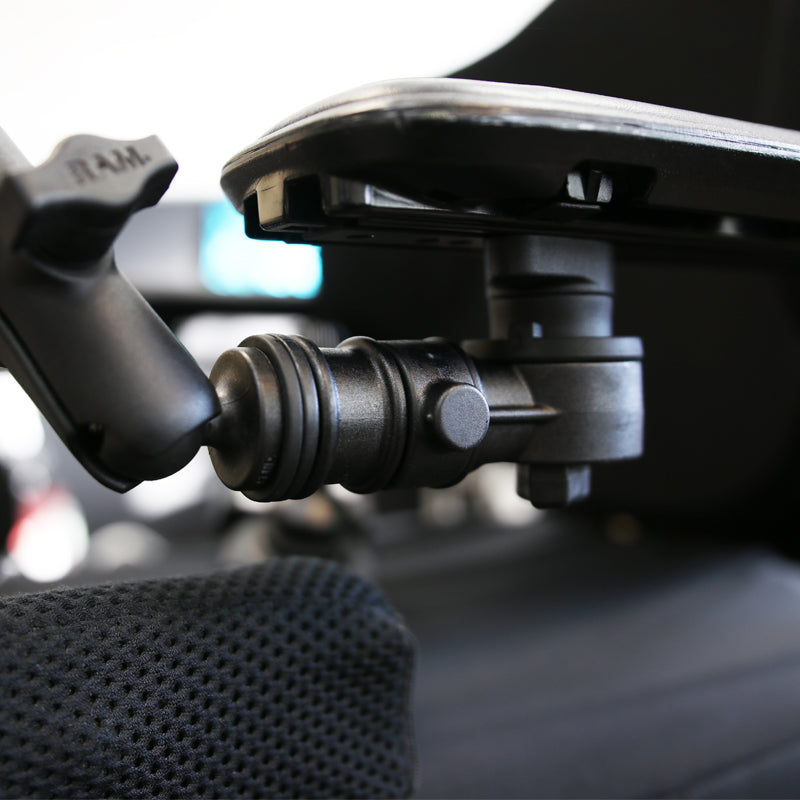

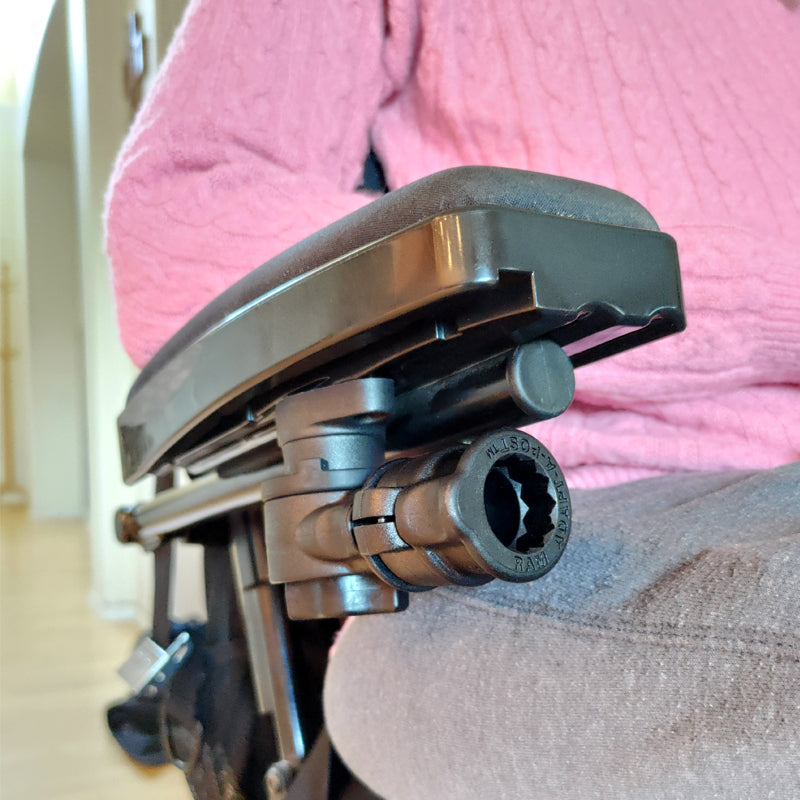

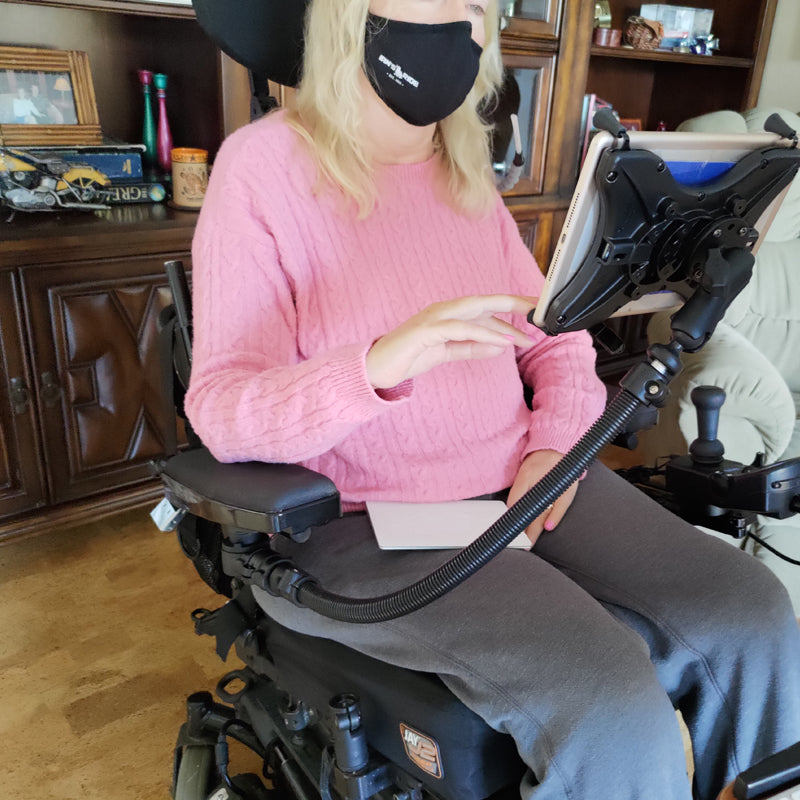

The RAM Universal Wheelchair Base is a feature-rich mounting platform supporting any phone, tablet or cup holder for any wheelchair armrest or seat track. With the turn of a single knob the user can swivel the entire mounting system in and out of position without having to adjust any other mounting components. A quick release button is integrated into the base which allows the user to easily remove or insert the mount from the chair; also a great option for swapping out one device mount for another. The compact design of the RAM Universal Wheelchair base keeps the mounting system within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM mounting components are backed by a lifetime warranty.

Features

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
Easy swivel and quick release capabilities without changing ball and socket positioning

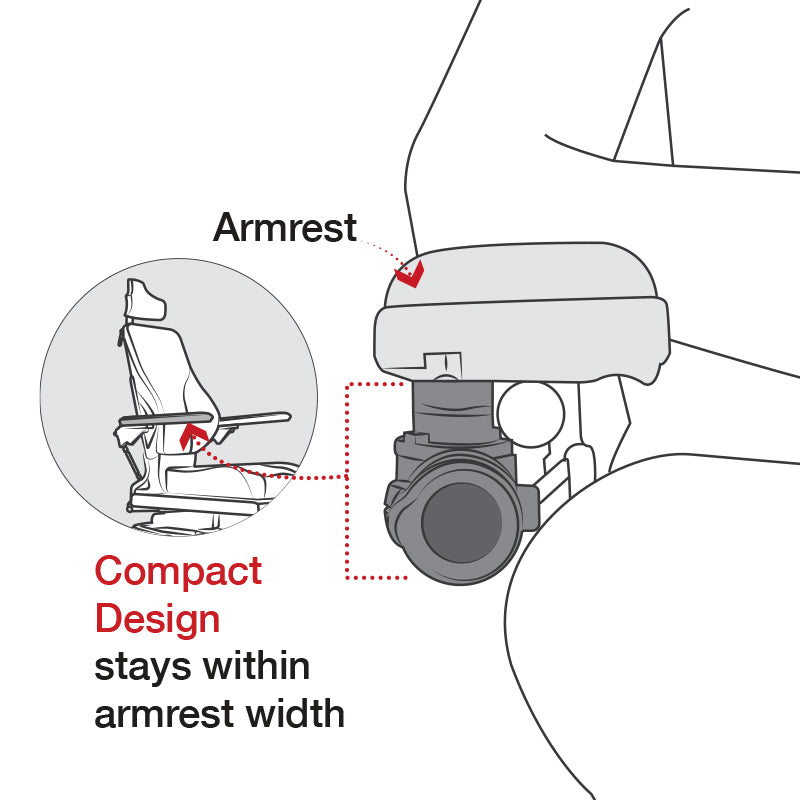

Compact design keeps mount within armrest width
Durable components support any phone or tablet mount with a short or long extension
Backed by a lifetime warranty

Tags: Adapt-A-Post™, AMPS 2-Hole, Armrest, Base, Components, Post/Spline, RAP-AAPR-WCT, Seat Track, Track, Wheelchair, Wheelchair - Armrest Track, Wheelchair - Seat Track

Information

Resources

Information

Product Weight

0.19 kg (0.42 lbs)

Hardware Included

(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 17.78 cm (7")/40.64 cm (16") Machine Screws(2) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws(2) #8-32 Nylock Nuts(2) #8 Washers

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Materials

High strength composite

Packaging Type

Retail Bag
