The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Rugged Quick Release Wheelchair 2-Point Base with Ball

SKU Copied

SKU: RAP-AAPR-WCT-2-30BU

UPC Copied

UPC: 793442015601

Ram Rugged Quick Release Wheelchair 2 Point Base With Ball Assembly Instructions

Ram Mounts Launches New User Inspired Kit For Wheelchairs







RAM® Rugged Quick Release Wheelchair 2-Point Base with Ball

Copy SKU
RAP-AAPR-WCT-2-30BU SKU: RAP-AAPR-WCT-2-30BU

Copy UPC
793442015601 | UPC: 793442015601

B SIZE

Size Guide

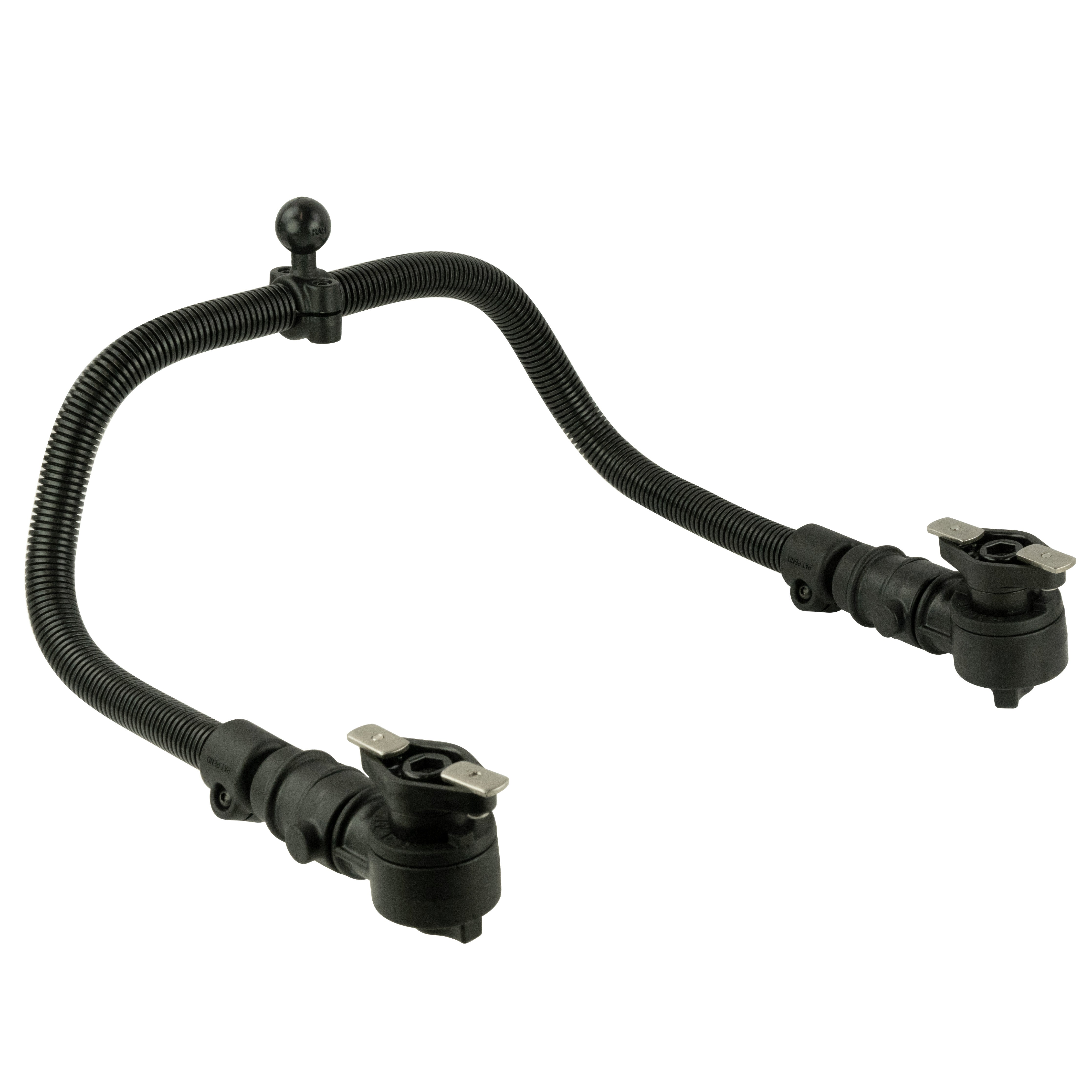

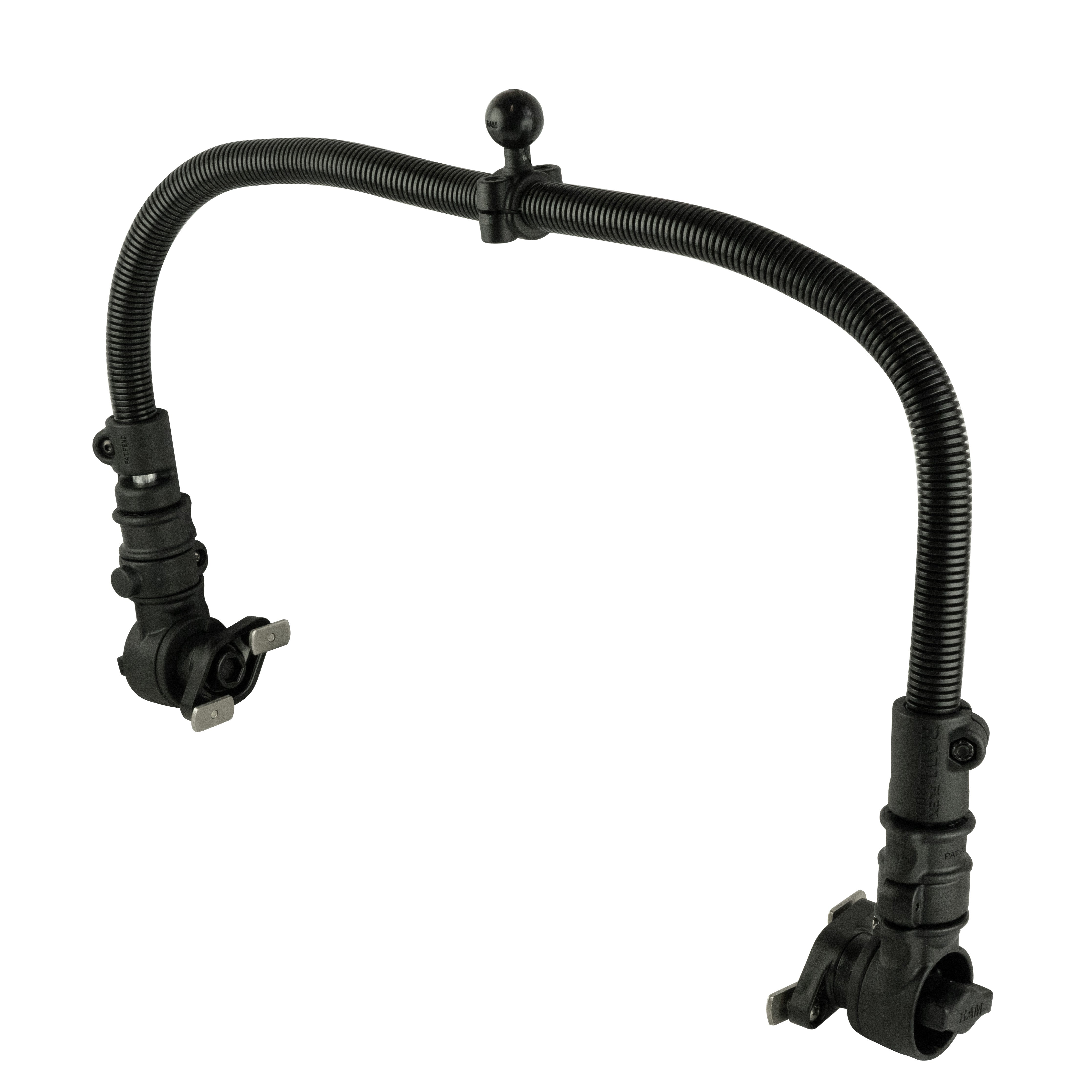

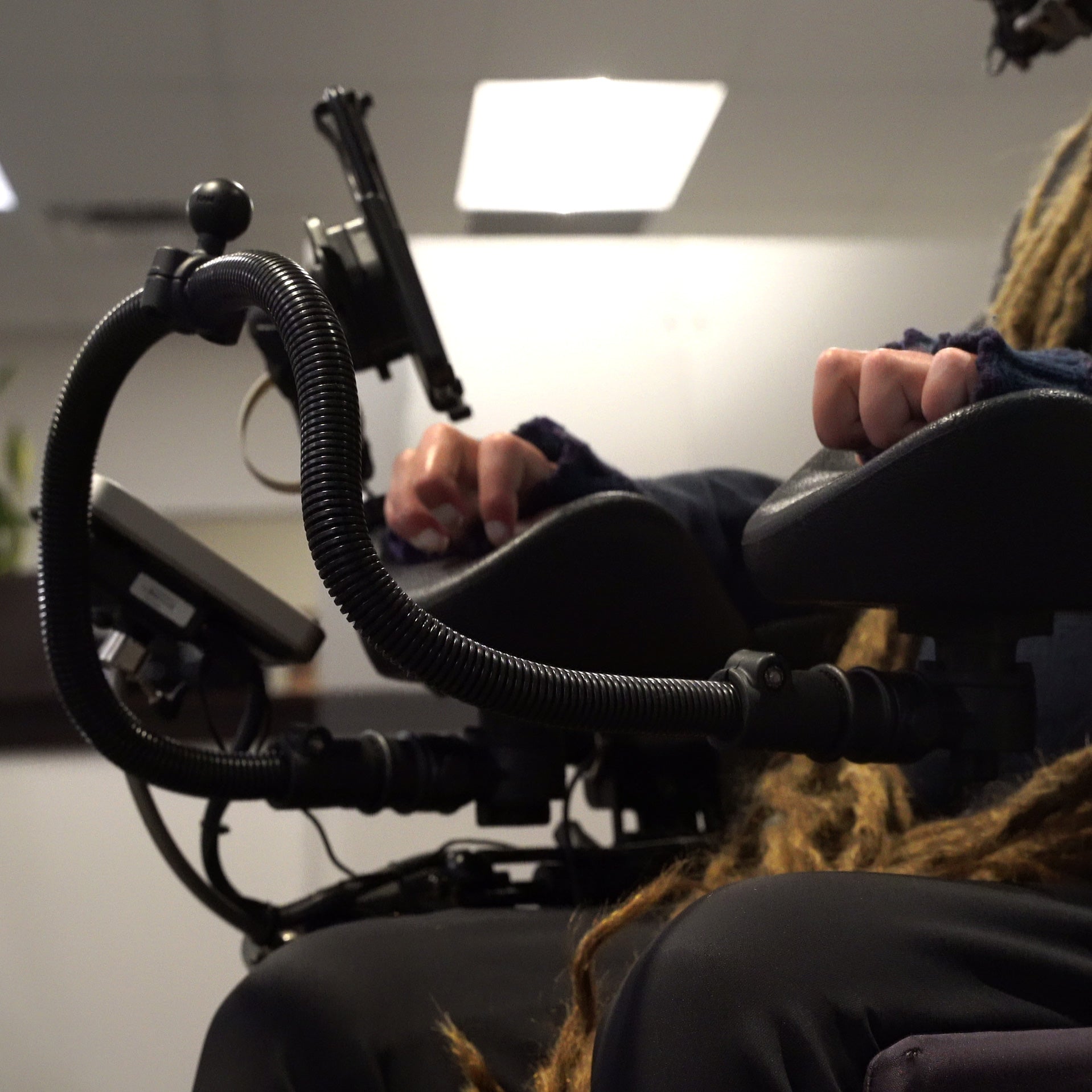

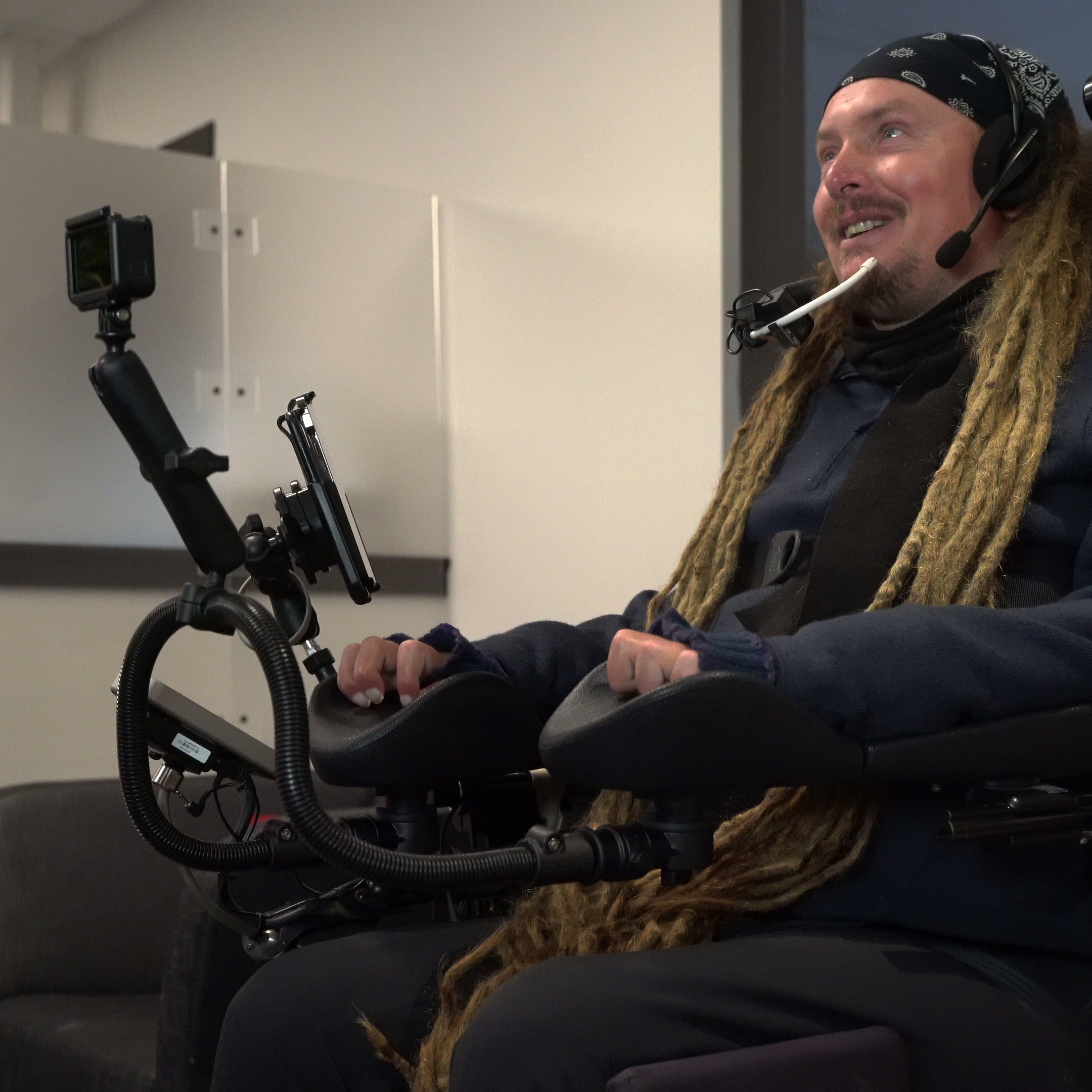

The RAM Rugged Quick Release Wheelchair 2-Point Base with Ball is the first product in our new collection of User-Inspired Kits. Developed in collaboration with Ian Mackay, Guinness World Record holder and longtime friend to RAM, this ultra-stable mounting system includes two RAM Adapt-A-Post receivers and a 76.20cm (30") flex rod that connects to either both of the wheelchair's armrests or seat tracks and can then be configured to any position. When connected, both ends of the 76.20cm (30") rod braces the arm rests, keep the entire mount stable and ultra-rugged for on-the-go use, all while offering an intuitive, quick-disconnect feature. Whether you want to mount a single tablet front and center or a combination of devices, this is the ideal solution for convenient viewing.

Features

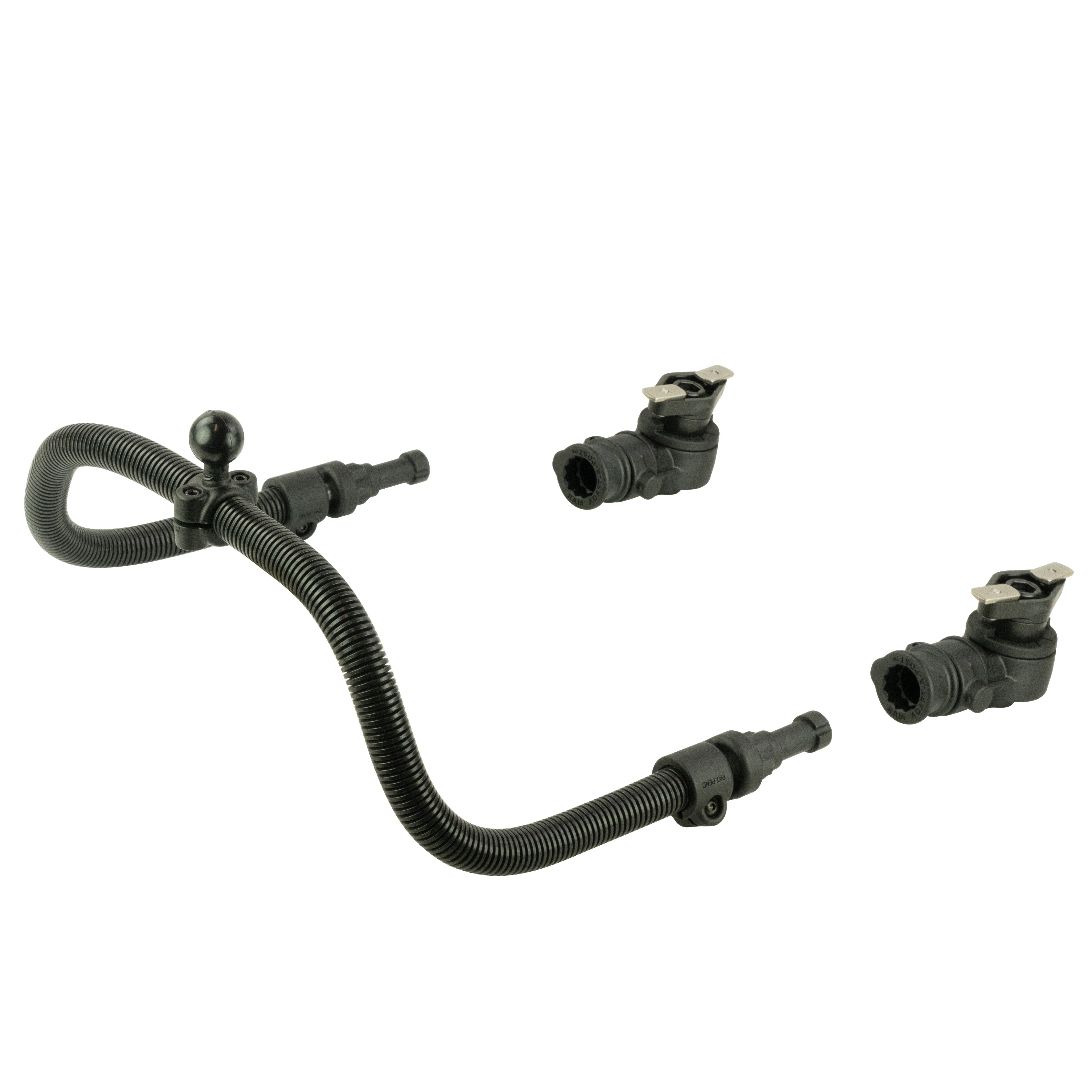

Ultra-stable mounting system that can be easily disconnected and swapped with other mounting components with the simple push of a button

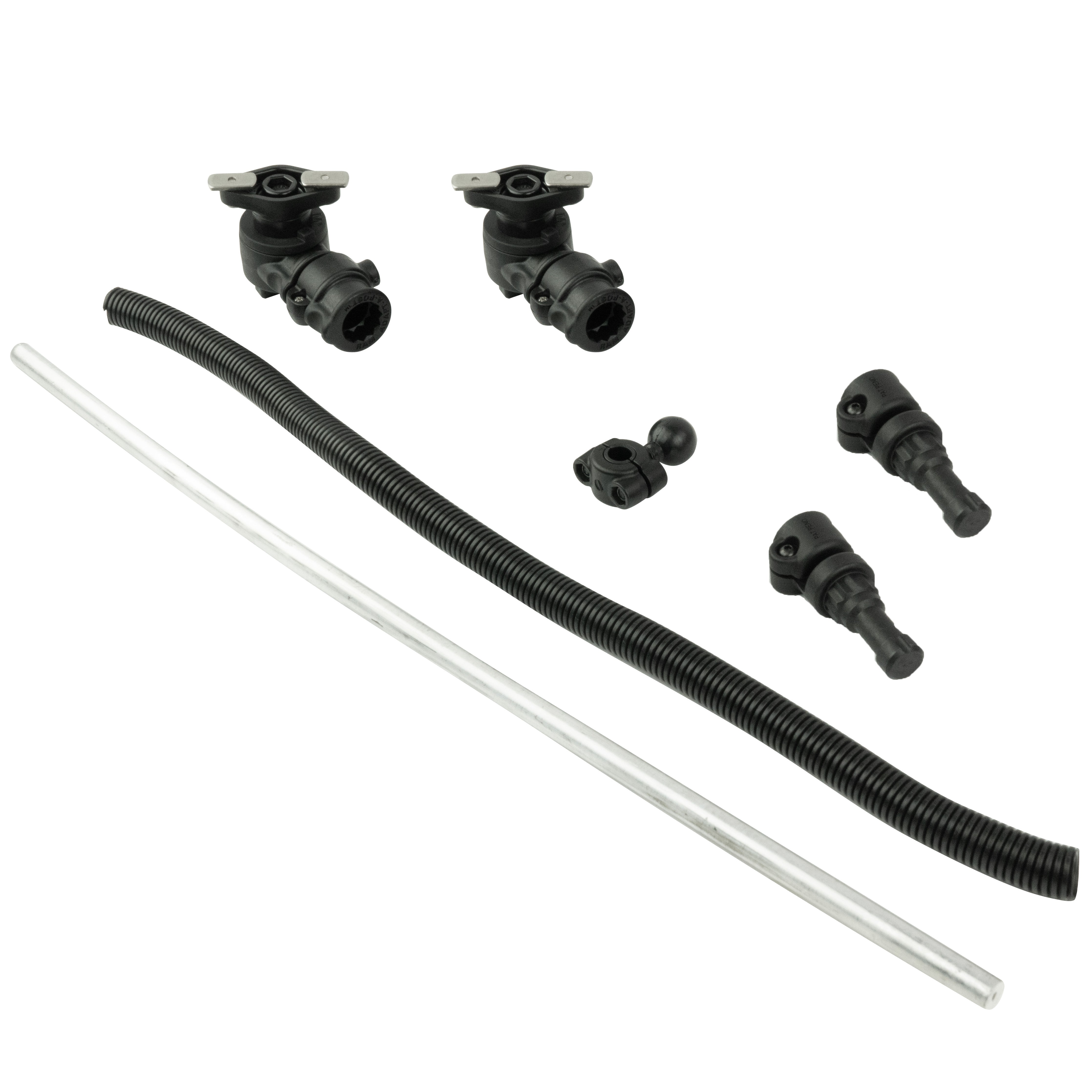

Two RAM® Adapt-A-Post™ receivers connect to either both wheelchair armrests or both seat tracks; 76.20cm (30") flex rod can be configured to any desirable position, with posts to click into both receivers

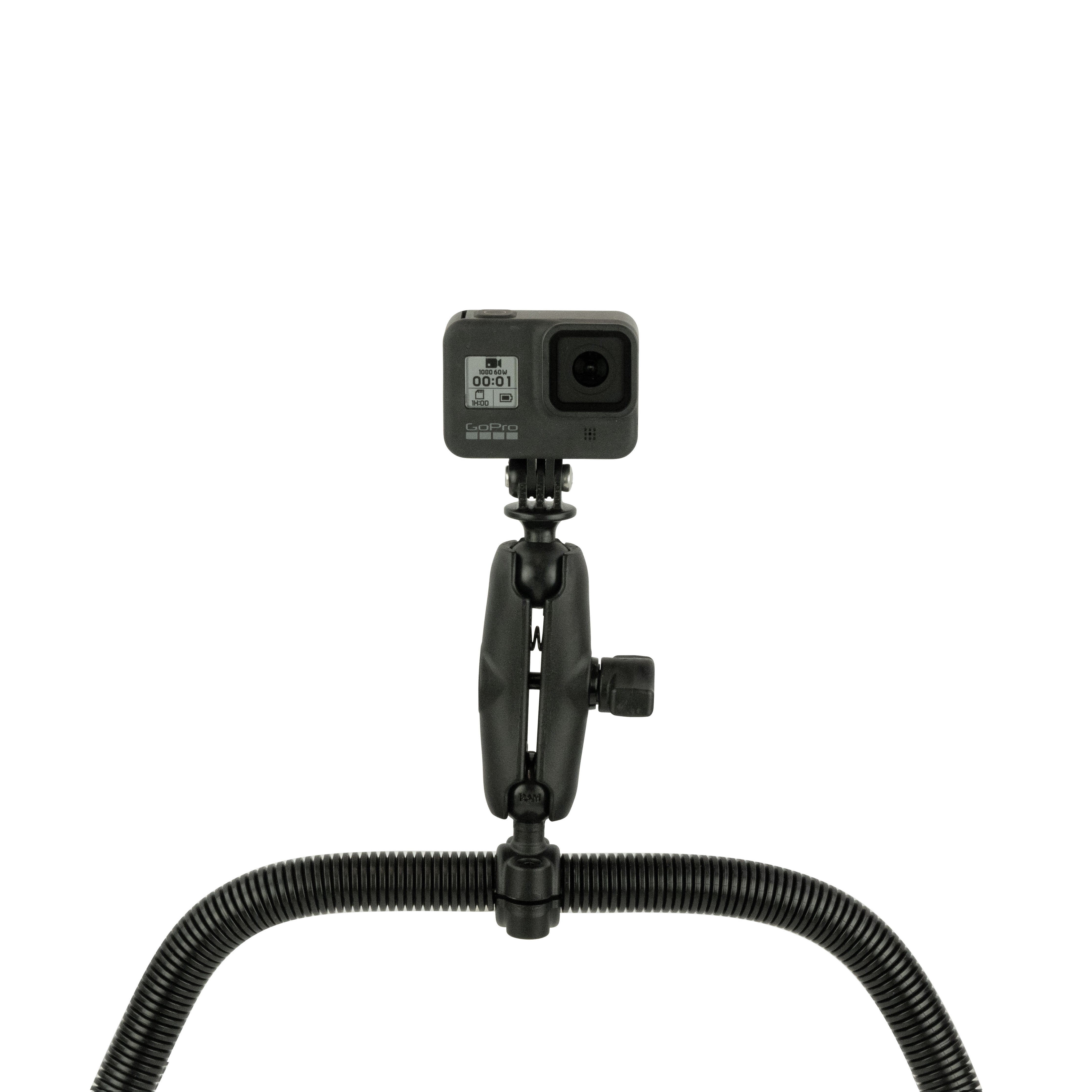

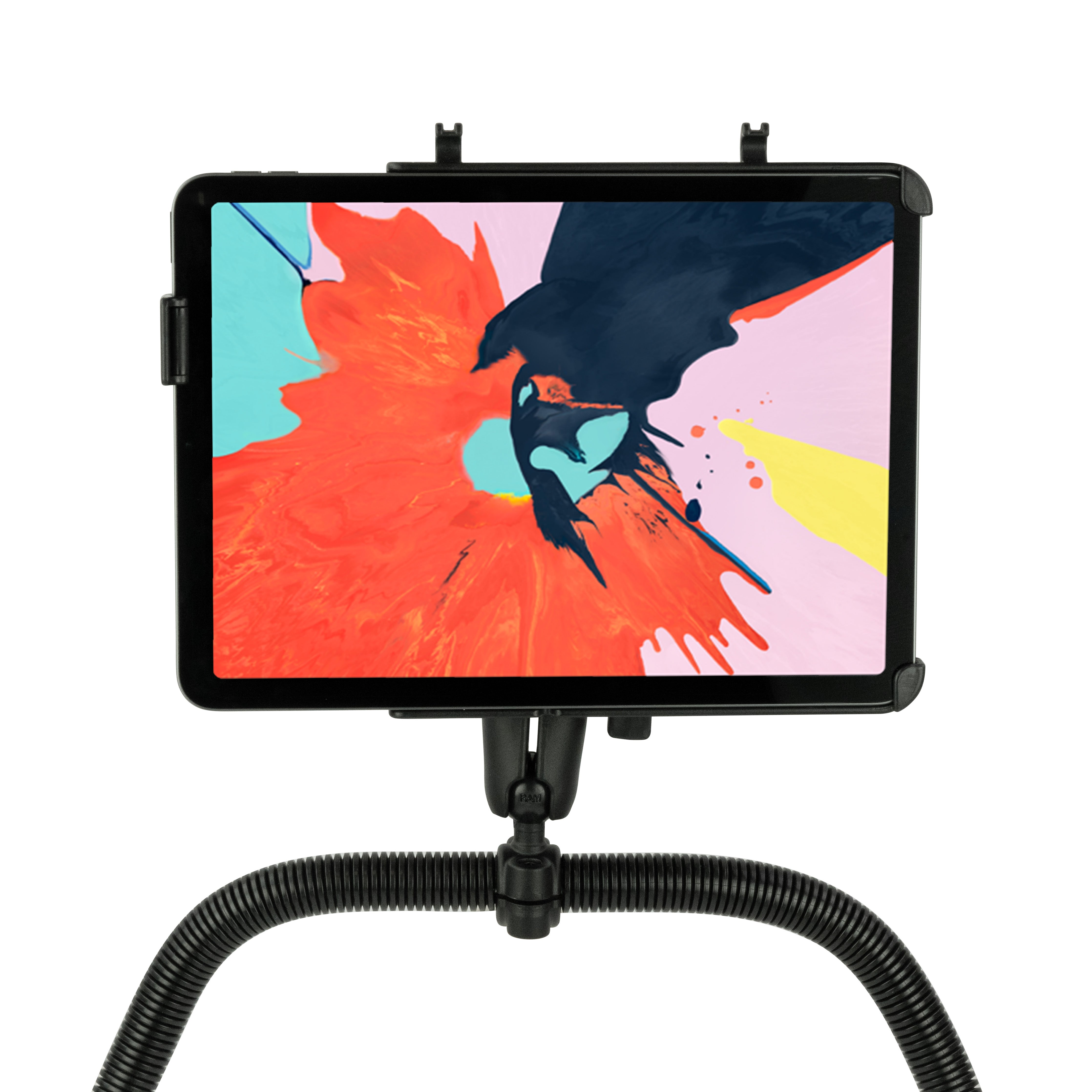

Ideal for steady camera mounting and positioning tablets front & center for convenient viewing; included RAM® Torque™ Base can be positioned anywhere along the rod to support any ball & socket mounting system for phones, cameras, tablets, and more
Backed by a lifetime warranty

Tags: 30", Adapt-A-Post™, AMPS 2-Hole, Armrest, B Size 1" (Holds 2 lbs), Ball, Base, Components, Flex-Rod™, RAP-AAPR-WCT-2-30BU, Seat Track, Torque™, Track, Wheelchair, Wheelchair - Armrest Track, Wheelchair - Seat Track

Information

Resources

Information

Product Weight

0.74 kg (1.63 lbs)

Hardware Included

(4) #10-32 T-Nuts(4) #10-32 Flat Weld Nuts(4) #10-32 x 17.78 cm (7")/40.64 cm (16") Machine Screws(4) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws(4) #8-32 Nylock Nuts(4) #8 Washers

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite

Packaging Type

Poly Bag
