Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Track Ball™ Mount for Garmin Striker + More

SKU Copied

SKU: RAM-B-202-G4-TRA1U

UPC Copied

UPC: 793442310126







RAM® Track Ball™ Mount for Garmin Striker + More

Copy SKU
RAM-B-202-G4-TRA1U SKU: RAM-B-202-G4-TRA1U

Copy UPC
793442310126 | UPC: 793442310126

B SIZE

MEDIUM ARM

Size Guide

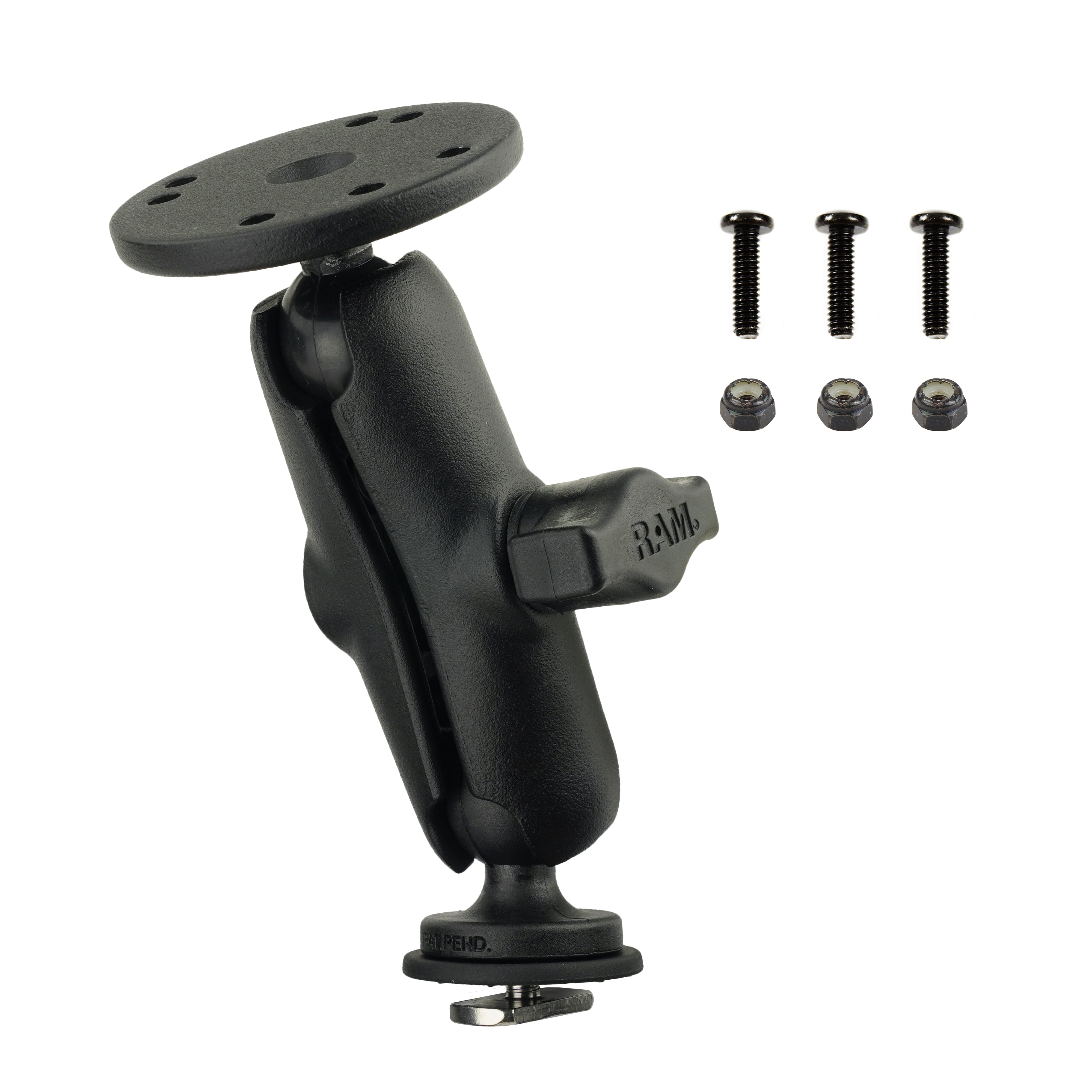

This RAM Track Ball bundle includes the RAM Track Ball, the RAM Double Socket B Size Arm, and the RAM Round Plate with Ball & Mounting Hardware for Garmin Striker and other fishfinder models. The RAM Track Ball consists of a B size 2.54cm (1") rubber ball molded to a high-strength composite base, a rubber friction washer, and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the RAM Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. The included, RAM-B-201U consists of a medium length double socket arm that accommodates 2.54cm (1") B size ball bases, device holders, and adapters. The easy-to-adjust knob allows for near-infinite adjustability for your connected device. The RAM-B-202-G4U consists of a 2.54cm (1") diameter rubber ball connected to a flat 6.35cm (2.5") diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern. Included are 3x (#8-32 x 5/8 PH PD Mach Screws) and 3x (#8-32 SS Nylock Nuts) that will connect the RAM-202-G4U to the bottom of the Garmin echo and Striker 4 Series.

Features

Designed for track mounting systems including the RAM® Tough-Track™; includes 2.54cm (1") B size rubber ball
Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
Standard RAM® double socket arm provides an ideal overall length of 9.47cm (3.73") and a socket-to-socket length of 7.62cm (3")
Made of high-strength composite and steel components for durability and reliability in the most demanding environments
Backed by a lifetime warranty
