The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

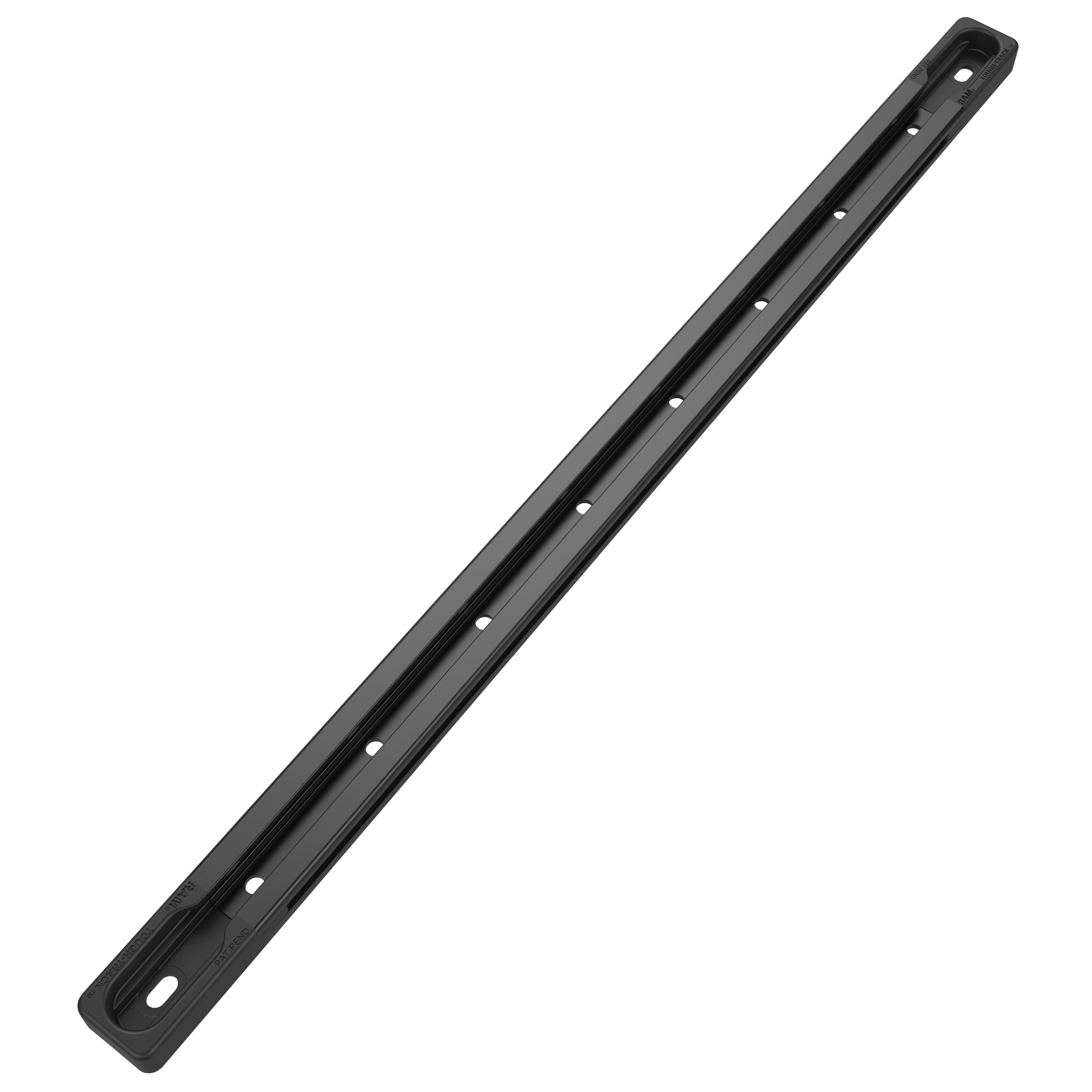

13" Modular Aluminum Black RAM® Tough-Track™

SKU Copied
SKU: RAM-TRACK-EXA-13BU
UPC Copied
UPC: 793442009143

13" Modular Aluminum Black RAM® Tough-Track™
Copy SKU
SKU: RAM-TRACK-EXA-13BU
Copy UPC
| UPC: 793442009143

With the RAM Tough-Track, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks, and more. The black anodized aluminum version of the RAM Tough-Track can be drilled to any flat surface and is designed for use with #8 screws for easy installation hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminum provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-13BU features 13 of usable track length (aluminum portion), while the included top-loading end caps add about 1.5 in length to each end (3 of additional length). Using the end caps allows for two installation options: either use both top-loading end caps to create insertion points on both ends of the track, or use one top-loading end cap and close the opposite end with the included flush end cap. This RAM Tough-Track is compatible with the RAM Center Loader and 90 Degree Connector, as well as a wide variety of RAM track bases to attach devices like action cameras, fishing rods, phones, and tablets.

Features
  • 33.02cm (13") of usable aluminum track for track mounts: overall length of 40.64cm (16")
  • RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included
  • Modular top-loading end caps allow for additional track extensions and 90-degree connectors
  • Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.16 kg (0.36 lbs)
Product Dimensions
Overall Length: 40.64cm (16") Overall Width: 2.29cm (0.9") Track Thickness: 1.09cm (0.43") Inside Track Length: 33.02cm (13")
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
