The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Wheelchair Arm Mount for Xbox Adaptive Controller

SKU Copied
SKU: RAM-238-WCT-2-MS2
UPC Copied
UPC: 793442007217

RAM® Wheelchair Arm Mount for Xbox Adaptive Controller
Copy SKU
SKU: RAM-238-WCT-2-MS2
Copy UPC
| UPC: 793442007217

C SIZE
Size Guide

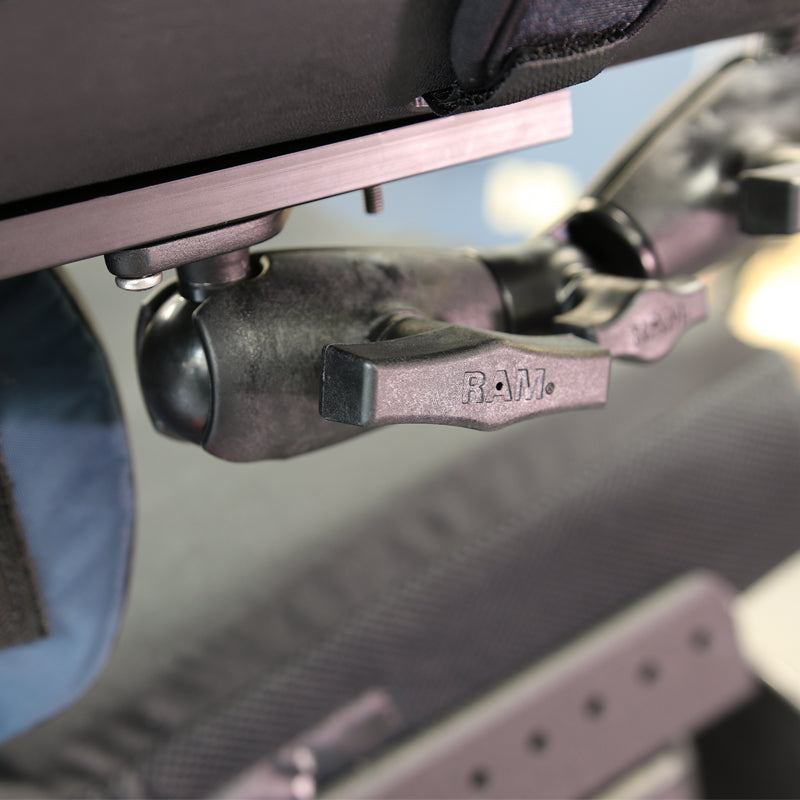

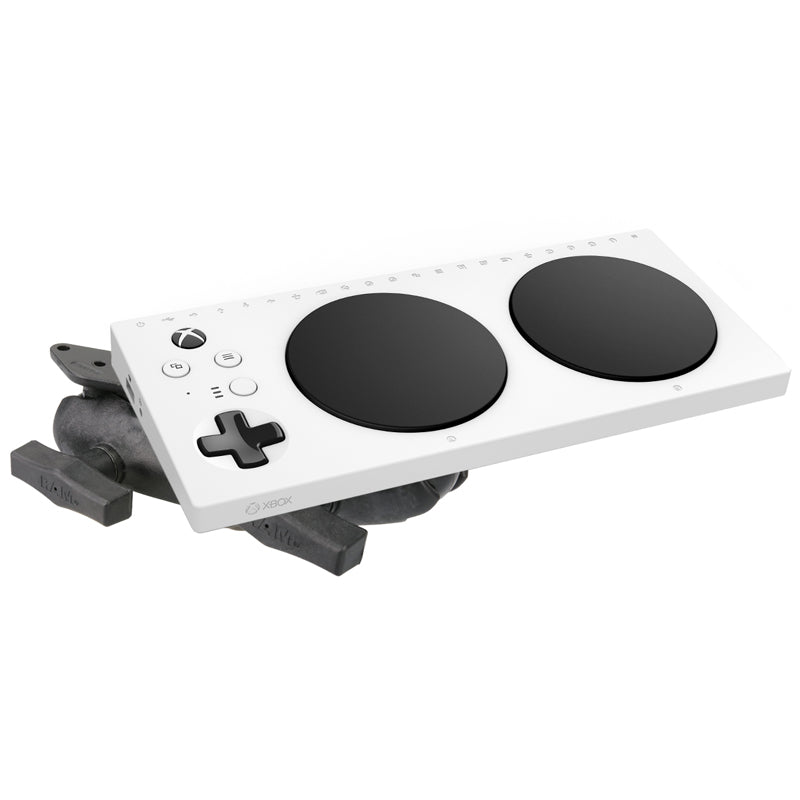

Attach this wheelchair arm track mount directly to your wheelchairs arm track system to enable use of the Microsoft Xbox Adaptive Controller. The controller attaches to the included RAM diamond base adapter with 1.5 ball and double socket swivel arm, allowing for a 90-degree tilt so you can angle the adaptive controller exactly where you need it. On the opposite end of the arm, another diamond base adapter with 1.5 ball attaches to most wheelchair arm track systems including Invacare, Permobil, and Quickie, as well as any other universal mounting point with the included universal hardware pack. When you're not using the Xbox Adaptive Controller, swap it out with any compatible RAM 1.5 ball base, such as the RAM X-Grip cradle for phones and tablets. This inclusive gaming kit includes hardware and a hex wrench for mounting an Xbox Adaptive Controller.

Information

Resources

Compatible Devices

Information

Product Weight
0.48 kg (1.05 lbs)
Hardware Included
(2) #10-24 x 1.27cm (0.5") Machine Screws(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 1.27cm (0.5") Machine Screws(2) M4 x 12mm Machine Screws(2)M4 x 20mm Machine Screws(2) M4 Stainless Steel Washers(2) M4 Nylock Nuts
T Bolt Dimensions
Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")
Socket To Socket Length
18.19cm (7.16")
Hole Pattern
2-Hole AMPS 4.86cm (1.912") (both plates)
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Retail Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-238-MS2
RAM® Ball Adapter for Xbox Adaptive Controller
RAM Mounts
Copy SKU
RAM-238-WCT
RAM® Universal Wheelchair Ball Base - C Size
RAM Mounts
Copy SKU
RAP-200-2U
RAM® Double Socket Swivel & Ratchet Arm - C Size
