Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series

SKU Copied

SKU: RAP-B-202-LO11-354-TRA1U

UPC Copied

UPC: 793442955143







RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series

Copy SKU
RAP-B-202-LO11-354-TRA1U SKU: RAP-B-202-LO11-354-TRA1U

Copy UPC
793442955143 | UPC: 793442955143

B SIZE

MEDIUM ARM

Size Guide

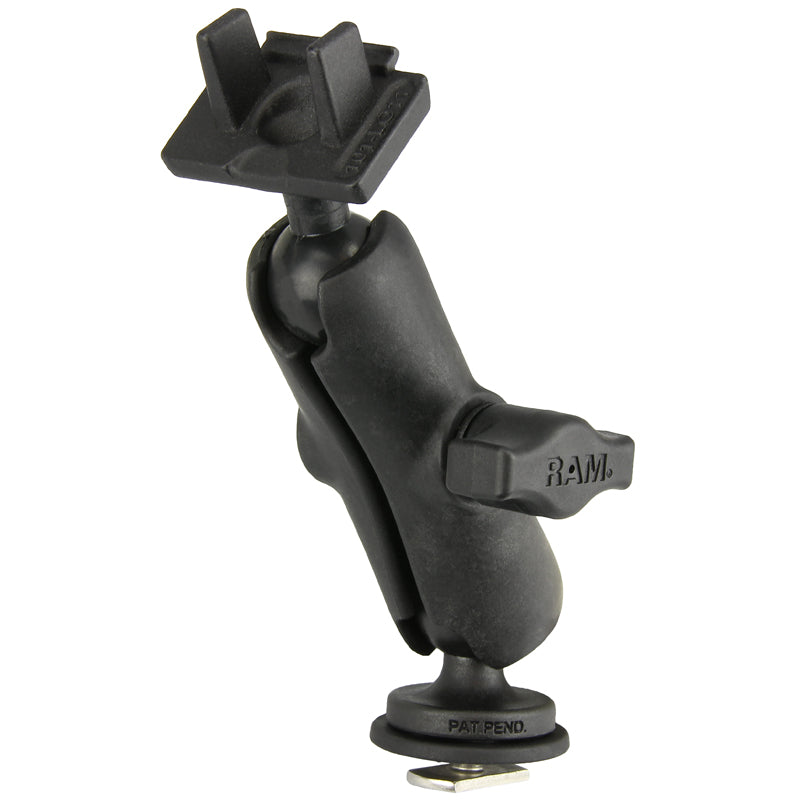

The RAP-B-202-LO11-354-TRA1U consists of a Track Ball base, composite double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook 4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. A key feature of the mount is a 2.54cm (1") diameter rubber ball and socket system with adjustment points at both socket ends of the arm. Combined with RAM's rubber ball and socket technology, this allows for high adjustibility to achieve perfect viewing angles. Compatible with virtually any track system including the RAM Tough-Track.
