World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Tablet Mount for Wheelchairs with Quick Release & Swivel Feature

SKU Copied

SKU: RAP-AAPR-WCT-114P-18-UN9U

UPC Copied

UPC: 793442015175







RAM® Tablet Mount for Wheelchairs with Quick Release & Swivel Feature

Copy SKU
RAP-AAPR-WCT-114P-18-UN9U SKU: RAP-AAPR-WCT-114P-18-UN9U

Copy UPC
793442015175 | UPC: 793442015175

B SIZE

Size Guide

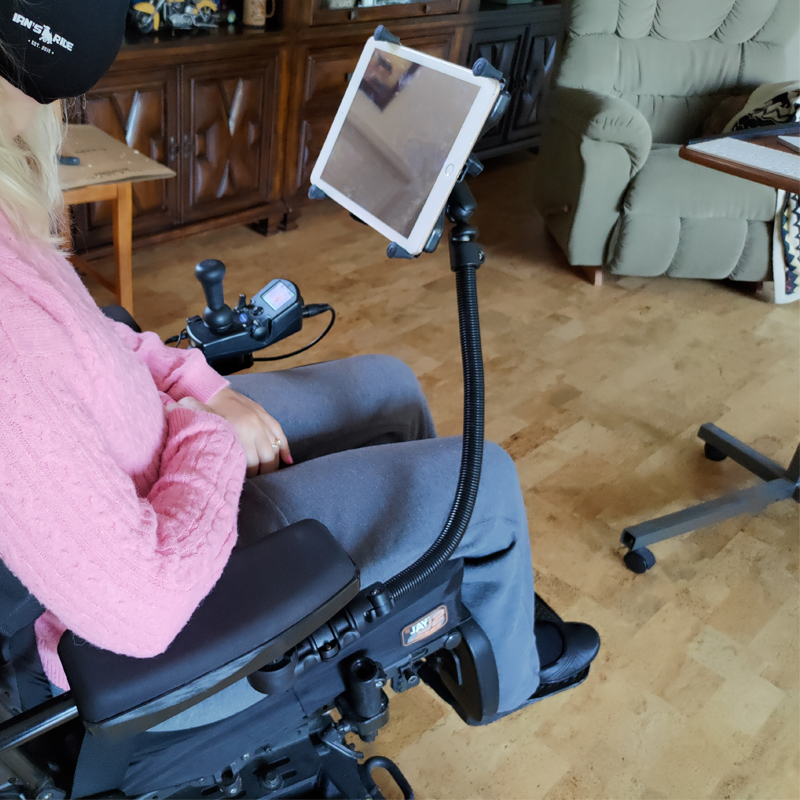

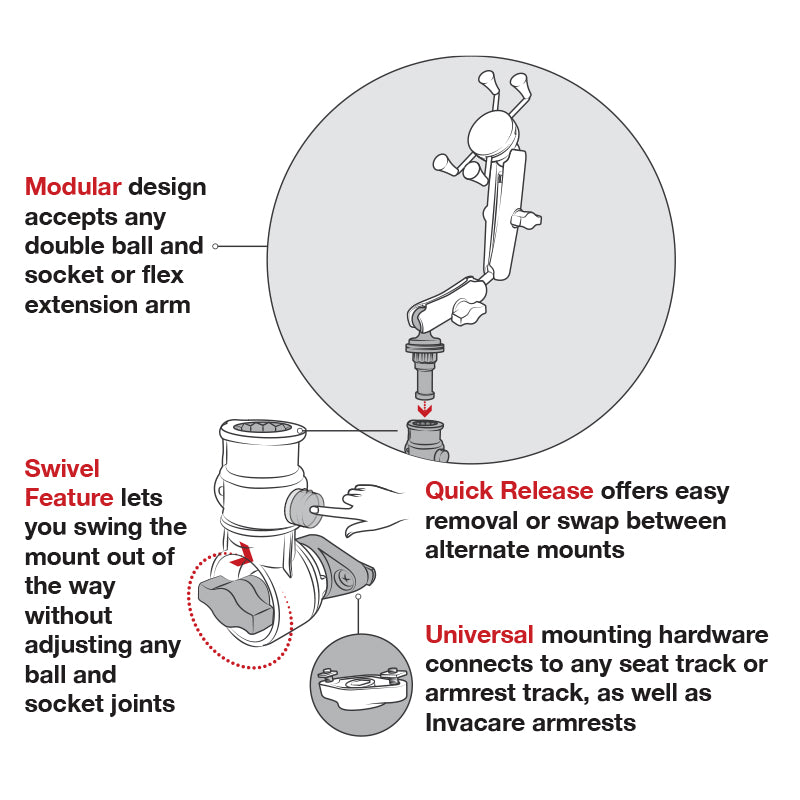

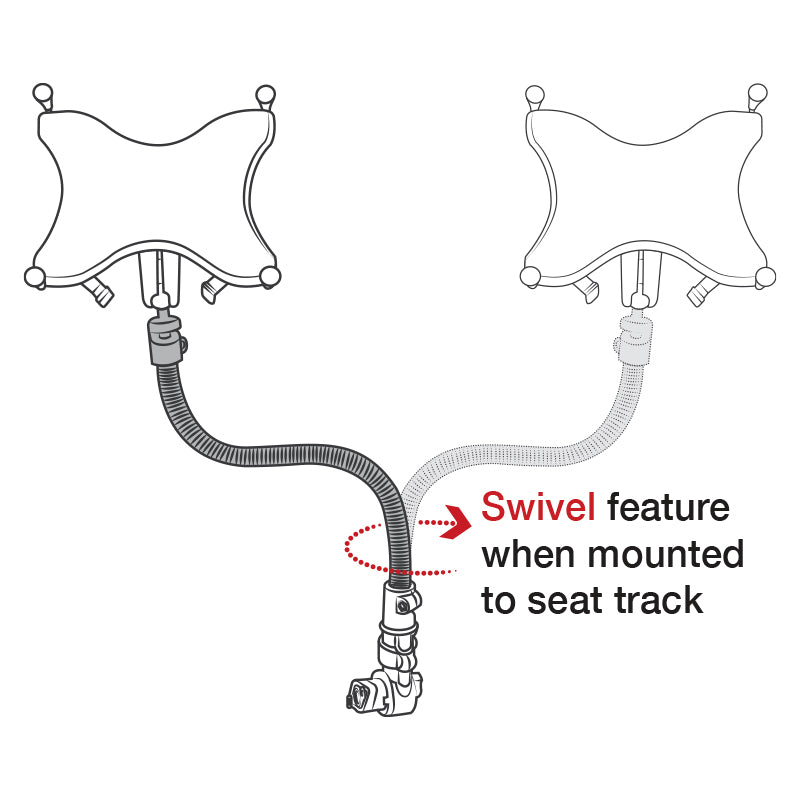

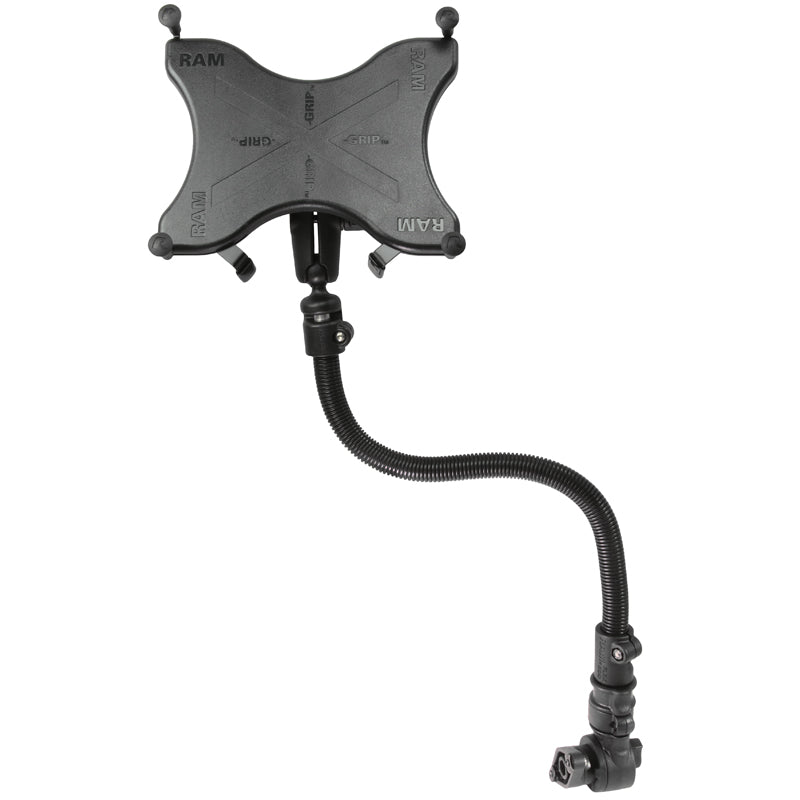

The RAM Tablet Mount with Quick Release & Swivel is the perfect solution for mounting virtually any 22.86cm (9") -27.94cm (11") tablet to any wheelchair armrest track, Invacare armrest, or wheelchair seat track. The system consists of the RAM X-Grip tablet holder, B size double socket arm, an 45.72cm (18") long rigid aluminum rod with post adapter, and the RAM Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. When mounted to a seat track, the aluminum rod can be left loose to achieve the same swivel feature. The compact design of the RAM Universal Wheelchair mounting system stays within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM mounting components are backed by a lifetime warranty.

Features

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

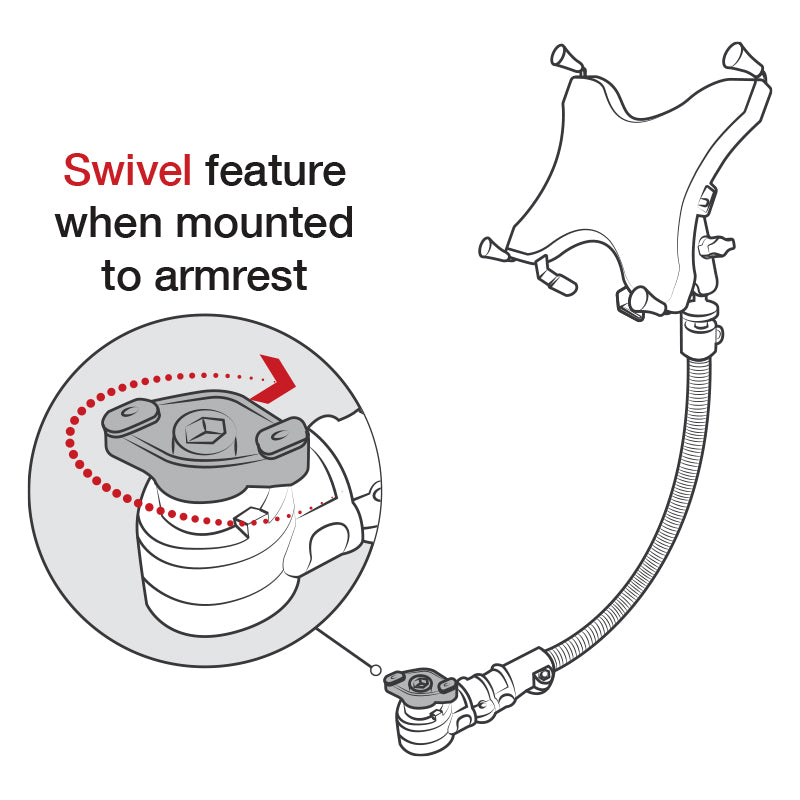

Easy swivel and quick release capabilities without changing ball and socket positioning
Compact design keeps mount within armrest width
Supports most any 22.86cm (9") - 26.67cm (10.5") tablet with or without a case at virtually any angle
Backed by a lifetime warranty

Tags: Adapt-A-Post™, Amazon, Apple, ASUS, B Size 1" (Holds 2 lbs), Complete kits, Fire HD 10, Galaxy Book 10.6, Galaxy Tab A 10.5, Galaxy Tab A8 10.5, Galaxy Tab A9 Plus, Galaxy Tab Active Pro, Galaxy Tab Active4 Pro, Galaxy Tab S10 Plus, Galaxy Tab S2 9.7, Galaxy Tab S3 9.7, Galaxy Tab S4 10.5", Galaxy Tab S5e, Galaxy Tab S6, Galaxy Tab S7 11", Galaxy Tab S7 FE, Galaxy Tab S7 Plus 12.4", Galaxy Tab S8, Galaxy Tab S8 Plus, Galaxy Tab S9, Galaxy Tab S9 FE, Galaxy Tab S9 FE Plus, Galaxy Tab S9 Plus, Huawei, iPad (10th Gen), iPad (3rd Gen), iPad (4th Gen), iPad (5th Gen), iPad (6th Gen), iPad (7th Gen), iPad (8th Gen), iPad (9th Gen), iPad Air, iPad Air 11 (M2), iPad Air 2, iPad Air 3, iPad Air 4, iPad Air 5, iPad Pro 11 (1st Gen), iPad Pro 11 (2nd Gen), iPad Pro 11 (3rd Gen), iPad Pro 11 (4th Gen), iPad Pro 11 (M4), Lenovo, MediaPad M3 Lite 10, MediaPad T3 10, Microsoft, Miix 720, Nokia, RAP-AAPR-WCT-114P-18-UN9U, RHINO T100, Samsung, Seat Track, Social Mobile, Supports Device With Case, Surface Go, Surface Go 2, T21, Tab 4 10, Tab 4 10 Plus, Tab K11, Tab P12 Pro, Tablet, Track, Wheelchair, Wheelchair - Seat Track, ZenPad 10, ZenPad 3S 10, ZenPad Z10

Information

Resources

Compatible Devices

Information

Product Weight

1.25 kg (2.75 lbs)

Hardware Included

Assembly Hardware(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 17.78 cm (7")/40.64 cm (16") Machine Screws(2) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws(2) #8-32 Nylock Nuts(2) #8 Washers

Holder Dimensions

Max Height: 26.04cm (10.25") (using optional supports)Width Range: 15.88cm (6.25") - 20.57cm (8.1") Max Depth: 2.22cm (0.875")

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite
