World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Track Ball™ Mount for Lowrance Eagle 4 & 5, Hook² & Reveal Series

SKU Copied
SKU: RAM-B-LO12-354-TRA1
UPC Copied
UPC: 793442006647

RAM® Track Ball™ Mount for Lowrance Eagle 4 & 5, Hook² & Reveal Series
Copy SKU
SKU: RAM-B-LO12-354-TRA1
Copy UPC
| UPC: 793442006647

B SIZE
MEDIUM ARM
Size Guide

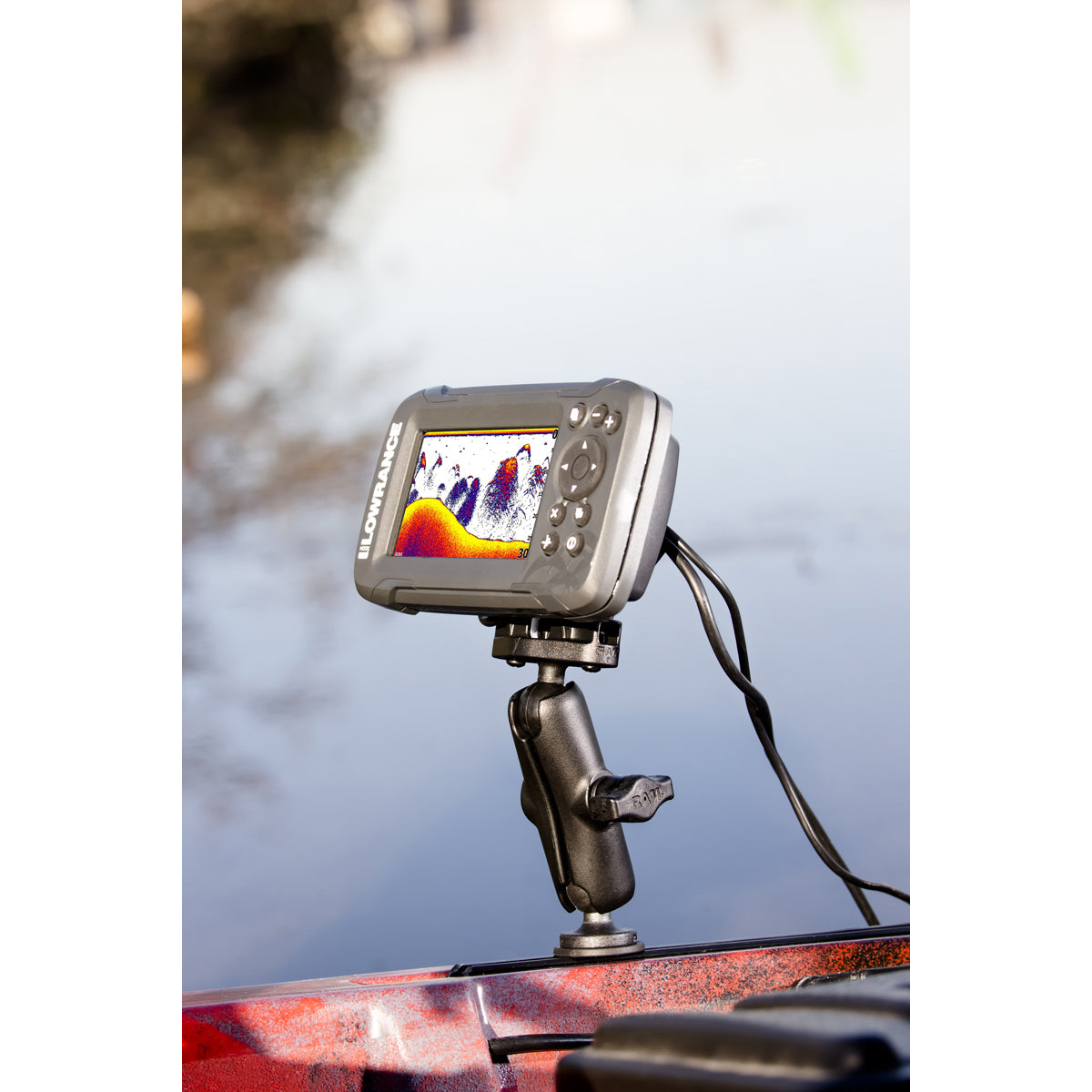

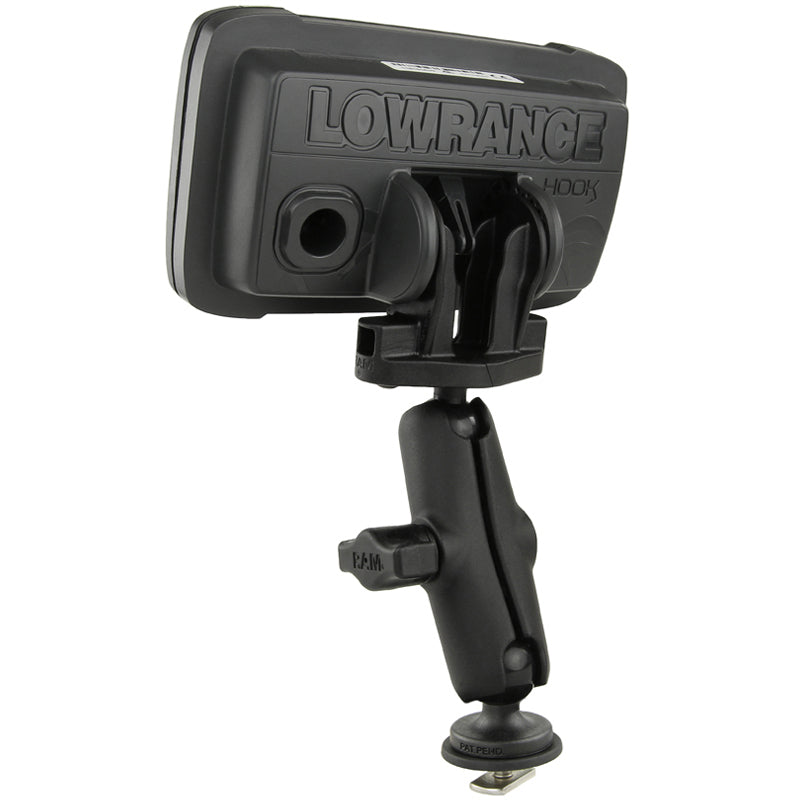

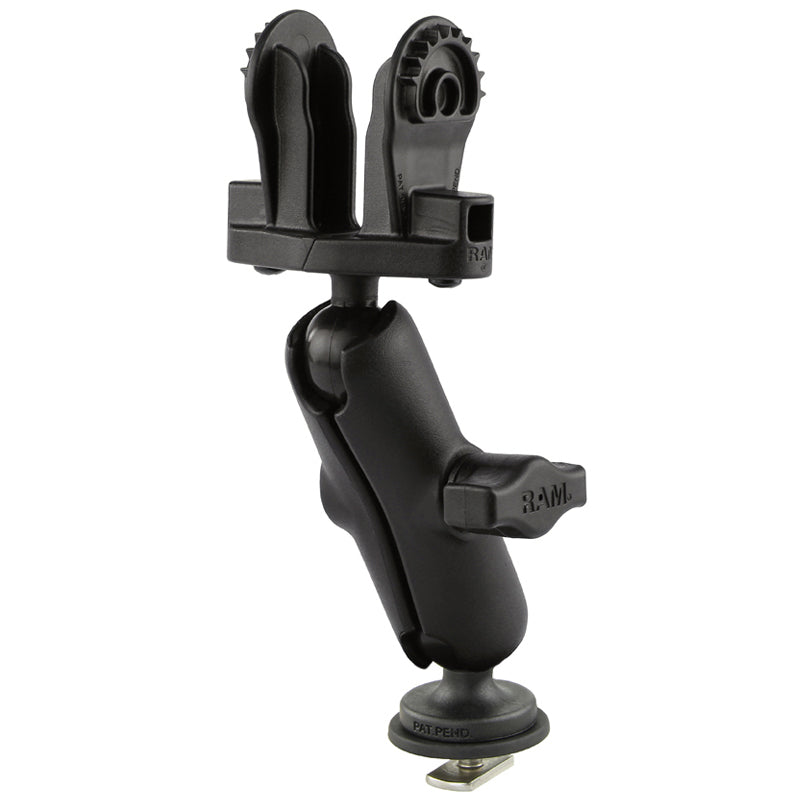

Designed for light duty fresh water use, this B size (1) Track Ball kit for the Lowrance Eagle 4 & 5 and Hook allows users to swap out the factory mounting solution with a RAM Mounts solution. Simply attach the included adapter to the Lowrance Eagle 4 & 5 and Hook and you're ready to connect the double socket arm and base to virtually any track system including the RAM Tough-Track. Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Hook secure and stable in rugged environments on your kayak or inflatable.

Information

Resources

Compatible Devices

Information

Product Weight
0.25 kg (0.56 lbs)
Hardware Included
Assembly Hardware(1) Friction Washer(1) 1/4" -20 x 17.78 cm (7")/20.32 cm (8") T-Bolt
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Retail Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201U
RAM® Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAM-B-202-LO12

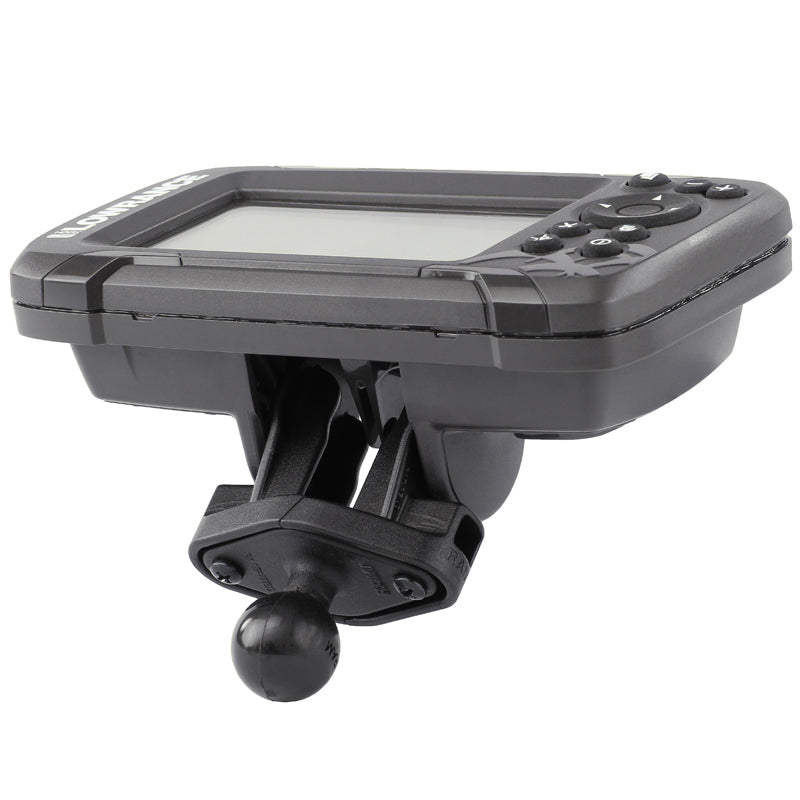

RAM® Ball Adapter for Lowrance Eagle 4 & 5, Hook² & Reveal - B Size
RAM Mounts
Copy SKU
RAP-B-354U-TRA1
RAM® Track Ball™ Base with T-Bolt Attachment - B Size
