World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Finger-Grip™ Holder with Track Ball™ Base - Long

SKU Copied
SKU: RAM-HOL-UN4-C-354-TRA1U
UPC Copied
UPC: 793442016905

RAM® Finger-Grip™ Holder with Track Ball™ Base - Long
Copy SKU
SKU: RAM-HOL-UN4-C-354-TRA1U
Copy UPC
| UPC: 793442016905

B SIZE
LONG ARM
Size Guide

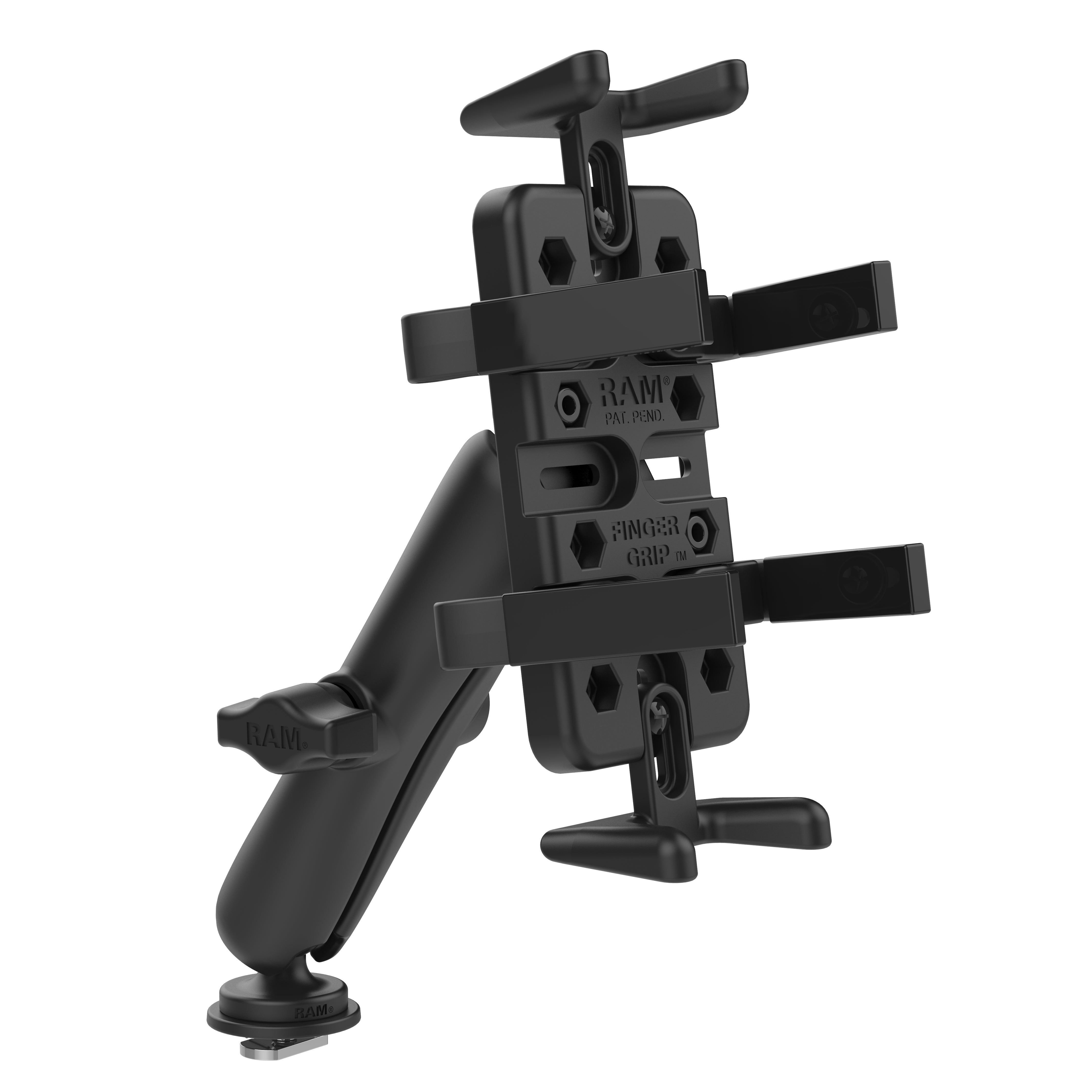

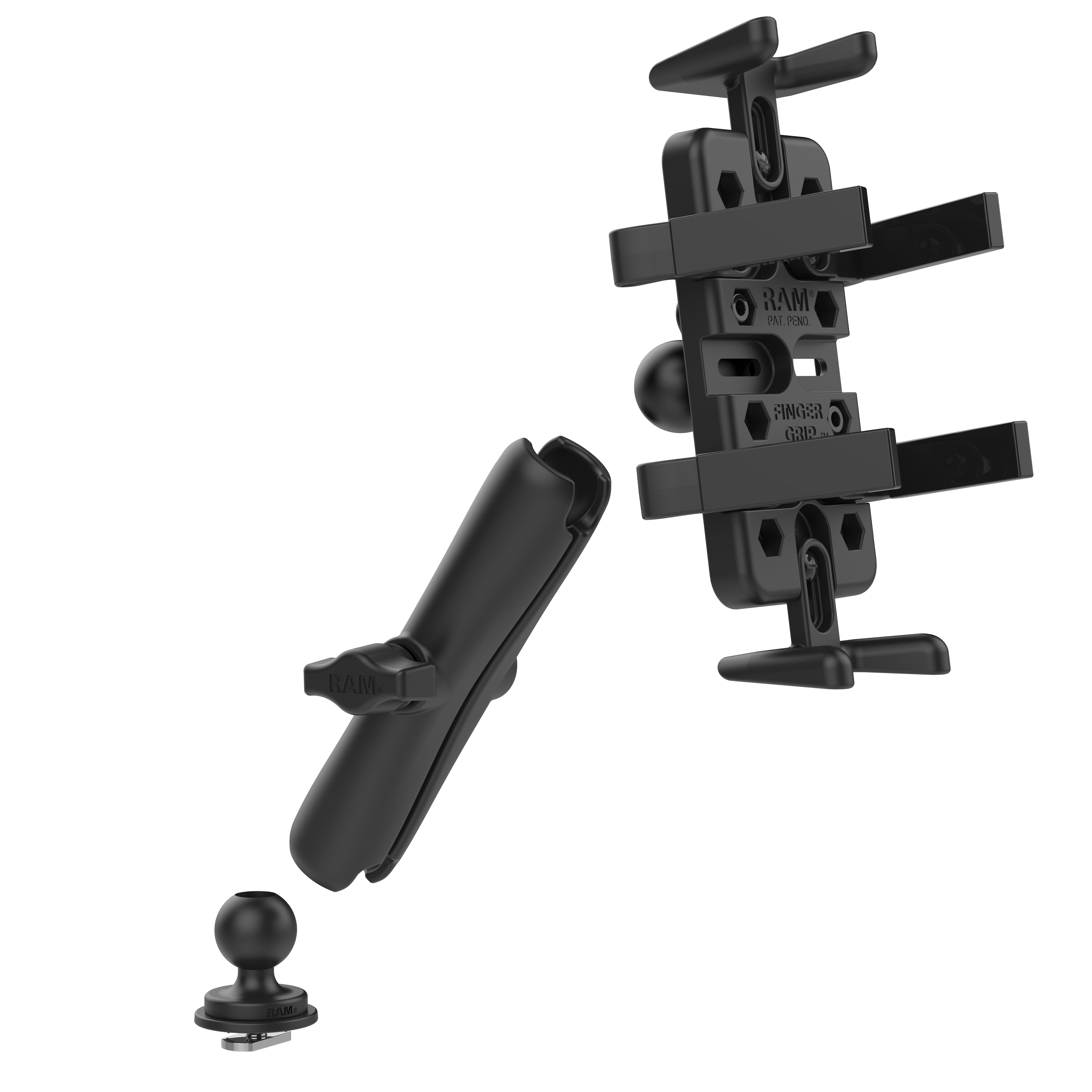

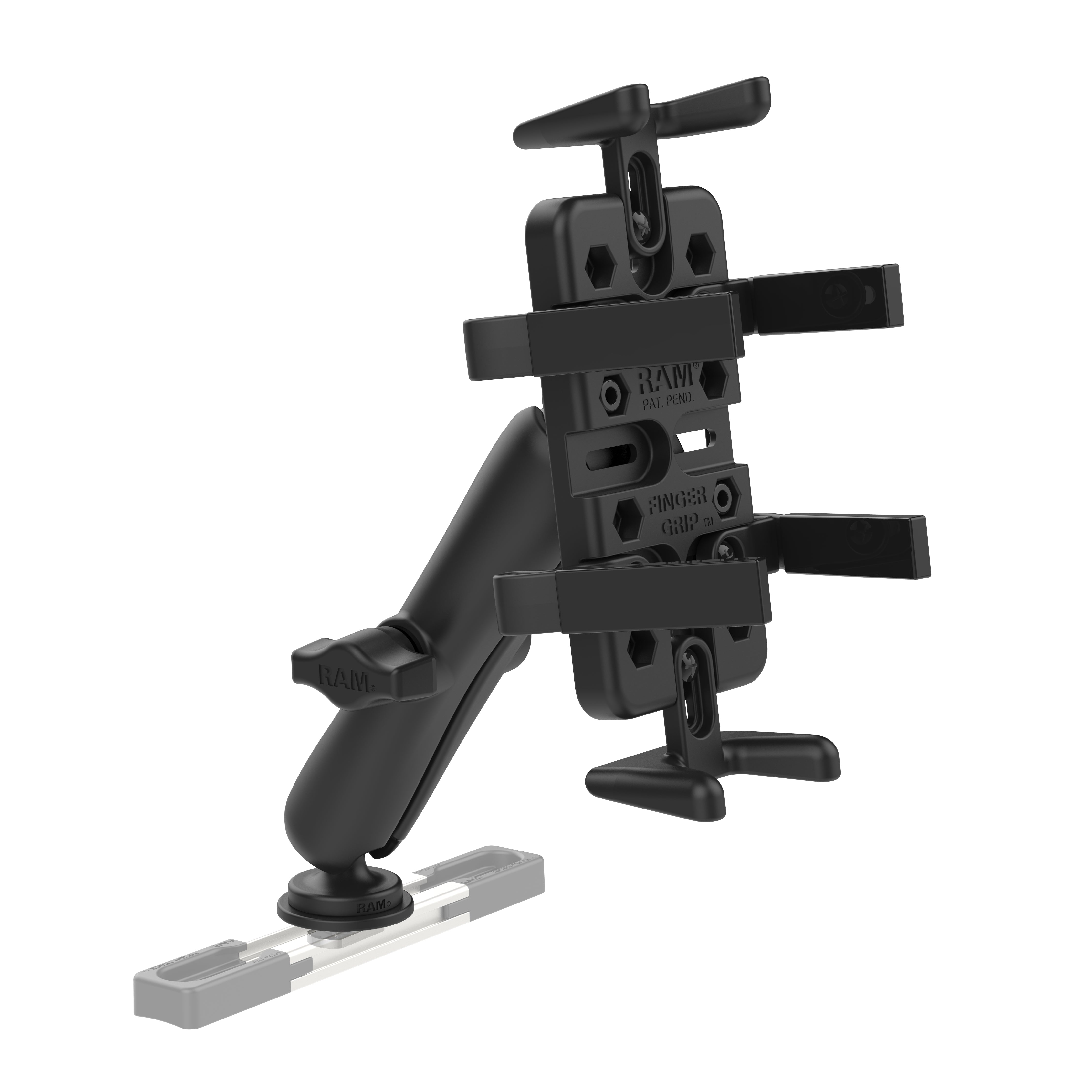

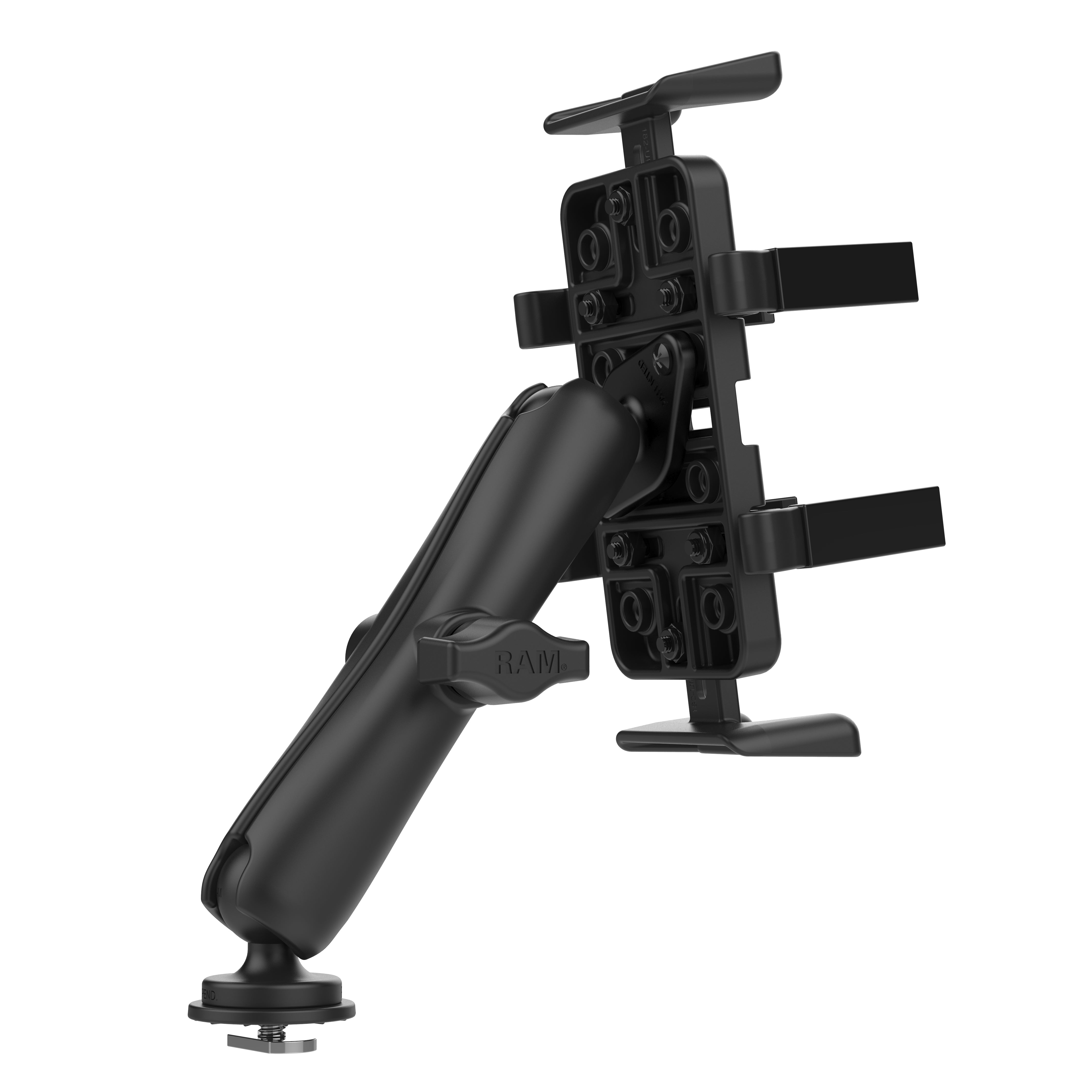

This RAM Track Mount for handheld radios (RAM-HOL-UN4-C-354-TRA1U) is made up of a B size 2.54cm (1") ball molded to a high-strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into any third-party track system, or the RAM Tough-Track line of tracks. Simply insert or slide the Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. Included in this kit is a B size long length socket arm and a RAM Finger-Grip for handheld radios featuring adjustable side arms for a form-fit depending on your specific radio. This track mount is ideal for mounting 2-way radios to the Jeep JL and Gladiator dashboard track mount (RAM-DT-204-TRACK-A12U) and the new Ford Bronco dashboard track mount (RAM-DT-207-TRACK-EXA-29BU).

Features
  • 2.54cm (1") B-size RAM® ball with adjustable T-bolt designed for track mounting systems including the RAM® Tough-Track™ and other third-party track systems
  • Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
  • Includes a B-size long length socket arm and RAM® Finger-Grip™ handheld radio holder with adjustable side arms for a variety of different radios
  • RAM® Finger-Grip™ holds a variety of different 2-way radios and includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.53 kg (1.17 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 18.42cm (7.25") max (using optional supports)Width Range: 3.18cm (1.25") - 8.89cm (3.5") Max Depth: 3.81cm (1.5")
T Bolt Dimensions
1.22 cm (0.48") X 2.41 cm (0.95")
Socket To Socket Length
13.49cm (5.31")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-103-C-238U
RAM® Double Socket Arm with Diamond Plate - B Size Long
RAM Mounts
Copy SKU
RAM-HOL-UN4U
RAM® Finger-Grip™ Universal GPS and Radio Holder
RAM Mounts
Copy SKU
RAP-B-354U-TRA1
RAM® Track Ball™ Base with T-Bolt Attachment - B Size
