The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Mount with RAM® Track Ball™ Base - Medium

SKU Copied
SKU: RAP-HOL-UN7B-354-TRA1U
UPC Copied
UPC: 793442955174

RAM® X-Grip® Phone Mount with RAM® Track Ball™ Base - Medium
Copy SKU
SKU: RAP-HOL-UN7B-354-TRA1U
Copy UPC
| UPC: 793442955174

B SIZE
MEDIUM ARM
Size Guide

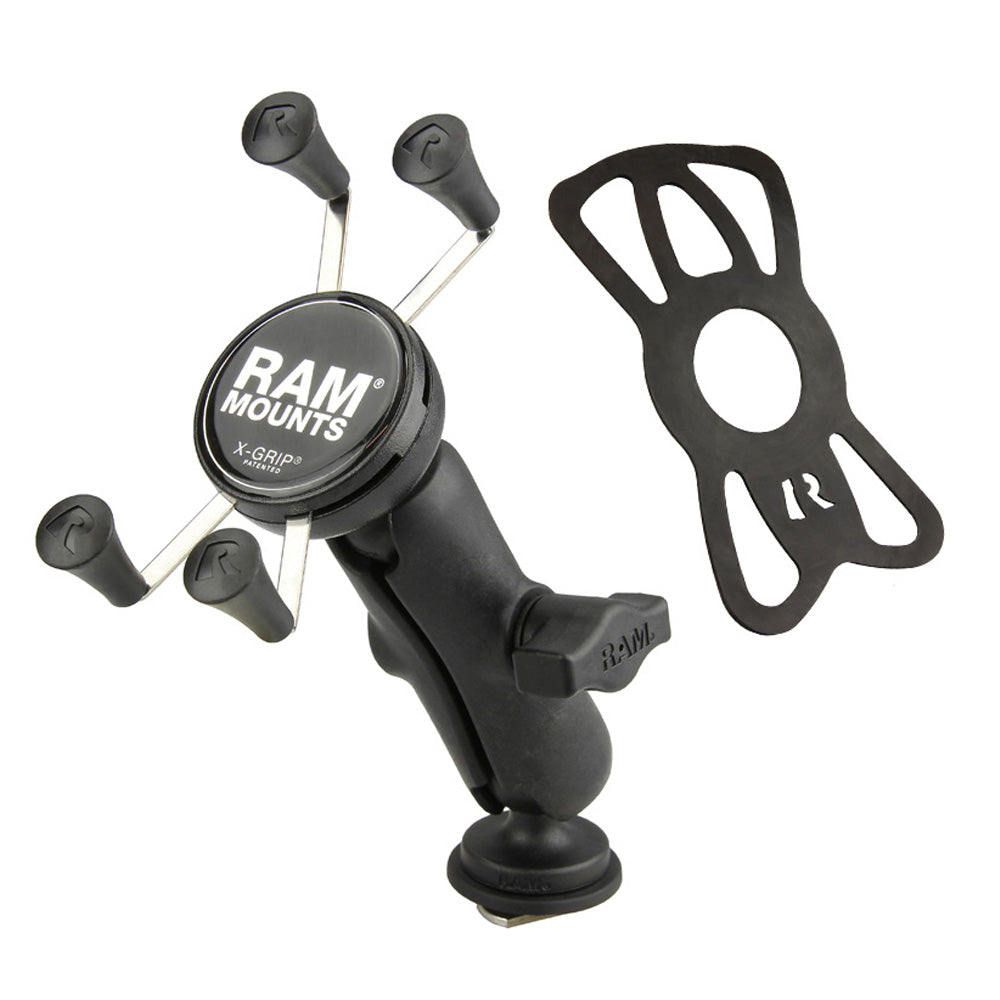

The RAP-HOL-UN7B-354-TRA1 consists of a Track Ball base, composite double socket arm and universal spring-loaded X-Grip cradle for cell phones. This design features a 2.54cm (1") diameter rubber ball and socket system with adjustment points at both ends of the socket arm. The spring-loaded X-Grip cradle expands and contracts, allowing for a seamless fit with your phone. The kit is the perfect complement to the modern and sleek interiors of today's vehicles, and is compatible with virtually any track system including the RAM Tough-Track. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Information

Resources

Compatible Devices

Information

Product Weight
0.23 kg (0.50 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps(1) Friction Washer(1) 1/4" -20 x 17.78 cm (7")/20.32 cm (8") T-Bolt
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
