The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

5" Modular Aluminum RAM® Tough-Track™

SKU Copied
SKU: RAM-TRACK-EXA-5U
UPC Copied
UPC: 793442953859

5" Modular Aluminum RAM® Tough-Track™
Copy SKU
SKU: RAM-TRACK-EXA-5U
Copy UPC
| UPC: 793442953859

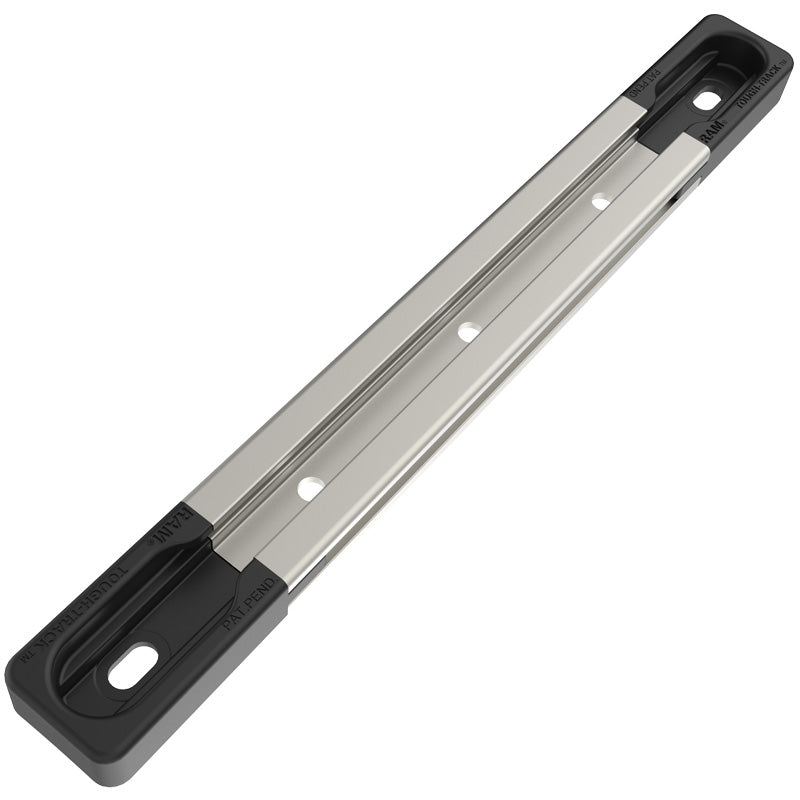

With the RAM Tough-Track, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks and more. The extruded aluminum version of the RAM Tough-Track can be drilled to any flat surface and is designed for use with #8 screws for easy installation hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminum provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-5U features 5 of usable track length (aluminum portion), while the included top loading end caps add about 1.5 in length to each end (3 of additional length). Using the end caps allows for two installation options: either use both top loading end caps to create insertion points on both ends of the track, or use one top loading end cap and close the opposite end with the included flush end cap. The Extruded Aluminum Tough-Track is compatible with the RAM Center Loader and 90 Degree Connector, as well as a wide variety of RAM track bases to attach devices like action cameras, fishing rods, phones and tablets.

Features
  • 12.70cm (5") of usable aluminum track for track mounts: overall length of 20.32cm (8")
  • RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included
  • Modular top-loading end caps allow for additional track extensions and 90-degree connectors

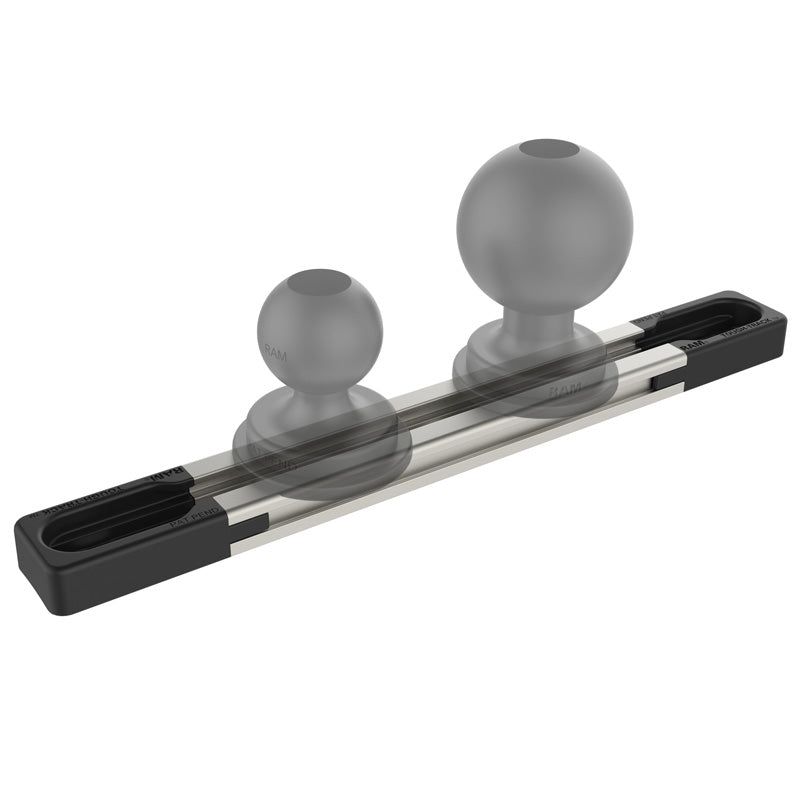

  • Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.08 kg (0.17 lbs)
Product Dimensions
Overall Length: 20.32cm (8") Overall Width: 2.29cm (0.9") Track Thickness: 1.09cm (0.43") Inside Track Length: 12.70cm (5")
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
