World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Power + Dual USB Dock for Honeywell RT10 Tablet

SKU Copied

SKU: RAM-HOL-HON9PD2U

UPC Copied

UPC: 793442015342







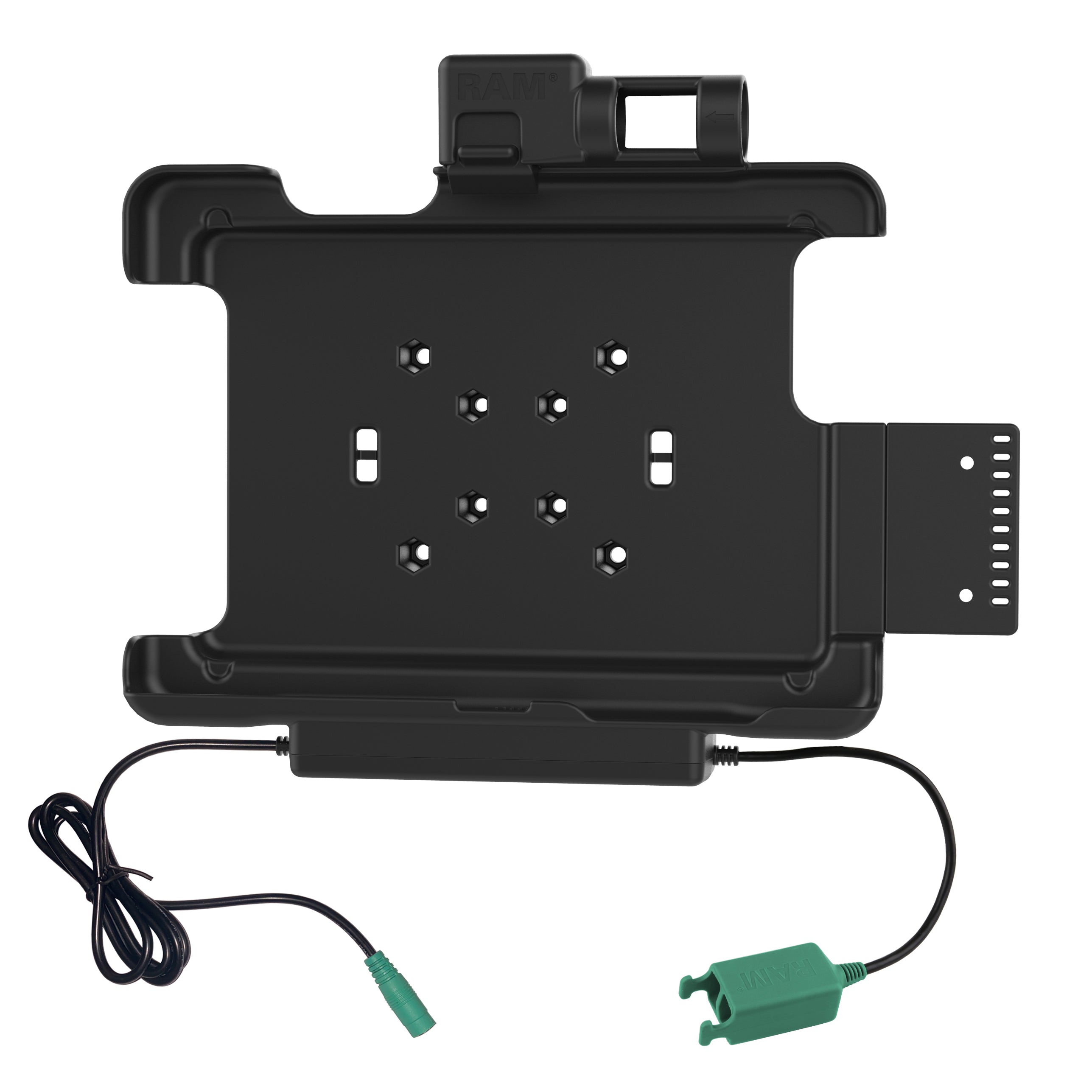

RAM® Power + Dual USB Dock for Honeywell RT10 Tablet

Copy SKU
RAM-HOL-HON9PD2U SKU: RAM-HOL-HON9PD2U

Copy UPC
793442015342 | UPC: 793442015342

The RAM Vehicle Dock for the Honeywell RT10 rugged tablet allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and extended battery pack. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.

Features

Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Honeywell RT10 rugged tablet via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals
When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery pack; tablet scanning works while tablet is docked

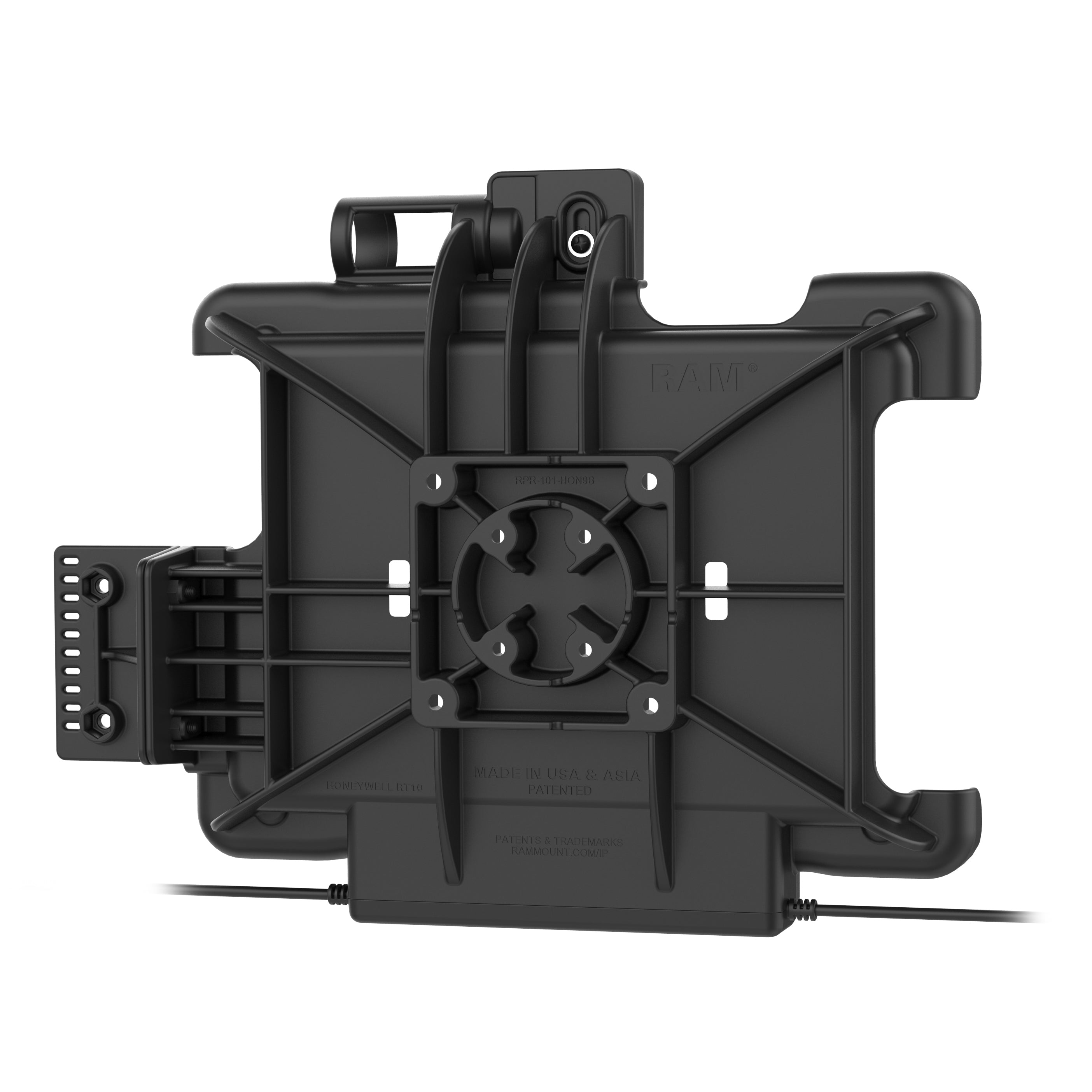

Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

Tags: 75 x 75 VESA, AMPS 4-Hole, Custom Form-Fit, Dual Peripheral, Holders, Honeywell, material-handling, RAM-HOL-HON9PD2U, RT10, Tablet

Information

Resources

Compatible Devices

Information

Product Weight

0.79 kg (1.75 lbs)

Hardware Included

(1) Side bracket for accessory mounting and strain relief(4) #8-32 x 5/20.32cm (8") Machine Screws(2) #8-32 x 1/5.08cm (2") Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/20.32cm (8") Machine Screws(4) #10-24 Nylock Nuts(6) Small Cable Ties(2) Large Cable Ties

Hole Pattern

75 x 75mm VESA4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")

Materials

High strength composite

Packaging Type

Poly Bag

Input Connector

Power: 5.5mm DC ConnectorData: USB Type A (2)

Output Connector

(2) USB 2.0 Type A

Peripheral Output

900mAh (per port)

Transfer Speed

12Mbps

Resources

INSTRUCTIONS

Assembly Instructions for Honeywell Dock

Dual USB Data Cable Management Instructions

DOCUMENTS

Sell Sheet

Material Handling Catalog

Compatible Devices

Honeywell

RT10 Rugged Tablet
