The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® 4" Square Post Clamp Mount with 75x75mm VESA Plate

SKU Copied
SKU: RAM-D-2461U-C-247-4
UPC Copied
UPC: 793442014284

RAM® 4" Square Post Clamp Mount with 75x75mm VESA Plate
Copy SKU
SKU: RAM-D-2461U-C-247-4
Copy UPC
| UPC: 793442014284

D SIZE
SHORT ARM
Size Guide

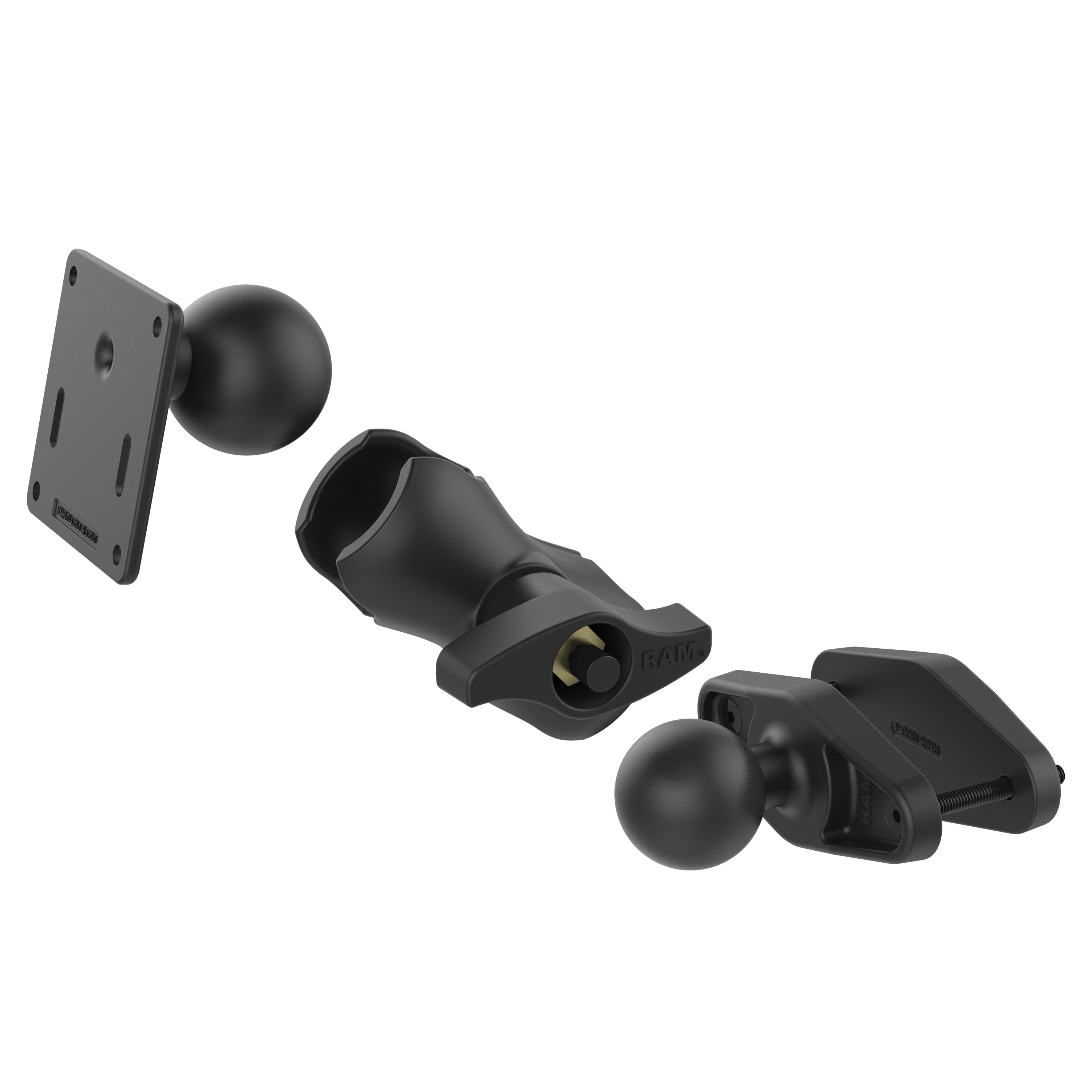

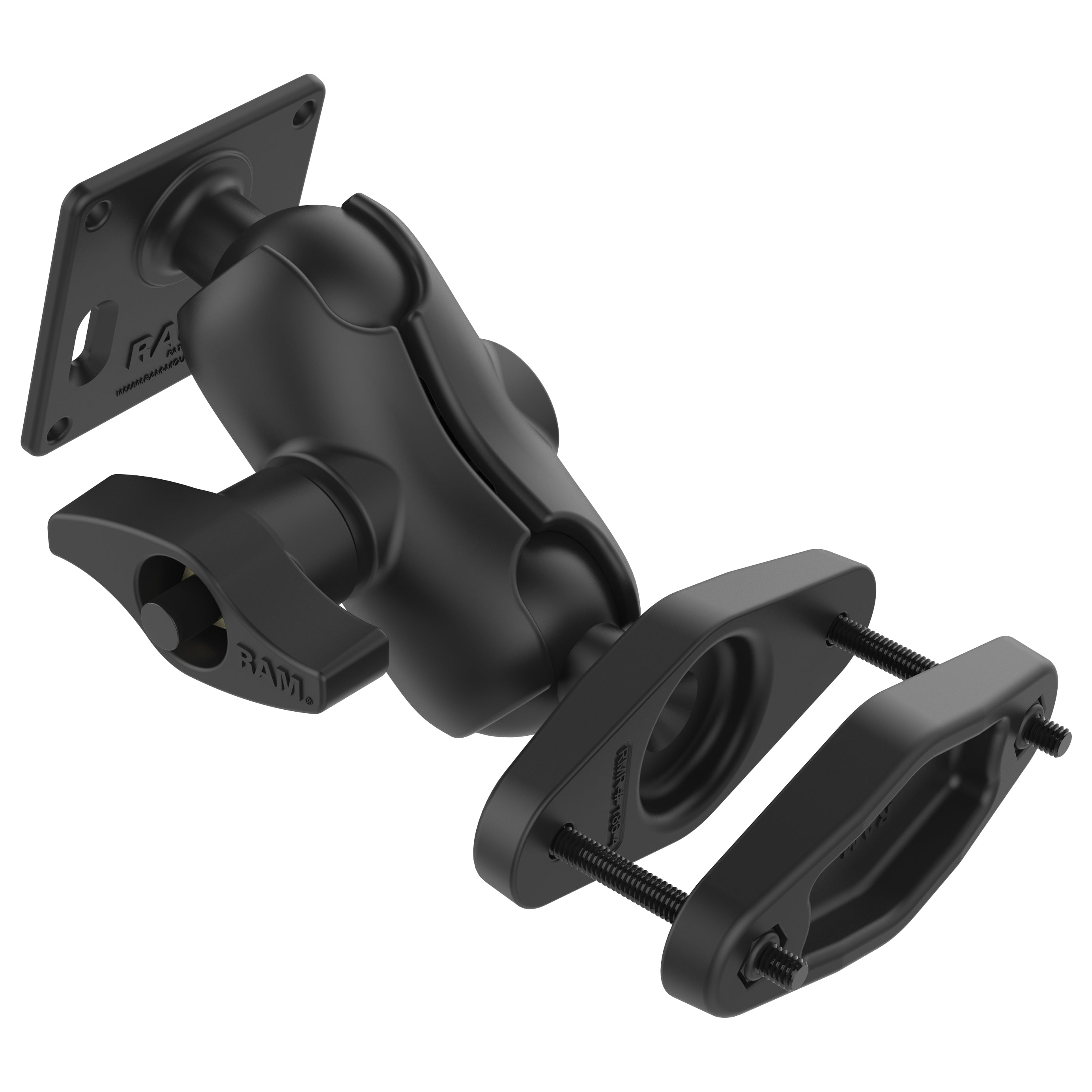

This ideal forklift mount consists of a D size short double socket arm, a square D size plate with a 75 x 75mm VESA hole pattern and 10.16cm (4") clamp base for square post mounting on forklifts. The clamp base will wrap around a maximum width of 10.16cm (4") and is tightened by screwing the two plates together with the included nuts and bolts. RAM Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This D size forklift mount is designed for heavy duty monitor mounting for forklifts, as well as rugged tablets which could be paired with accessory brackets to support keyboards and other peripherals.

Features
  • D Size ball with 75 x 75mm VESA plate connects to monitors and rugged tablet PC's with the matching hole pattern
  • Includes 10.16cm (4") clamping base for posts and a short length, D size RAM® double socket arm with an overall length of 12.95cm (5.1") and socket-to-socket length of 9.14cm (3.6") ; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
1.76 kg (3.87 lbs)
Hardware Included
(2) 12.70 cm (5")/40.64 cm (16") -18 x 7.62cm (3") Machine Screws(2) 12.70 cm (5")/40.64 cm (16") -18 Nylock Nuts
Clamp Range
10.16cm (4") max width
Socket To Socket Length
9.14cm (3.6")
Hole Pattern
75 x 75mm VESA
Plate Size
9.21 cm (3.625") X 9.21 cm (3.625")
Ball Size
D Size ( 5.72cm (2.25") )
Weight Capacity
Standard Use: 2.72 kg (6 lbs) Heavy-Duty Use: 2.27 kg (5 lbs)
Materials
Marine-grade aluminum
Packaging Type
Poly Bag

Resources

DOCUMENTS
