The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Tele-Pole™ with 8” & 9” Poles and Double Ball 75x75mm VESA Mount

SKU Copied

SKU: RAM-VP-SW2F-89-2461

UPC Copied

UPC: 793442009068







RAM® Tele-Pole™ with 8” & 9” Poles and Double Ball 75x75mm VESA Mount

Copy SKU
RAM-VP-SW2F-89-2461 SKU: RAM-VP-SW2F-89-2461

Copy UPC
793442009068 | UPC: 793442009068

C SIZE

Size Guide

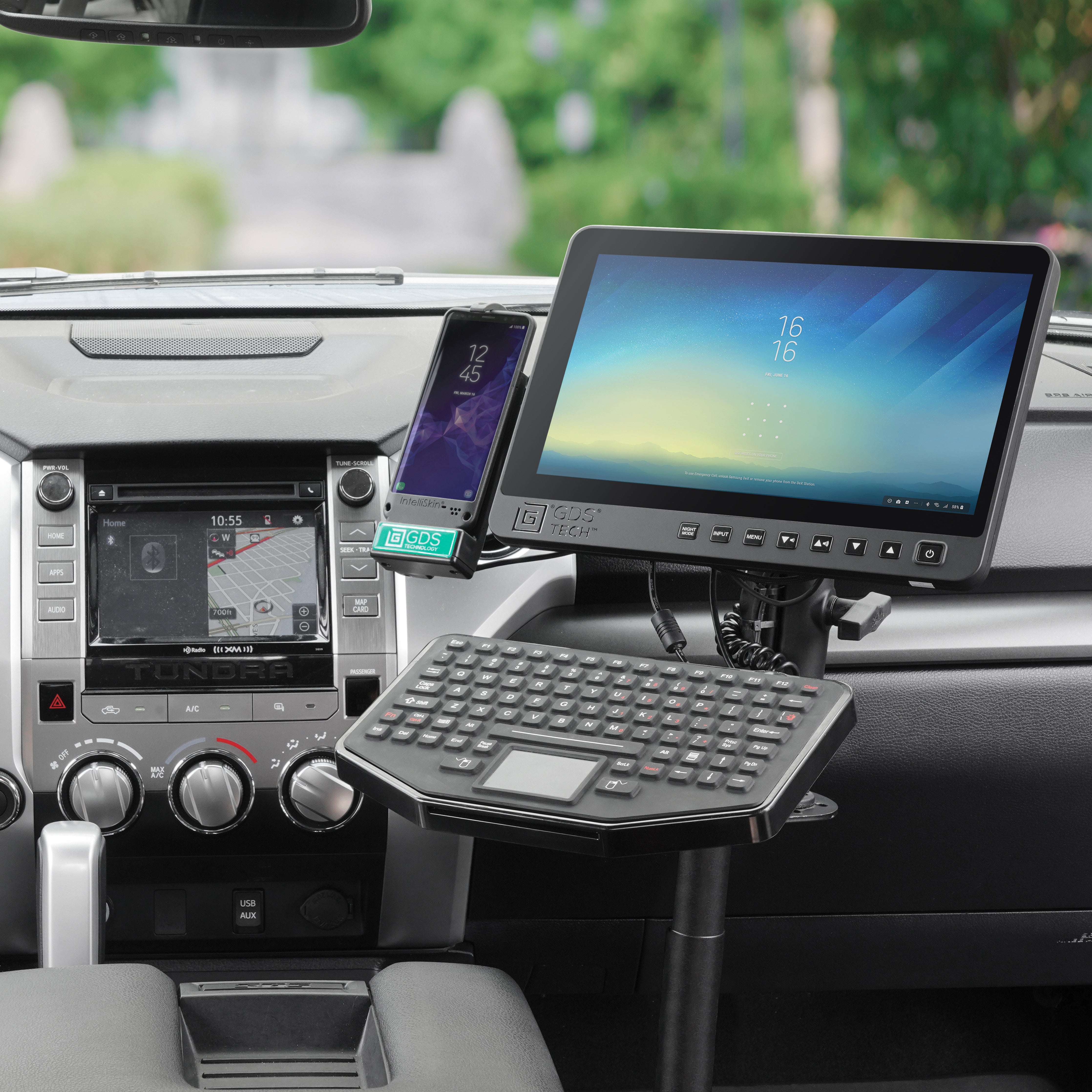

This in-vehicle GDS View monitor and GDS Keyboard mount features a RAM Tele-Pole 9 base, RAM Tele-Pole 8 upper pole with flange, 6 swing arm, and a long C size double socket arm. Easily connect your GDS Keyboard to the swing arm, and attach the GDS View monitor to the flange and double socket arm via the included ball bases. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM Mounts for strength, durability, and versatility.

Tags: 75 x 75 VESA, AMPS 4-Hole, C Size 1.5" (Holds 4 lbs), Complete kits, Keyboard, Monitor, RAM-VP-SW2F-89-2461, Tele-Pole & Swing Arm, Tele-Pole™

Information

Resources

Information

Product Weight

4.58 kg (10.10 lbs)

Hardware Included

Assembly Hardware(4) 12.70 cm (5")/40.64 cm (16") -18 x 2.54cm (1") Carriage Bolts(4) 12.70 cm (5")/40.64 cm (16") -18 Hex Nuts(4) 12.70 cm (5")/40.64 cm (16") Flat Washers(4) 12.70 cm (5")/40.64 cm (16") Split Lock Washers(4) Rubber Caps

Hole Pattern

Tele-Pole: 6.67 cm (2.625") X 6.67 cm (2.625") VESA Plate: See Drawing

Ball Size

C Size ( 3.81cm (1.5") )

Materials

Powder coated steelMarine-grade aluminum

Packaging Type

Box
