The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM^® No-Drill™ Universal Vehicle Floor Mount with Double Ball Mount

SKU Copied

SKU: RAM-VB-196-DB2

UPC Copied

UPC: 793442022340







RAM^® No-Drill™ Universal Vehicle Floor Mount with Double Ball Mount

Copy SKU
RAM-VB-196-DB2 SKU: RAM-VB-196-DB2

Copy UPC
793442022340 | UPC: 793442022340

C SIZE

LONG ARM

Size Guide

Overview

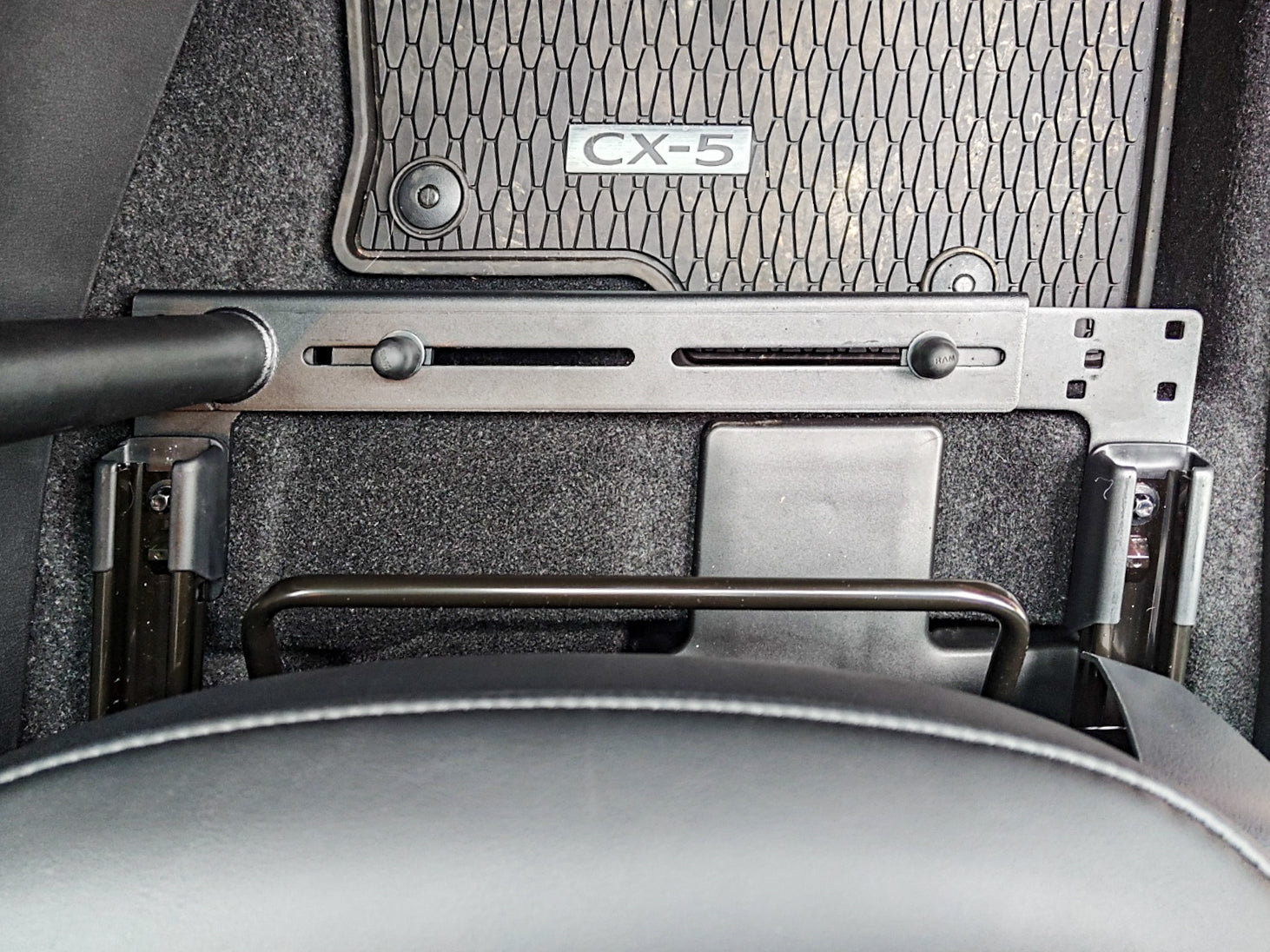

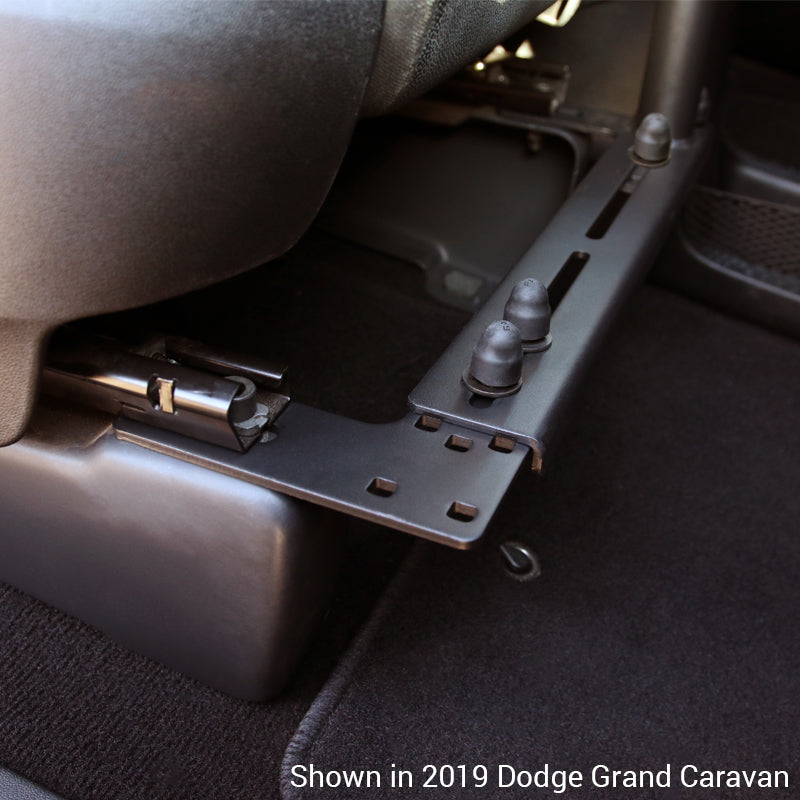

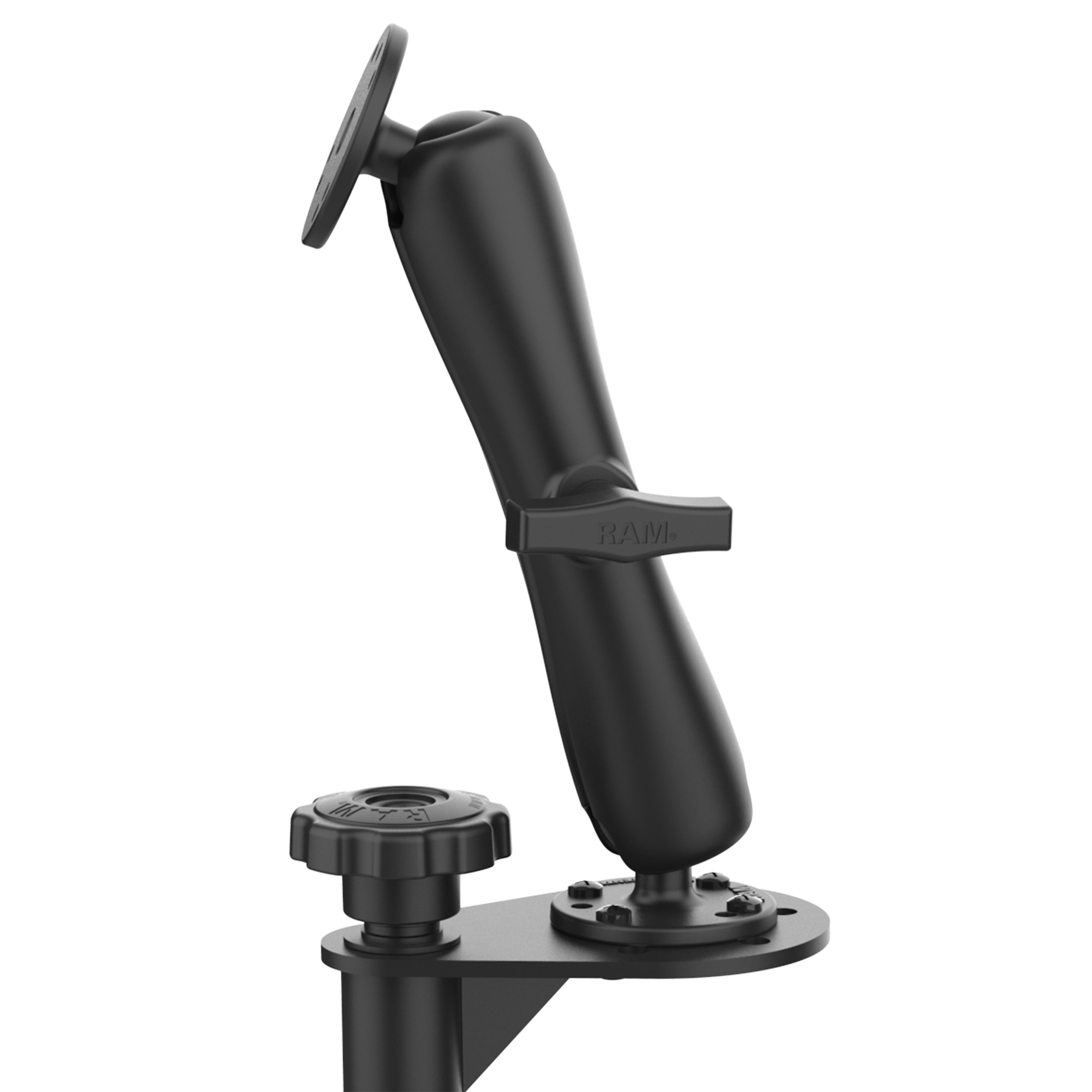

The RAM^® No-Drill^™ Universal Vehicle Floor Mount with Double Ball Mount (RAM-VB-196-DB2) features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, secure the base with the existing vehicle hardware. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Features

Custom, RAM^® No-Drill^™ mounting base offers lowest profile in the industry
Universal adjustable base accomodates a wide range of vehicles (see Additional Information)
Ball and socket mounting system offers shock and vibration damping
Compatible with any RAM^® holders or GDS^® docks with a 4 hole AMPS pattern
Backed by a lifetime warranty

Information

Resources

Information

Hardware Included

Assembly Hardware
Stabilizer Foot

Socket To Socket Length

20.32cm (8")

Hole Pattern

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
3-Hole 120-Degree: 4.60cm (1.812") Diameter
Seat Bolt Distance: 22.86cm (9") - 47.94cm (18.875") center to center

Plate Size

6.35cm (2.5") Diameter

Ball Size

C Size ( 3.81cm (1.5") )

Weight Capacity

Standard Use: 1.81 kg (4 lbs)
Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Powder coated steel
Marine grade-aluminum

Packaging Type

Box

Weight

5.24 kg (11.55 lbs)

Additional Information

Will this mount install in your vehicle? Learn more by following the steps in this document:

Universal Vehicle Laptop Mount Compatibility Guide

This kit is intended to support tablets and not laptops. Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
