The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Tray™ II Spring Loaded Netbook/Tablet Holder

SKU Copied
SKU: RAM-234-6
UPC Copied
UPC: 793442920981

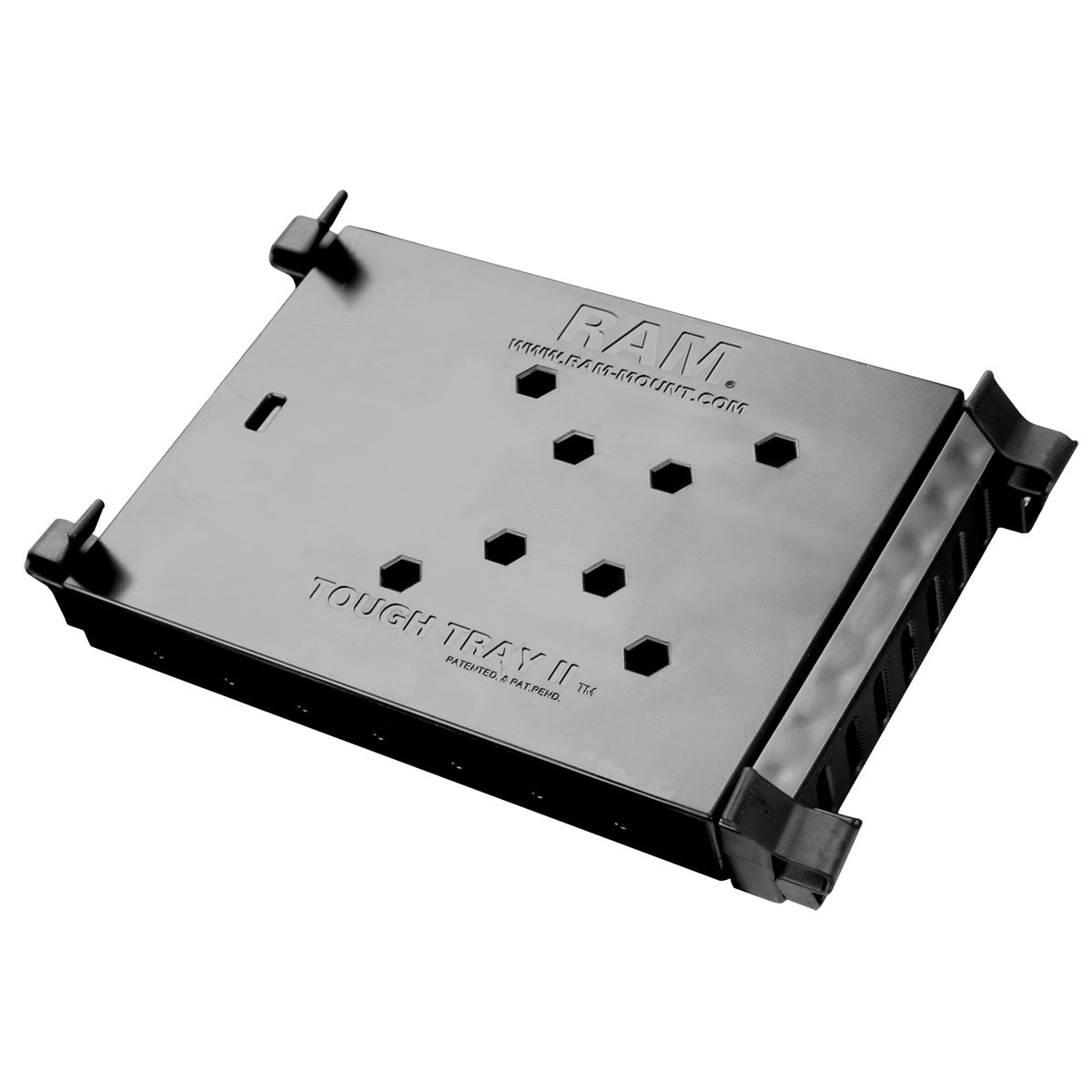

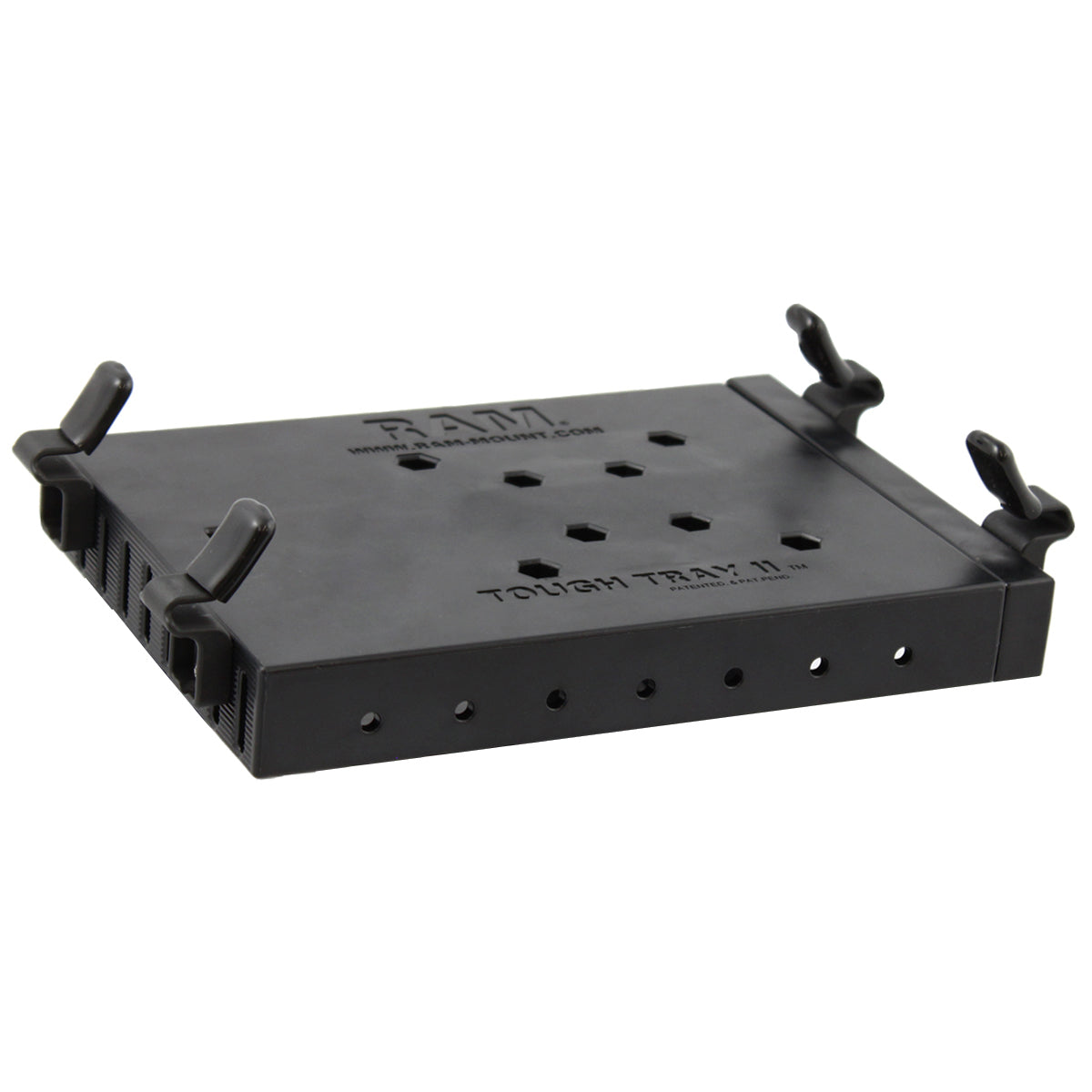

RAM® Tough-Tray™ II Spring Loaded Netbook/Tablet Holder
Copy SKU
SKU: RAM-234-6
Copy UPC
| UPC: 793442920981

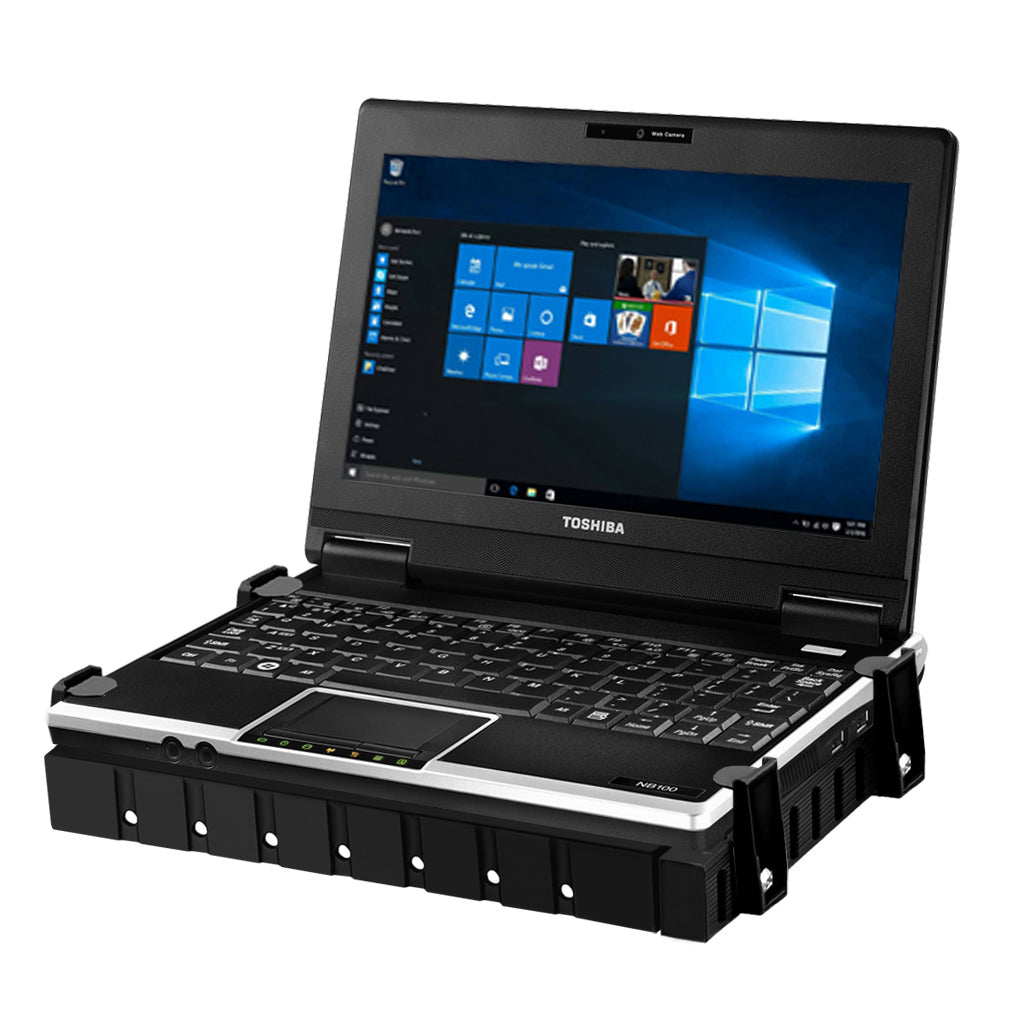

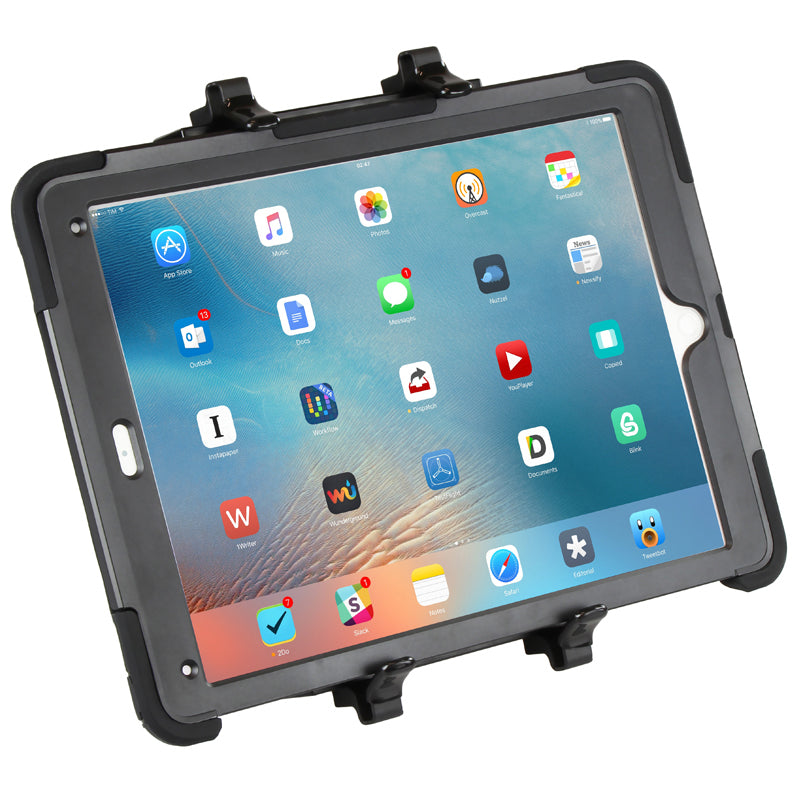

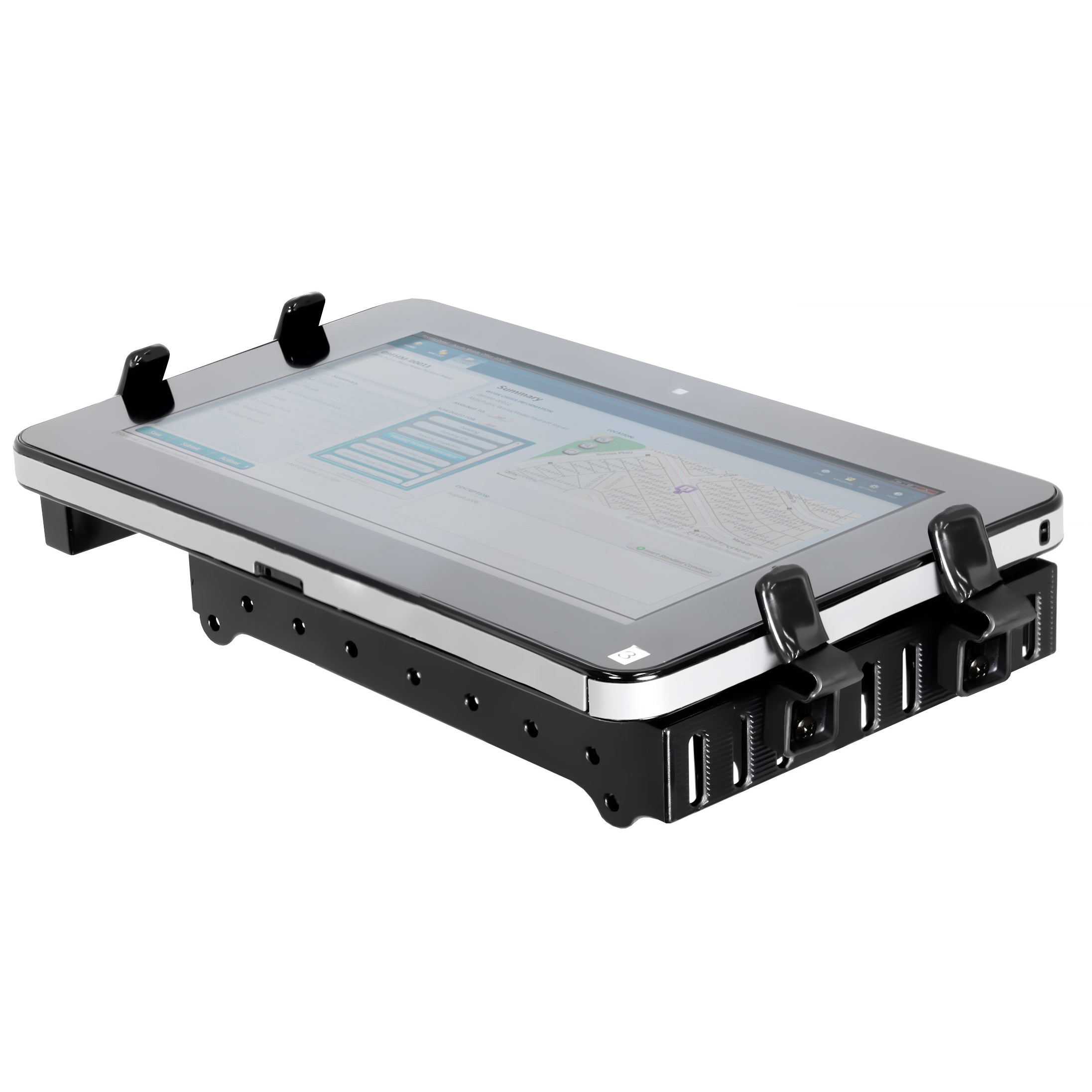

Well thought out and compact designs are common place at RAM and our new RAM Tough-Tray II is no exception. Spring loaded to create just the right amount of holding force, most tablets, UMPCs, and compact laptops can be made safe and secure while on the go. Simple to install and adjust retaining arms insure a perfect fit without interfering with ports or functions. Also, if a compact laptop is in place, these retaining arms hold firm with the screen up or down. Ideally suited to a multitude of applications, and easily attached to hundreds of mounting systems for cars, boats, planes, and more, compact devices just work better in the universal tablet holder from RAM.

Features
  • Spring-loaded universal laptop and tablet holder

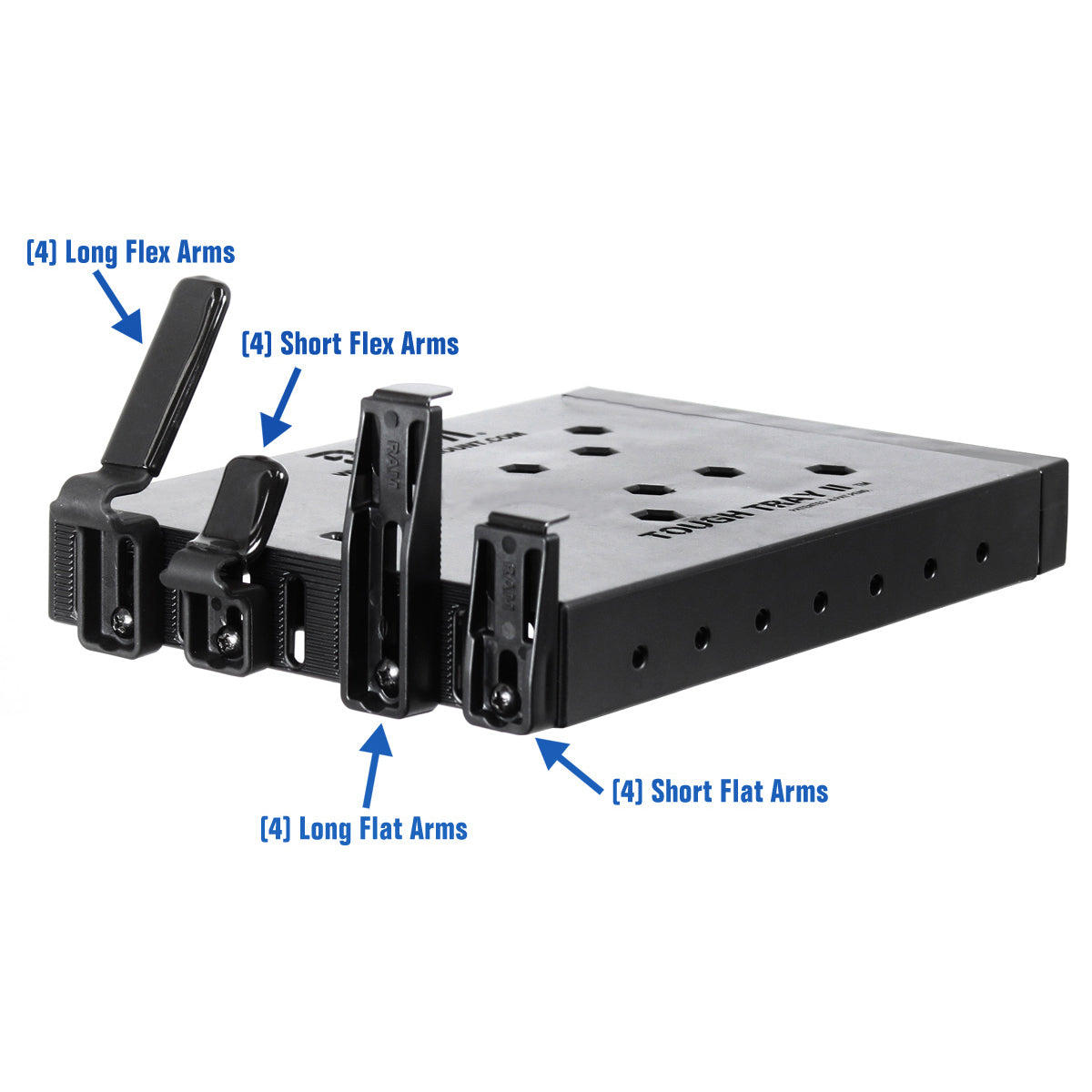

  • Includes a variety of clamping arms to keep your device secure
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.52 kg (1.15 lbs)
Hardware Included
Tray Assembly Hardware(4) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(4) #8-32 Nylock Nuts
Tray Dimensions
Width Range: 21.74cm (8.56") - 28.45cm (11.2") Side Arm Clamp Height: 6.99cm (2.75") maxTray Depth: 15.24cm (6") Tray Thickness: 2.54cm (1")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
