World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Twist-Lock™ Triple Suction Cup Mount with Round Plate

SKU Copied
SKU: RAP-365-101U
UPC Copied
UPC: 793442922848

RAM® Twist-Lock™ Triple Suction Cup Mount with Round Plate
Copy SKU
SKU: RAP-365-101U
Copy UPC
| UPC: 793442922848

C SIZE
MEDIUM ARM
Size Guide

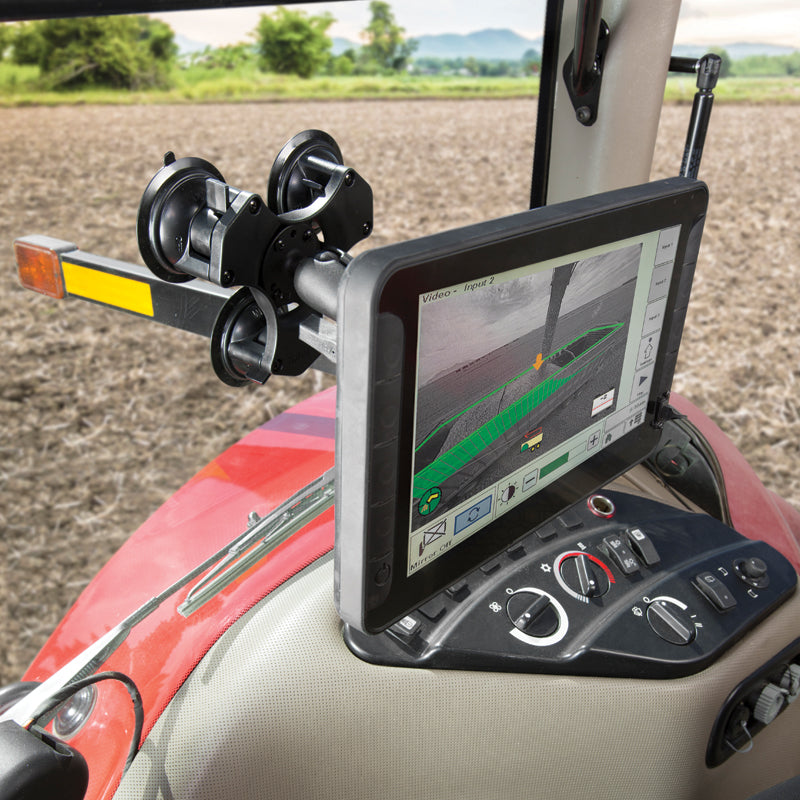

Suction cups are one of the most convenient ways to mount portable electronics. RAM has a wide range of suction cups to choose from that have incredible holding power without an incredible price. Easy to afford and easy to use, we offer single, double, and now the RAM Triple suction cup base. This exceptional product allows the freedom to use and move your electronics like never before. Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's new triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. You just found your single source provider of the most innovative line of suction cup products anywhere.

Information

Resources

Information

Product Weight
0.84 kg (1.85 lbs)
Hardware Included
Assembly Hardware
Suction Size
(3) 8.38cm (3.3") Diameter Bases, Total Width 20.19cm (7.95")
Socket To Socket Length
11.84cm (4.66")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-201U
RAM® Double Socket Arm - C Size Medium
RAM Mounts
Copy SKU
RAM-202U
RAM® Round Plate with Ball - C Size
RAM Mounts
Copy SKU
RAP-365-224-1U
RAM® Twist-Lock™ Triple Suction Cup Ball Base - C Size


Complete Your Solution

RAM® Black 3.5" Adhesive Plate for Suction Cups

RAM Mounts
Copy SKU
RAP-350-35BU
RAM® Black 3.5" Adhesive Plate for Suction Cups
