World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-11" Tablets

SKU Copied
SKU: RAM-101B2-UN9U
UPC Copied
UPC: 793442928970
Ram X Grip Tablet Holders
Ram Semi Truck Backing Plate Mounting Instructions

RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-11" Tablets
Copy SKU
SKU: RAM-101B2-UN9U
Copy UPC
| UPC: 793442928970

C SIZE
SHORT ARM
Size Guide

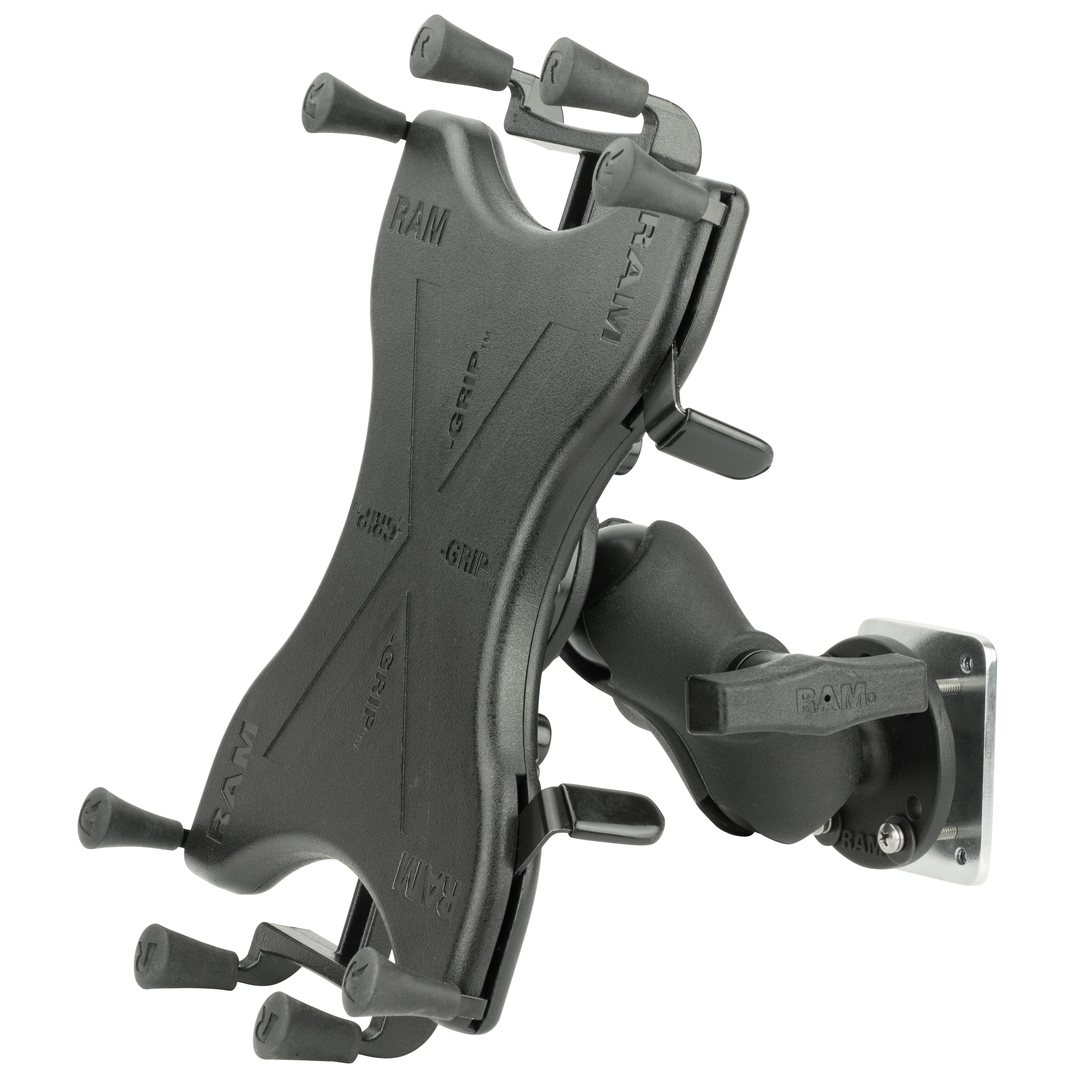

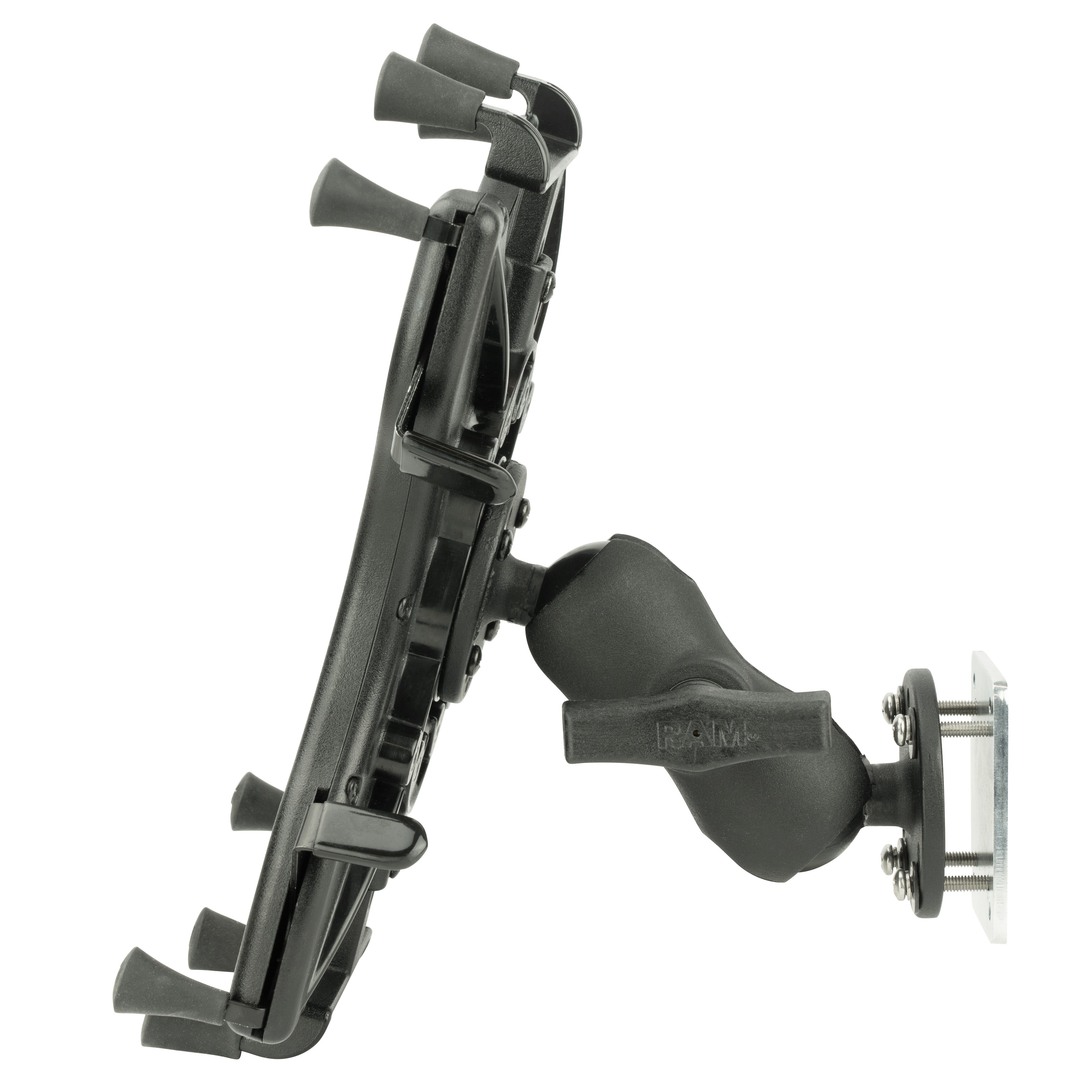

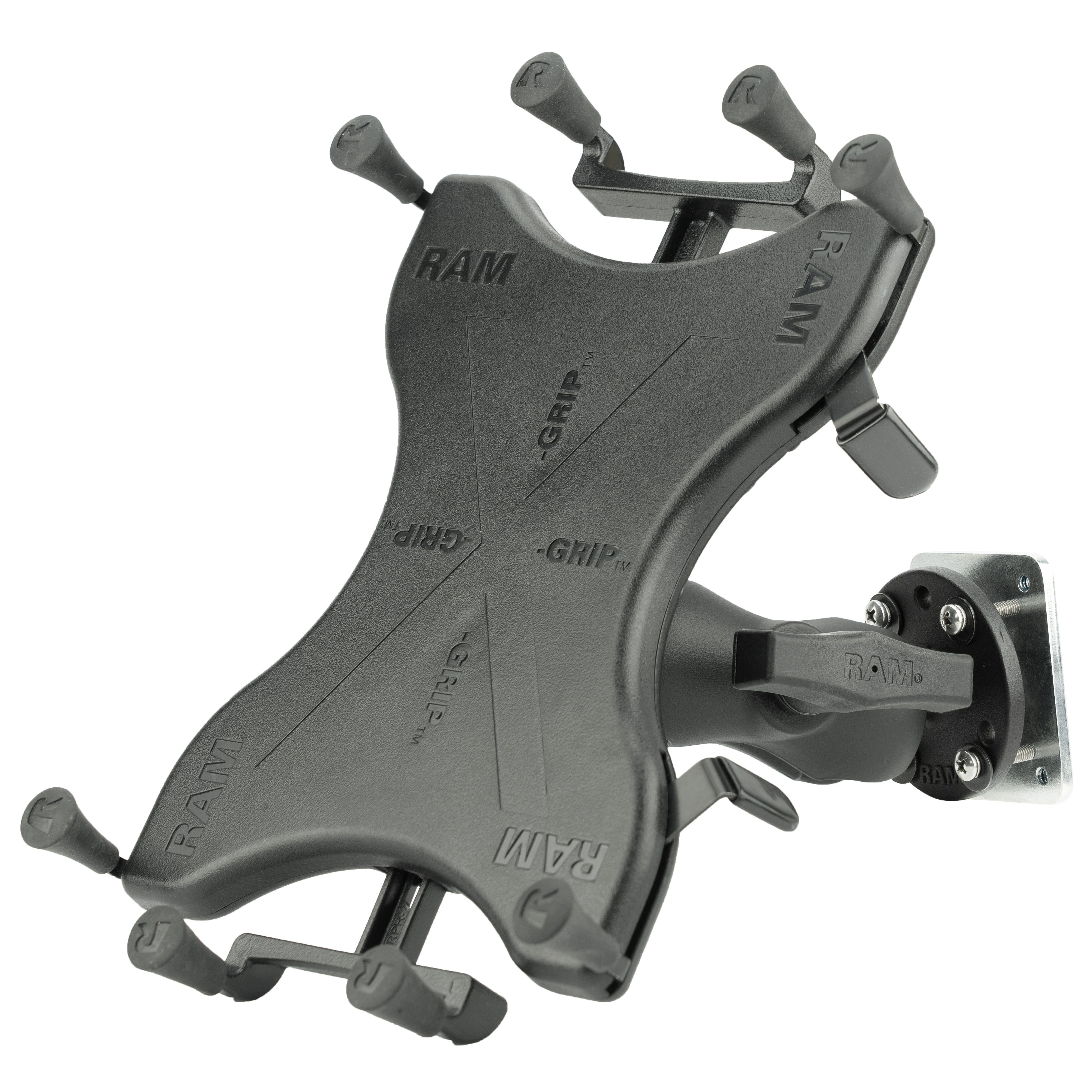

The RAM X-Grip universal holder for 22.86cm (9") -27.94cm (11") tablets features an 'X' design that expands and contracts to provide a perfect fit for your device even if it's in a case. Included are easy access grip knobs located on the back of the holder for quick release of your tablet. No matter what double socket arm and mounting base you pair the RAM X-Grip with, RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle while also extending the life of your tablet by providing shock and vibration damping. The RAM-101U-B consists of a short double socket arm and two 6.35cm (2.5") diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 3.81cm (1.5") diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 5.33 cm (2.10") X 6.60 cm (2.60") steel backing plate with #8-32 threaded holes attaches to a variety of RAM Mounts ball bases.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without obstructing your tablet; fits most 22.86cm (9") -27.94cm (11") tablets
  • Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

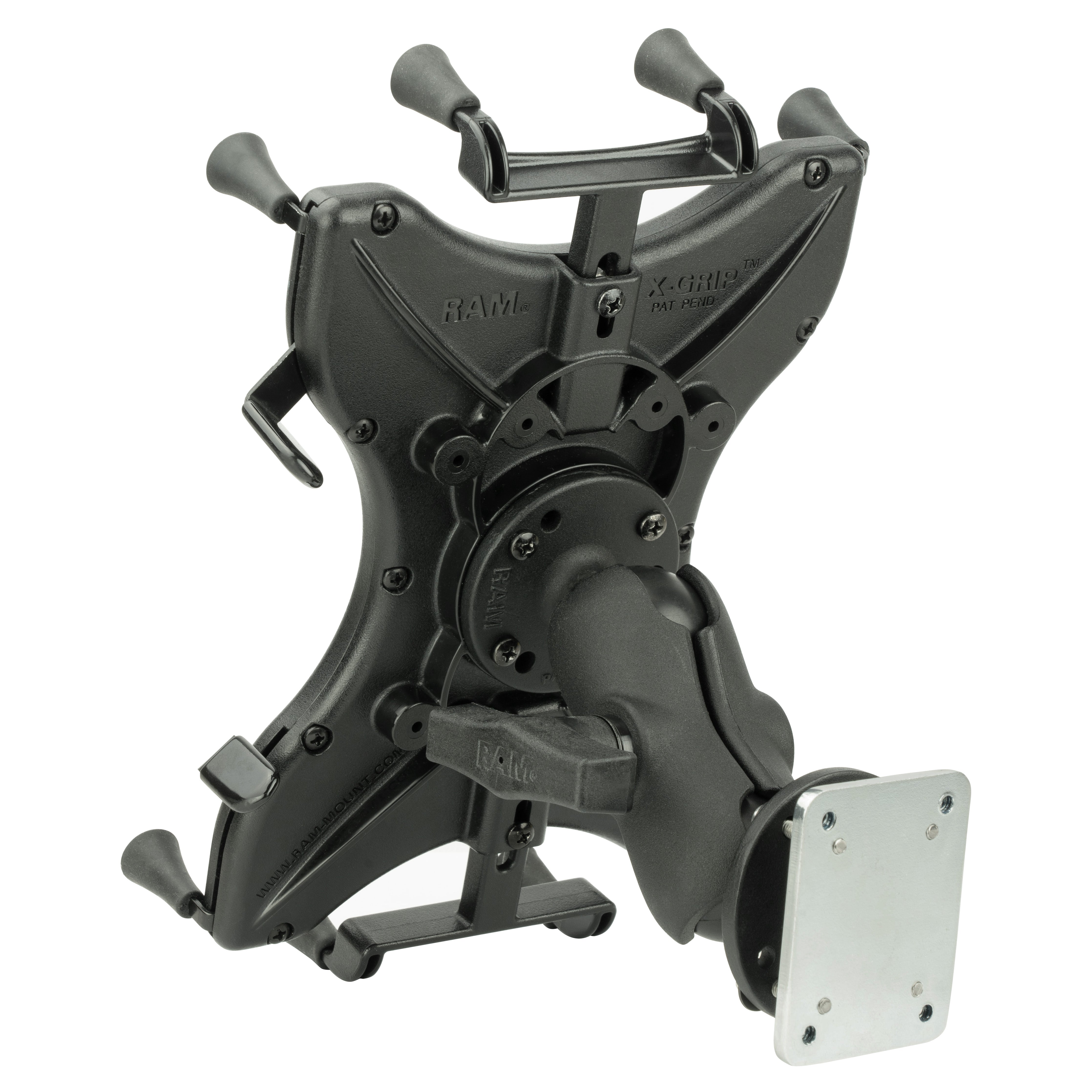

  • 5.33 cm (2.10") X 6.60 cm (2.60") steel backing plate attaches to a variety of RAM® Mounts ball bases
  • Made of high-strength composite and steel components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
1.04 kg (2.29 lbs)
Hardware Included
Assembly Hardware(1) 5.33 cm (2.10") X 6.60 cm (2.60") Steel Backing Plate(4) #8-32 x 2.54cm (1") Screws(4) #8 Split Lock Washers(4) #8 Flat Washers
Holder Dimensions
Max Height: 26.04cm (10.25") (using optional supports)Width Range: 15.88cm (6.25") - 20.57cm (8.1") Max Depth: 2.22cm (0.875")
Socket To Socket Length
6.35cm (2.5")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
