World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Dashboard Mount with Backing Plate for 9"-10.5" Tablets with Cases

SKU Copied

SKU: RAM-101B2-TAB20U

UPC Copied

UPC: 793442816567

Ram Semi Truck Backing Plate Mounting Instructions







RAM® Dashboard Mount with Backing Plate for 9"-10.5" Tablets with Cases

Copy SKU
RAM-101B2-TAB20U SKU: RAM-101B2-TAB20U

Copy UPC
793442816567 | UPC: 793442816567

C SIZE

SHORT ARM

Size Guide

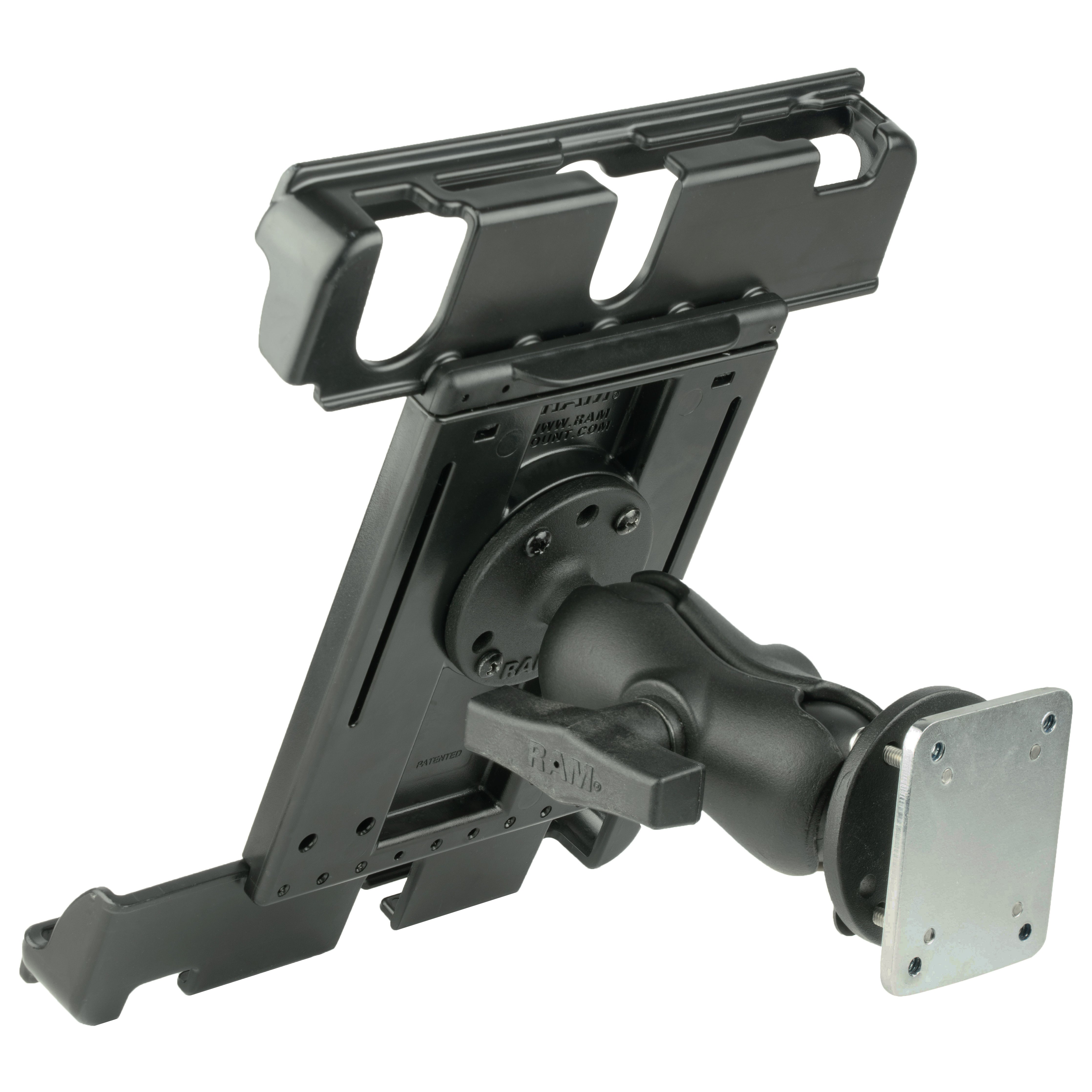

This rugged dashboard tablet mount consists of a RAM Tab-Tite spring loaded holder for any 22.86cm (9") - 26.67cm (10.5") tablets with a case, medium C size double socket arm, two 6.35cm (2.5") diameter round bases that contain the universal AMPS hole pattern, a 5.33 cm (2.10") X 6.60 cm (2.60") backing plate, and mounting hardware. The mount is designed with a 3.81cm (1.5") diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Features

Spring-loaded holder secures most 22.86cm (9") - 26.67cm (10.5") tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty
