World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Large Phone Mount with Drill-Down Base

SKU Copied
SKU: RAM-B-138-UN10
UPC Copied
UPC: 793442952159

RAM® X-Grip® Large Phone Mount with Drill-Down Base
Copy SKU
SKU: RAM-B-138-UN10
Copy UPC
| UPC: 793442952159

B SIZE
MEDIUM ARM
Size Guide

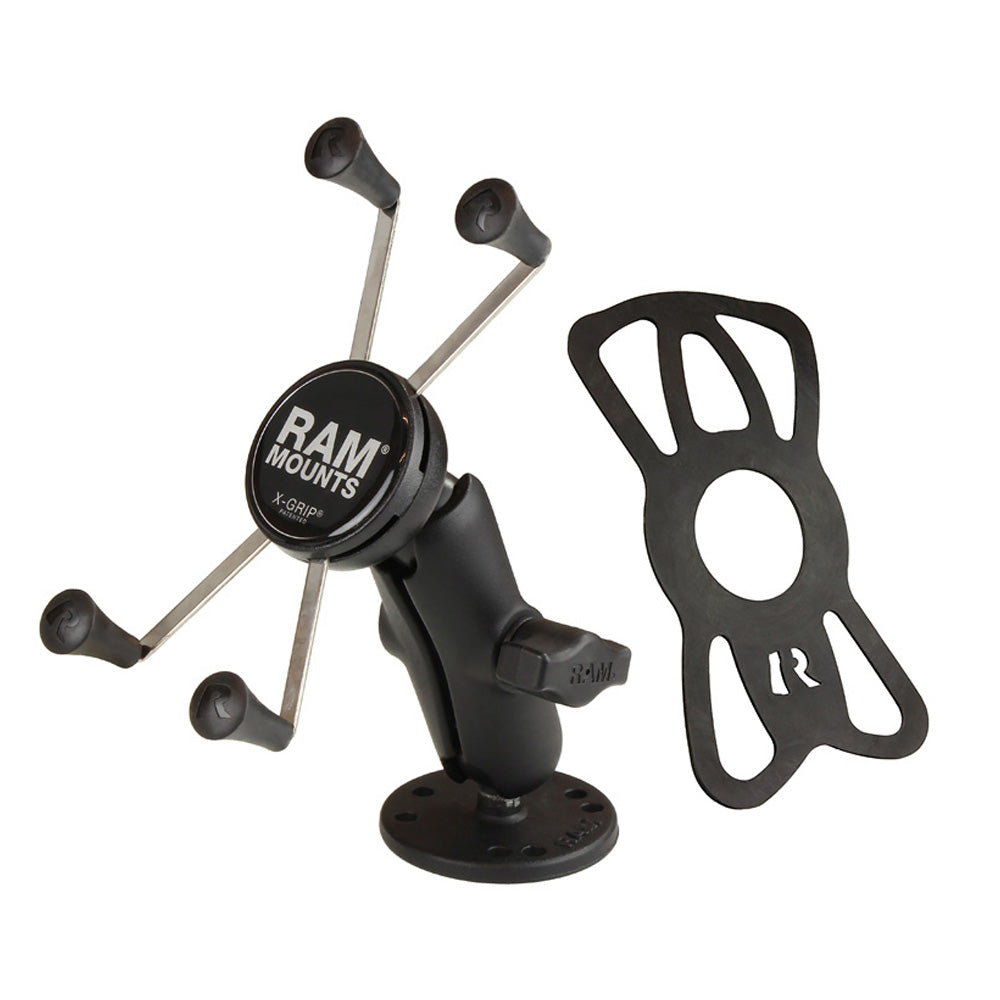

The RAM-B-138-UN10 consists of a 6.35cm (2.5") diameter round base with the universal AMPS hole pattern, double socket arm and universal spring loaded X-Grip cradle for cell phones. Designed into the mount is a 2.54cm (1") diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features
  • Spring-loaded 'X' design for large phones features rubber caps and sports great holding power; includes optional device tether for peace of mind during rugged use
  • Includes drill-down 6.35cm (2.5") round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Tags: 3-Hole 120 Degree (Small), 7 plus, 7 Pro, 7T Pro, 8 Sirocco, 9 PureView, AMPS 4-Hole, Apple, Aristo 2, Axon 10 Pro, Axon 9 Pro, B Size 1" (Holds 2 lbs), Blackberry, Blackview, BV9900, BV9900 Pro, Car & Truck, Car & Truck - Dashboard, Cat, Complete kits, Dashboard, Drill-Down, Drive 50, Drive 51 LM, Drive 52, Drive 61 LM, DriveSmart 51 LMT-S, DriveSmart 61 LMT-S, DriveTrack 71, DuraSport 5G, Eluga X1 Pro, Evolve X, Fiesta 2 LTE, Fiesta LTE, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Galaxy A10, Galaxy A10s, Galaxy A11, Galaxy A15, Galaxy A20, Galaxy A30, Galaxy A50, Galaxy A50s, Galaxy A6 Plus, Galaxy A7, Galaxy A70, Galaxy A8, Galaxy A8 Plus, Galaxy A80, Galaxy A9, Galaxy A90 5G, Galaxy J5, Galaxy J7 (2017), Galaxy J7 (2018), Galaxy J7 Max, Galaxy J7 Prime 2, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 20, Galaxy Note 20 Ultra, Galaxy Note 8, Galaxy Note 9, Galaxy Note Fan Edition, Galaxy S10 5G, Galaxy S10 Plus, Galaxy S20 FE 5G, Galaxy S20 Plus 5G, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21 Plus 5G, Galaxy S21 Ultra 5G, Galaxy S22 Plus 5G, Galaxy S22 Ultra 5G, Galaxy S23 Plus, Galaxy S23 Ultra, Galaxy S24 Plus, Galaxy S24 Ultra, Galaxy S8 Active, Galaxy S8 Plus, Galaxy S9 Plus, Galaxy XCover 4, Galaxy XCover 5, Galaxy XCover FieldPro, Galaxy XCover Pro, Galaxy XCover7, Garmin, Google, GPS, Harmony, HTC, Huawei, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max, iPhone 8 Plus, iPhone Xr, iPhone Xs Max, K20, K20 Plus, Kyocera, Magellan, Mate 20 Pro, Mate 20 X, Medium Arm, Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3, moto e4, moto e4 plus, moto g5s plus, moto g6, moto g7 power, moto X4, moto z2, moto z2 play, moto z3, Motorola, Nokia, OnePlus, P30 Pro, Panasonic, Phone, Phone 2, Pixel 2 XL, Pixel 3 XL, Pixel 3a XL, Pixel 4 XL, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 7 Pro, Pixel 8 Pro, RAM-B-138-UN10, RAM® X-Grip®, Rand McNally, Razer, RHINO C6, Road Explorer 5, RS60, RV 660LMT, RV 770 LMT-S, S42, S62, S62 Pro, Samsung, Social Mobile, Sonim, Sony, Stylo 3 Plus Titan, Stylo 4, Supports Device With Case, TND 540, TR5, TR7, U11, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, X venture, Xiaomi, Xperia L1, Xperia L2, Xperia XZ1, Xperia XZ2, Xperia XZ3, Zone 4, ZTE

Information

Resources

Compatible Devices

Information

Product Weight
0.32 kg (0.70 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps
Holder Dimensions

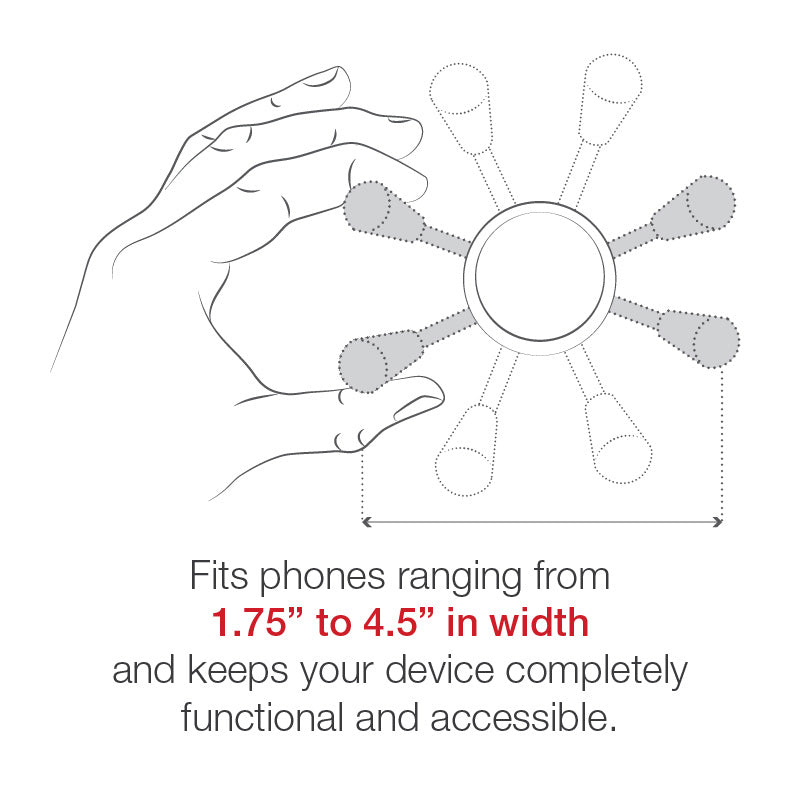

Width Range: 4.45cm (1.75") - 11.43cm (4.5") Depth Range: 2.22cm (0.875") max
Socket To Socket Length
7.62cm (3")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Plate Size
6.35cm (2.5") Diameter
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Retail Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry
