The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Trolling Motor Stabilizer - Tough-Claw™ .625" - 1.14" Medium Arm

SKU Copied
SKU: RAP-400-202U
UPC Copied
UPC: 793442946882

RAM® Trolling Motor Stabilizer - Tough-Claw™ .625" - 1.14" Medium Arm
Copy SKU
SKU: RAP-400-202U
Copy UPC
| UPC: 793442946882

C SIZE
MEDIUM ARM
Size Guide

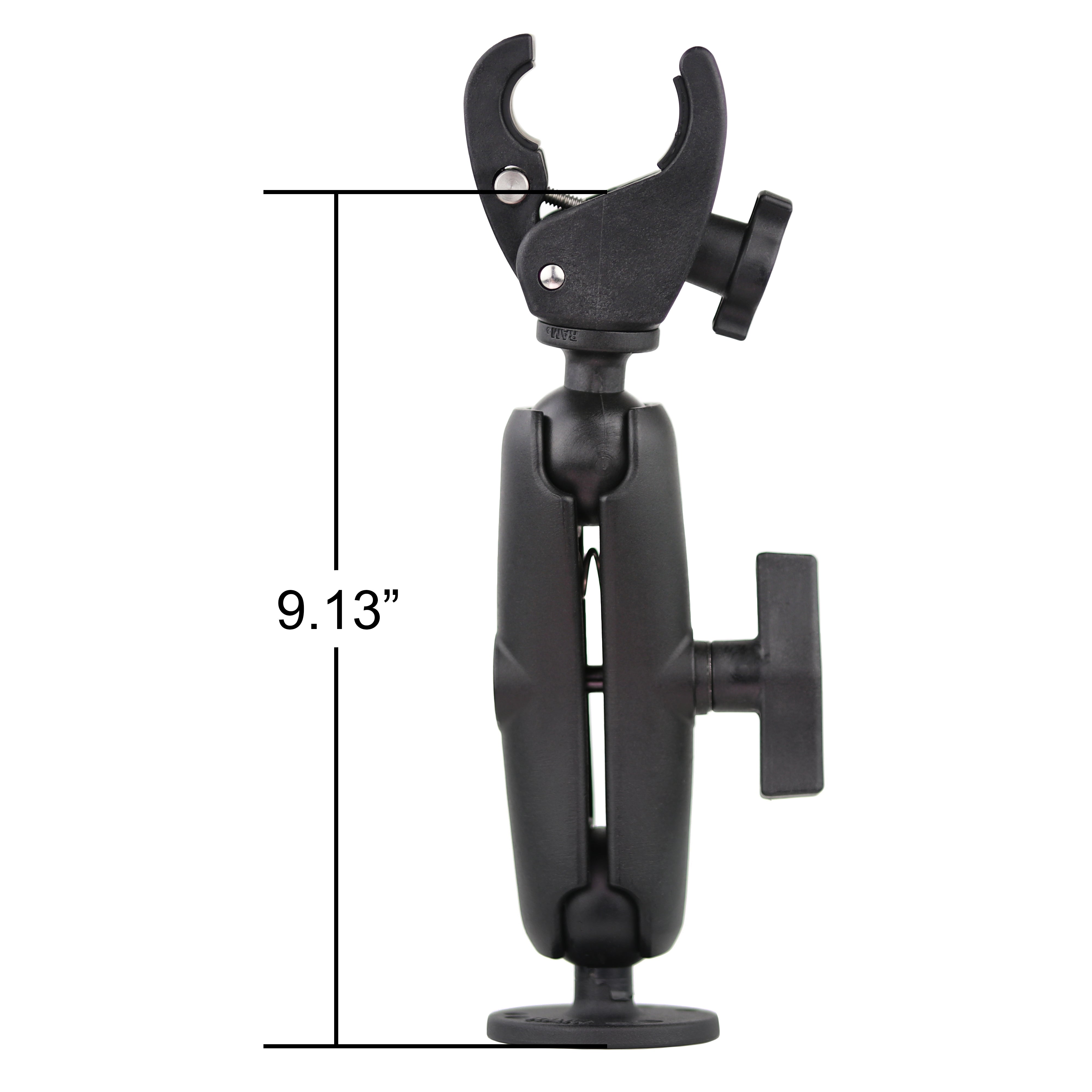

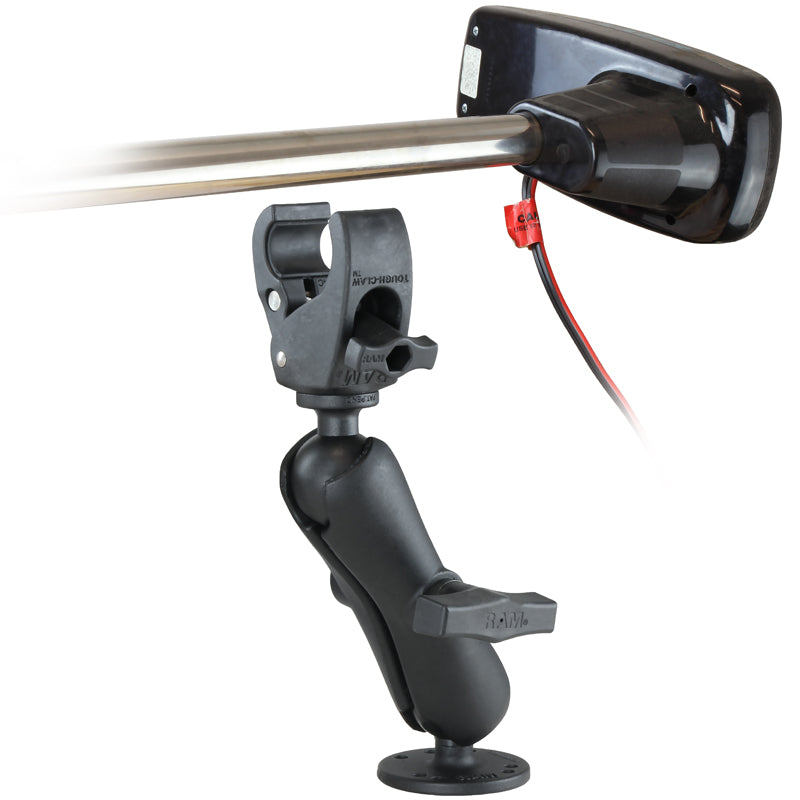

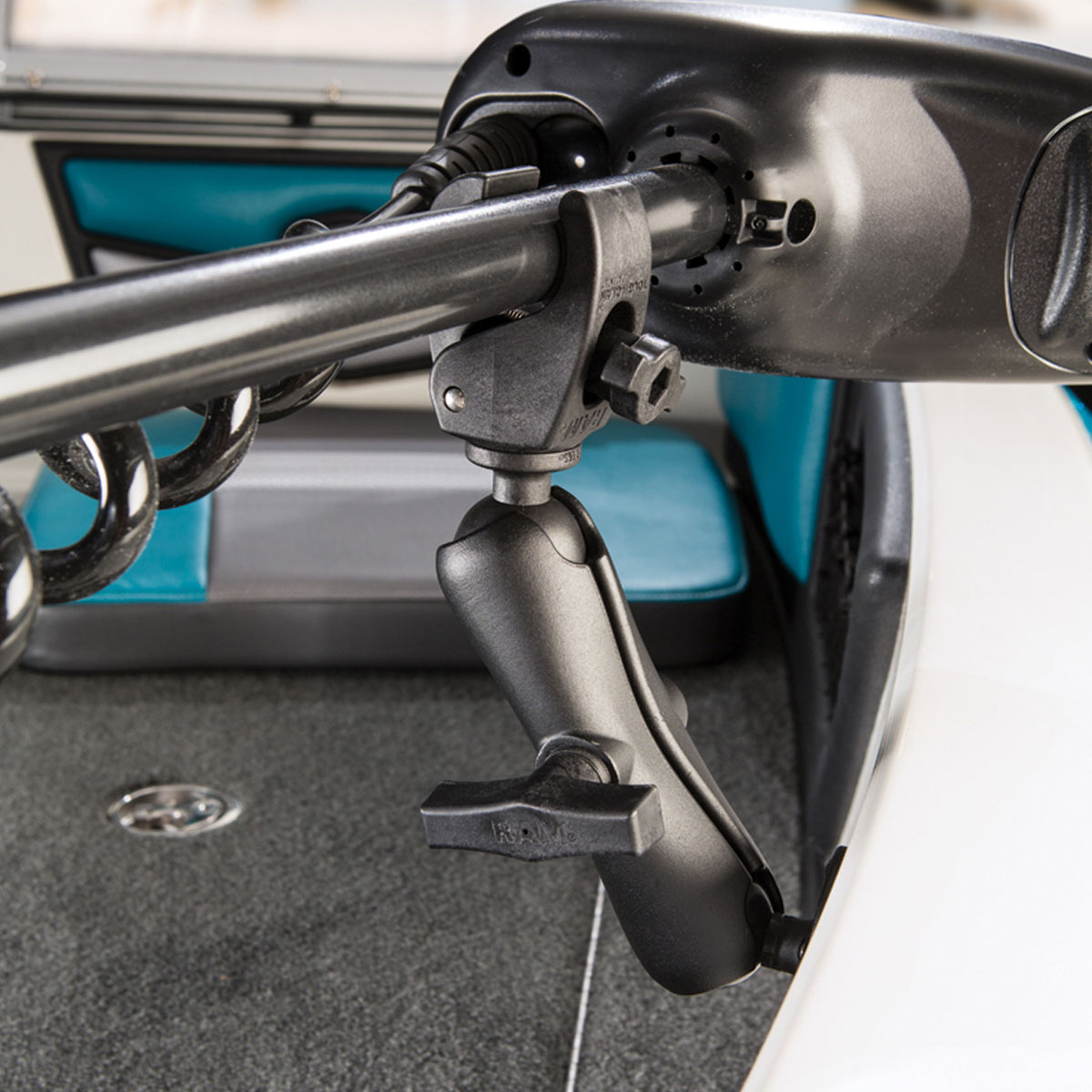

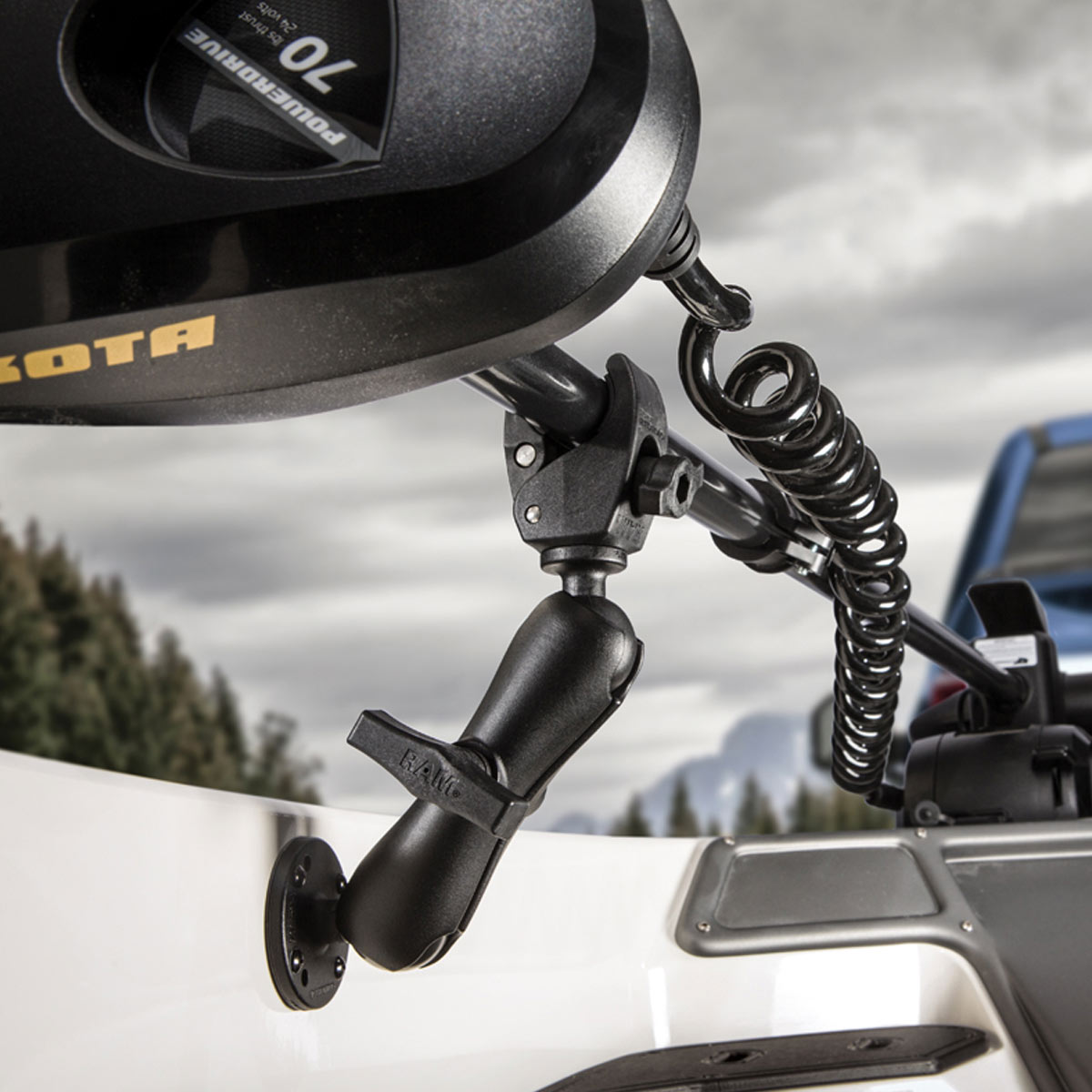

Ideal for stabilizing trolling motors, the RAP-400-202U consists of the small RAM Tough-Claw base, C size medium length double socket arm, and round base adapter. The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails, and bars. The RAM Tough-Claw can be clamped on rails from 1.59cm (00.625") - 2.90cm (1.14") outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern. This mount is designed with RAM C size 3.81cm (1.5") diameter patented ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Features
  • Includes small version of the RAM® Tough-Claw™, medium length C size RAM® double socket arm, and 6.35cm (2.5") round plate with C size 3.81cm (1.5") RAM® rubber ball

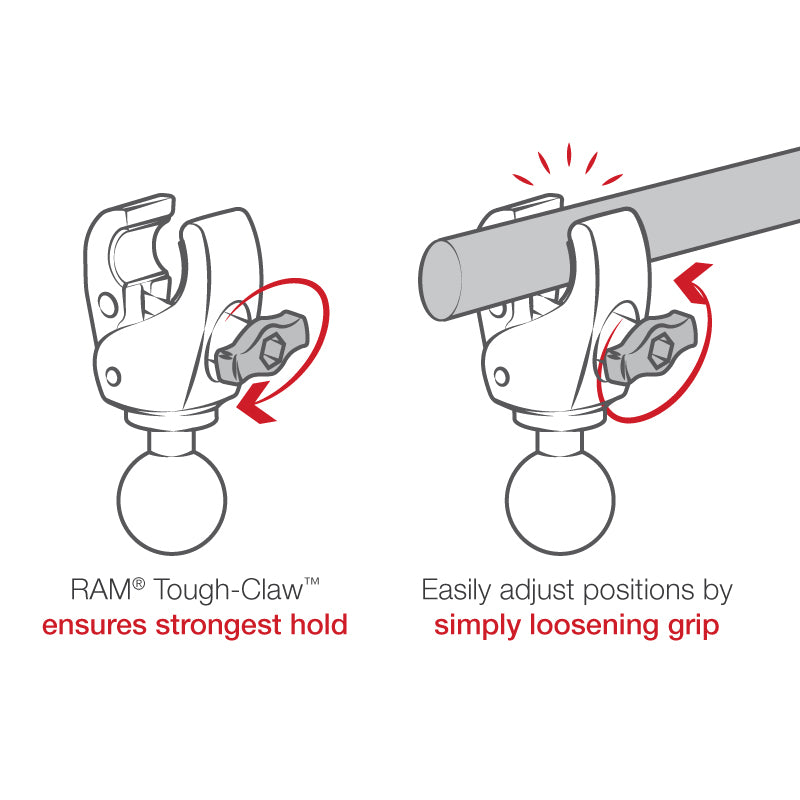

  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1.59cm (0.625") to 2.90cm (1.14") in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.60 kg (1.32 lbs)
Clamp Range
1.59cm (0.625") - 2.90cm (1.14") diameter

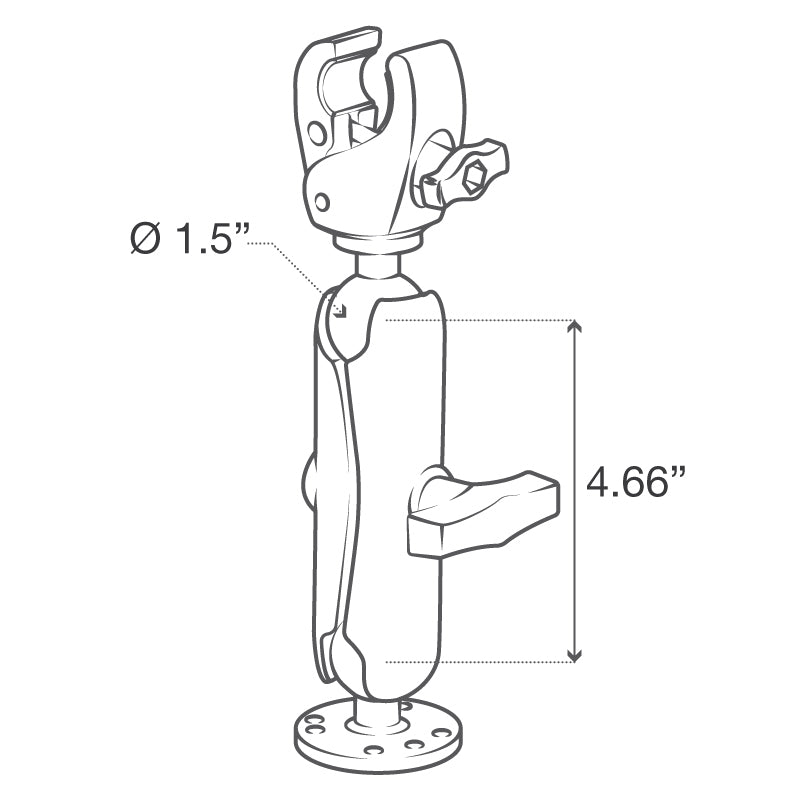

Socket To Socket Length
11.84cm (4.66")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Plate Size
6.35cm (2.5") Diameter
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-201U
RAM® Double Socket Arm - C Size Medium
RAM Mounts
Copy SKU
RAM-202U
RAM® Round Plate with Ball - C Size
RAM Mounts
Copy SKU
RAP-400U
RAM® Tough-Claw™ Small Clamp Ball Base
