The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Composite Phone Mount with Diamond Base

SKU Copied
SKU: RAP-B-102-UN7U
UPC Copied
UPC: 793442955051

RAM® X-Grip® Composite Phone Mount with Diamond Base
Copy SKU
SKU: RAP-B-102-UN7U
Copy UPC
| UPC: 793442955051

B SIZE
MEDIUM ARM
Size Guide

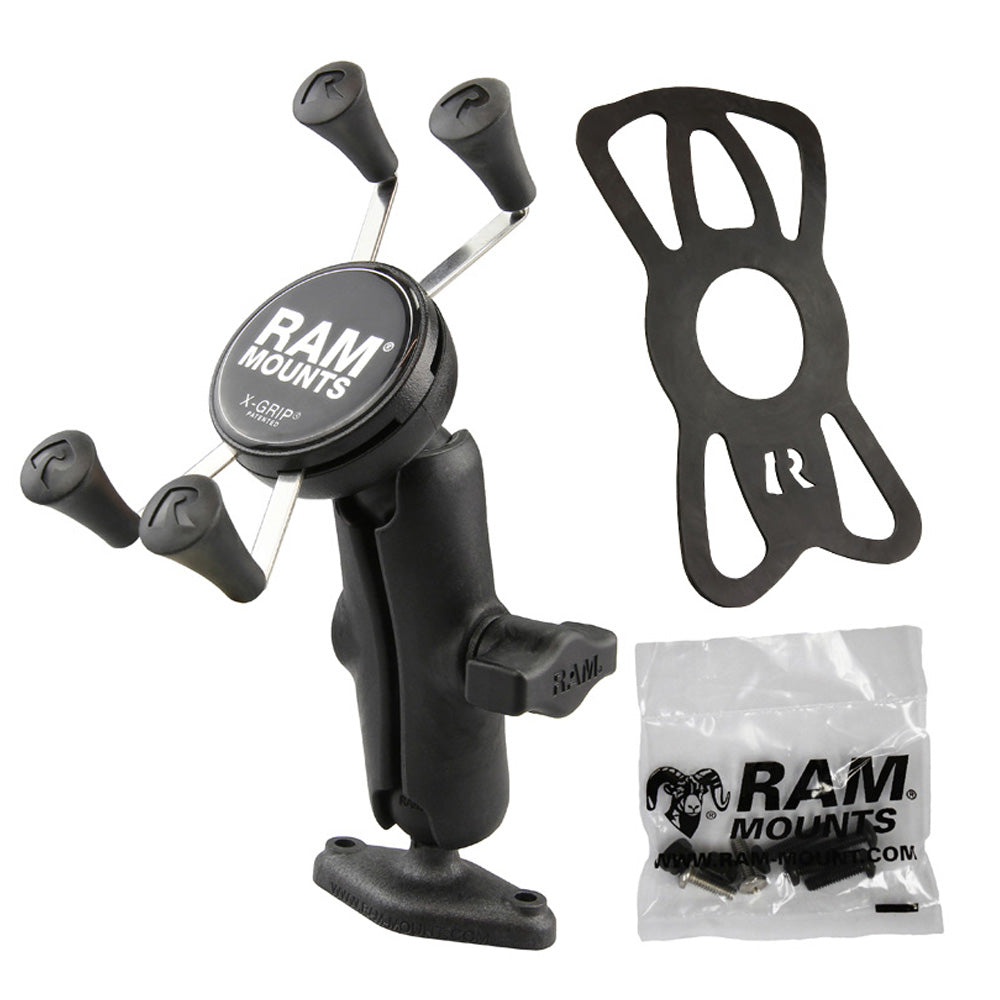

The RAP-B-102-UN7U consists of a composite diamond base, double socket arm and universal spring loaded X-Grip cradle for cell phones. Designed into the mount is a 2.54cm (1") diameter unique rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The 6.17 cm (2.43") X 3.33 cm (1.31") diamond base has two holes 4.86cm (1.912") from center to center and matches the industry standard AMPS hole pattern. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone holder evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows for near-infinite adjustability
  • Made of stainless steel components and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.24 kg (0.52 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps(2) #8-32 x 1.27cm (0.5") Machine Screws(2) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(2) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws(2) #8-32 Nylock Nuts
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Socket To Socket Length
7.62cm (3")
Hole Pattern
2-Hole AMPS: 4.86cm (1.912")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-HOL-UN7BU
RAM® X-Grip® Universal Phone Holder with Ball - B Size
RAM Mounts
Copy SKU
RAP-B-201U
RAM® Composite Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAP-B-238U
RAM® Composite Diamond Ball Base


Complete Your Solution

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack

Locking Knobs for B Size Socket Arms

RAM Mounts
Copy SKU
RAM-KNOB3LSU
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB3-7U
RAM® Pin-Lock™ Security Knob with 7-Pin Pattern for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB3U
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
