World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Form-Fit Holder for Honeywell ScanPal EDA10A

SKU Copied
SKU: RAM-HOL-HON11U
UPC Copied
UPC: 793442019425

RAM® Form-Fit Holder for Honeywell ScanPal EDA10A
Copy SKU
SKU: RAM-HOL-HON11U
Copy UPC
| UPC: 793442019425

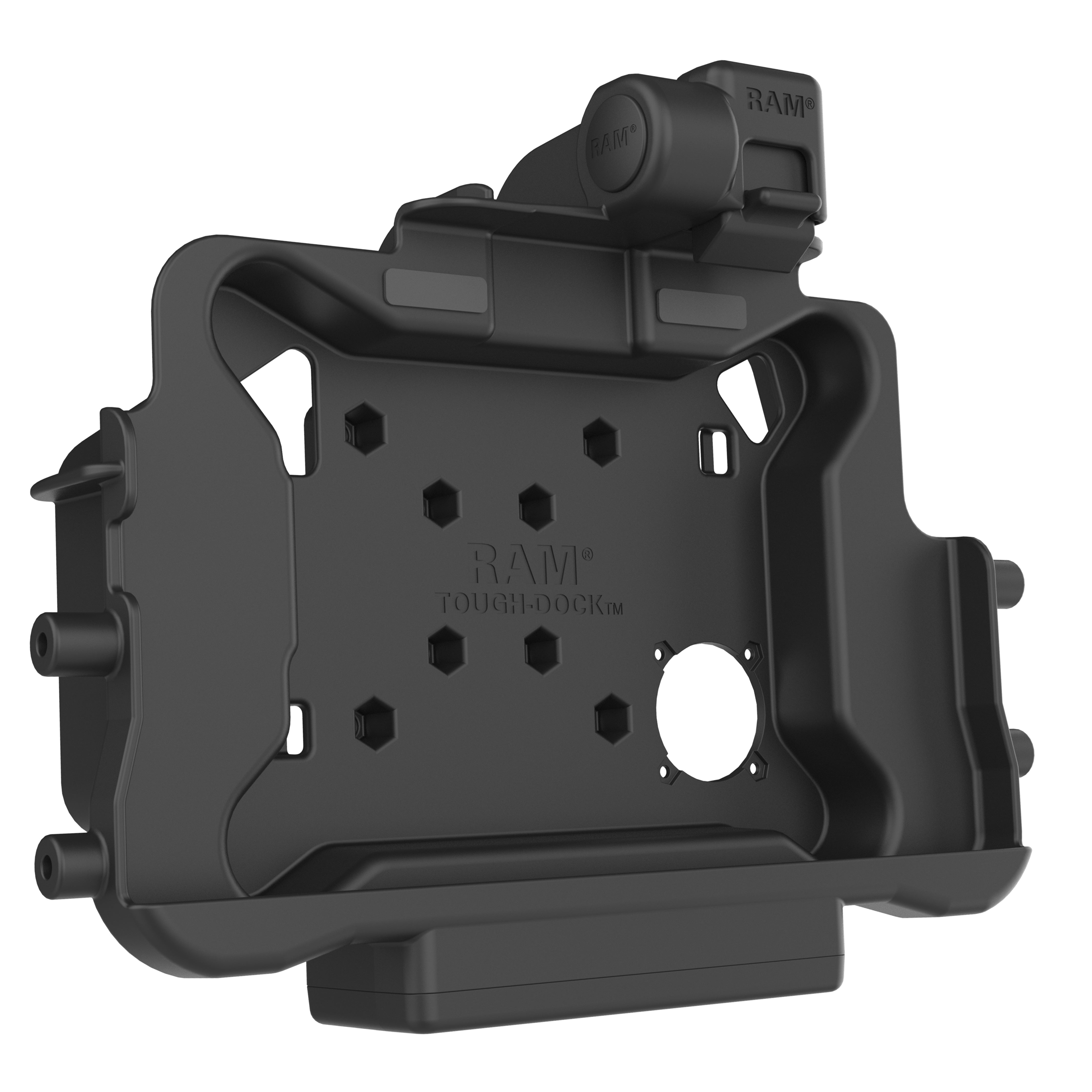

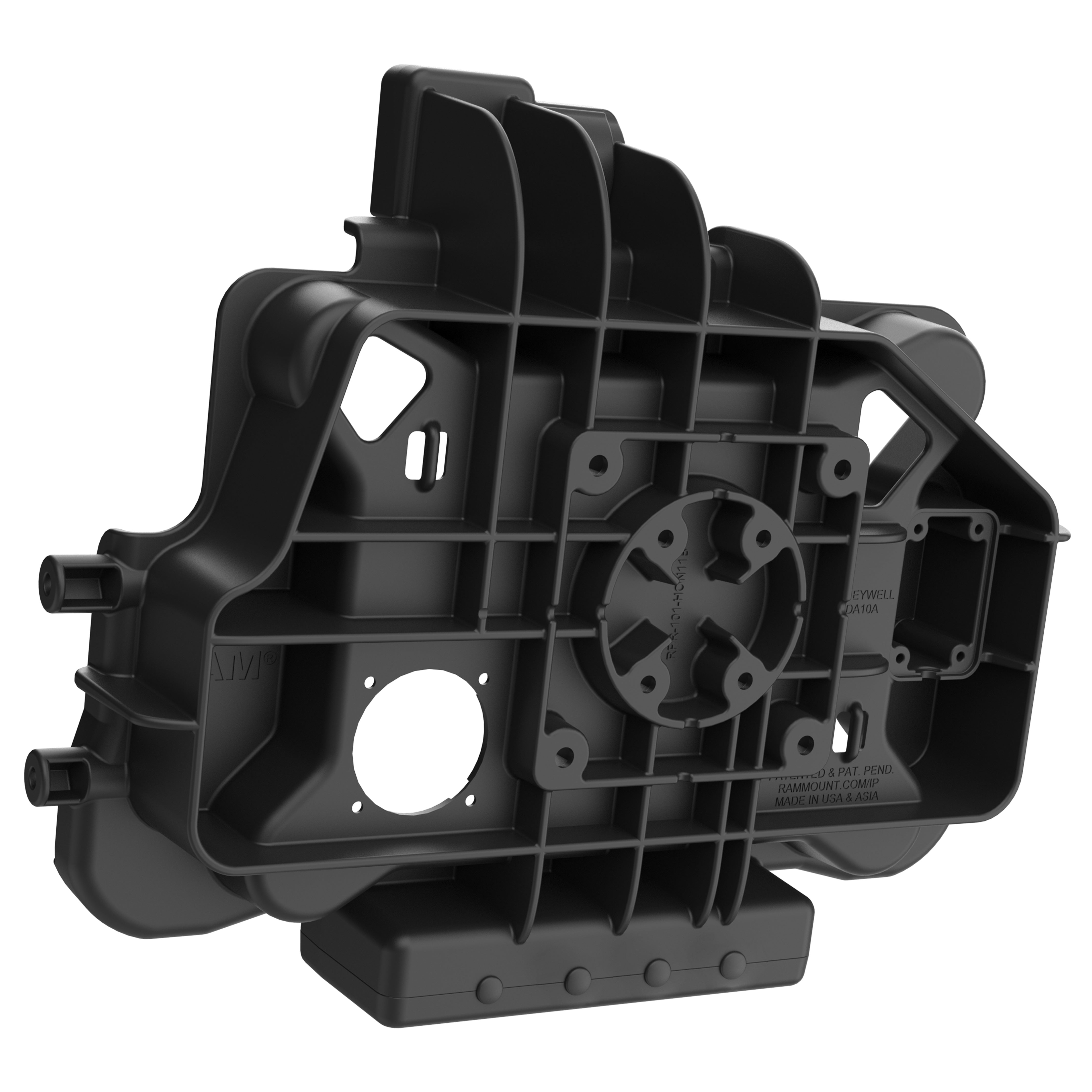

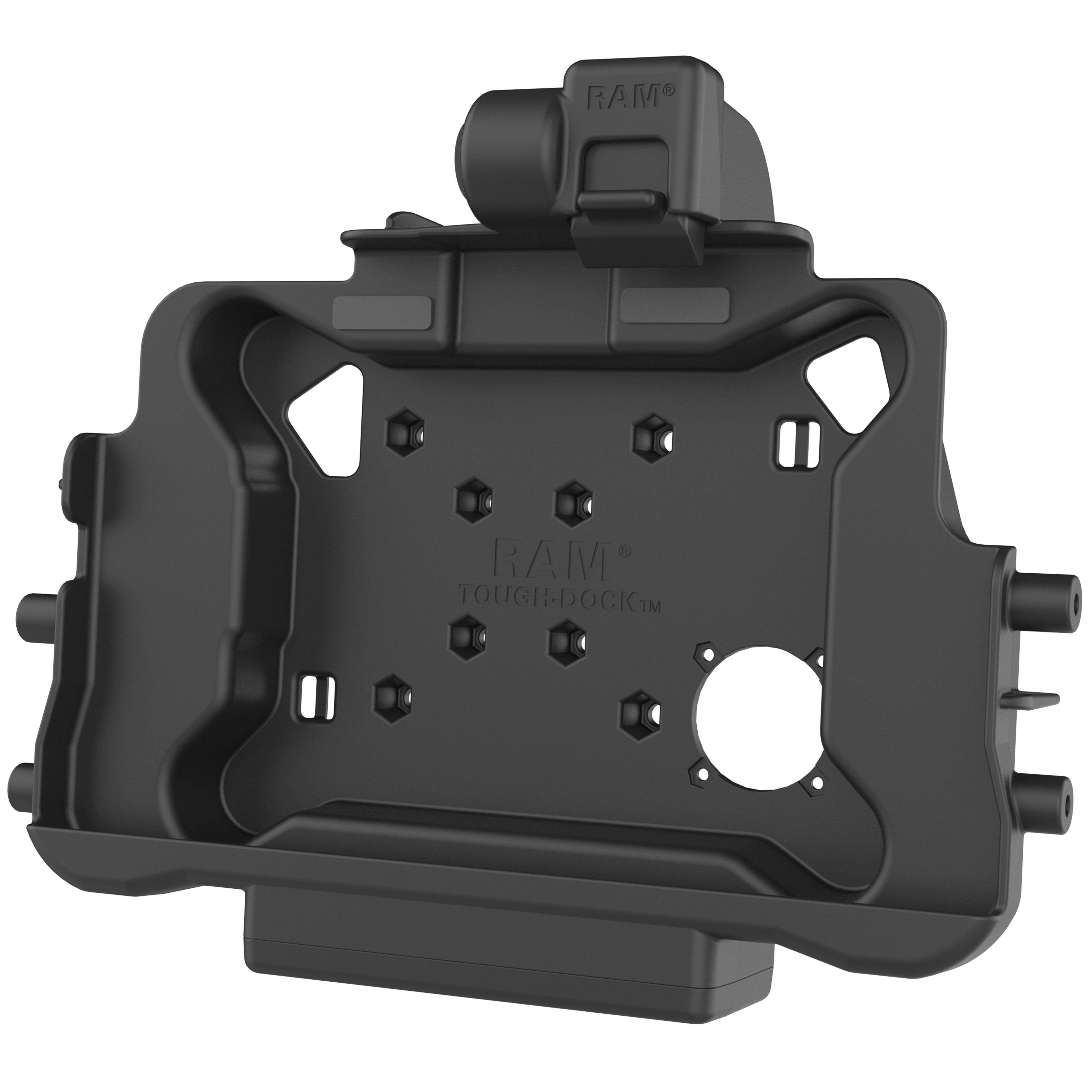

The RAM Form-Fit Holder for Honeywell ScanPal EDA10A (RAM-HOL-HON11U) features a form-fit design specifically for the Honeywell ScanPal EDA10A tablet with the OEM protective boot. This holder features cutouts to ensure the camera, buttons, and ports are fully accessible so the device maintains its capabilities while docked, such as the scanning function and volume control. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM accessories, such as the RAM NFC Extender and RAM Vent-Temp. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM 2-hole diamond base.

Features
  • Spring-loaded passive holder for the ScanPal™ EDA10A tablet (protective boot required)
  • Compatible with OEM handstrap, RAM® NFC Extender, and RAM® Vent-Temp™
  • Two built-in 2-hole mounting locations for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Hardware Included
(6) #8-32 x 5/20.32cm (8") Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/20.32cm (8") Machine Screws(4) #10-24 Nylock Nuts
Hole Pattern
75 x 75mm VESA4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag
Certifications
FCC, CE, RoHS, WEEE

Resources

DOCUMENTS

Compatible Devices

Add to Enquiry
