The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® with RAM® Pod™ I Vehicle Mount for 7"-8" Tablets

SKU Copied
SKU: RAM-B-316-1-UN8B
UPC Copied
UPC: 793442938610

RAM® X-Grip® with RAM® Pod™ I Vehicle Mount for 7"-8" Tablets
Copy SKU
SKU: RAM-B-316-1-UN8B
Copy UPC
| UPC: 793442938610

B SIZE
Size Guide

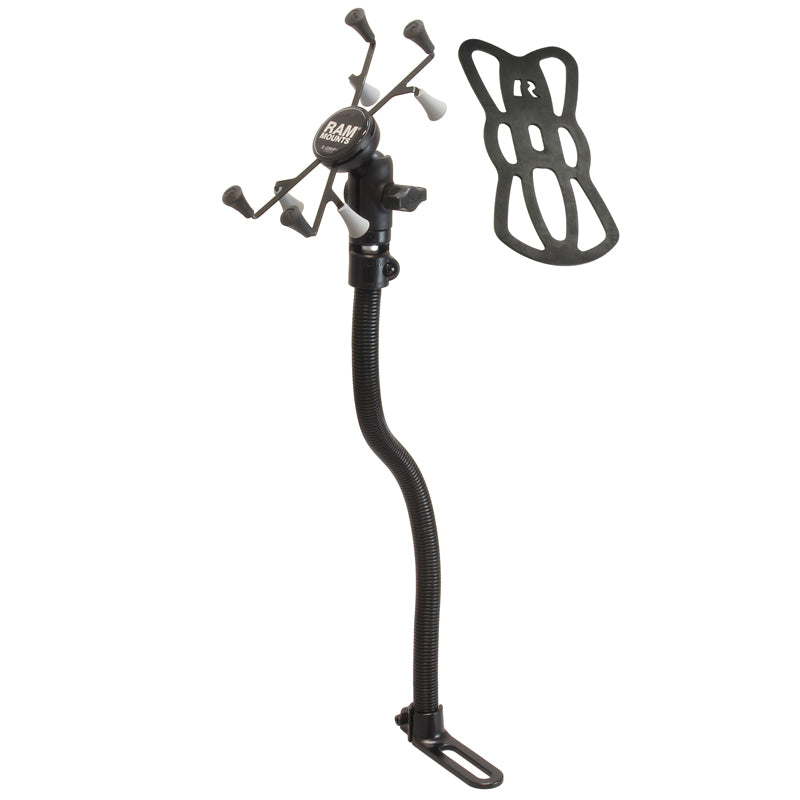

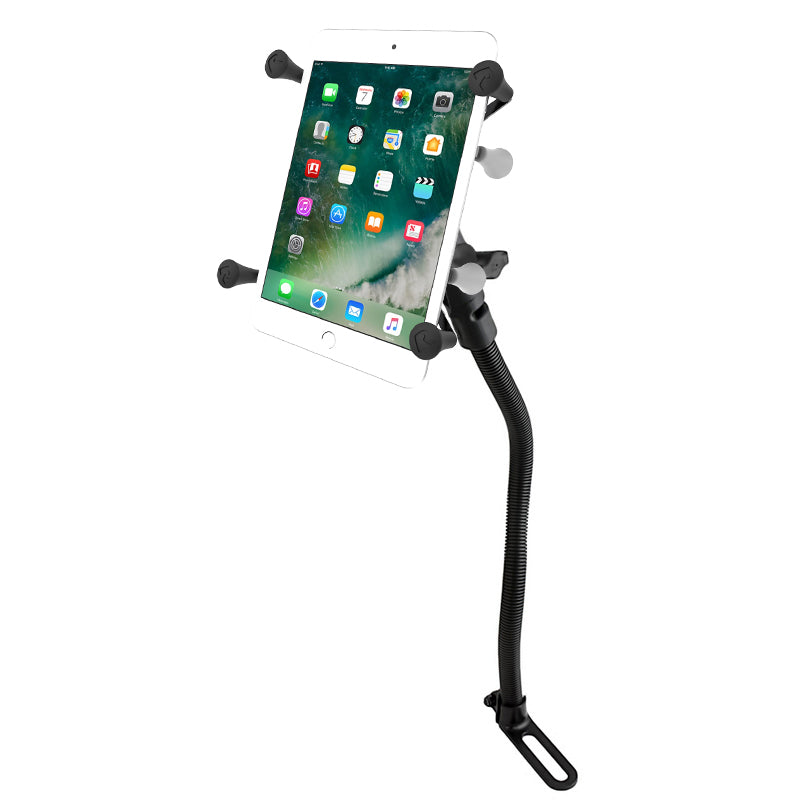

The RAM-B-316-1-UN8B consists of the RAM POD I universal No-Drill vehicle base, 45.72cm (18") rigid aluminum rod, socket system and universal spring loaded X-Grip cradle for 17.78cm (7") -20.32cm (8") tablets. The base of the mount connects to your seat rail without any drilling necessary. The 45.72cm (18") rigid aluminum rod can be bent to position your device to its optimum viewing location. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 17.78cm (7") -20.32cm (8") tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features
  • Universal vehicle mount attaches to seat rail without any drilling necessary; 45.72cm (18") aluminum rod can be bent to your ideal position
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 17.78cm (7") -20.32cm (8") tablets and includes optional device tether for peace of mind during rugged use
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
1.47 kg (3.25 lbs)
Hardware Included
Assembly Hardware(1) Optional Tether(1) Glue Tube for Rubber Caps
Holder Dimensions
Width Range: 6.35cm (2.5") - 14.61cm (5.75") Depth Range: 2.22cm (0.875") max
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Box
