The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® with Flex Adhesive Base for 7"-8" Tablets

SKU Copied
SKU: RAP-B-378-UN8U
UPC Copied
UPC: 793442940972

RAM® X-Grip® with Flex Adhesive Base for 7"-8" Tablets
Copy SKU
SKU: RAP-B-378-UN8U
Copy UPC
| UPC: 793442940972

B SIZE
MEDIUM ARM
Size Guide

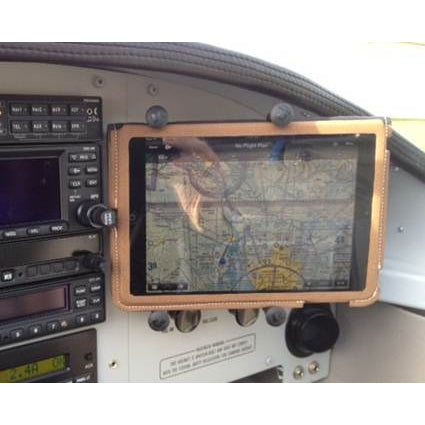

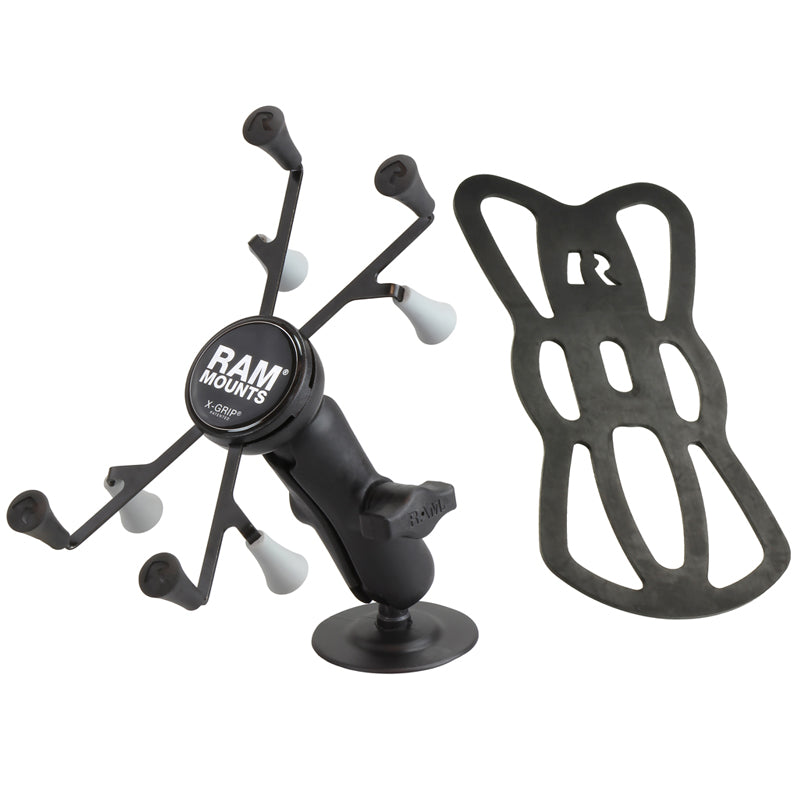

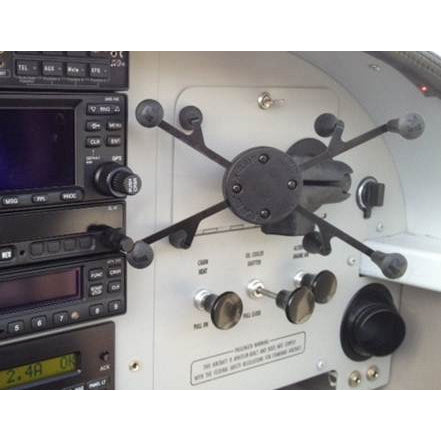

The RAP-B-378-UN8U consists of a flex adhesive base with 2.54cm (1") ball, double socket arm and universal spring loaded X-Grip cradle for 17.78cm (7") -20.32cm (8") tablets. Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 17.78cm (7") -20.32cm (8") tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Information

Resources

Compatible Devices

Information

Product Weight
0.28 kg (0.61 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps(1) 6.35cm (2.5") Double Sided Adhesive Disc(1) Alcohol Prep Pad
Holder Dimensions
Width Range: 6.35cm (2.5") - 14.61cm (5.75") Depth Range: 2.22cm (0.875") max
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
