World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Tite™ Yoke Clamp Mount for iPad mini with Heavy Duty Cases

SKU Copied
SKU: RAM-B-121-TAB12U
UPC Copied
UPC: 793442201066

RAM® Tab-Tite™ Yoke Clamp Mount for iPad mini with Heavy Duty Cases
Copy SKU
SKU: RAM-B-121-TAB12U
Copy UPC
| UPC: 793442201066

B SIZE
MEDIUM ARM
Size Guide

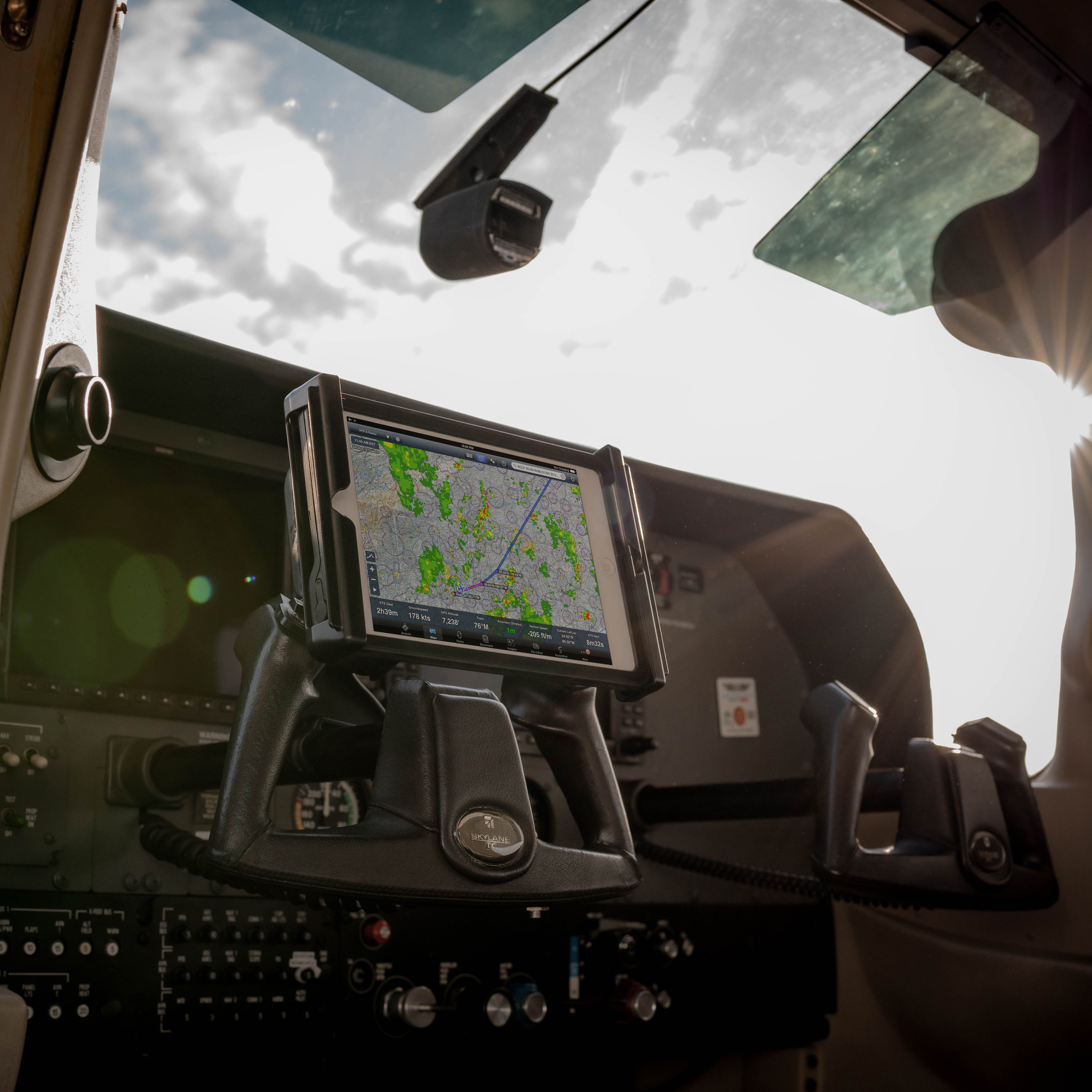

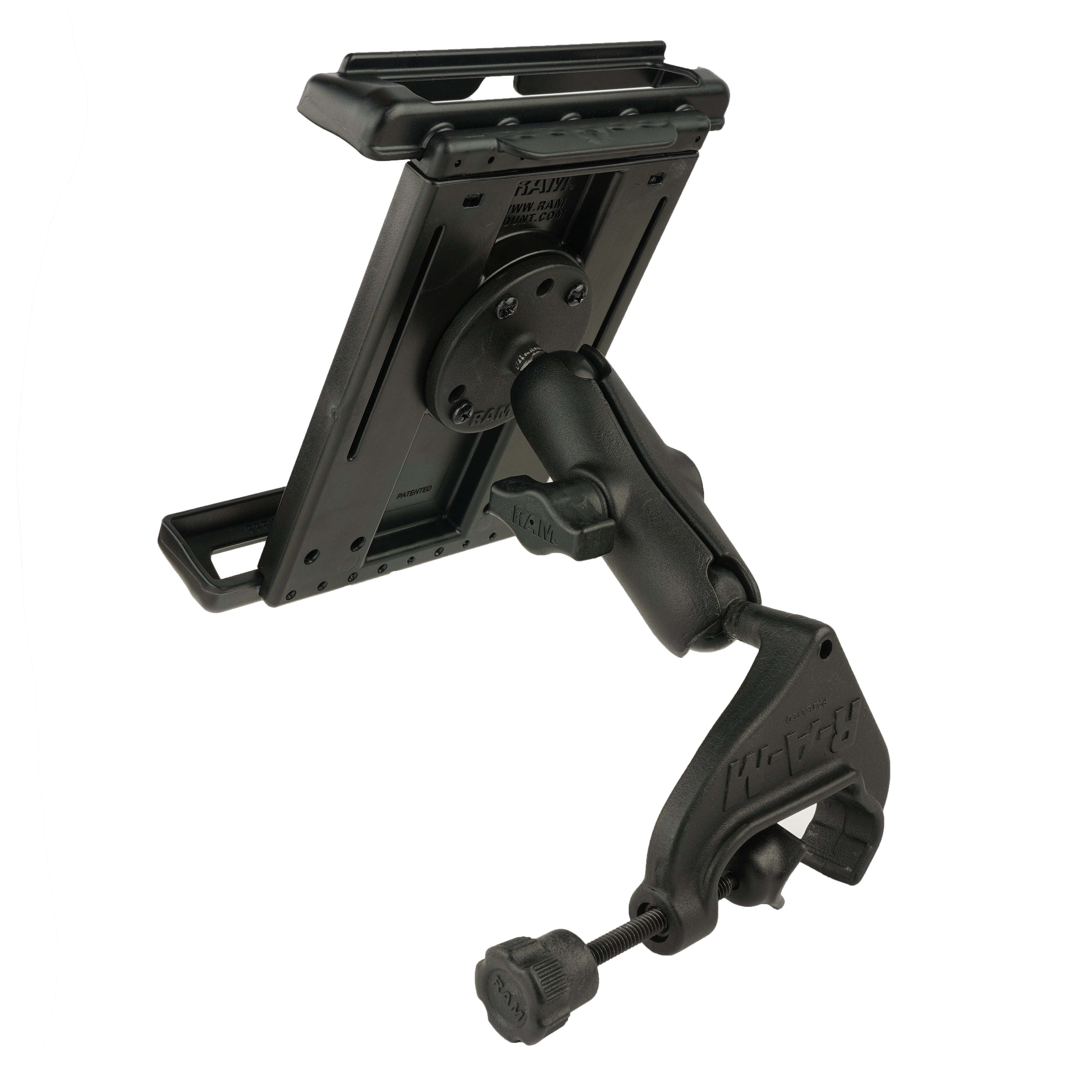

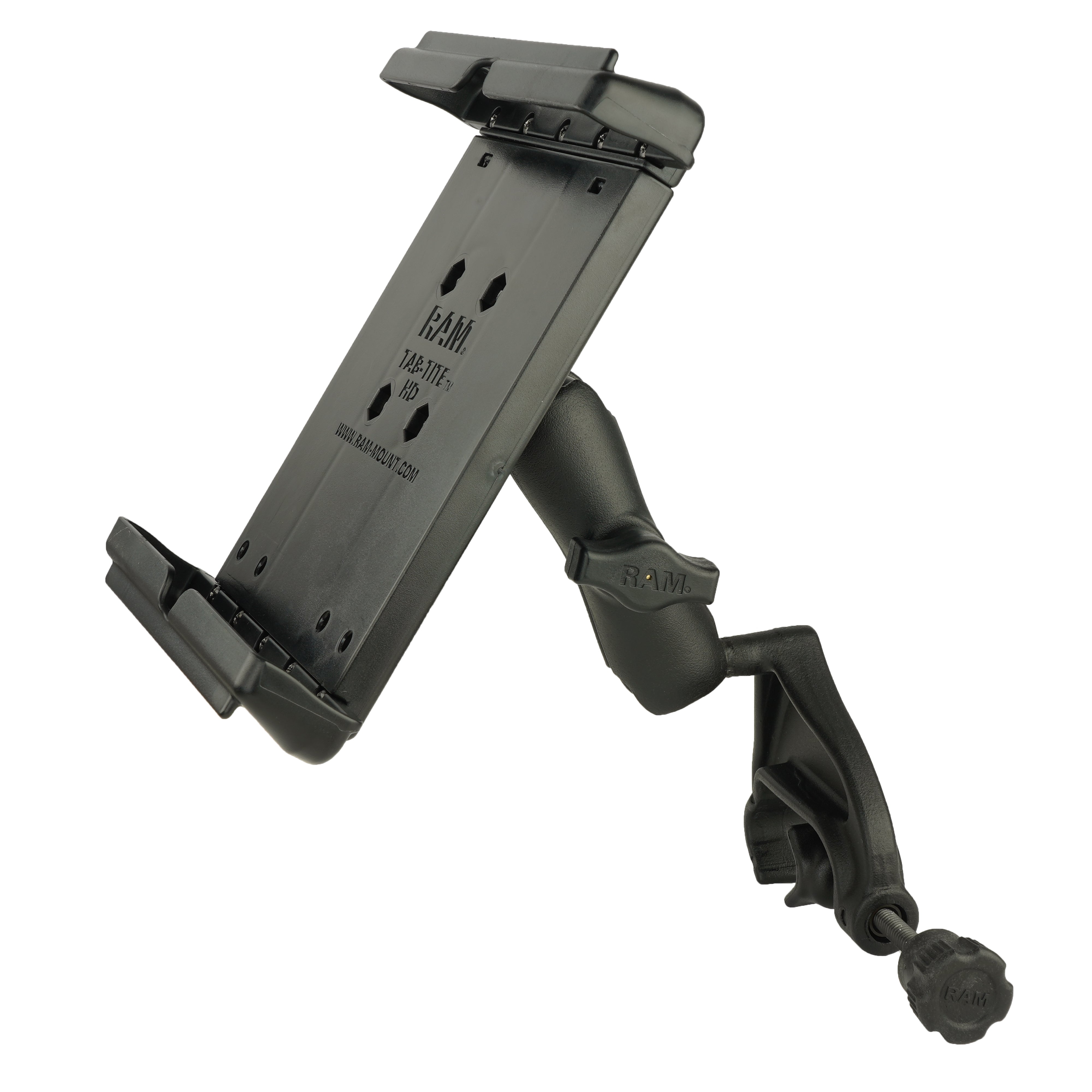

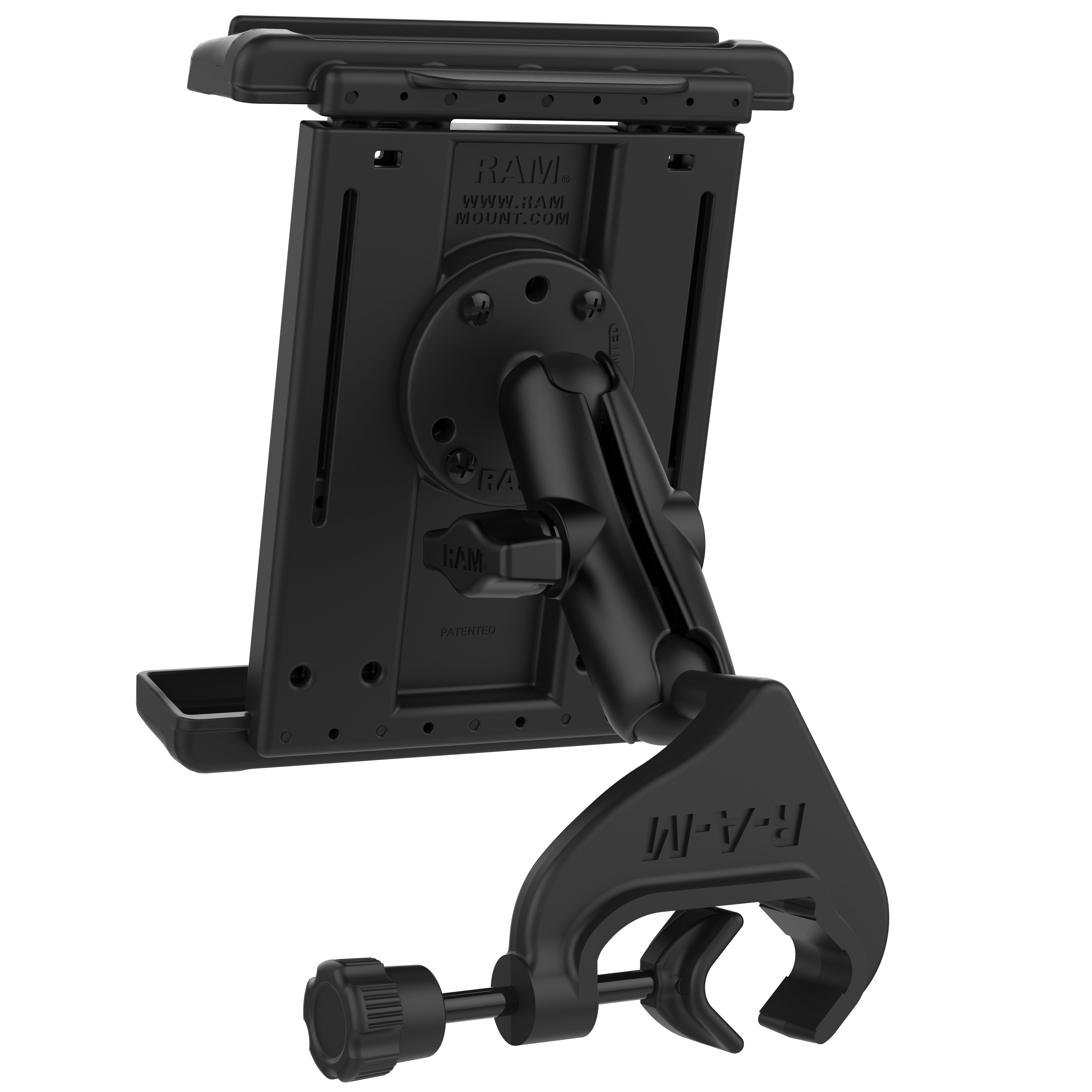

This ideal airplane yoke mount is designed specifically to hold any 20.32cm (8") tablet with a heavy duty case including the Apple iPad mini (A17 Pro), mini 6 as well as all previous iPad mini models, and consists of a RAM Tab-Tite, yoke clamp base, B size medium length double socket arm and round 6.35cm (2.5") base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 1.59cm (00.625") to a maximum of 3.18cm (1.25") . The 2.54cm (1") rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM Tab-Tite spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM components that contain the universal AMPS hole pattern. The RAM Tab-Tite holder is compatible with any tablet within the listed dimensions.

Features
  • Spring-loaded holder secures iPad mini (A17 Pro), mini 6 and previous mini models with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Yoke clamp base fits rails from 1.59cm (0.625") to 3.18cm (1.25") in diameter for the ideal airplane mount
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.65 kg (1.43 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 18.10cm (7.125") - 24.13cm (9.5") Width Range: 12.85cm (5.06") - 14.43cm (5.68") Depth Range: 0.33cm (0.13") - 2.54cm (1")
Clamp Range
1.59cm (0.625") - 3.18cm (1.25")
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
