The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Tite™ with Kneeboard Mount for iPad mini with Heavy Duty Cases

SKU Copied
SKU: RAM-BM-L1-SB1-TAB12U
UPC Copied
UPC: 793442211195

RAM® Tab-Tite™ with Kneeboard Mount for iPad mini with Heavy Duty Cases
Copy SKU
SKU: RAM-BM-L1-SB1-TAB12U
Copy UPC
| UPC: 793442211195

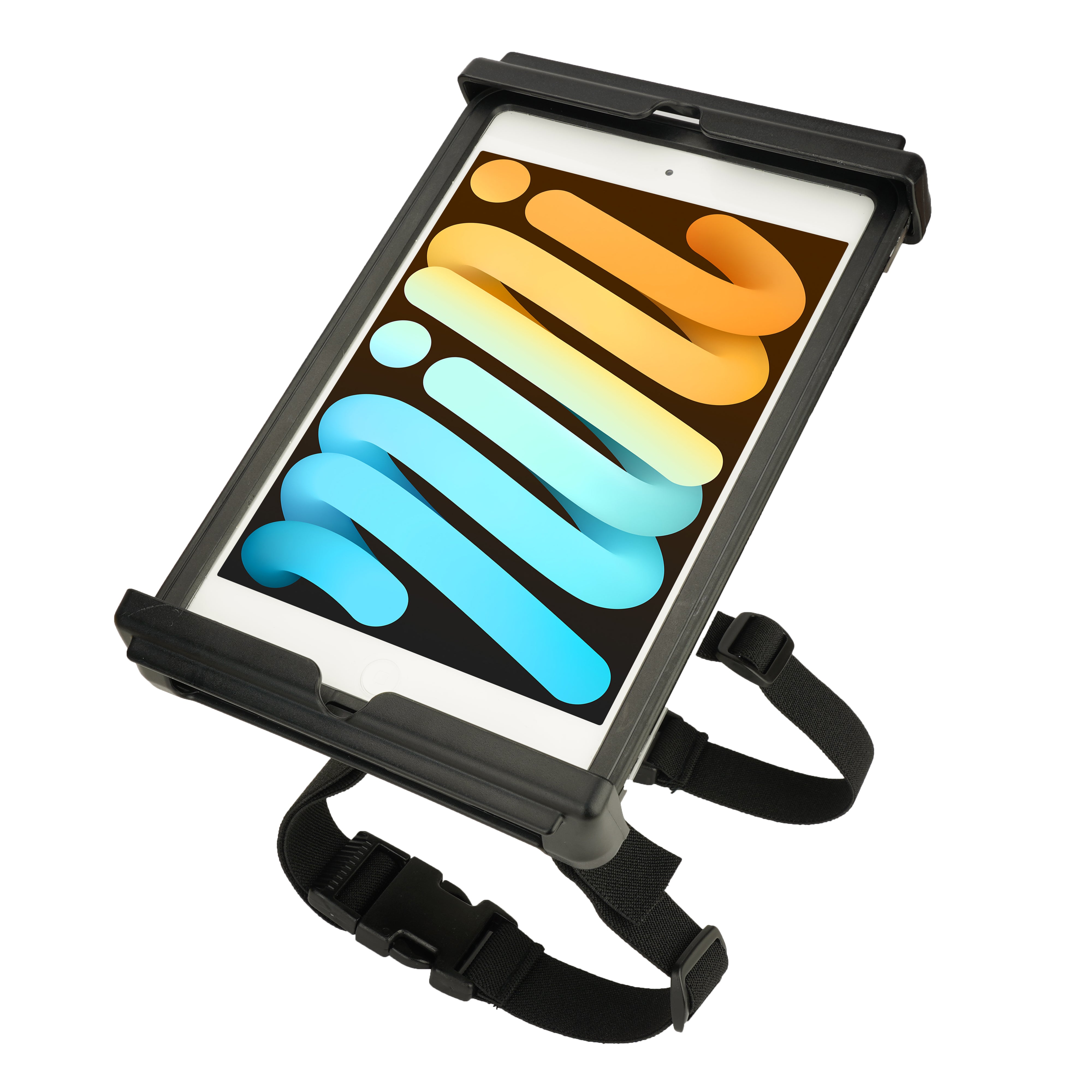

Get the most out of your tablet with the RAM Tab-Tite spring-loaded, quick-release holder with the RAM Snap-Link Rotating Kneeboard Mount. This holder will support nearly any 20.32cm (8") tablet with a heavy duty case including the iPad mini (A17 Pro), mini 6 and all previous iPad mini models. This spring-loaded design makes it easy to insert and remove your tablet and keeps it secure while on the go. End cups are designed to optimize the functionality of your tablet, allowing access to audio jacks, USB, power, and other ports. For pilots who like to have the iPad on their knee during flight, this solution will keep your device secured whether viewing in portrait or landscape mode, with the optional RAM Snap-Link ball adapter that lets you angle your tablet to eliminate sun glare. Included is a set of four nuts and bolts to connect the cradle to any RAM mounting components that contain the universal AMPS hole pattern. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features
  • Spring-loaded holder secures iPad mini (A17 Pro), mini 6 and previous mini models with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices

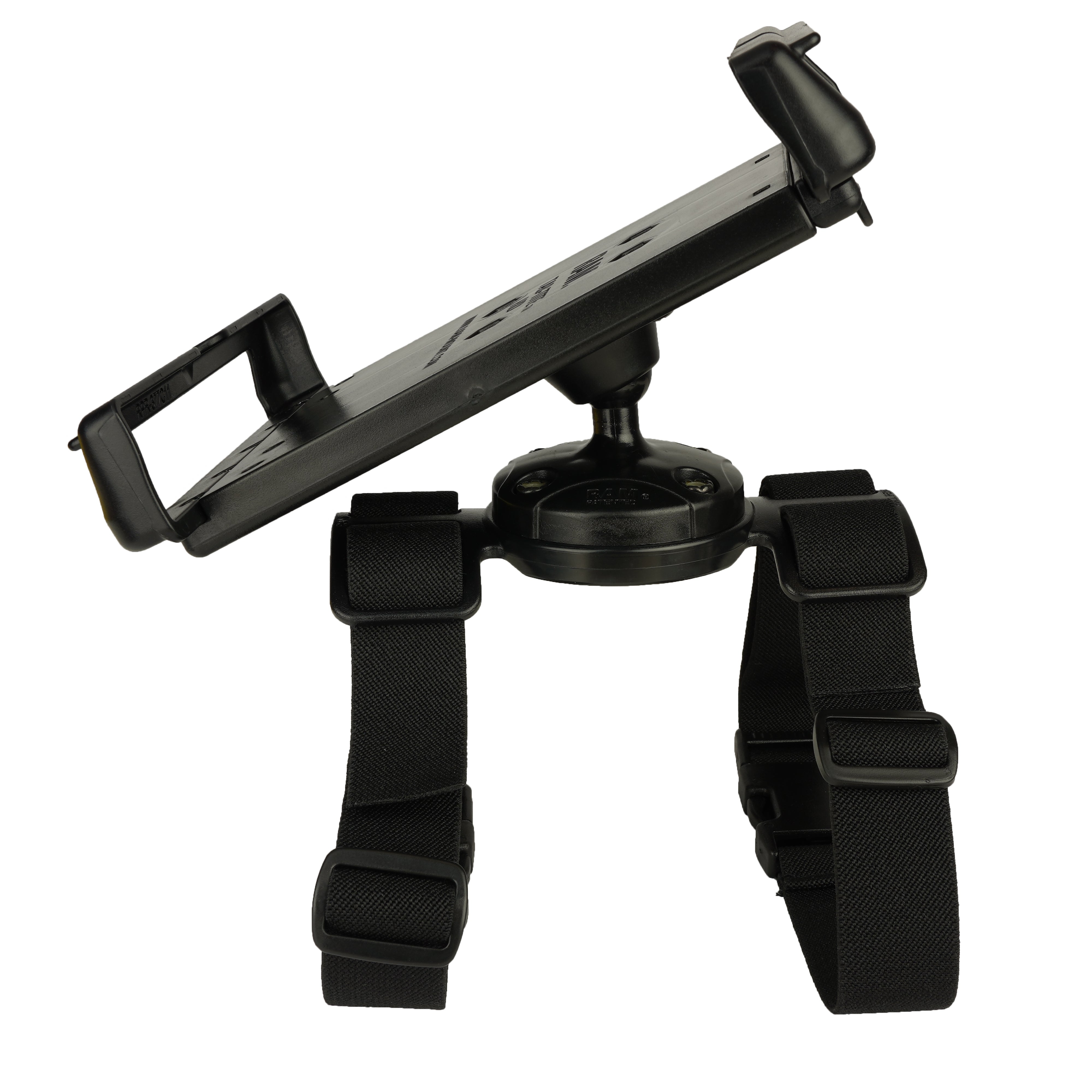

  • RAM® Snap-Link™ Rotating Kneeboard Mount is perfect for pilots who like to have the iPad on their knee during flight; supports device in portrait and landscape modes with ability to angle and eliminate sun glare
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.47 kg (1.04 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 18.10cm (7.125") - 24.13cm (9.5") Width Range: 12.85cm (5.06") - 14.43cm (5.68") Depth Range: 0.33cm (0.13") - 2.54cm (1")
Ball Size
RAM Snap-Link ( 7.62 cm (3")/10.16 cm (4") )
Weight Capacity
.2.27 kg (5 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

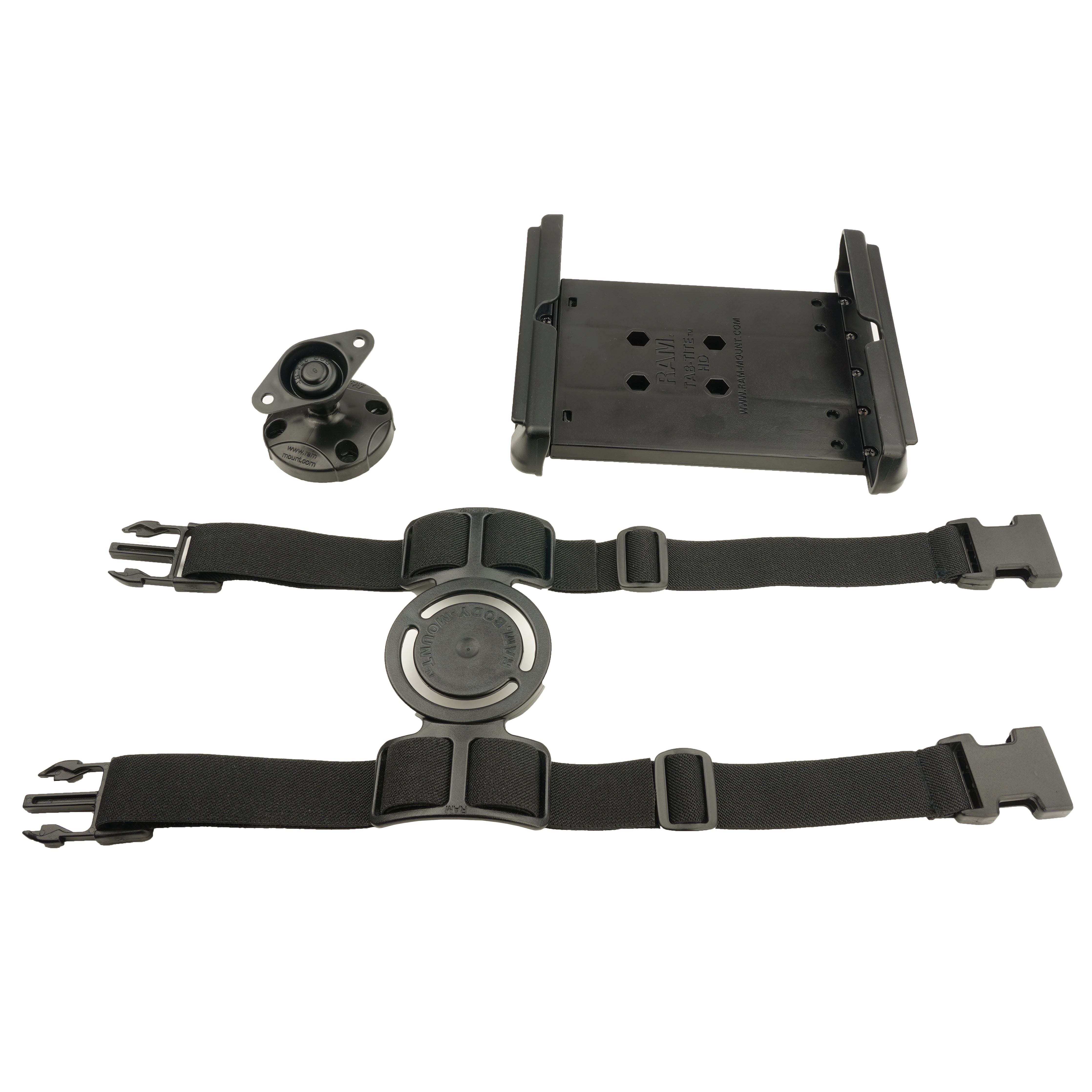

Components

RAM Mounts
Copy SKU
RAM-HOL-TAB12U
RAM® Tab-Tite™ Universal Spring Loaded Holder for 8" Tablets with Case
RAM Mounts
Copy SKU
RAM-BM-L1-SB1U
RAM® Snap-Link™ Rotating Leg Mount
