The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Spline Post Ball Adapter - C Size

SKU Copied
SKU: RAP-354-419U
UPC Copied
UPC: 793442954467

RAM® Spline Post Ball Adapter - C Size
Copy SKU
SKU: RAP-354-419U
Copy UPC
| UPC: 793442954467

C SIZE
Size Guide

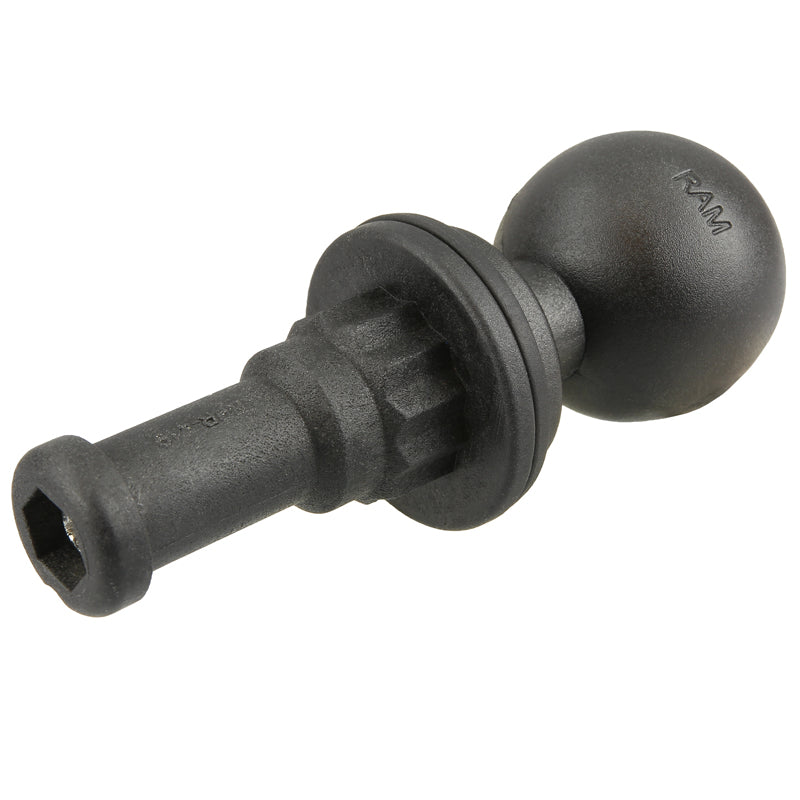

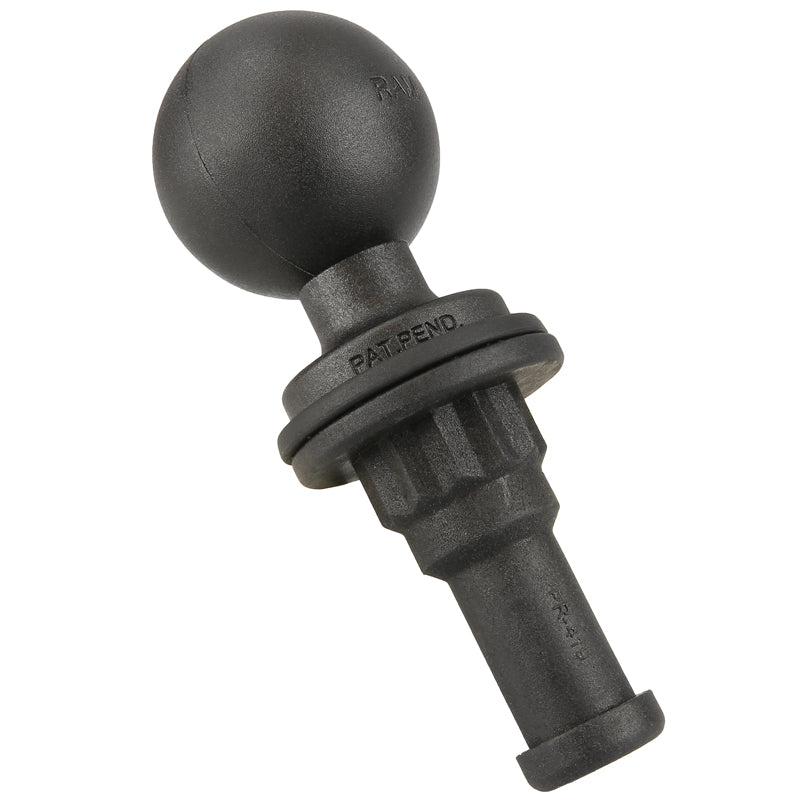

Convert any RAM post/spline base into a ball base on your boat or kayak with this 3.81cm (1.5") ball with spline post. With this adapter you can use your existing rod holder base to support a wide variety of ball and socket components to hold your fishfinder or other electronic devices. This ball will also connect to the RAM ROD Revolution Ratchet arm which adds ball and socket adjustability to your fishing rod holder. With the post and spline function you can easily remove or transfer your ball and socket mount when not in use.

Information

Information

Product Weight
0.09 kg (0.20 lbs)
Hardware Included
Assembly Hardware
T Bolt Dimensions
1.22 cm (0.48") X 2.41 cm (0.95")
Wedge Dimensions
Fits tube diameters 3.81cm (1.5") - 4.76cm (1.875")
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
High strength composite
Packaging Type
Poly Bag
