World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base - Medium

SKU Copied

SKU: RAM-B-149Z-PD3U

UPC Copied

UPC: 793442901034







RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base - Medium

Copy SKU
RAM-B-149Z-PD3U SKU: RAM-B-149Z-PD3U

Copy UPC
793442901034 | UPC: 793442901034

B SIZE

MEDIUM ARM

Size Guide

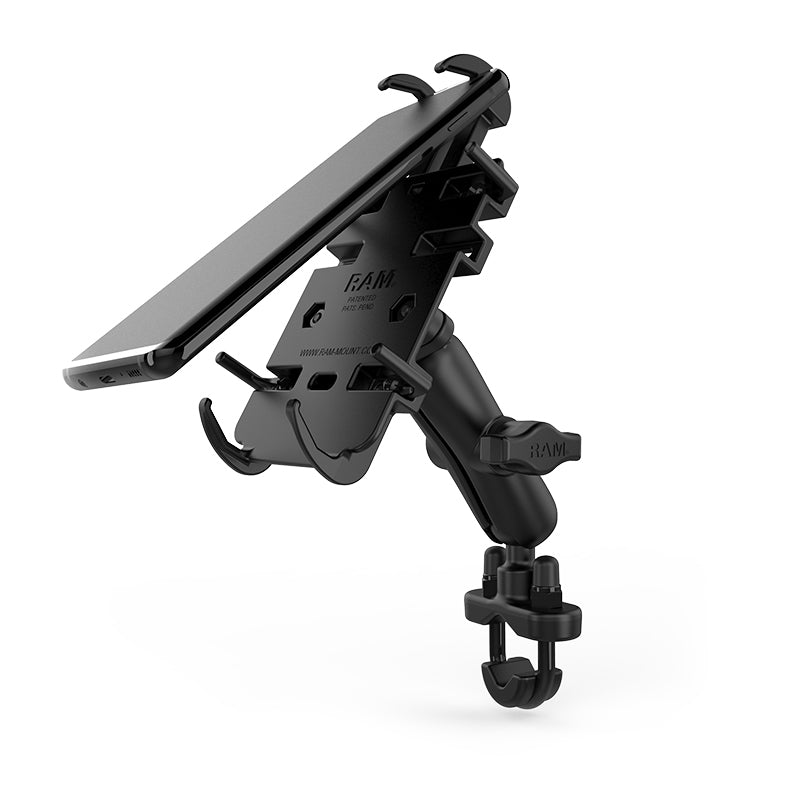

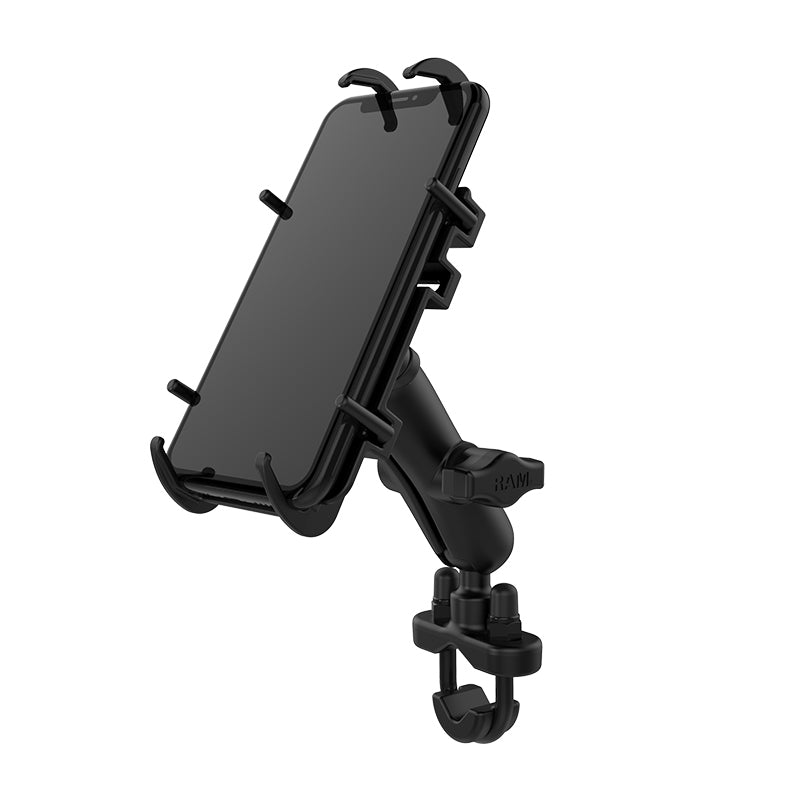

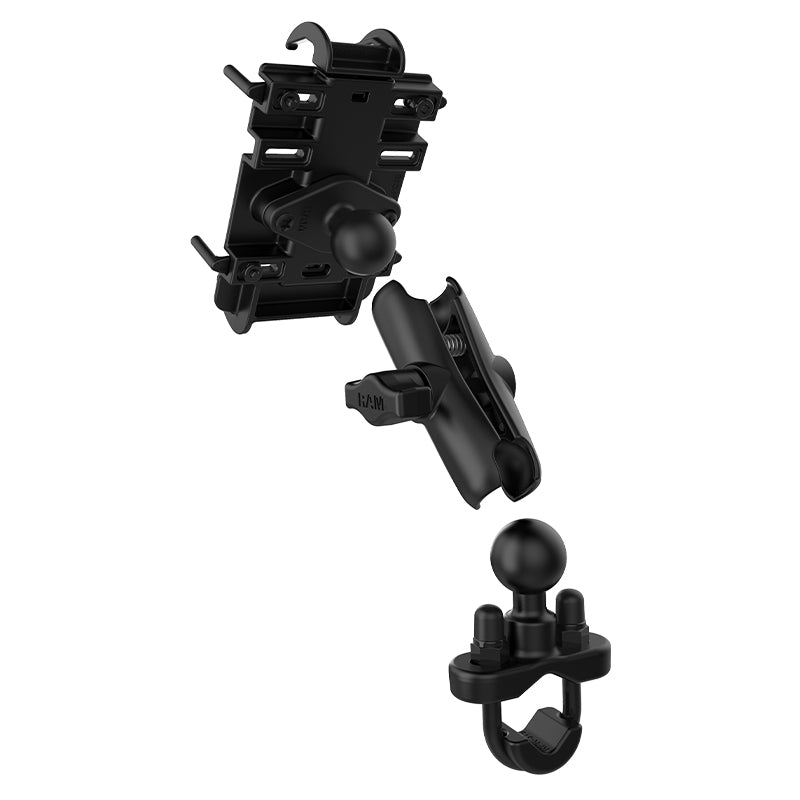

The RAM Quick-Grip Handlebar Mount consists of a zinc coated u-bolt base, double socket arm and spring loaded cradle for supporting most phones. Included in this package is hardware that will accommodate rails from 1.27cm (0.50") to 3.18cm (1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 1.27cm (00.5") . The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Features

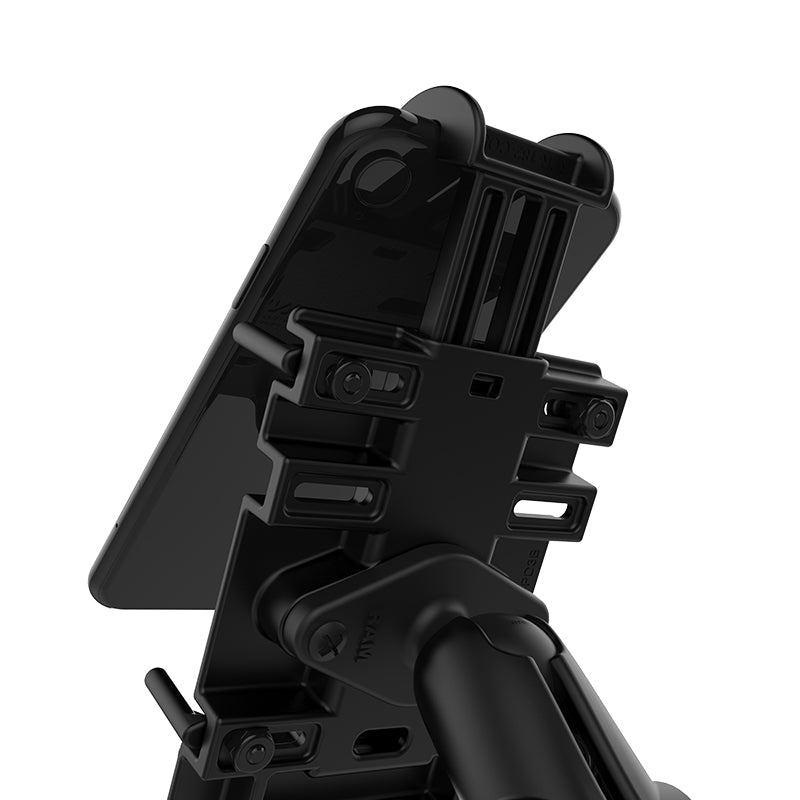

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices; easily insert and remove your phone with one hand
Includes U-bolt base that accommodates rails from 1.27cm (0.5") to 3.18cm (1.25") in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight

0.39 kg (0.85 lbs)

Hardware Included

Assembly Hardware(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Holder Dimensions

Height Range: 12.07cm (4.75") - 14.61cm (5.75") Width Range: 5.56cm (2.19") - 8.26cm (3.25") Max Depth: 1.83cm (0.72")

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite
