World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM^® Handlebar U-Bolt Double Ball Mount - B Size Medium

SKU Copied

SKU: RAM-B-149ZU

UPC Copied

UPC: 793442149009







RAM^® Handlebar U-Bolt Double Ball Mount - B Size Medium

Copy SKU
RAM-B-149ZU SKU: RAM-B-149ZU

Copy UPC
793442149009 | UPC: 793442149009

B SIZE

MED ARM

Size Guide

Overview

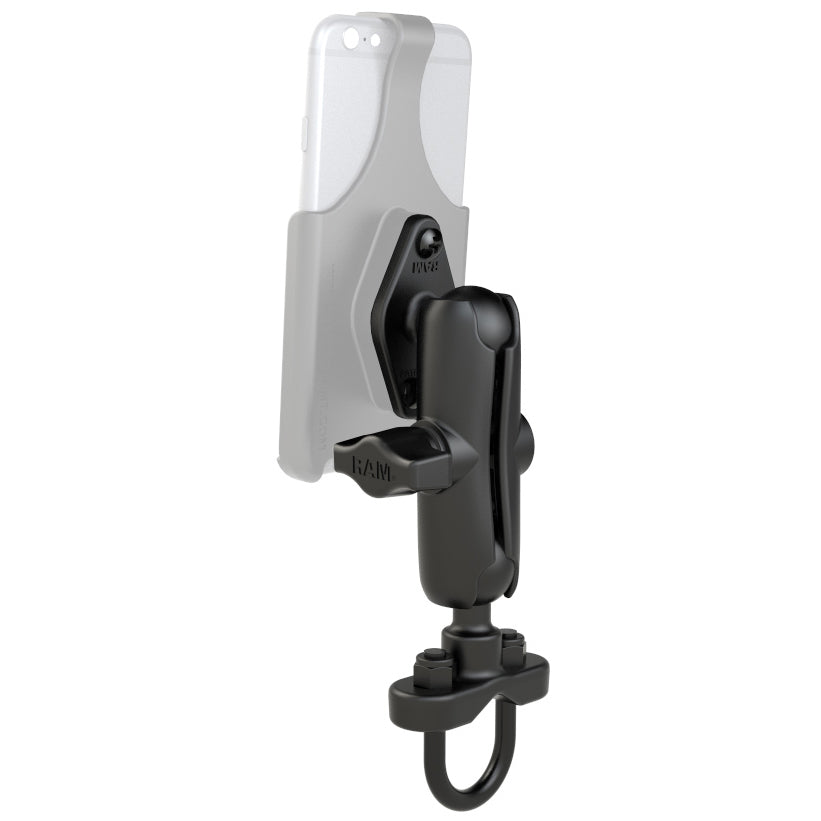

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM^® components. Included is hardware that will accommodate rails from 1.27cm (00.5") to 3.18cm (1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 1.27cm (0.5") . Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.

Features

Includes zinc-coated U-bolt base that accommodates rails from 1.27cm (00.5") to 3.18cm (1.25") in diameter, medium length B size RAM^® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders
RAM^® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Information

Resources

Information

Hardware Included

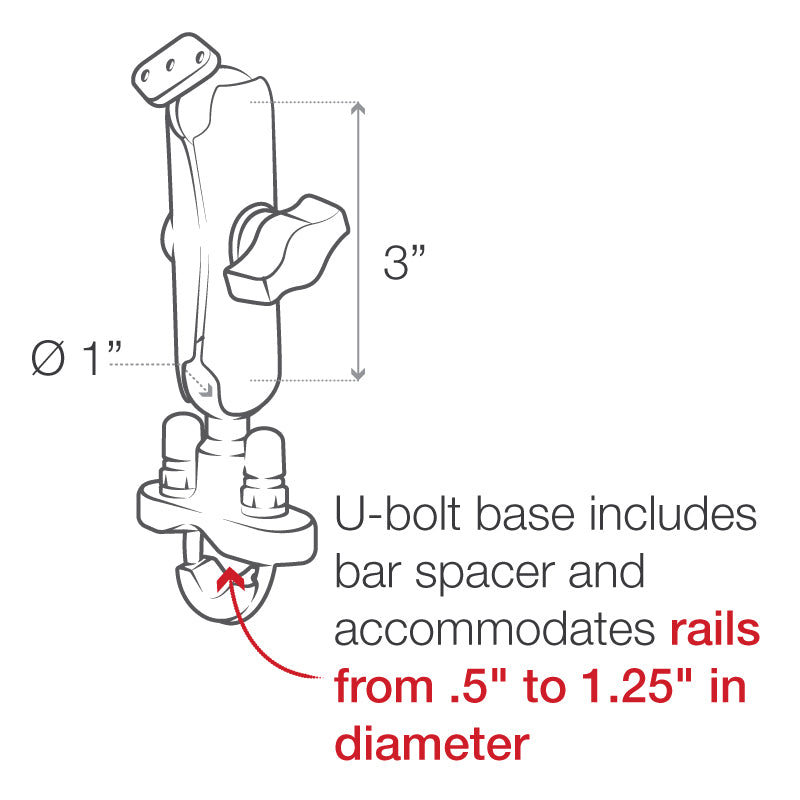

(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails
(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails
(2) 1/4" -20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Plate Size

6.17 cm (2.43") X 3.33 cm (1.31")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs)
Heavy-Duty Use: 0.45 kg (1 lbs)
