The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base - Short

SKU Copied

SKU: RAM-B-149Z-A-PD3U

UPC Copied

UPC: 793442009105







RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base - Short

Copy SKU
RAM-B-149Z-A-PD3U SKU: RAM-B-149Z-A-PD3U

Copy UPC
793442009105 | UPC: 793442009105

B SIZE

SHORT ARM

Size Guide

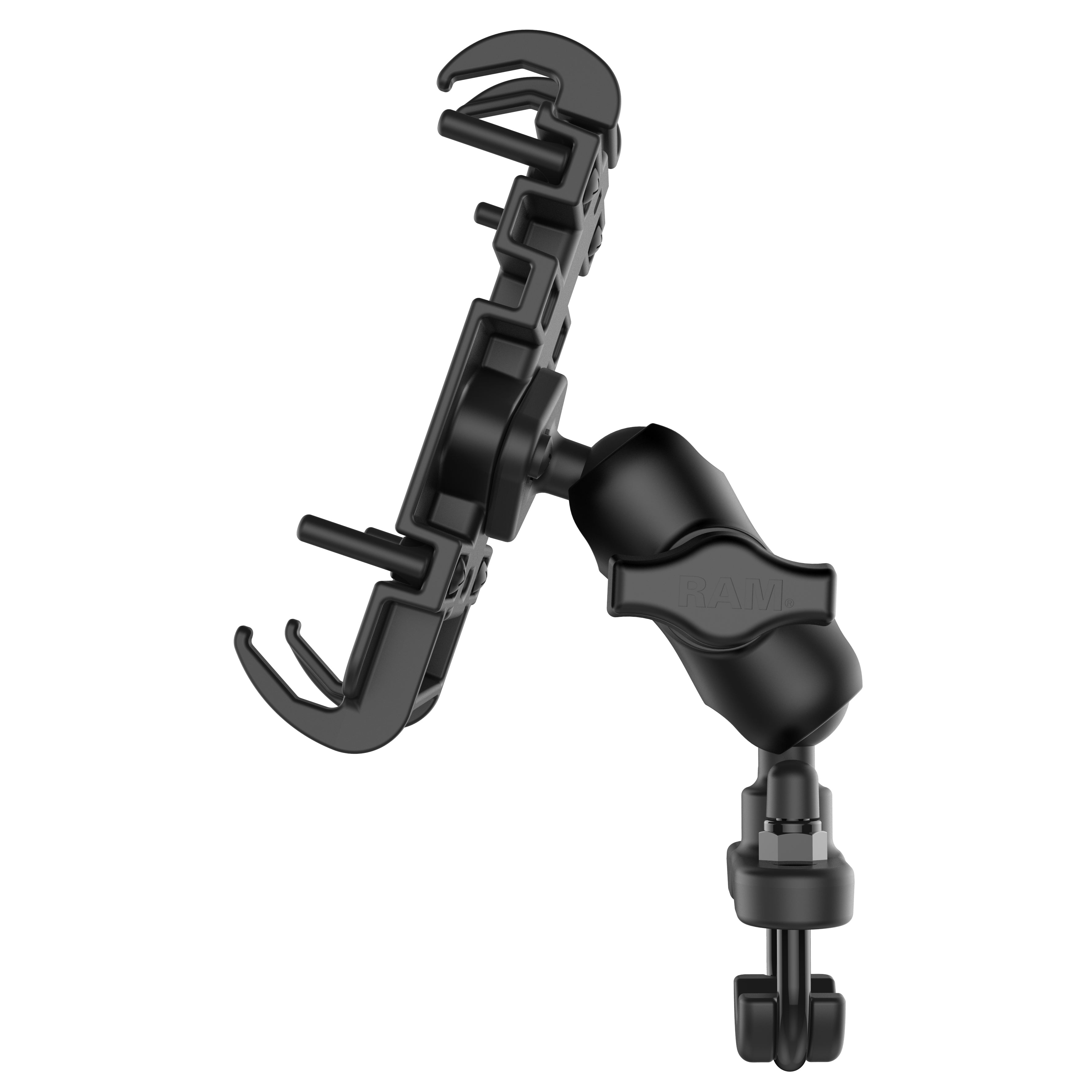

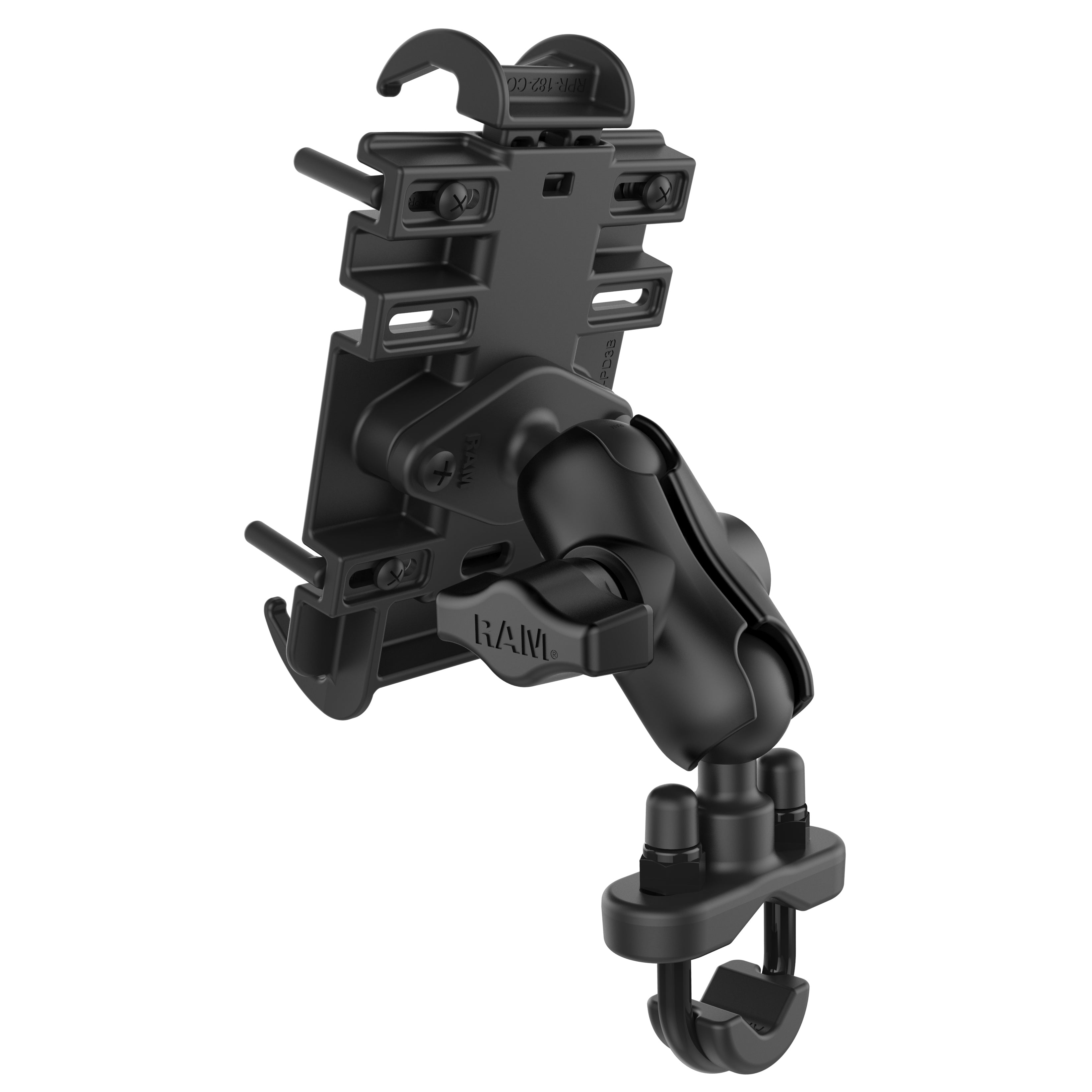

This version of the spring-loaded RAM Quick-Grip holder provides a secure fit for a variety of regular size phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5 to 1.25 in diameter.

Features

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices; easily insert and remove your phone with one hand
Includes U-bolt base that accommodates rails from 1.27cm (0.5") to 3.18cm (1.25") in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight

0.34 kg (0.75 lbs)

Hardware Included

Assembly Hardware(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Holder Dimensions

Height Range: 12.07cm (4.75") - 14.61cm (5.75") Width Range: 5.56cm (2.19") - 8.26cm (3.25") Max Depth: 1.83cm (0.72")

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

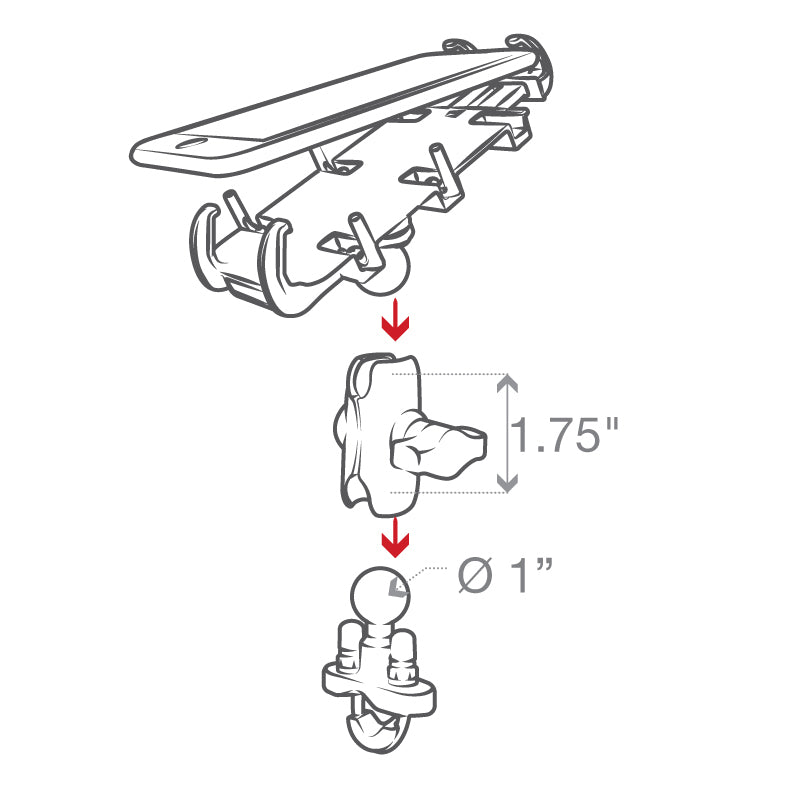

Socket To Socket Length

4.45cm (1.75")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite
