World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Charger

SKU Copied

SKU: RAM-HOL-UN14WB-V7M-1

UPC Copied

UPC: 793442920325







RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Charger

Copy SKU
RAM-HOL-UN14WB-V7M-1 SKU: RAM-HOL-UN14WB-V7M-1

Copy UPC
793442920325 | UPC: 793442920325

B SIZE

Size Guide

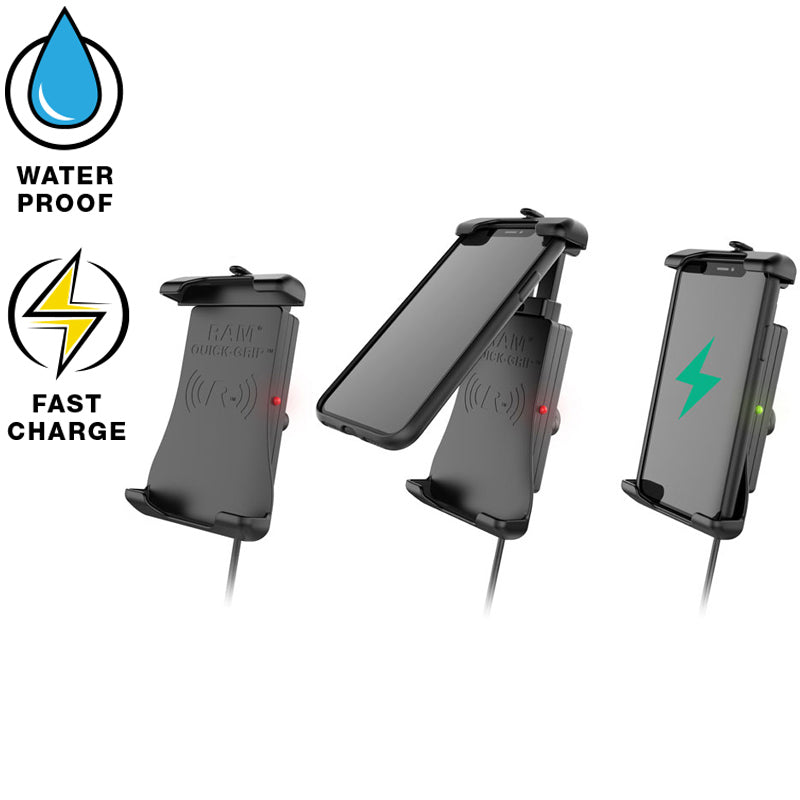

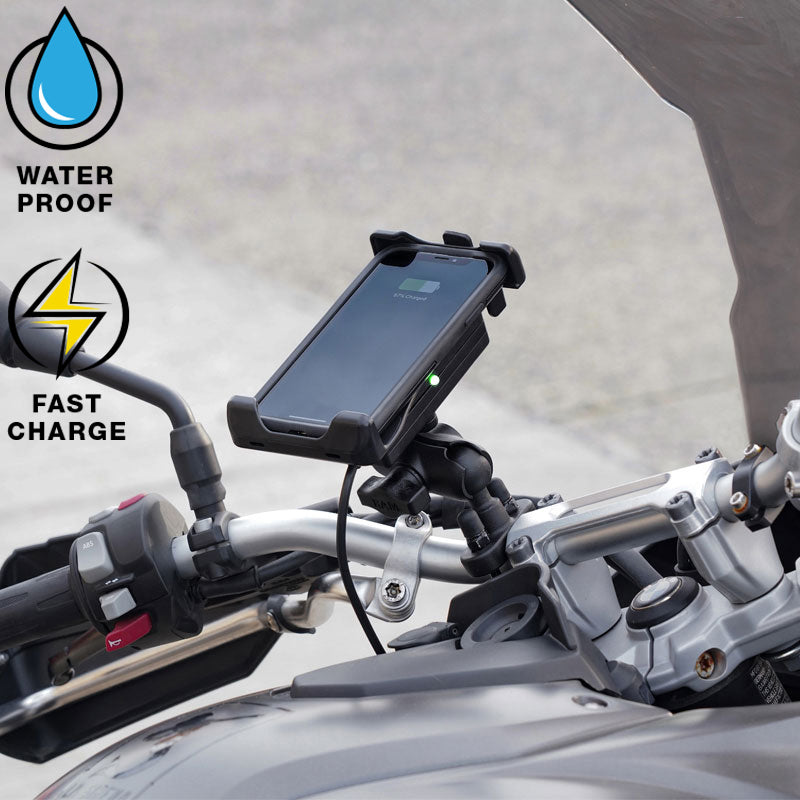

The RAM Quick-Grip Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as its within the listed compatible dimensions. For added security and peace of mind, a device tether is included thats recommended for outdoor applications.This RAM Quick-Grip Wireless kit for motorcycles includes a B size diamond base featuring a 1 rubber ball perfect for attaching to your choice of B size RAM double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

Features

Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

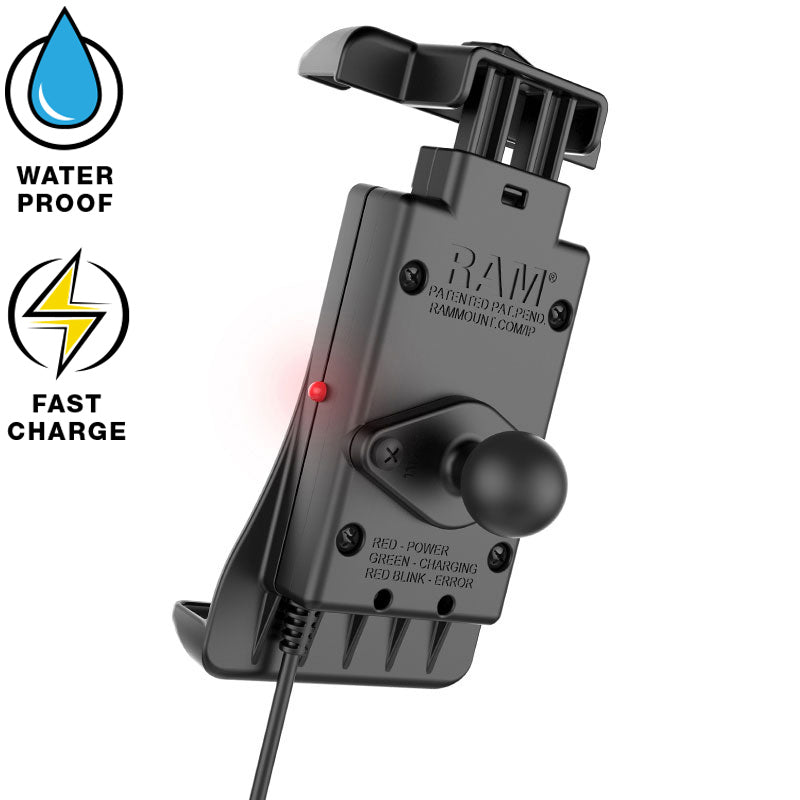

Kit includes wireless charging cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Tags: 8 Sirocco, 9 PureView, Apple, Axon 10 Pro, Axon 9 Pro, B Size 1" (Holds 2 lbs), Blackberry, Blackview, BV9900, BV9900 Pro, Cat, DuraSport 5G, Eluga X1 Pro, Evolve X, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 20, Galaxy Note 20 Ultra, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10 Plus, Galaxy S20 5G, Galaxy S20 Plus 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22 Plus 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23 Plus, Galaxy S23 Ultra, Galaxy S24, Galaxy S24 Plus, Galaxy S24 Ultra, Galaxy S25, Galaxy S25 Plus, Galaxy S25 Ultra, Galaxy S8, Galaxy S8 Plus, Galaxy S9, Galaxy S9 Plus, Google, Holders, Huawei, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max, Kyocera, Mate 20 Pro, Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3, motorcycle-components, Nokia, P30 Pro, Panasonic, Phone, Phone 2, Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 7 Pro, Pixel 8, Pixel 8 Pro, Quick-Grip™ Wireless, RAM-HOL-UN14WB-V7M-1, Razer, S62, S62 Pro, Samsung, Sony, Supports Device With Case, UN14, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, Wireless Charging, Xiaomi, Xperia XZ2, Xperia XZ3, ZTE

Information

Resources

Compatible Devices

Information

Product Weight

0.59 kg (1.29 lbs)

Hardware Included

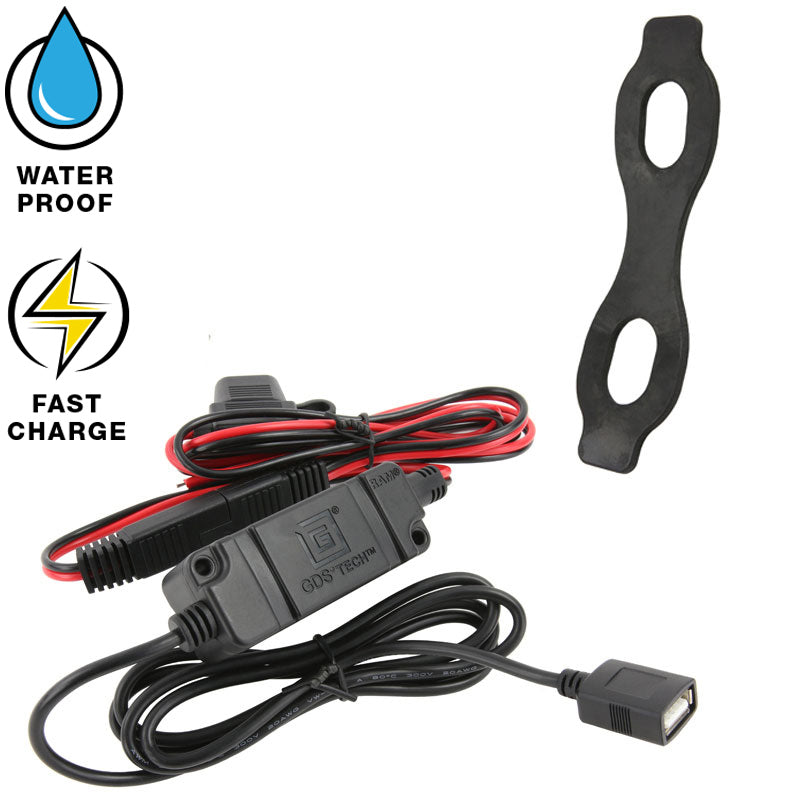

(1) Safety Tether(1) Silicon sleeve for USB waterproof connection(1) Hardwire Charger with Cable(4) Small zip ties(4) Large zip ties

Holder Dimensions

Height Range: 14.29cm (5.625") - 16.83cm (6.625") Max Width: 7.94cm (3.125") Max Depth: 1.78cm (0.7")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

High strength compositeStainless steel

Packaging Type

Retail Box

Power Specifications

Input Power:5V-2A; 9V-1.67AOutput: 15WConversion Efficiency: 85% MaxMaximum Case Thickness: 6mmWorking Frequency: 110-205KHZProduct Standard: WPC v.1.2.4Qi CompatibleCompatible with QC2.0/QC3.0 power supplies

Operating Temperature

0°C to +37.7°C

Regulatory

Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture Resistant

Certifications

CE CertificationE-Mark CertificationRCM CertificationFCC Certification

Resources

INSTRUCTIONS

RAM® Quick-Grip™ Wireless Charger Instructions

Compatible Devices
