World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Ball

SKU Copied

SKU: RAM-HOL-UN14WB-1

UPC Copied

UPC: 793442938658







RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Ball

Copy SKU
RAM-HOL-UN14WB-1 SKU: RAM-HOL-UN14WB-1

Copy UPC
793442938658 | UPC: 793442938658

B SIZE

Size Guide

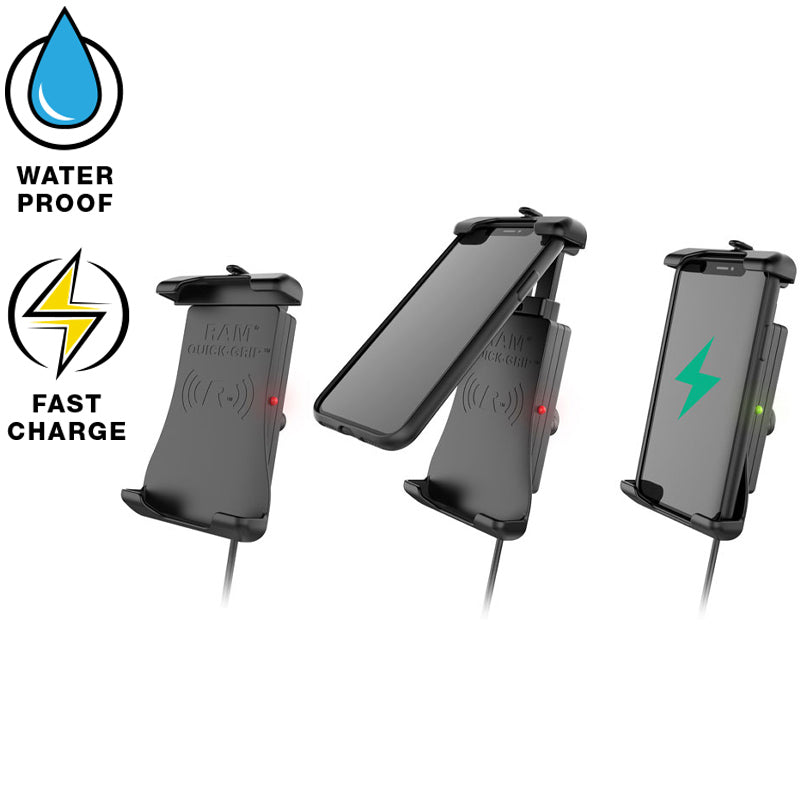

The RAM Quick-Grip Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as its within the listed compatible dimensions. For added security and peace of mind, a device tether is included thats recommended for outdoor applications. This RAM Quick-Grip Wireless kit for vehicles includes a B size diamond base featuring a 1 rubber ball perfect for attaching to your choice of B size RAM double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Features

Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output
RAM® Mounts Compatible™ with B size double socket arms and ball bases for mounting in your preferred location
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Tags: 8 Sirocco, 9 PureView, Apple, Axon 10 Pro, Axon 9 Pro, B Size 1" (Holds 2 lbs), Blackberry, Blackview, BV9900, BV9900 Pro, car-truck, Cat, DuraSport 5G, Eluga X1 Pro, Evolve X, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 20, Galaxy Note 20 Ultra, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10 Plus, Galaxy S20 5G, Galaxy S20 Plus 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22 Plus 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23 Plus, Galaxy S23 Ultra, Galaxy S24, Galaxy S24 Plus, Galaxy S24 Ultra, Galaxy S8, Galaxy S8 Plus, Galaxy S9, Galaxy S9 Plus, Google, Holders, Huawei, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max, Kyocera, Mate 20 Pro, Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3, Nokia, P30 Pro, Panasonic, Phone, Phone 2, Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 7 Pro, Pixel 8, Pixel 8 Pro, Quick-Grip™ Wireless, RAM-HOL-UN14WB-1, Razer, S62, S62 Pro, Samsung, Sony, Supports Device With Case, UN14, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, Wireless Charging, Xiaomi, Xperia XZ2, Xperia XZ3, ZTE

Information

Resources

Compatible Devices

Information

Product Weight

0.52 kg (1.15 lbs)

Hardware Included

(1) Safety Tether(1) Silicon sleeve for USB waterproof connection(1) 1.2 Meter USB Extension Cable(4) Small zip ties(2) Large zip ties

Holder Dimensions

Height Range: 14.29cm (5.625") - 16.83cm (6.625") Max Width: 7.94cm (3.125") Max Depth: 1.78cm (0.7")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

High strength compositeStainless steel

Packaging Type

Retail Box

Power Specifications

Input Power:5V-2A; 9V-1.67AOutput: 15WConversion Efficiency: 85% MaxMaximum Case Thickness: 6mmWorking Frequency: 110-205KHZProduct Standard: WPC v.1.2.4Qi CompatibleCompatible with QC2.0/QC3.0 power supplies

Operating Temperature

0°C to +37.7°C

Certifications

FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant

Resources

INSTRUCTIONS

RAM® Quick-Grip™ Wireless Charger Instructions

Compatible Devices

Add to Enquiry 

Components

Copy SKU

RAM-B-238U

RAM® Diamond Ball Base - B Size





Complete Your Solution

Copy SKU

RAM-B-238U

RAM® Diamond Ball Base - B Size





B Size Socket Arms with Ball Base

Copy SKU

RAM-B-149-QU1

RAM® Handlebar U-Bolt Mount with Double Socket Arm

Copy SKU

RAM-B-149Z-QU1U

RAM® Handlebar U-Bolt Base with Double Socket Arm

Copy SKU

RAM-B-166-103U

RAM® Twist-Lock™ Suction Cup Base with Double Socket Arm

Copy SKU

RAM-B-166-2-AU-NB

RAM® Twist-Lock™ Small Suction Cup Base with Double Socket Arm

Copy SKU

RAM-B-316-1U

RAM® Pod™ I Vehicle Mount with 18" Rod and Socket Arm

Copy SKU

RAM-B-316-18-TRA2-NB

RAM® Mount for HydroWave™ Speaker with 18" Aluminum Rod and Socket Arm

Copy SKU

RAM-B-407-201-C-PUMPU

RAM® Tough-Wedge™ Mount with Double Socket Arm & Expansion Pouch

Copy SKU

RAM-B-407-201U-C

RAM® Tough-Wedge™ Base with Double Socket Arm - Long

Copy SKU

RAM-B-407-201U

RAM® Tough-Wedge™ Base with Double Socket Arm - Medium

Copy SKU

RAM-B-131-201

RAM® Cessna Seat Rail Mount with 12" Flex Arm and Double Socket Arm

Copy SKU

RAM-B-123-9012BU

RAM® 90-Degree 12" Flexible Pipe with Double Ball Mount

Copy SKU

RAM-B-316-121BU

RAM® Pod™ I Clamp Mount with 18" Aluminum Rod and Socket Arm

Copy SKU

RAM-B-400-201-AU

RAM® Tough-Claw™ Small Clamp Mount with Double Socket Arm

Copy SKU

RAP-B-322U

RAM® Twist-Lock™ Composite Suction Base with Double Socket Arm

Copy SKU

RAM-B-189B-201-ALA1-KRU

RAM® Twist-Lock™ Dual Suction Cup Base with Socket Arm & Retention Knob

Copy SKU

RAP-B-104-224U-QU1

RAM® Twist-Lock™ Composite Suction Cup Ratchet Mount with Socket Arm

Copy SKU

RAP-B-104SU-CS1

RAM® Twist-Lock Composite Swivel Suction Mount with Socket Arm

Copy SKU

RAM-B-189B-PIV1-201-ALA1-KRU

RAM® Twist-Lock™ Pivot Suction Cup Base with Socket Arm & Retention Knob

Copy SKU

RAP-400-18-B-201

RAM® Tough-Claw® with RAM® Flex-Rod™ 26" Extension Arm for Wheelchairs

Copy SKU

RAP-B-200-1-293U

RAM® Single Socket Arm with Round Swivel Plate

Copy SKU

RAP-B-200-1-TRA1-18U

RAM® Flex-Rod™ 18" Single Socket Arm with Track Base

Copy SKU

RAP-B-299-4-201U

RAM® Stubby™ Cup Holder Mount with Double Socket Arm - Medium

Copy SKU

RAP-B-200-1-386-18U

RAM® Flex-Rod™ 18" Single Socket Arm with Drill-Down Base Accessories

Copy SKU

RAP-B-400-201-AU

RAM® Tough-Claw™ Small Clamp Base with Double Socket Arm - Short

Copy SKU

RAP-B-397-1-201U

RAM® Tough-Clamp™ Small Base with Double Socket Arm

Copy SKU

RAP-B-299-4-201U-C

RAM® Stubby Cup Holder Mount with Double Socket Arm - Long

Copy SKU

RAP-B-404-201U

RAM® Tough-Claw™ Medium Clamp Base with Double Socket Arm

Copy SKU

RAP-B-397-2-201U

RAM® Tough-Clamp™ Large Base with Double Socket Arm

Copy SKU

RAP-B-400-201U

RAM® Tough-Claw™ Small Clamp Base with Double Socket Arm - Medium





B Size Double Socket Arms

Copy SKU

RAM-B-201-ACHU

RAM® Chrome Double Socket Arm - B Size Short

Copy SKU

RAM-B-201-201U-C

RAM® Double Socket Arm Adapter with Medium & Long Arms - B Size

Copy SKU

RAM-B-201U-A

RAM® Double Socket Arm - B Size Short

Copy SKU

RAM-B-201-201U

RAM® Double Socket Arm with Dual Extension and Ball Adapter - B Size

Copy SKU

RAM-B-201LU

RAM® Double Socket Arm with Key Lock Knob - B Size Medium

Copy SKU

RAM-B-201-SU

RAM® Pin-Lock™ Double Socket Arm - B Size Medium

Copy SKU

RAM-B-201U

RAM® Double Socket Arm - B Size Medium

Copy SKU

RAM-B-201CHU

RAM® Chrome Double Socket Arm - B Size Medium

Copy SKU

RAM-B-201U-C

RAM® Double Socket Arm - B Size Long

Copy SKU

RAP-B-201U-A

RAM® Composite Double Socket Arm - B Size Short

Copy SKU

RAP-B-200-2U

RAM® Composite Double Socket Swivel & Ratchet Arm

Copy SKU

RAP-B-200-12U

RAM® Composite Double Socket Swivel Arm

Copy SKU

RAP-B-201U

RAM® Composite Double Socket Arm - B Size Medium





B Size 1" Ball Bases

Copy SKU

RAM-B-108BU

RAM® Strap Hose Clamp Ball Base 1" - 2.1"

Copy SKU

RAM-B-111BU

RAM® Universal Marine Electronic Ball - B Size

Copy SKU

RAM-B-121BU

RAM® Yoke Clamp Base with Ball

Copy SKU

RAM-B-189B-202U

RAM® Twist-Lock™ Dual Suction Cup Base with Ball

Copy SKU

RAM-B-202-339U

RAM® Magnetic Ball Base

Copy SKU

RAM-B-202U

RAM® Round Plate with Ball - B Size

Copy SKU

RAM-B-224-1U

RAM® Twist-Lock™ Suction Cup Base with Ball

Copy SKU

RAM-B-202U-23

RAM® Ball Base with 1.5" x 2.5" 4-Hole Pattern - B Size

Copy SKU

RAM-B-202U-12

RAM® Ball Base with 1.5" 2-Hole Pattern - B Size

Copy SKU

RAM-B-217U

RAM® Double Ball Adapter with Round Base - B Size

Copy SKU

RAM-B-252U

RAM® 11mm Bolt Head Adapter Ball Base

Copy SKU

RAM-B-272U

RAM® 9mm Angled Bolt Head Adapter Ball Base

Copy SKU

RAM-B-236U

RAM® Ball Adapter with 3/8"-16 Threaded Post & Lock Washer - B Size

Copy SKU

RAM-B-231ZU

RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size

Copy SKU

RAM-B-237U

RAM® Ball Adapter with 1/4"-20 Threaded Post - B Size

Copy SKU

RAM-B-259U

RAM® Glare Shield Clamp Ball Base

Copy SKU

RAM-B-238U-INT1

RAM® Diamond Ball Base with Mounting Hardware

Copy SKU

RAM-B-238U

RAM® Diamond Ball Base - B Size

Copy SKU

RAM-B-309-1U

RAM® Motorcycle Brake/Clutch Reservoir Ball Base

Copy SKU

RAM-B-337U

RAM® Ball Adapter with 1/4" - 20" Threaded Hole and Hex Post - B Size

Copy SKU

RAM-B-342U

RAM® Motorcycle Fork Stem Ball Base

Copy SKU

RAM-B-349-1U

RAM® Ball Adapter with M10-1.5 Threaded Post

Copy SKU

RAM-B-349U

RAM® Ball Adapter with M10-1.25 Threaded Post

Copy SKU

RAM-B-346U

RAM® Offset Reservoir Cover Ball Base

Copy SKU

RAM-B-367U

RAM® Motorcycle Handlebar Clamp Base with M8 Bolts

Copy SKU

RAM-B-367BU

RAM® Ball Adapter Base for Grab Handles & Handlebar Clamps

Copy SKU

RAM-B-408-112-15U

RAM® Torque™ Large Rail Base - B Size

Copy SKU

RAM-B-408-37-62U

RAM® Torque™ Small Rail Base

Copy SKU

RAM-B-408-75-1U

RAM® Torque™ Medium Rail Base - B Size

Copy SKU

RAM-B-MAG66U

RAM® Tough-Mag™ 66MM Diameter Magnetic Ball Base

Copy SKU

RAP-B-202U

RAM® Composite Round Plate with Ball - B Size

Copy SKU

RAP-B-224-1U

RAM® Twist-Lock™ Composite Suction Cup Base with Ball

Copy SKU

RAP-B-347U

RAM® Composite Ball Adapter with AMPS Plate

Copy SKU

RAP-B-354U-TRA1

RAM® Track Ball™ Base with T-Bolt Attachment - B Size

Copy SKU

RAP-B-294U

RAM® PVC Pipe Socket with Ball - B Size

Copy SKU

RAP-B-379U-252037

RAM® Tough-Ball™ with 1/4"-20 x .375" Threaded Stud - B Size

Copy SKU

RAP-B-378U

RAM® Flex Adhesive Ball Base

Copy SKU

RAP-B-379U-M616

RAM® Tough-Ball™ with M6-1 x 6mm Threaded Stud - B Size

Copy SKU

RAP-B-401U

RAM® Tough-Claw™ Large Clamp Base with Ball

Copy SKU

RAP-B-404U

RAM® Tough-Claw™ Medium Clamp Base with Ball

Copy SKU

RAP-B-400U

RAM® Tough-Claw™ Small Clamp Base with Ball

Copy SKU

RAP-B-379U-252050

RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud - B Size

Copy SKU

RAP-B-379U-M10-JD1

RAM® Tough-Ball™ with M10-1.5 x 25mm Threaded Stud - B Size

Copy SKU

RAP-B-460U

RAM® Tough-Strap™ Handlebar Ball Base

Copy SKU

RAP-B-379U-252062

RAM® Tough-Ball™ with 1/4"-20 x .625" Threaded Stud - B Size

Copy SKU

RAP-B-379U-M81208

RAM® Tough-Ball™ with M8-1.25 x 8mm Threaded Stud

Copy SKU

RAP-B-238U

RAM® Composite Diamond Ball Base

Copy SKU

RAP-B-299-4U

RAM® Stubby™ Cup Holder Ball Base

Copy SKU

RAM-B-202-225-2U

RAM® Drill-Down Dashboard Ball Base with Backing Plate - B Size

Copy SKU

RAM-B-367B-M6U

RAM® Grab Handle M6 Bolt Replacement Kit with Ball Base





USB Type A Chargers

Copy SKU

RAM-GDS-CHARGE-USB2W

GDS® 2-Port USB Wall Charger

Copy SKU

RAM-GDS-CHARGE-USB2QCCIG

GDS® 2-Port USB Cigarette Charger with Qualcomm® Quick Charge™

Copy SKU

RAM-GDS-CAB-CLAMP2U

GDS® Cable Clamp for USB Type-A Cables

Copy SKU

RAM-GDS-CHARGE-USB6

GDS® Intelligent 6-port USB Charger

Copy SKU

RAM-GDS-CHARGE-OTGAU

GDS® Hardwire Charger with mUSB Plug and Type-A Port

Copy SKU

RAM-GDS-CHARGE-V7B1U

GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector







ABOUT RAM MOUNTS SA
CONTACT US
PARTNERS

CATALOGUES

FAQ
WARRANTY
GLOSSARY

NEWSLETTER



Top

Size Guide

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Ball

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Ball Copy SKU RAM-HOL-UN14WB-1 SKU: RAM-HOL-UN14WB-1 Copy UPC 793442938658 | UPC: 793442938658

Information

Resources

Compatible Devices

Information

Resources

Compatible Devices

Components

Complete Your Solution

B Size Socket Arms with Ball Base

B Size Double Socket Arms

B Size 1" Ball Bases

USB Type A Chargers

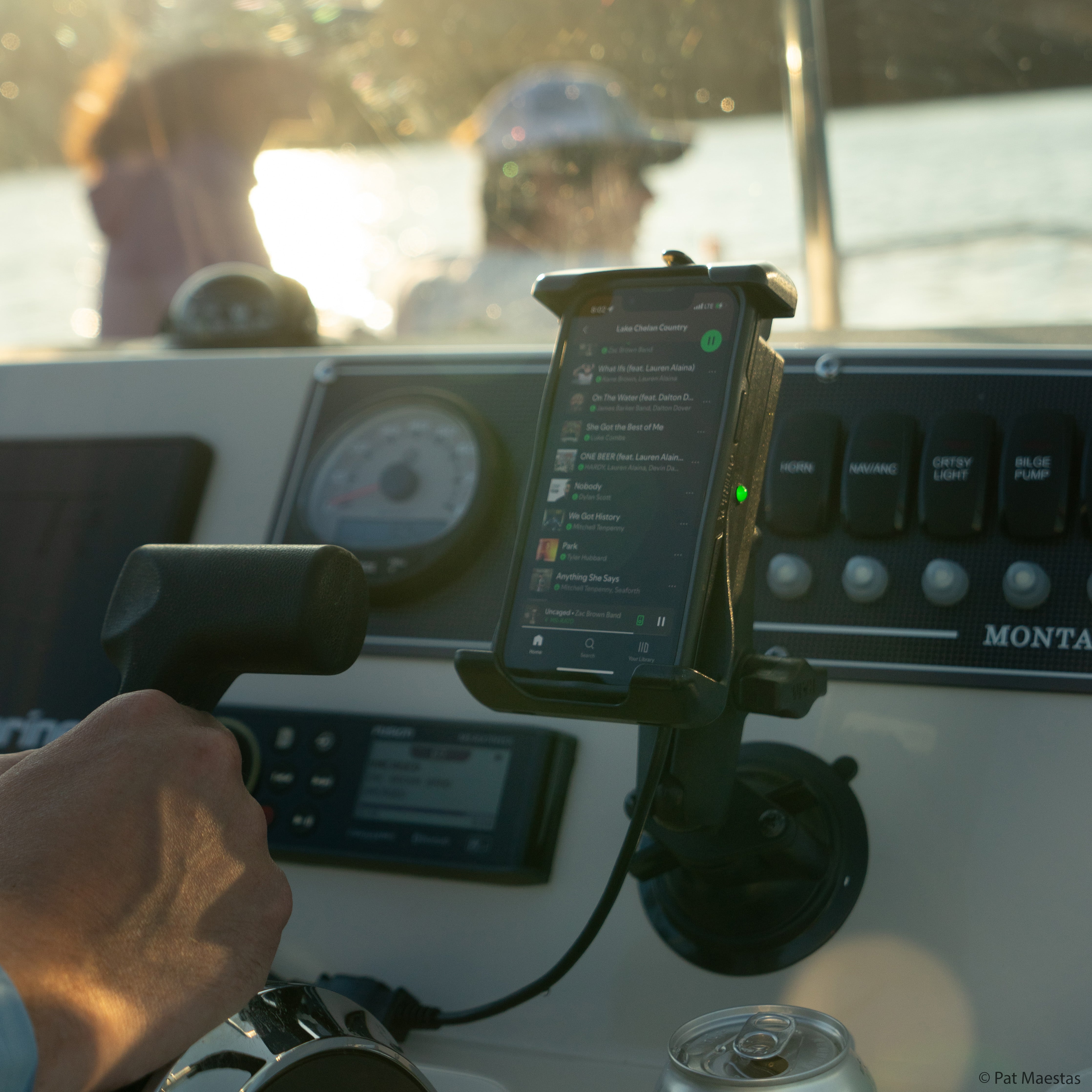

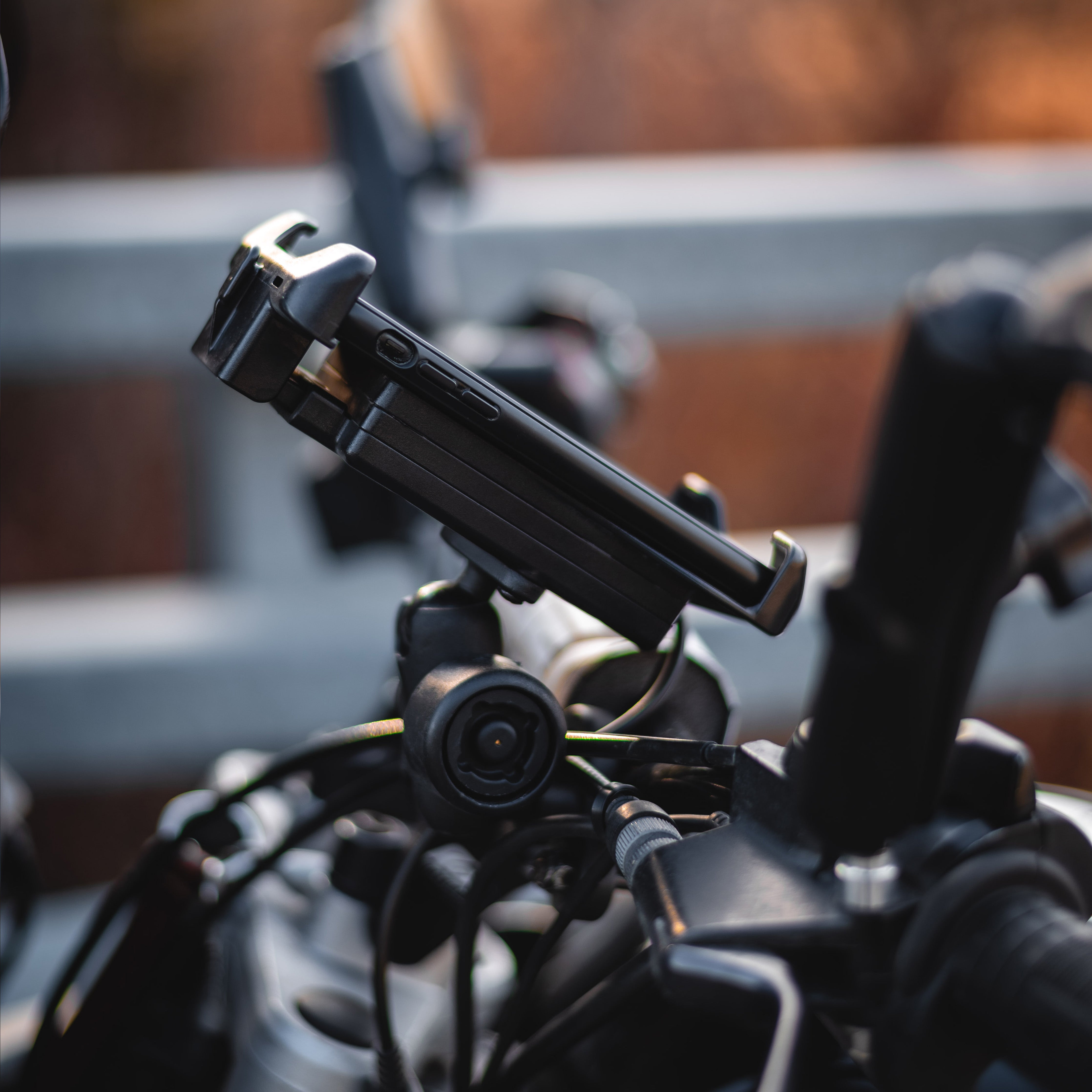

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Ball

Copy SKU
RAM-HOL-UN14WB-1 SKU: RAM-HOL-UN14WB-1

Copy UPC
793442938658 | UPC: 793442938658
