World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Pin-Lock™ Marine Electronic Mount - C Size Medium

SKU Copied
SKU: RAM-S-111U
UPC Copied
UPC: 793442945229

RAM® Pin-Lock™ Marine Electronic Mount - C Size Medium
Copy SKU
SKU: RAM-S-111U
Copy UPC
| UPC: 793442945229

C SIZE
MEDIUM ARM
Size Guide

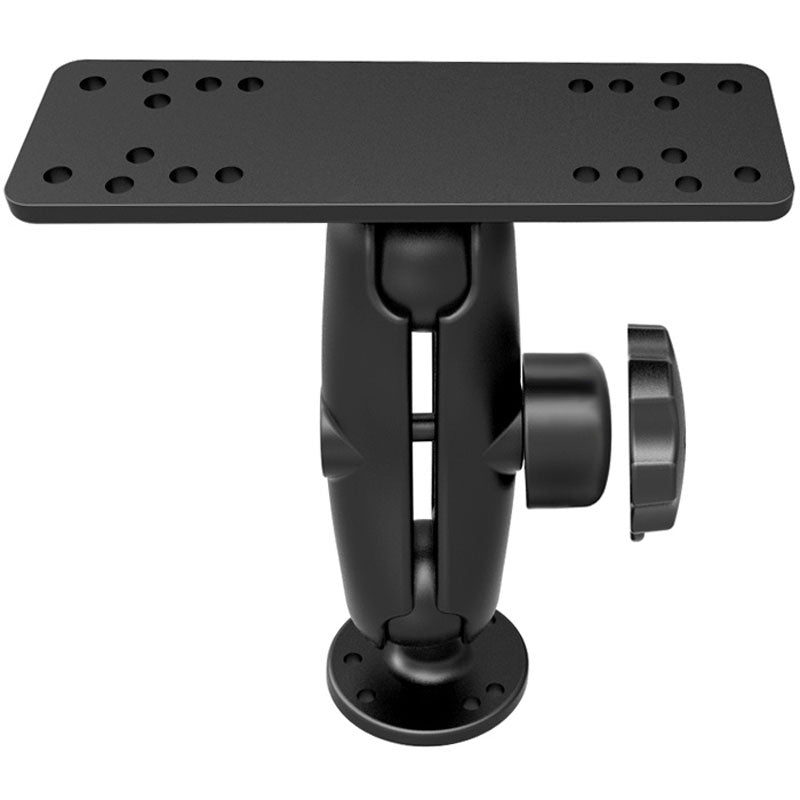

The RAM-S-111U consists of a 6.35cm (2.5") diameter round base, STANDARD LENGTH double socket arm, 15.88 cm (6.25") X 5.08 cm (2") rectangle base, RAM mixed combination Pin-Lock security nut and key knob. The 15.88 cm (6.25") X 5.08 cm (2") rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Information

Resources

Compatible Devices

Information

Product Weight
0.66 kg (1.45 lbs)
Hardware Included
(1) RAM Pin-Lock Security Key
Product Dimensions
Overall Height: 18.67cm (7.35")
Socket To Socket Length
11.84cm (4.66")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") DiameterSee Drawing
Plate Size
Top Plate: 15.88 cm (6.25") X 5.08 cm (2") Bottom Plate: 6.35cm (2.5")
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminum
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
