The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Locking USB-C Powered Dock for Tab Active5 & 3 with NFC Extender

SKU Copied
SKU: RAM-HOL-SAM58CPKL-NFCU
UPC Copied
UPC: 793442021992

RAM® Locking USB-C Powered Dock for Tab Active5 & 3 with NFC Extender
Copy SKU
SKU: RAM-HOL-SAM58CPKL-NFCU
Copy UPC
| UPC: 793442021992

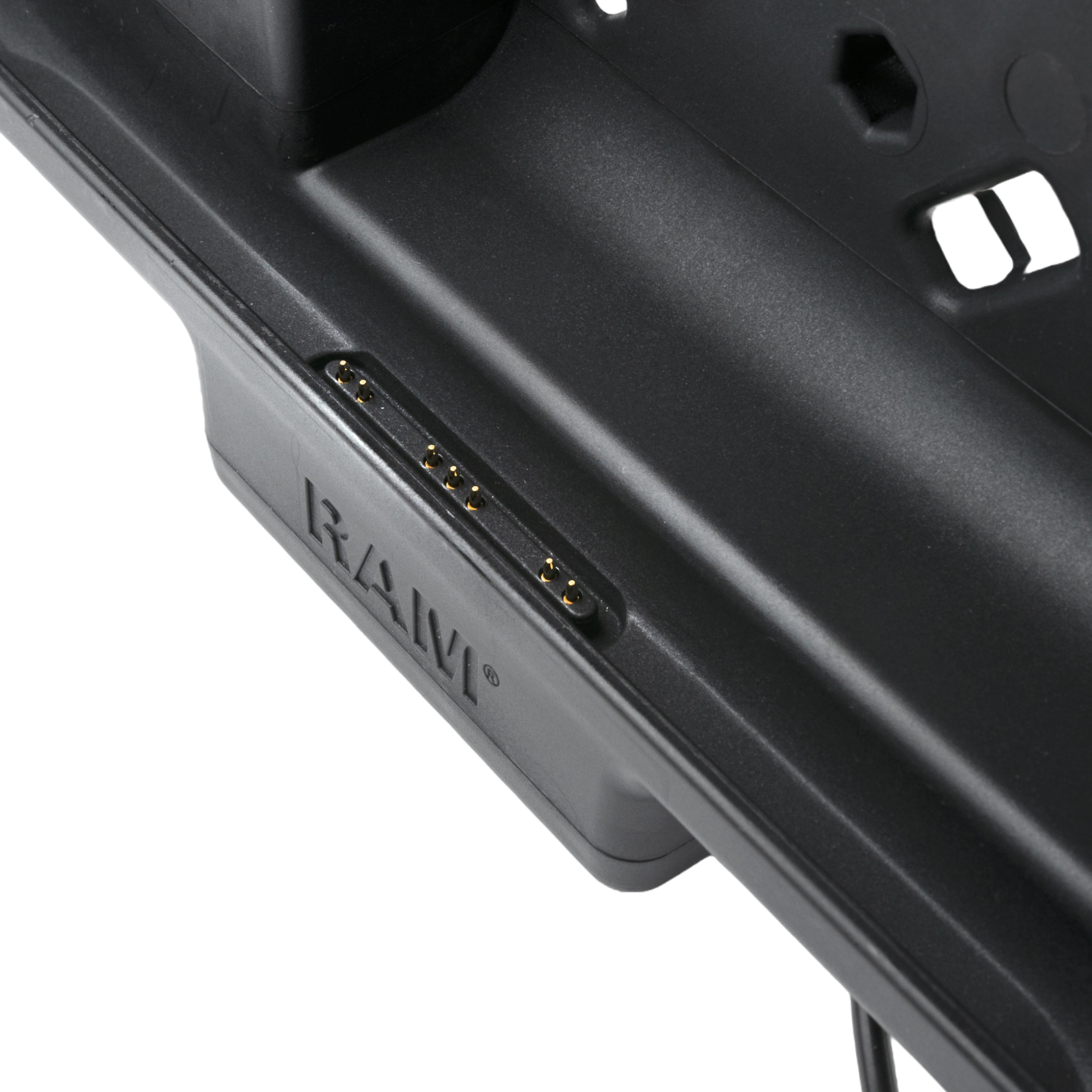

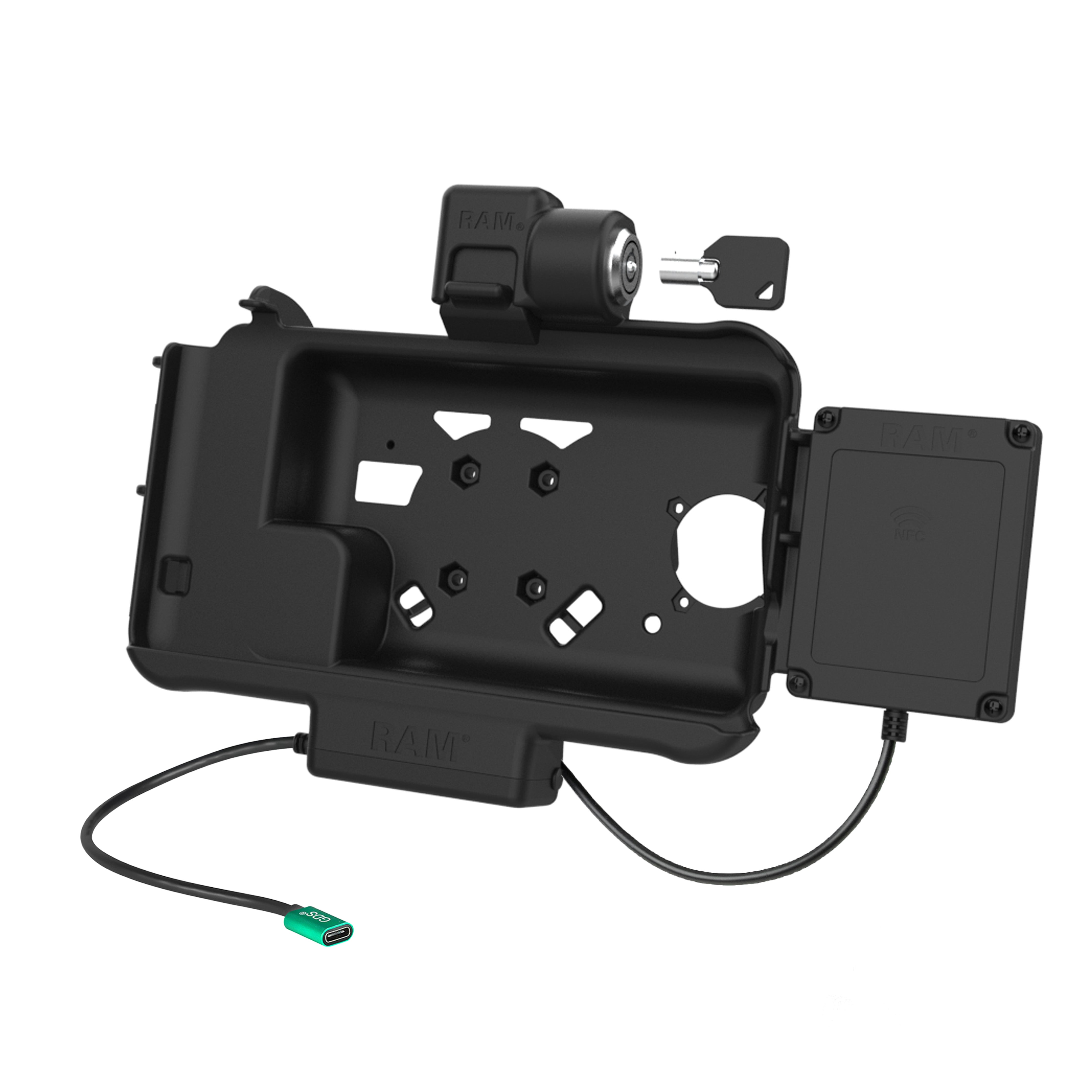

This key-locking powered vehicle dock (RAM-HOL-SAM58CPKL-NFCU) for the Samsung Tab Active5 & Tab Active3 comes with a RAM NFC Extender. The NFC extender acts as an extension of the NFC reader on the back of the Tab Active5 & 3 giving end users easier access to the scanning function. With easier access to the NFC reader, tablet operators no longer need to remove the device from its docking station to scan simply install the repeater on your docking station and give easy access to programs like Tap To Pay, asset tracking, time management, and more. The repeater extends to 30cm in length and installs on the back of the dock, directly behind the device's NFC reader. This charging vehicle dock has been designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contactssimply dock the device and the pogo pins match the pattern of the pogo pads for a seamless charging experience. This dock is also compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern.

Features
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 providing power via USB-C cable

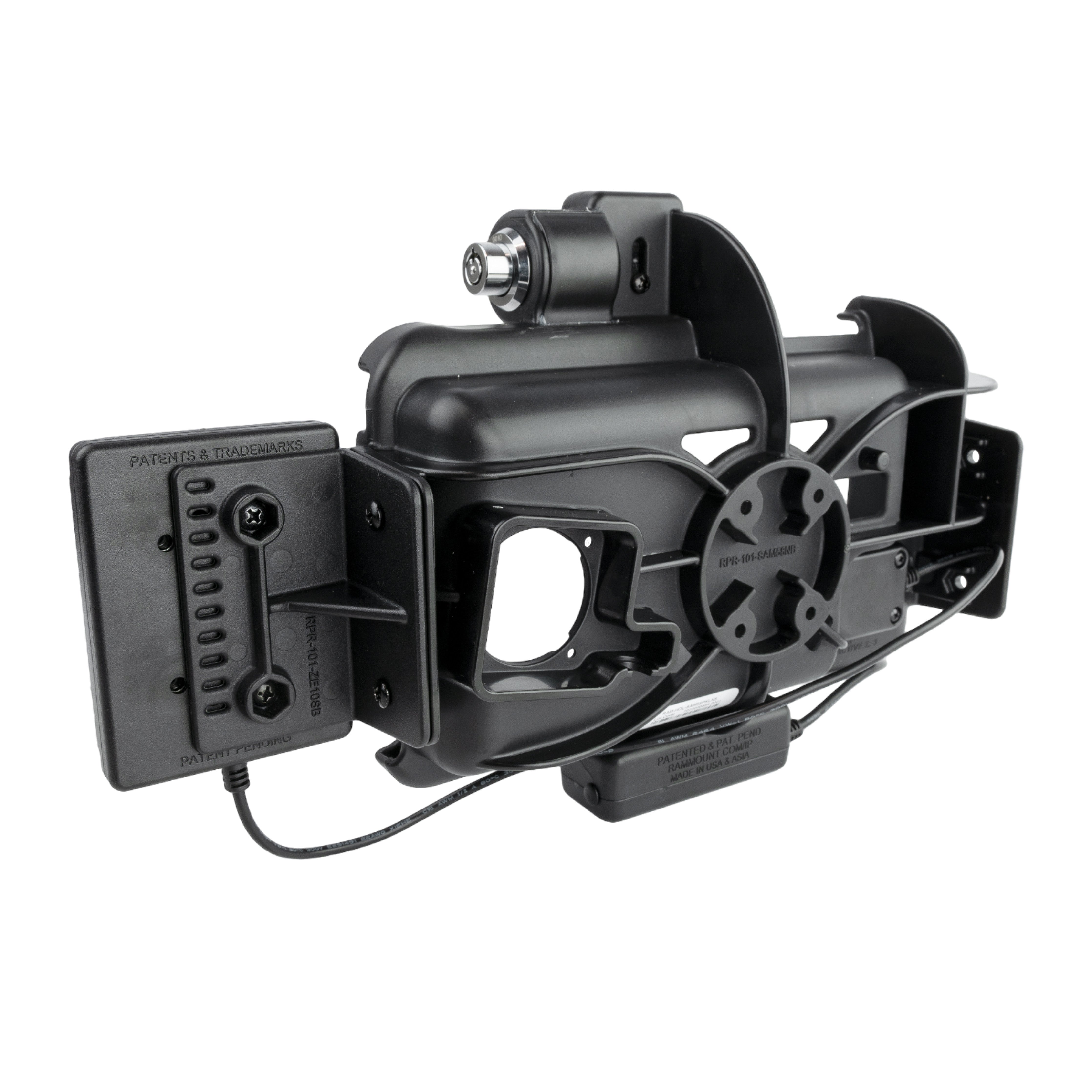

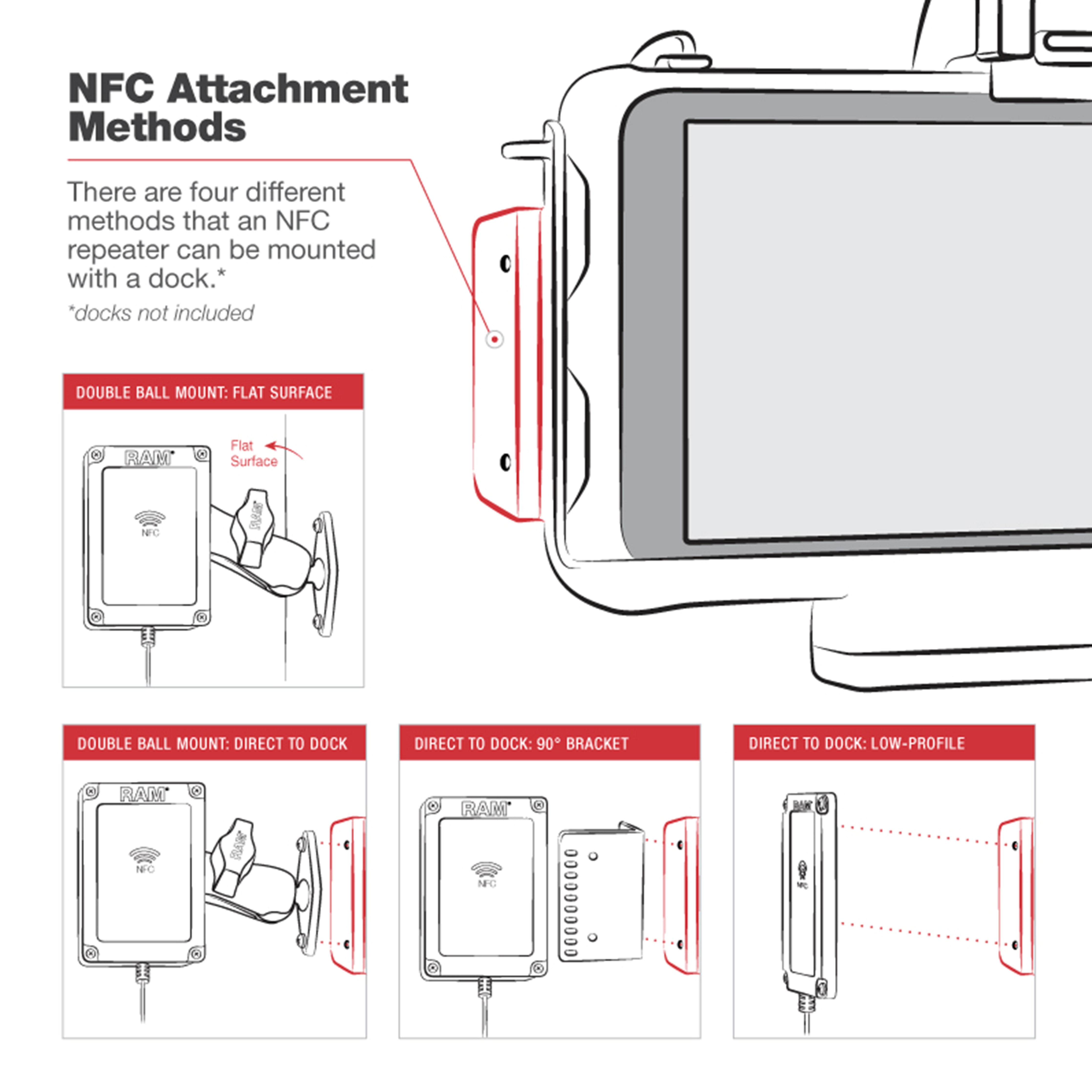

  • Includes NFC repeater extending to 30cm of reach and attaches to the back of select RAM® and GDS® tablet docks
  • Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.65 kg (1.43 lbs)
Hardware Included

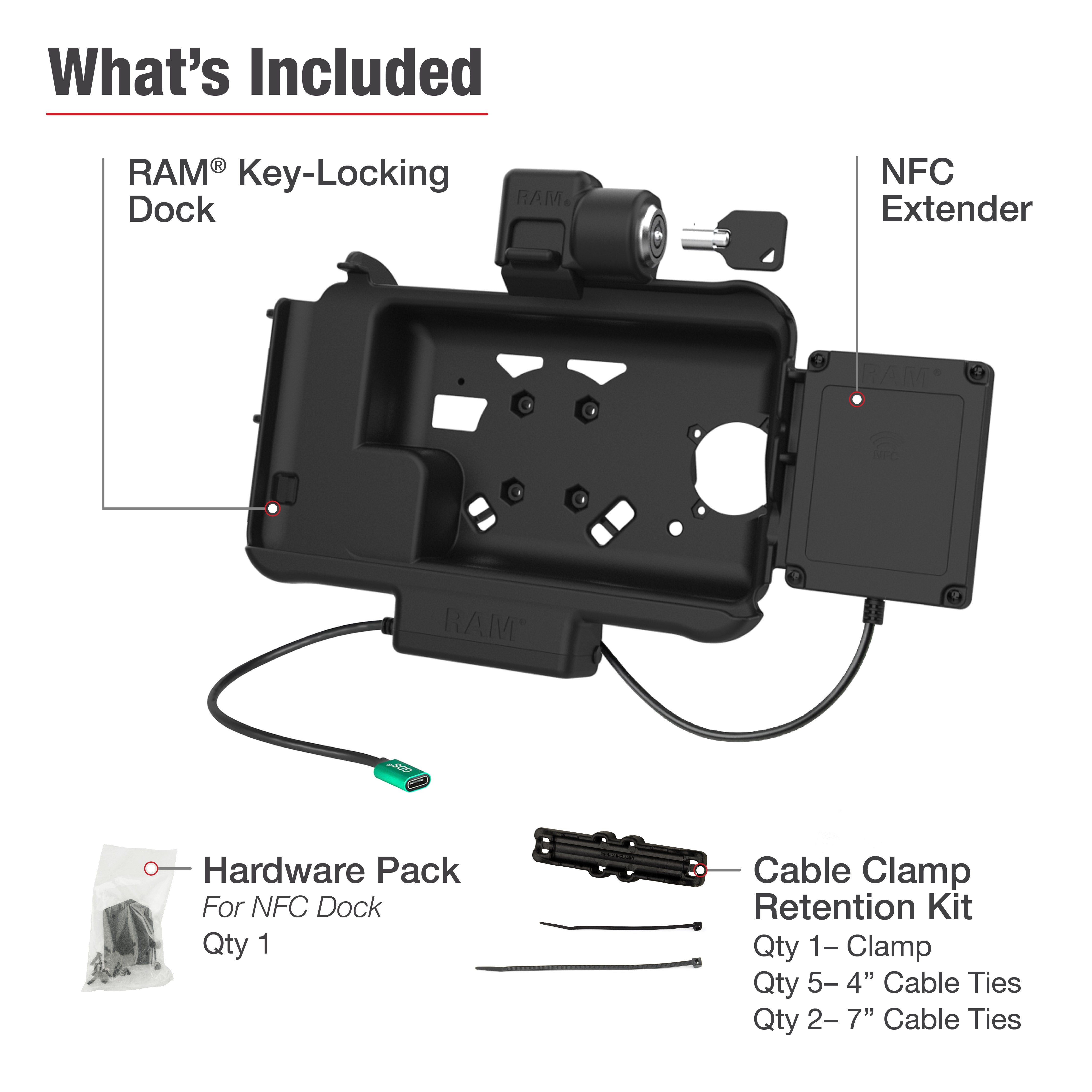

(2) Keys(6) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(6) #8-32 Nylock Nuts(2) #8-32 x 1.27cm (0.5") (1) Optional Cable Clamp Housing(2) Large Cable Ties(5) Small Cable Ties(1) NFC Repeater Extension Kit
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
