The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents

SKU Copied
SKU: RAM-VENT1-RCT-50U
UPC Copied
UPC: 793442015557
New Ram Vent Temp Temperature Add On Module For Ram Tablet Docks
Ram Vent Temp Back Connection Instructions

RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
Copy SKU
SKU: RAM-VENT1-RCT-50U
Copy UPC
| UPC: 793442015557

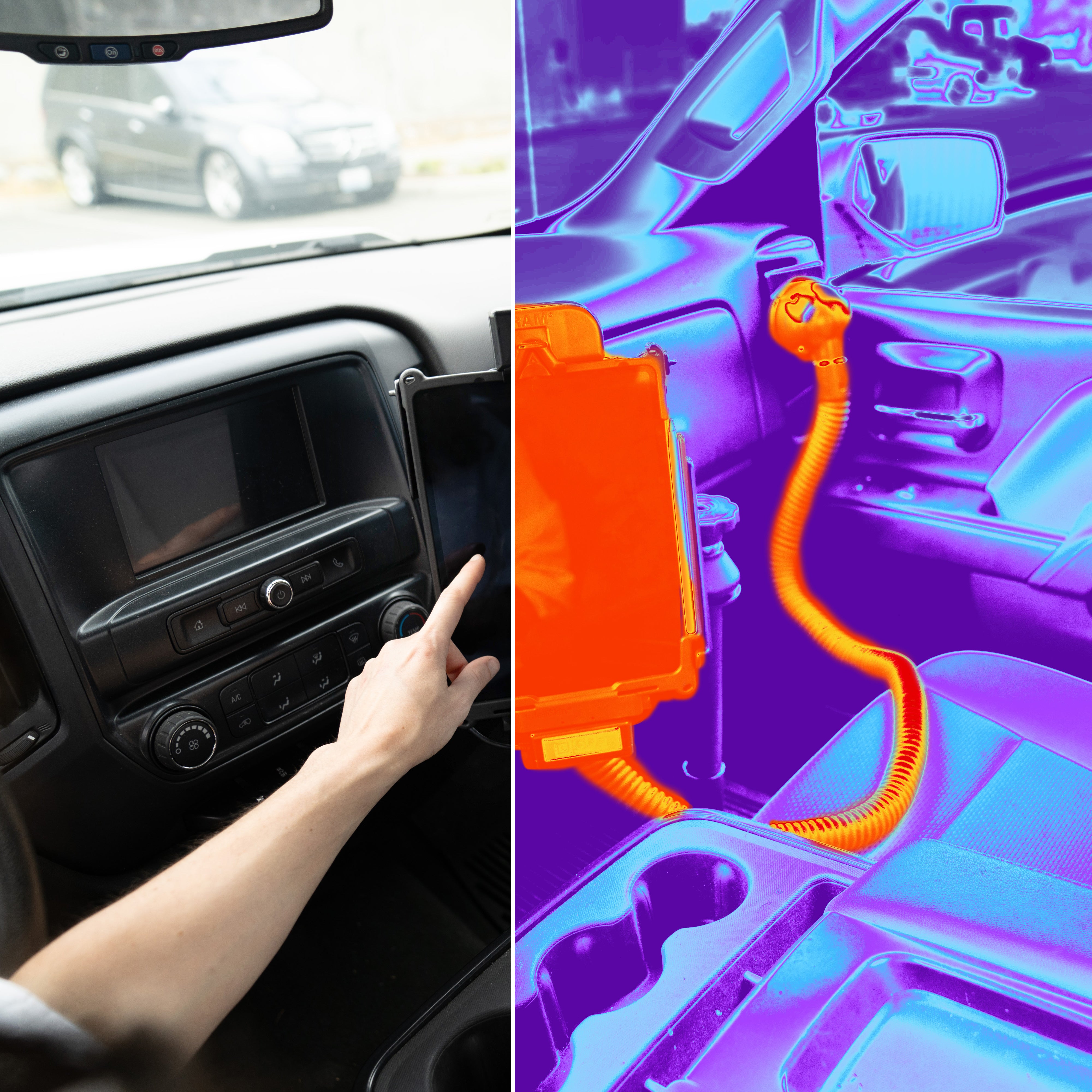

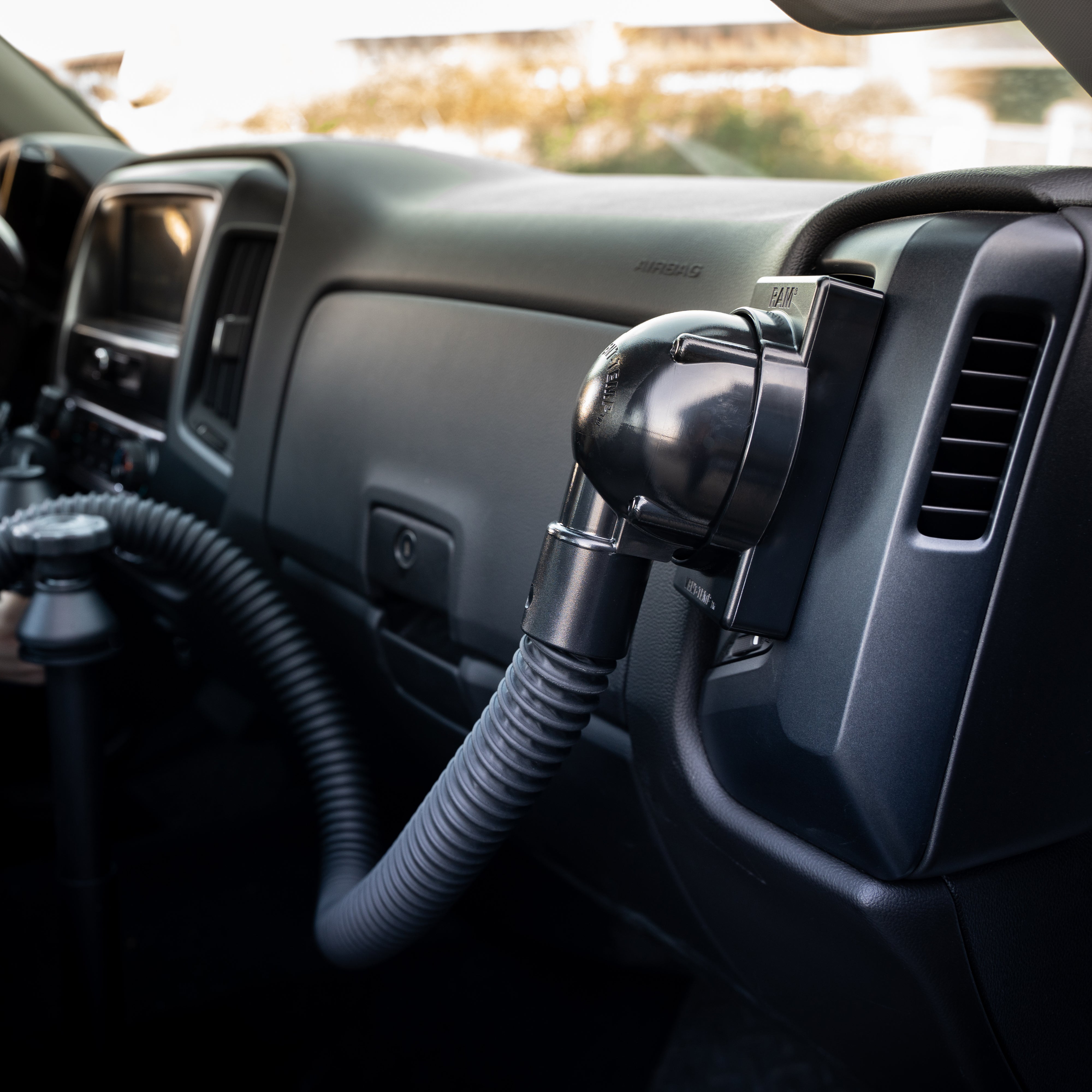

This RAM Vent-Temp temperature module accessory (RAM-VENT1-RCT-50U) installs to the back of compatible RAM and GDS docks and attaches to rectangular A/C vents using included zip ties. This version of the RAM Vent-Temp directs air produced by your vehicle's A/C system to either cool, or heat up the docked tablet from the back. This is ideal for environments where the tablet needs to be cooled off or heated up to maintain operating temperatures during critical work functions. When installed correctly and vent cover is attached to a rectangular air vent, the hose adapter features integrated magnets for easy break-away when the RAM Vent-Temp is not needed, or gets caught on something that could tug on the hose. The 127.00cm (50") included flexible hose can be cut to the desired length of reach from vent to tablet dock.

Features

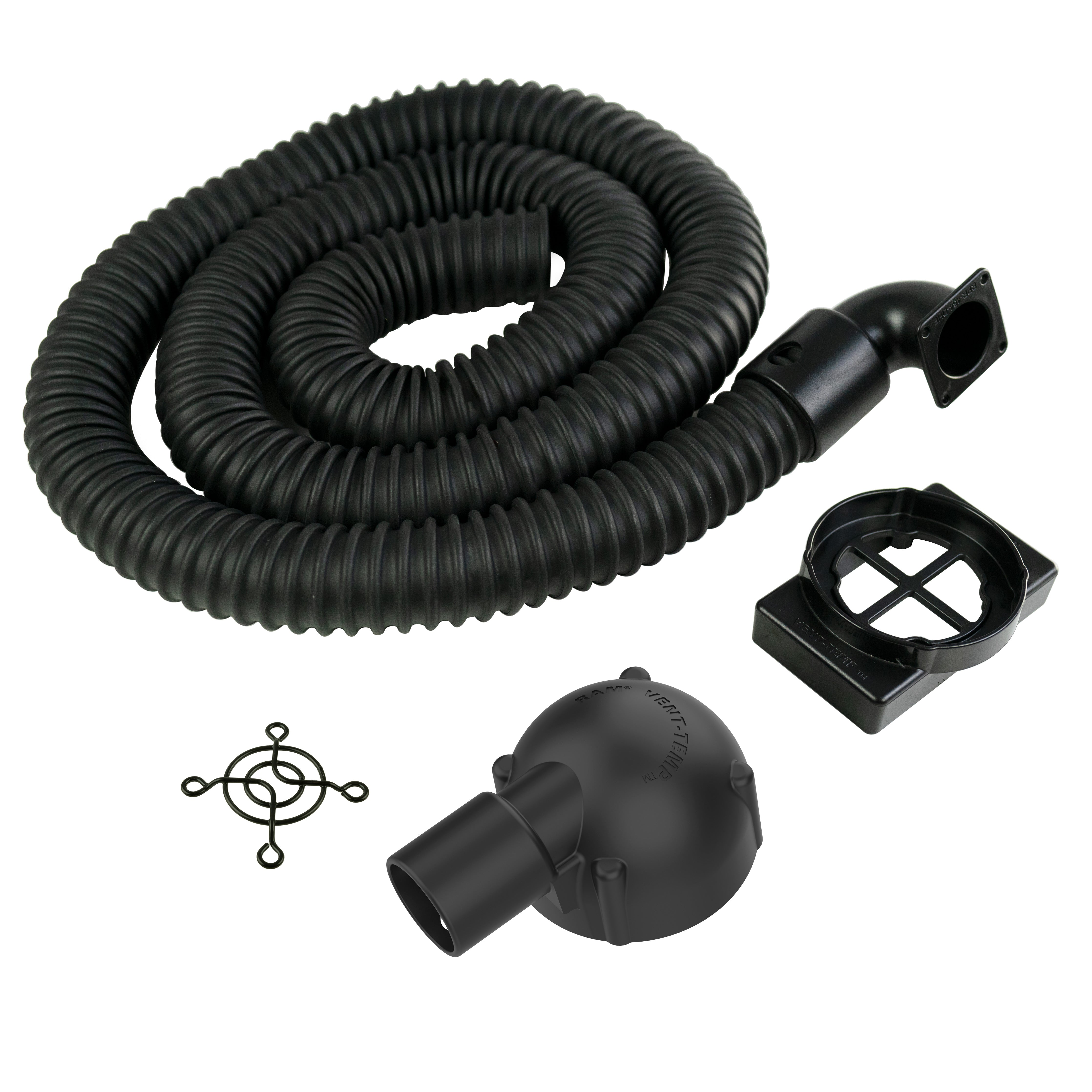

  • Temperature regulating accessory designed to install directly into the fan housing located on the back of compatible RAM® and GDS® docks
  • Directs cold or hot air from the vehicle's A/C system towards the back of the docked tablet using a 127.00cm (50") -long flexible hose attachment; hose can be cut for desired length
  • Magnetic hose adapter allows for quick-disconnect from the vent adapter
  • Includes rectangular vent adapter covering a surface area of 6.91 cm (2.72") X 12.12 cm (4.77")
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.42 kg (0.93 lbs)
Hardware Included
(3) Zip Ties(4) #4-40 x 7.62 cm (3")/20.32 cm (8") Machine Screws(4) #4-40 Nylock Nuts
Hole Pattern
Dock Connection: 3.18 cm (1.25") X 3.18 cm (1.25")
Plate Size
Vent Connector: 6.91 cm (2.72") X 12.12 cm (4.77")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-VENT-RCTU
RAM® Vent-Temp™ Rectangular Vent Adapter
