World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Handlebar U-Bolt Mount with LED Spotlight

SKU Copied

SKU: RAM-B-152R

UPC Copied

UPC: 793442115226







RAM® Handlebar U-Bolt Mount with LED Spotlight

Copy SKU
RAM-B-152R SKU: RAM-B-152R

Copy UPC
793442115226 | UPC: 793442115226

B SIZE

MEDIUM ARM

Size Guide

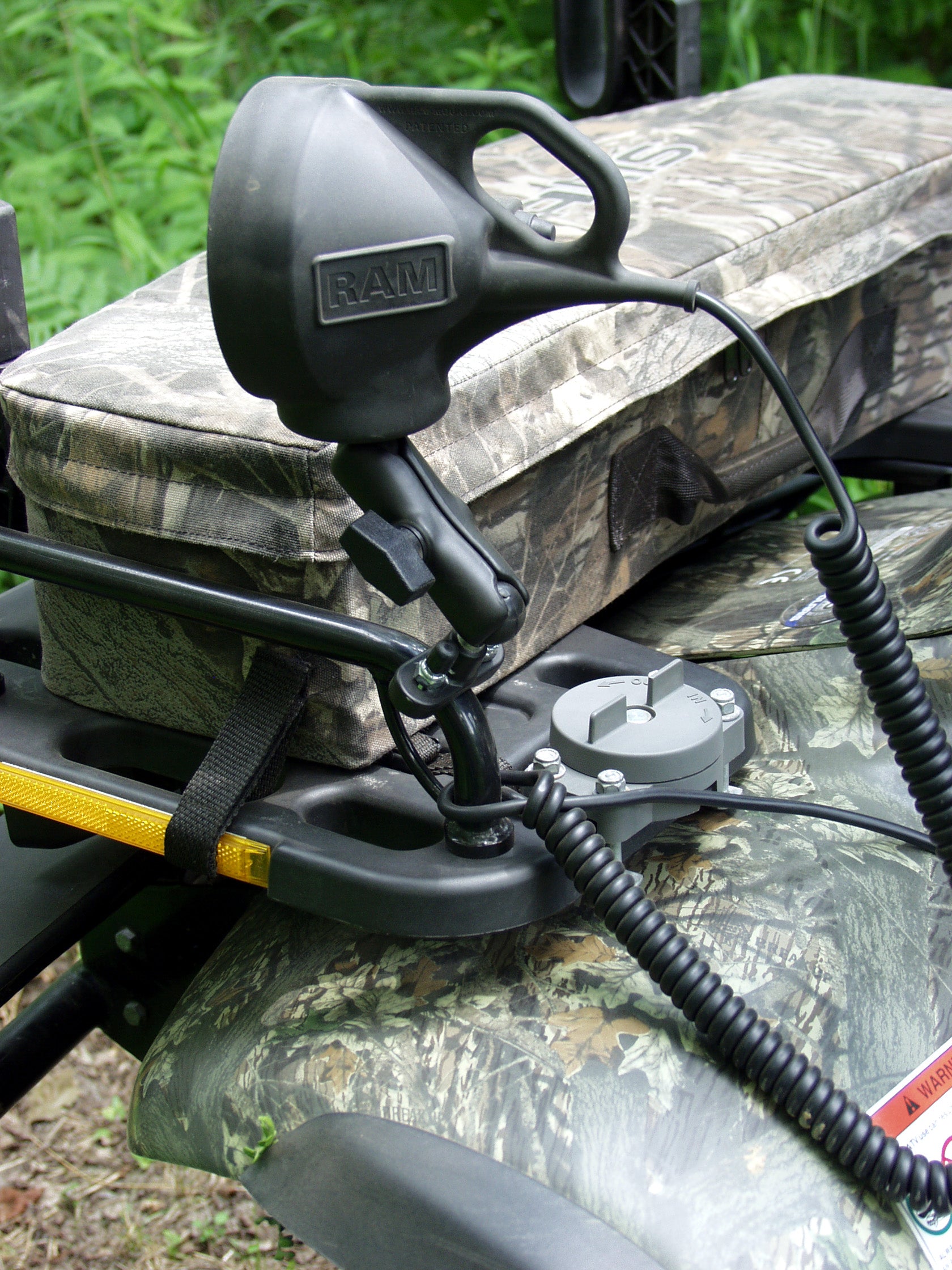

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152R consists of a u-bolt base that makes attaching to handlebars, tubing, or railing a breeze. Simple to install and easy to use, the possibilities become endless. Included in this package is hardware for tubing that is 1.27cm (0.50") to 3.18cm (1.25") in diameter.

Tags: .5" - 1.25", B Size 1" (Holds 2 lbs), b-231, b-231-1, Complete kits, Handlebar, Medium Arm, Motorcycle, Motorcycle - Handlebar, Rail, RAM-B-152R, Spotlight

Information

Resources

Information

Product Weight

1.05 kg (2.31 lbs)

Hardware Included

(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Bulb Specifications

PAR3612 Volts DC9 Watts1900 LumensSealed Beam30-Degree Spot LightFrosted Lens4500K Color Temp

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumRubber
