World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X

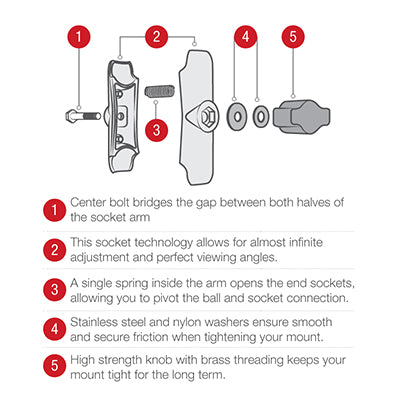

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Claw™ Double Ball Mount with LED Spotlight

SKU Copied
SKU: RAM-B-152-404
UPC Copied
UPC: 793442950544

RAM® Tough-Claw™ Double Ball Mount with LED Spotlight
Copy SKU
SKU: RAM-B-152-404
Copy UPC
| UPC: 793442950544

B SIZE
MEDIUM ARM
Size Guide

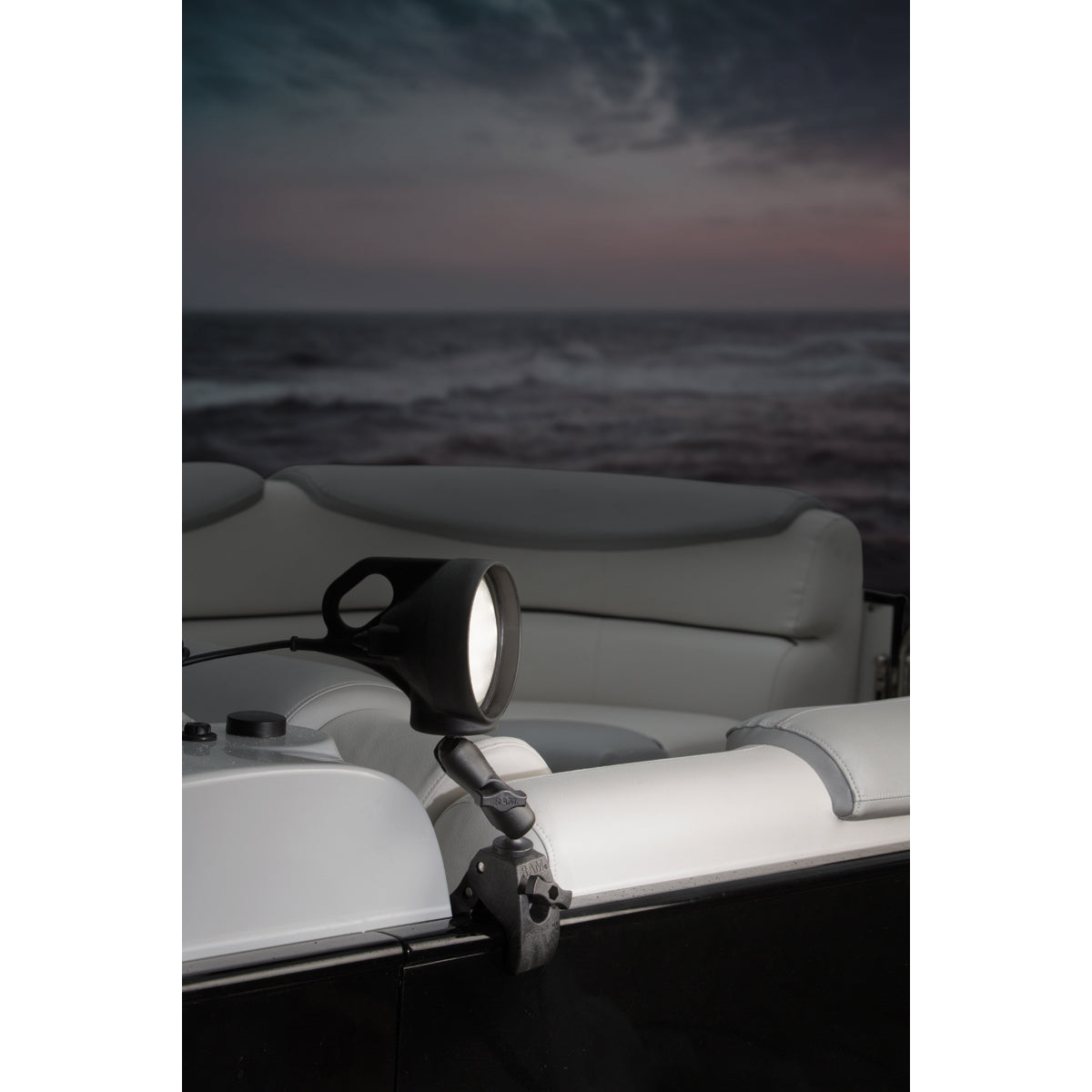

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152-404 includes the Medium RAM Tough-Claw; the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 2.54cm (1") to 4.06cm (1.6") outer diameter. Perfectly suited for mounting on any handlebars, roll bars and much more, the RAM Tough-Claw with LED Spotlight will soon become another essential RAM component in your collection of mounting options.

Features
  • 30-degree spot light LED bulb with standard 12v plugin
  • Includes B size medium length RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Medium version Tough-Claw™ designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 2.54cm (1") to 4.06cm (1.6") in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
1.27 kg (2.80 lbs)
Bulb Specifications
PAR3612 Volts DC9 Watts1900 LumensSealed Beam30-Degree Spot LightFrosted Lens4500K Color Temp
Clamp Range
2.54cm (1") - 4.06cm (1.6") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeRubber
Packaging Type
Retail Bag

Resources

DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-152B
RAM® LED Spotlight with Ball
RAM Mounts
Copy SKU
RAM-B-201U
RAM® Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAP-B-404U
RAM® Tough-Claw™ Medium Clamp Base with Ball


Complete Your Solution

RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms

RAM Mounts
Copy SKU
RAM-B-273U
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
