The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Finger-Grip™ Universal Mount with Handlebar U-Bolt Base

SKU Copied

SKU: RAM-B-149Z-UN4U

UPC Copied

UPC: 793442905582







RAM® Finger-Grip™ Universal Mount with Handlebar U-Bolt Base

Copy SKU
RAM-B-149Z-UN4U SKU: RAM-B-149Z-UN4U

Copy UPC
793442905582 | UPC: 793442905582

B SIZE

MEDIUM ARM

Size Guide

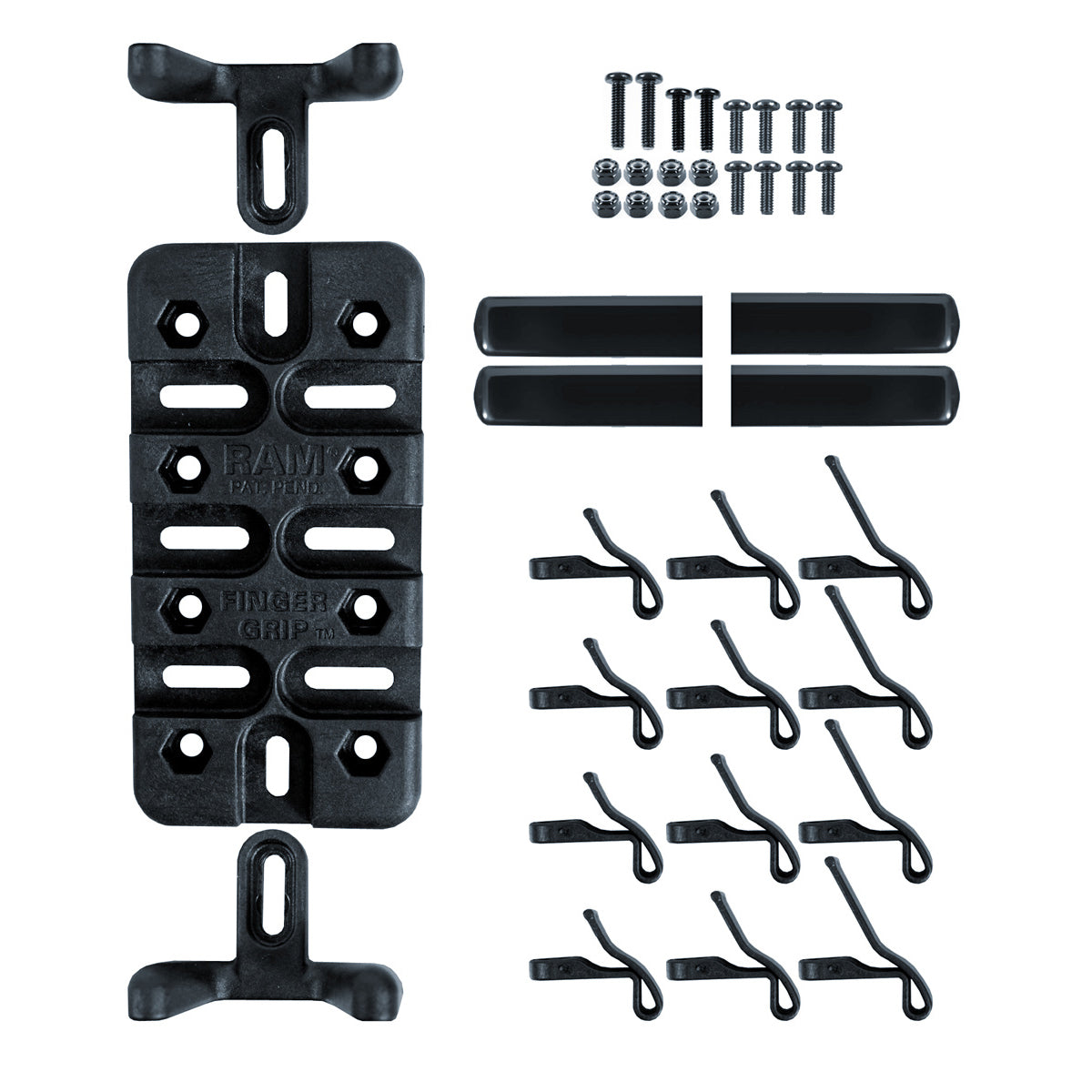

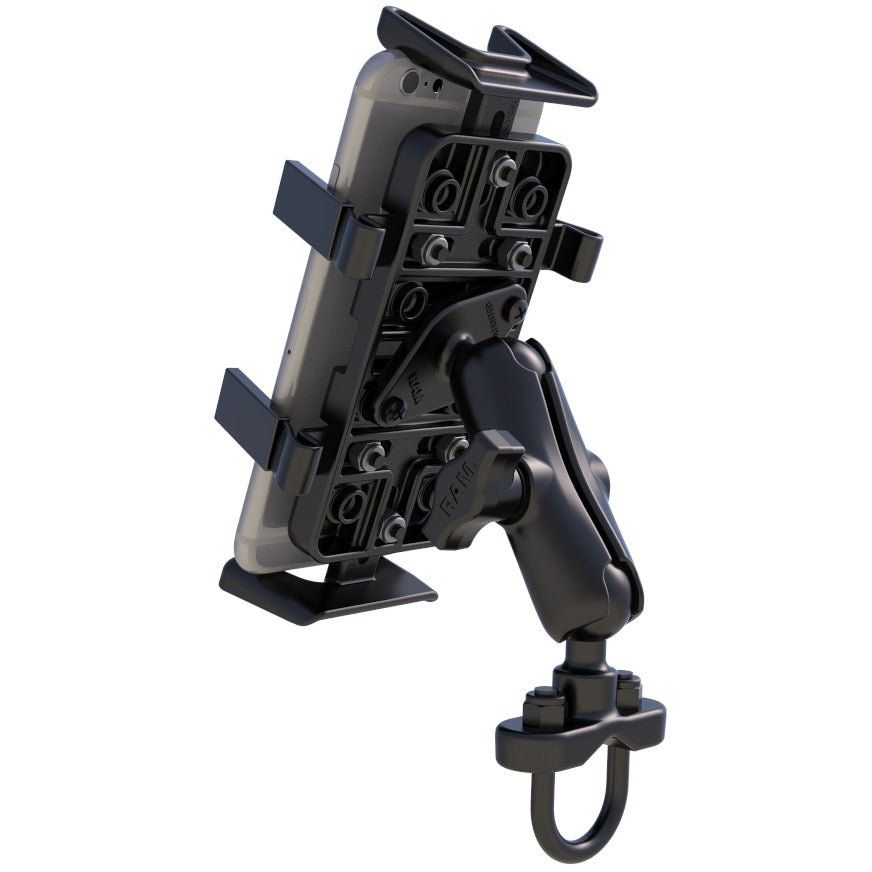

The RAM-B-149Z-UN4U consists of a zinc coated u-bolt base, double socket arm and universal Finger Grip cradle. The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM Composite Universal Finger Grip cradle is designed to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The spine plate contains the universal AMPs and 3.81 cm (1.5") X 5.08 cm (2") hole patterns.

Information

Resources

Compatible Devices

Information

Product Weight

0.51 kg (1.12 lbs)

Hardware Included

Assembly Hardware(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Holder Dimensions

Height Range: 18.42cm (7.25") max (using optional supports)Width Range: 3.18cm (1.25") - 8.89cm (3.5") Max Depth: 3.81cm (1.5")

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite
