The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

SKU Copied

SKU: RAM-202-24-202U

UPC Copied

UPC: 793442948589







RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

Copy SKU
RAM-202-24-202U SKU: RAM-202-24-202U

Copy UPC
793442948589 | UPC: 793442948589

C SIZE

MEDIUM ARM

Size Guide

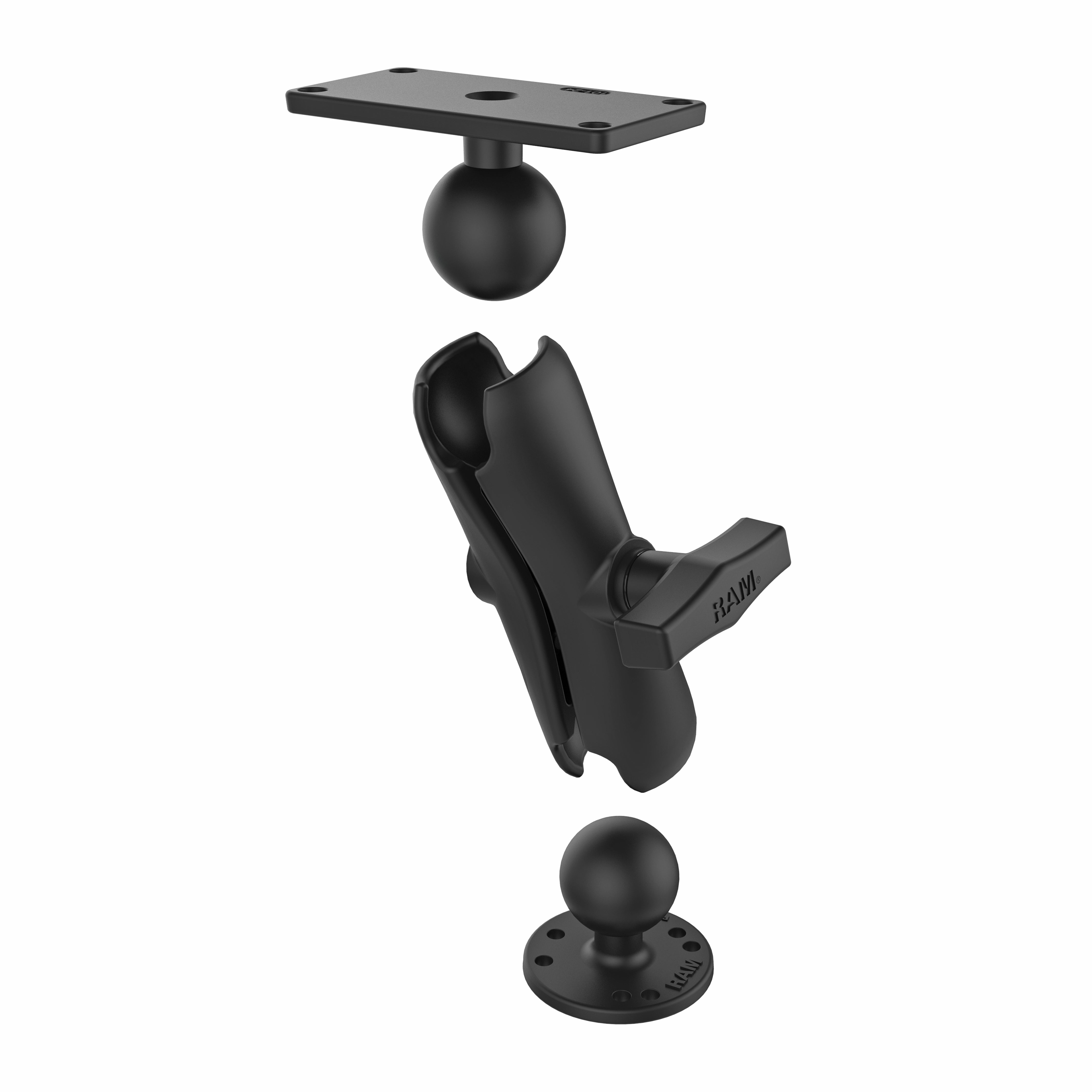

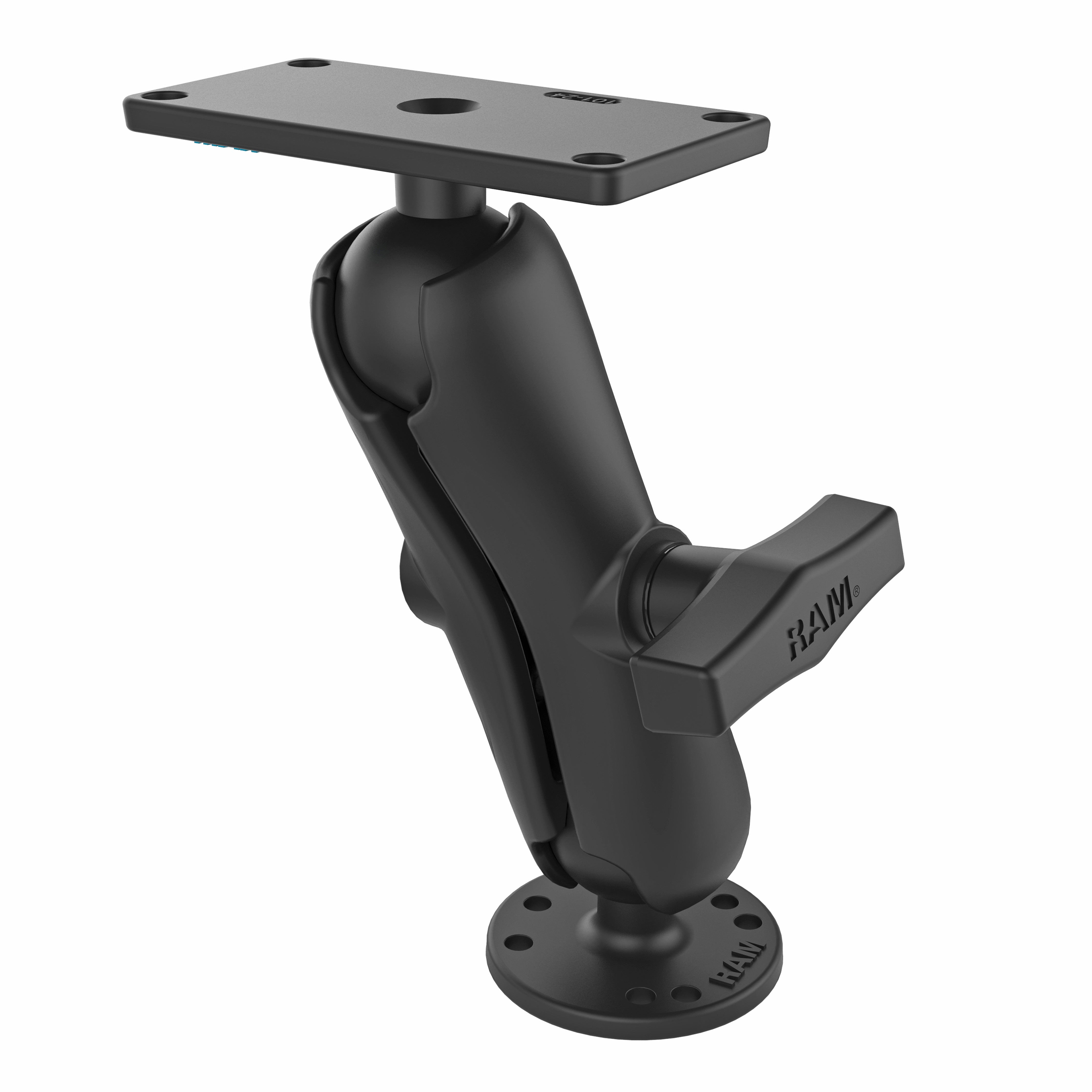

The RAM-202-24-202U powder-coated, marine-grade aluminum Humminbird Helix 7 mount consists of a medium length double socket arm, a 6.35cm (2.5") diameter round base with a 3.81cm (1.5") C size ball, and one 3.81 cm (1.5") X 8.89 cm (3.5") rectangular plate with a 3.81cm (1.5") C size ball. The 3.81 cm (1.5") X 8.89 cm (3.5") rectangular plate contains a 4-hole pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with the Humminbird Helix 7.

Features

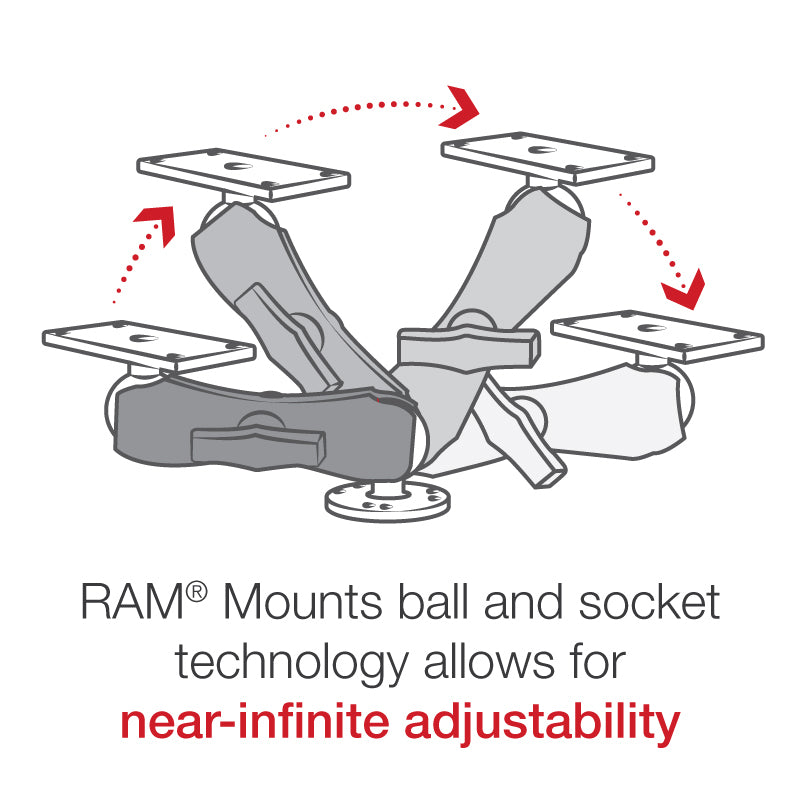

Complete flat surface, drill-down mounting solution for the Humminbird Helix 7; RAM® Mounts ball and socket technology allows for near-infinite adjustability
Includes 6.35cm (2.5") round base with C size 3.81cm (1.5") rubber ball, medium length C size double socket arm, and a 3.81 cm (1.5") X 8.89 cm (3.5") rectangle base with C size 3.81cm (1.5") rubber ball that connects to your Humminbird Helix 7
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

Tags: 7.35", Boat, Boat - Flat Surface, C Size 1.5" (Holds 4 lbs), Complete kits, Drill-Down, Fishfinder, Fishfinder/Chartplotter, Flat Surface, Helix 7, Humminbird, hummingbird, Kayak, Kayak - Flat Surface, Medium Arm, RAM-202-24-202U

Information

Resources

Compatible Devices

Information

Product Weight

0.56 kg (1.24 lbs)

Product Dimensions

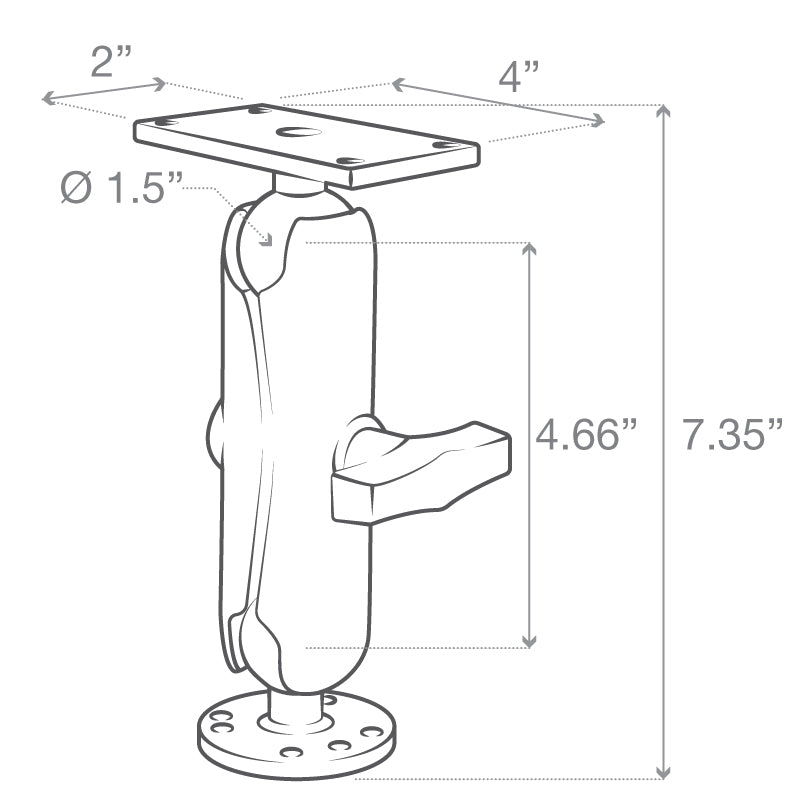

Overall Height: 18.67cm (7.35")

Socket To Socket Length

11.84cm (4.66")

Hole Pattern

Round Plate: 4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") & 3-Hole 120-Degree 4.60cm (1.812") DiameterRectangular Plate: 3.81 cm (1.5") X 8.89 cm (3.5")

Plate Size

Top Plate: 5.08 cm (2") X 10.16 cm (4") Bottom Plate: 6.35cm (2.5") Diameter

Ball Size

C Size ( 3.81cm (1.5") )

Weight Capacity

Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Marine-grade aluminum
