World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Double Ball Drill-Down Mount with Diamond Plate - Long

SKU Copied

SKU: RAM-B-138U-C

UPC Copied

UPC: 793442903304







RAM® Double Ball Drill-Down Mount with Diamond Plate - Long

Copy SKU
RAM-B-138U-C SKU: RAM-B-138U-C

Copy UPC
793442903304 | UPC: 793442903304

B SIZE

LONG ARM

Size Guide

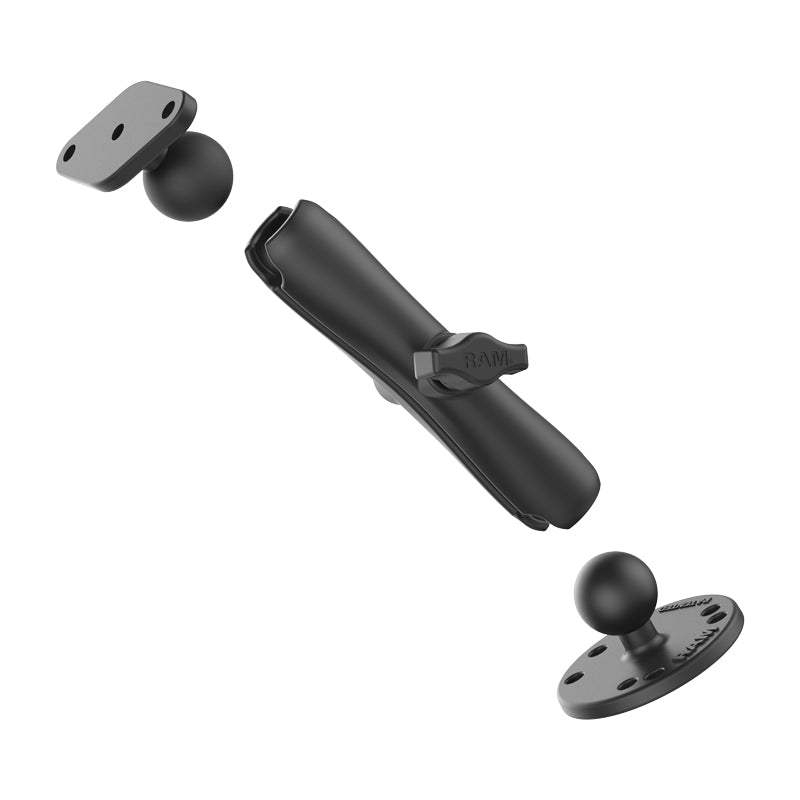

The RAM-B-138U-C consists of a 6.35cm (2.5") diameter round base that contains the universal AMPs hole pattern, LONG double socket arm and diamond base adapter. The mount is designed with a 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAMs patented design dampens shock and vibration, helping to extend the life of your device.

Features

Drill-down mounting solution; diamond plate features 2-hole AMPS hole pattern for attachment to compatible device holders
Includes round ball base, diamond ball base, and B size long length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

Tags: 3-Hole 120 Degree (Small), 7.3125", AMPS 2-Hole, AMPS 4-Hole, B Size 1" (Holds 2 lbs), Complete kits, Diamond Plate, Drill-Down, Long Arm, RAM-B-138U-C

Information

Product Weight

0.34 kg (0.75 lbs)

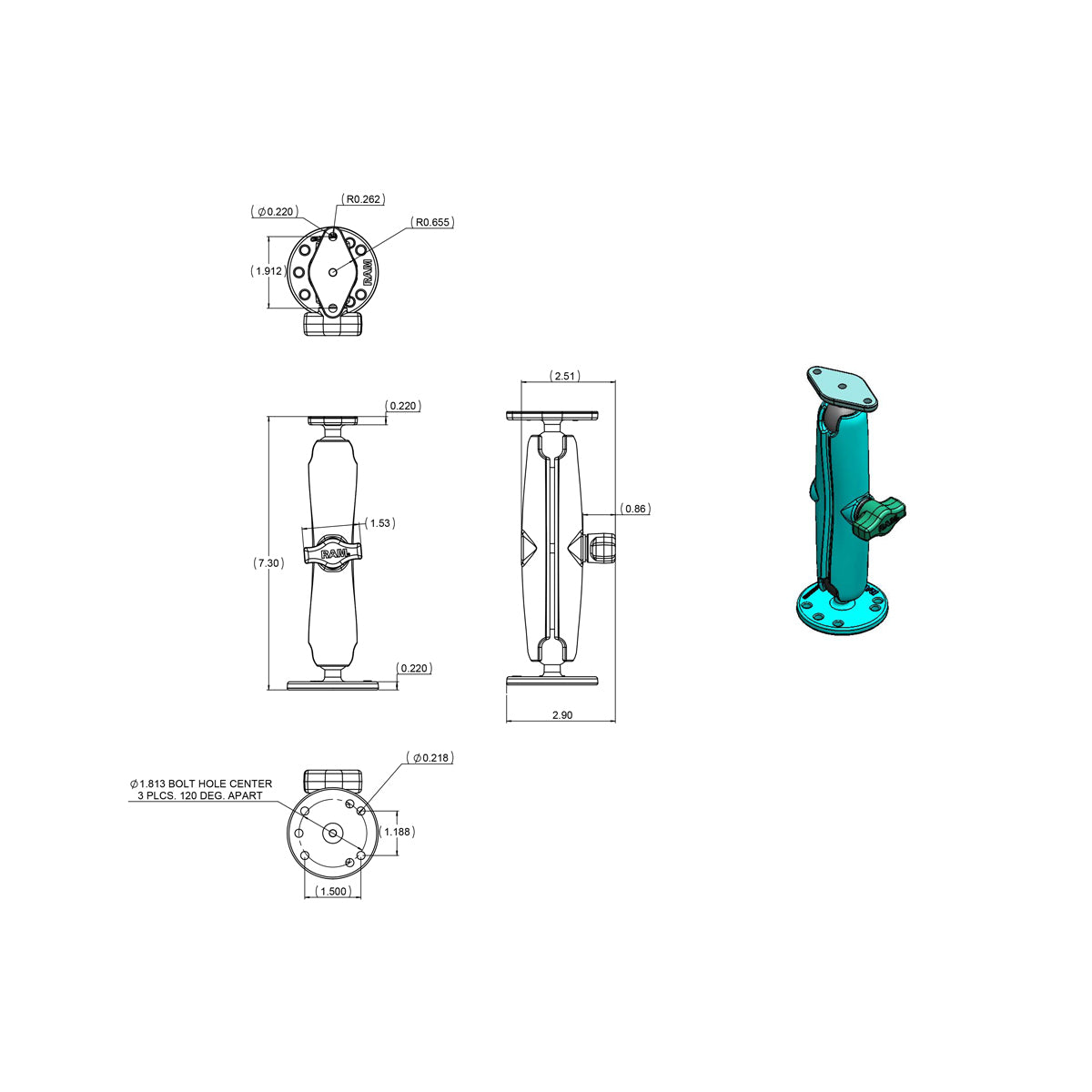

Product Dimensions

Overall Height: 18.57cm (7.3125")

Socket To Socket Length

13.49cm (5.31")

Hole Pattern

Diamond Plate: 2-Hole AMPS: 4.86cm (1.912") Round Plate: 4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") & 3-Hole 120-Degree: 4.60cm (1.812") Diameter

Plate Size

Round Plate: 6.35cm (2.5") DiameterDiamond Plate: 6.17 cm (2.43") X 3.33 cm (1.31")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum

Packaging Type

Poly Bag
