The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Lock Holder for 9"-10.5" Tablets with Heavy Duty Cases

SKU Copied
SKU: RAM-HOL-TABL20U
UPC Copied
UPC: 793442944703
02 03 230920ram Hol Tabl20u1jpg
02 03 230920ram Hol Tabl20u2jpg
02 03 230920ram Hol Tabl20u3jpg
02 03 230920ram Hol Tabl20u4jpg
02 03 230920ram Hol Tabl20u5jpg

RAM® Tab-Lock Holder for 9"-10.5" Tablets with Heavy Duty Cases
Copy SKU
SKU: RAM-HOL-TABL20U
Copy UPC
| UPC: 793442944703

Overview

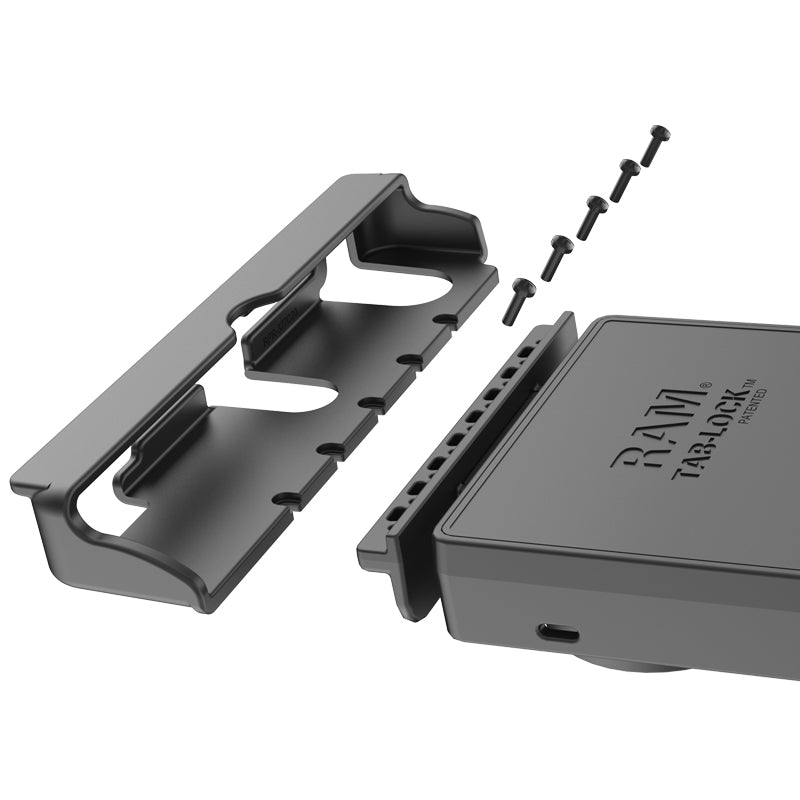

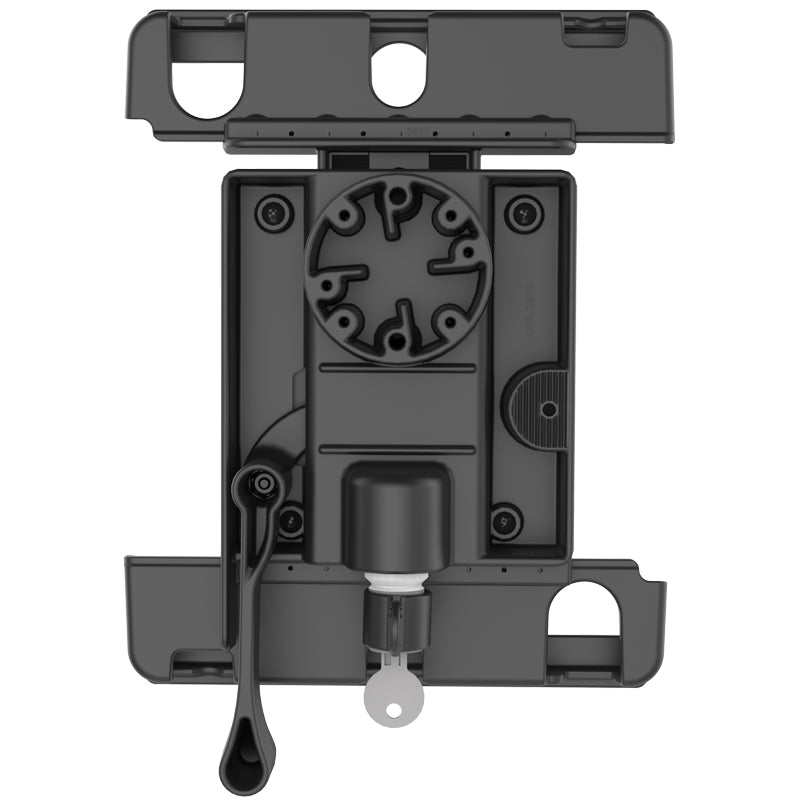

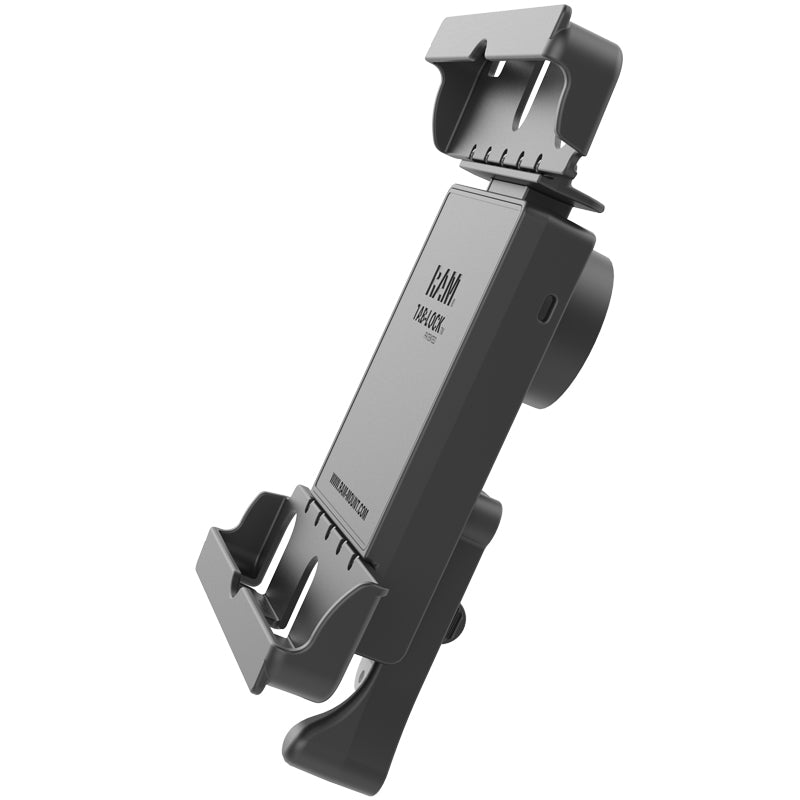

The RAM-HOL-TABL20U consists of a spring loaded back plate, custom support cups and locking mechanism offers theft deterrence and unwanted tampering in public settings. This spring loaded design makes it easy to load and unload your iPad Air, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Quickly lock the cradle, keeping your iPad Air secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Product consists of holder only. Case not included.

Features
  • Spring-loaded, key locking holder secures most 22.86cm (9") tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Hardware Included

Assembly Hardware
(2) #8 x 12.70 cm (5")/20.32 cm (8") Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

Holder Dimensions

Height Range: 23.50cm (9.25") - 30.80cm (12.125")
Width Range: 16.64cm (6.55") - 18.87cm (7.43")
Depth Range: 0.76cm (0.3") - 2.22cm (0.875")

Hole Pattern

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.61 kg (1.35 lbs)

Resources

Instructions

Compatible Devices
