The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Holder with Motorcycle Fork Stem Base

SKU Copied
SKU: RAM-B-176-A-UN7U
UPC Copied
UPC: 793442940743

RAM® X-Grip® Phone Holder with Motorcycle Fork Stem Base
Copy SKU
SKU: RAM-B-176-A-UN7U
Copy UPC
| UPC: 793442940743

B SIZE
SHORT ARM
Size Guide

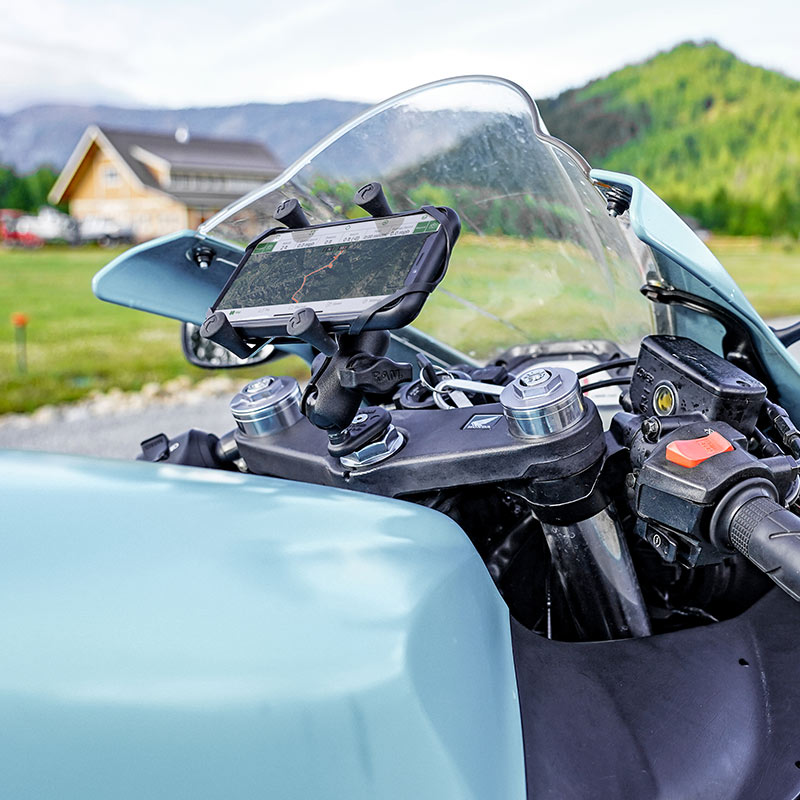

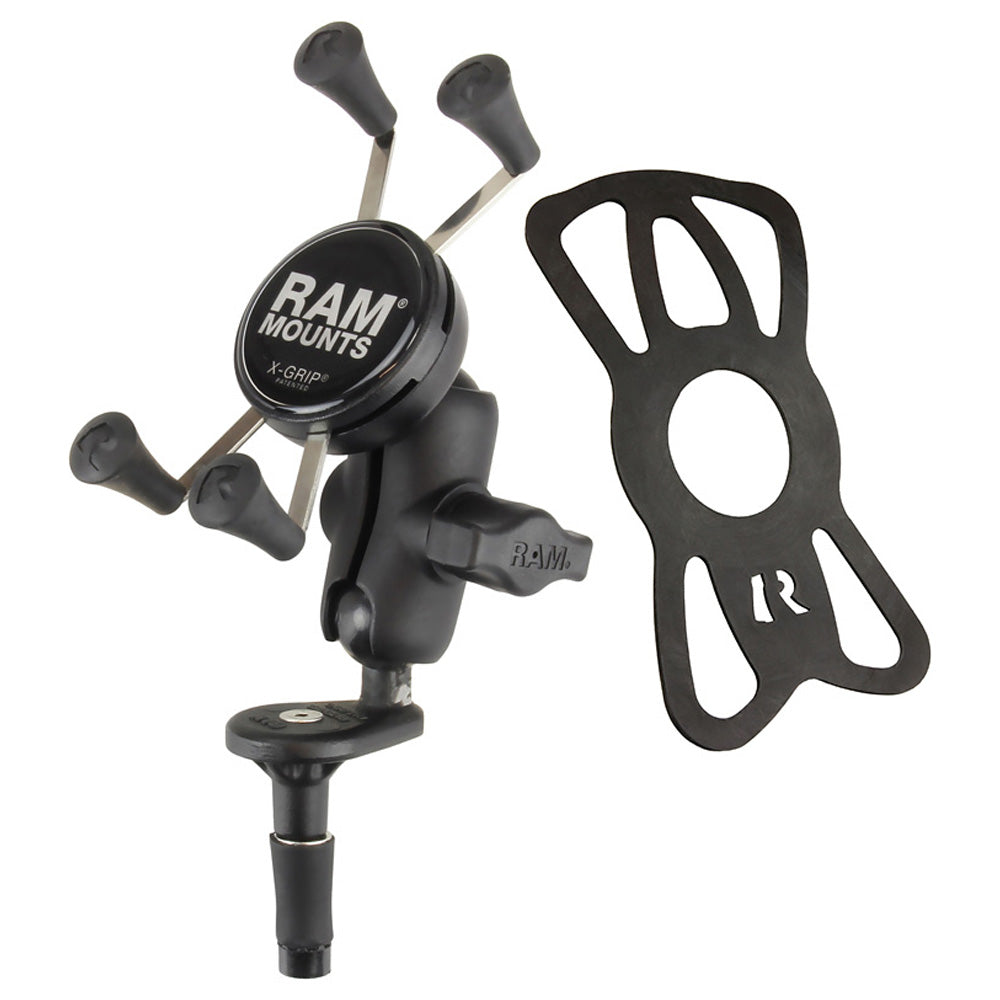

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5 to 1.49) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM X-Grip phone holder. The RAM X-Grip features an 'X' design that expands and contracts to provide a perfect fit for your device even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM X-Grip fits phones ranging from 4.75cm (1.87") to 8.26cm (3.25") in width and keeps your device completely functional and accessible. RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM X-Grip includes a device tether that is recommended for added security and peace of mind.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.29 kg (0.65 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps(1) Expansion Plug for 12mm - 38mm (0.5" - 1.49") Fork Stem Holes(1) M5 x 60mm Machine Screw(1) Steel Washer Set(1) Nut Pocket Washer Set(1) Brass Nylock Nut
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max

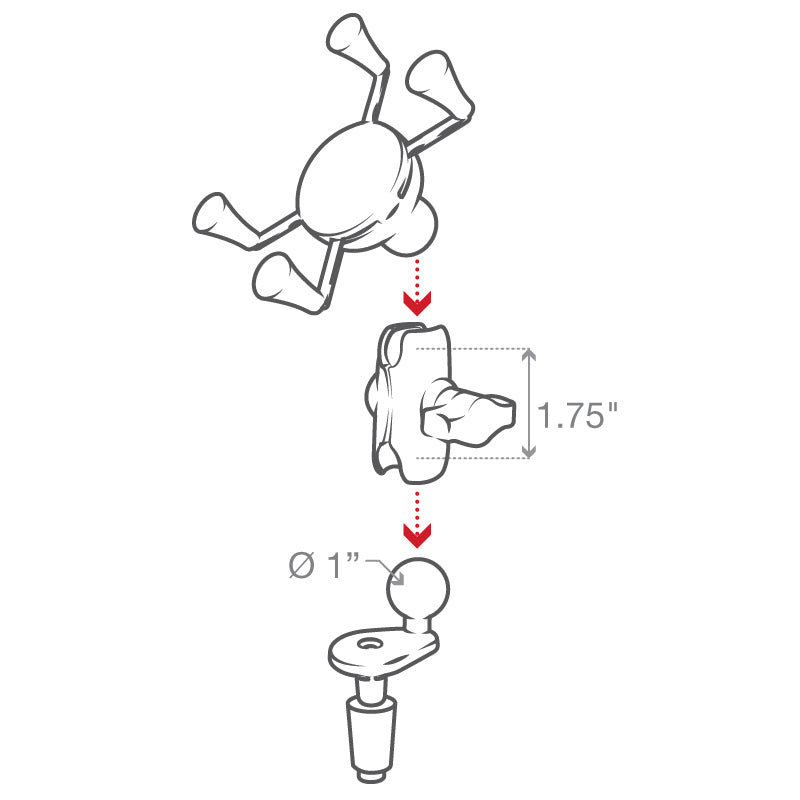

Socket To Socket Length
4.45cm (1.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
