The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Wheelchair Seat Mount for Xbox Adaptive Controller

SKU Copied

SKU: RAM-238-WCT-9-MS2

UPC Copied

UPC: 793442007200







RAM® Wheelchair Seat Mount for Xbox Adaptive Controller

Copy SKU
RAM-238-WCT-9-MS2 SKU: RAM-238-WCT-9-MS2

Copy UPC
793442007200 | UPC: 793442007200

C SIZE

Size Guide

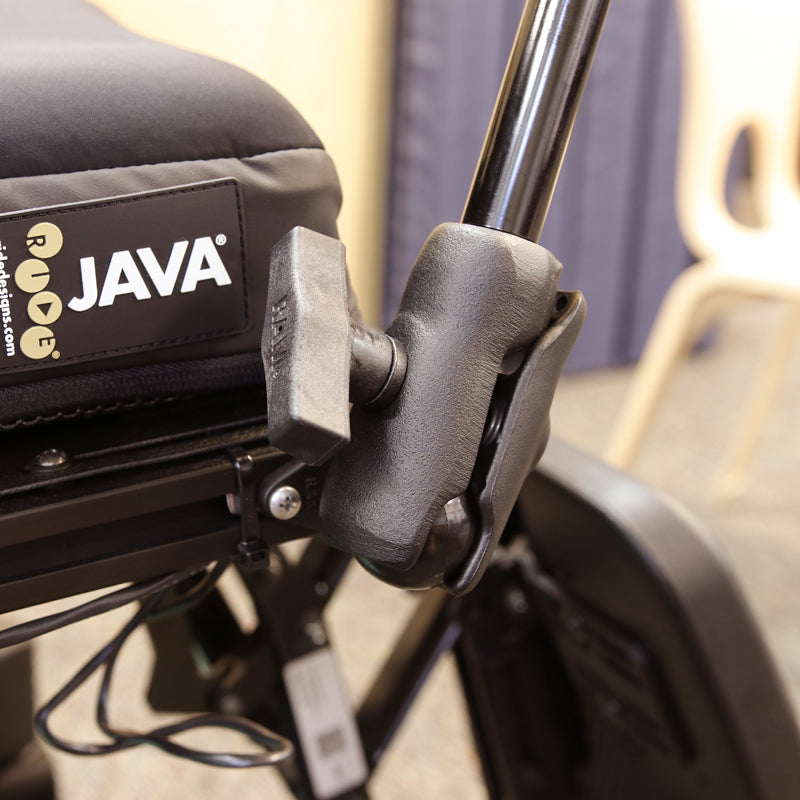

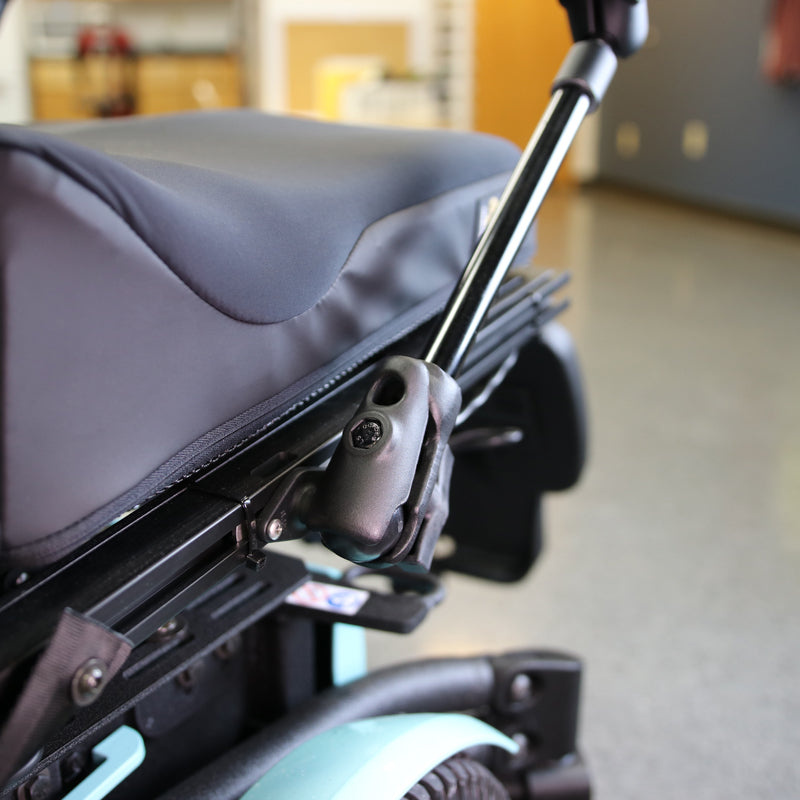

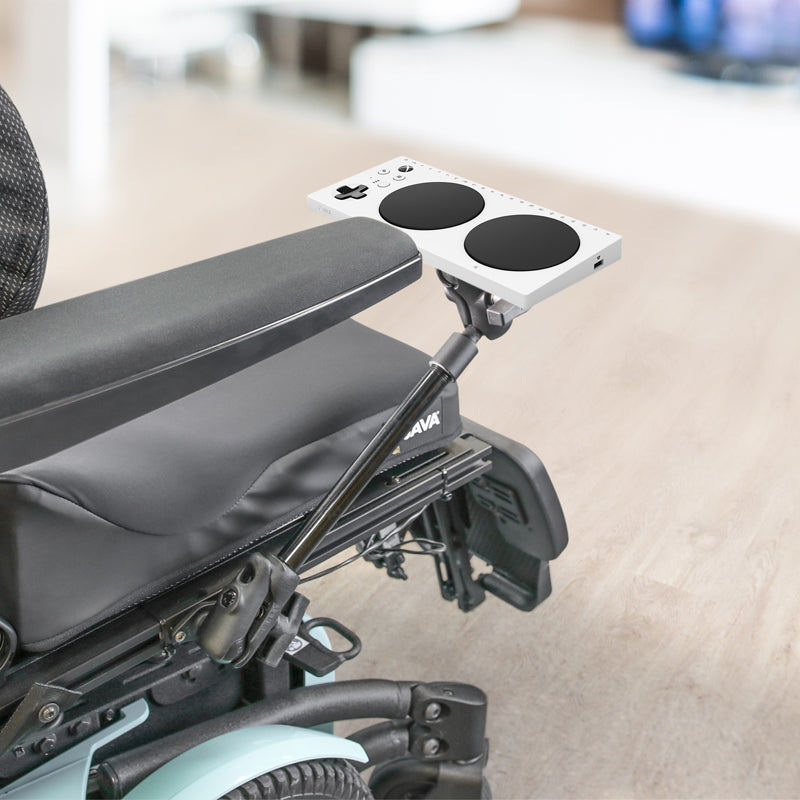

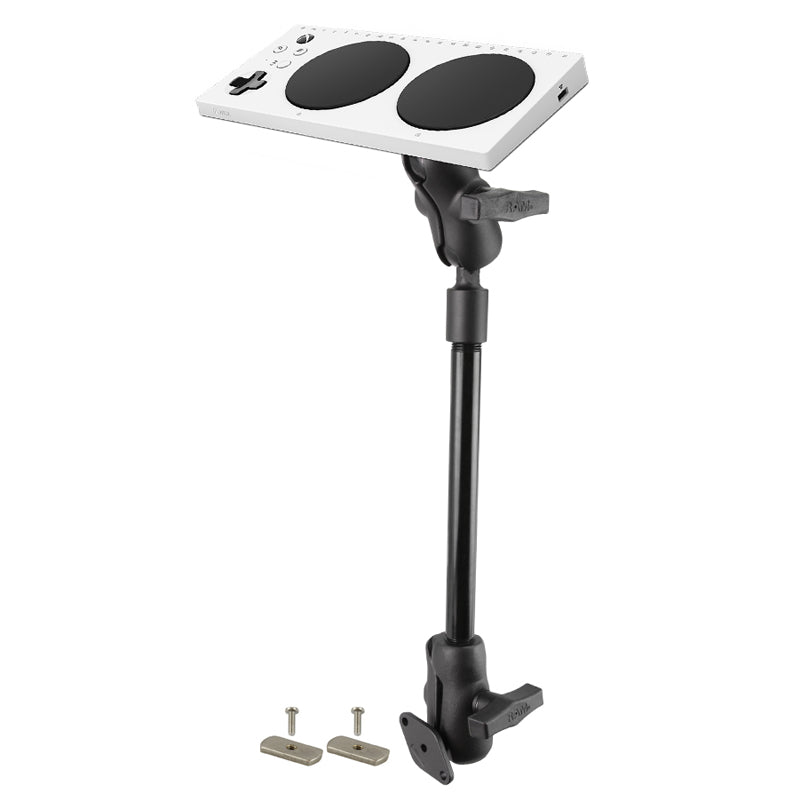

Mount the Microsoft Xbox Adaptive Controller to your wheelchair with this RAM Wheelchair Seat Mount (RAM-238-WCT-9-MS2). The controller attaches directly to the included RAM diamond base adapter with 1.5 ball and double socket swivel arm, allowing for a 90-degree tilt so you can angle the adaptive controller exactly where you need it. When you're not using the Xbox Adaptive Controller, swap it out with any compatible RAM 1.5 ball base, such as the RAM X-Grip cradle for phones and tablets. Attaches to most wheelchair arm track systems including Invacare, Permobil, and Quickie, as well as any other universal mounting point with the included universal hardware pack. This inclusive gaming kit includes hardware and a hex wrench for mounting an Xbox Adaptive Controller.

Tags: AMPS 2-Hole, C Size 1.5" (Holds 4 lbs), Complete kits, RAM-238-WCT-9-MS2, Seat Track, Track, Wheelchair, Wheelchair - Seat Track

Information

Resources

Compatible Devices

Information

Product Weight

0.86 kg (1.90 lbs)

Hardware Included

(2) #10-24 x 1.27cm (0.5") Machine Screws(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 1.27cm (0.5") Machine Screws(2) M4 x 12mm Machine Screws(2)M4 x 20mm Machine Screws(2) M4 Stainless Steel Washers(2) M4 Nylock Nuts

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS 4.86cm (1.912") (both plates)

Ball Size

C Size ( 3.81cm (1.5") )

Weight Capacity

Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Marine-grade aluminum

Packaging Type

Retail Bag
