World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

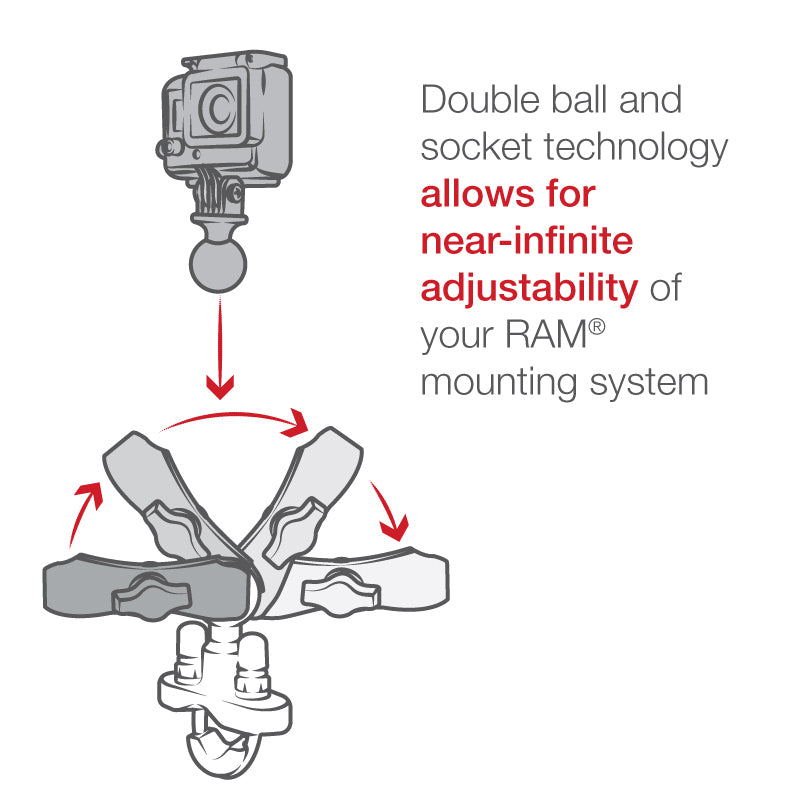

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® U-Bolt Double Ball Mount with Action Camera Adapter - Medium

SKU Copied

SKU: RAM-B-149Z-GOP1U

UPC Copied

UPC: 793442936616







RAM® U-Bolt Double Ball Mount with Action Camera Adapter - Medium

Copy SKU
RAM-B-149Z-GOP1U SKU: RAM-B-149Z-GOP1U

Copy UPC
793442936616 | UPC: 793442936616

B SIZE

MEDIUM ARM

Size Guide

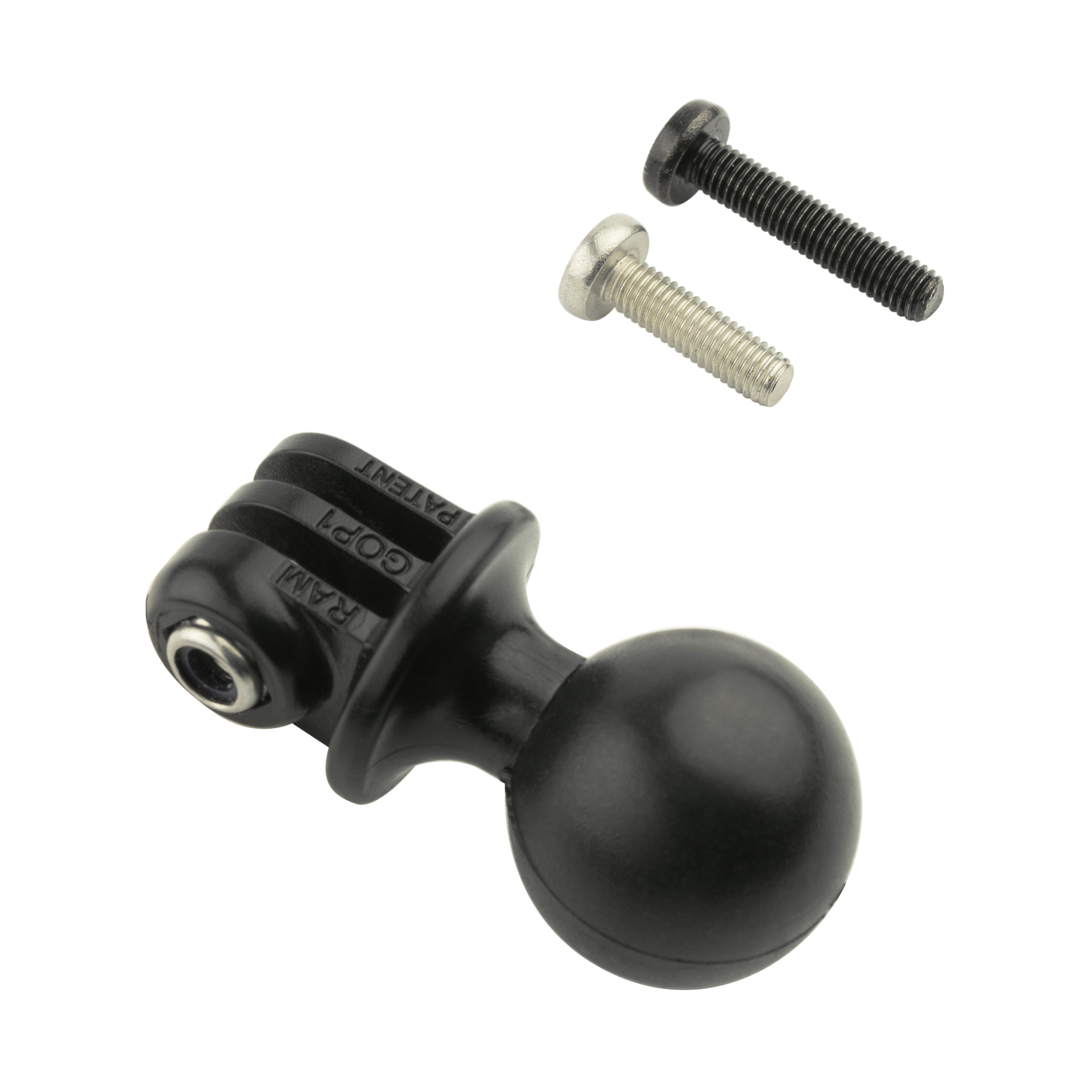

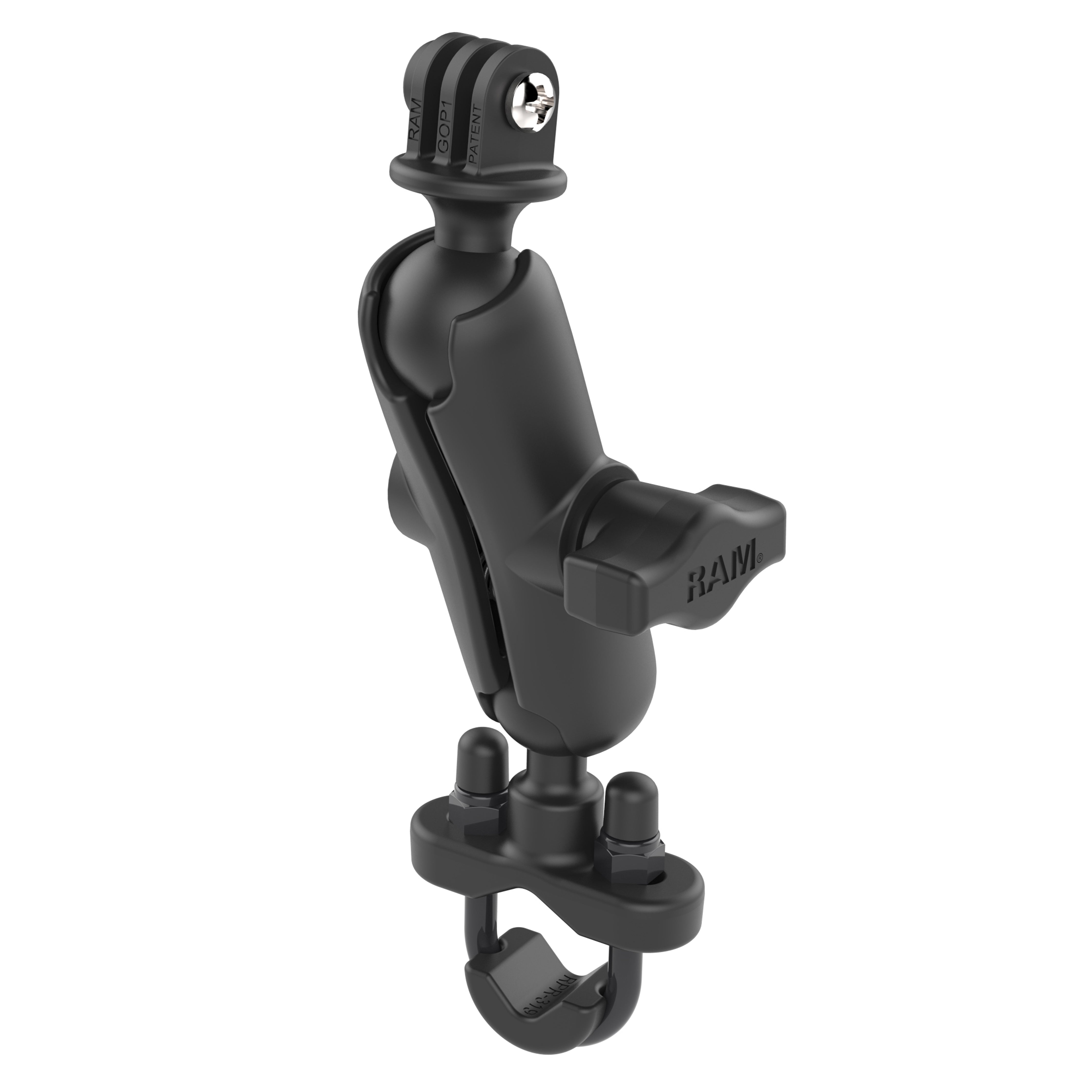

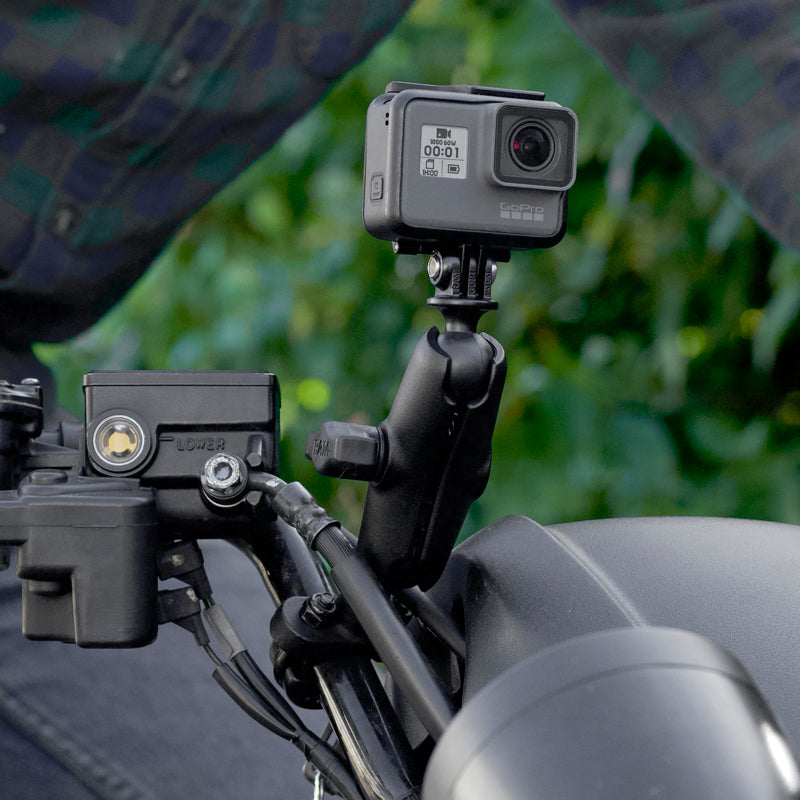

The RAM-B-149Z-GOP1U consists of a zinc coated u-bolt base, standard size double socket arm and 2.54cm (1") diameter ball with custom GoPro Hero adapter. The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 1.27cm (0.50") to 3.18cm (1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 1.27cm (0.5") . The GoPro Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

Information

Resources

Compatible Devices

Information

Product Weight

0.28 kg (0.62 lbs)

Hardware Included

Assembly Hardware(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite

Packaging Type

Poly Bag
