World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Wedge™ Base with Expansion Pouch

SKU Copied
SKU: RAP-407B-PUMPU
UPC Copied
UPC: 793442950247

RAM® Tough-Wedge™ Base with Expansion Pouch
Copy SKU
SKU: RAP-407B-PUMPU
Copy UPC
| UPC: 793442950247

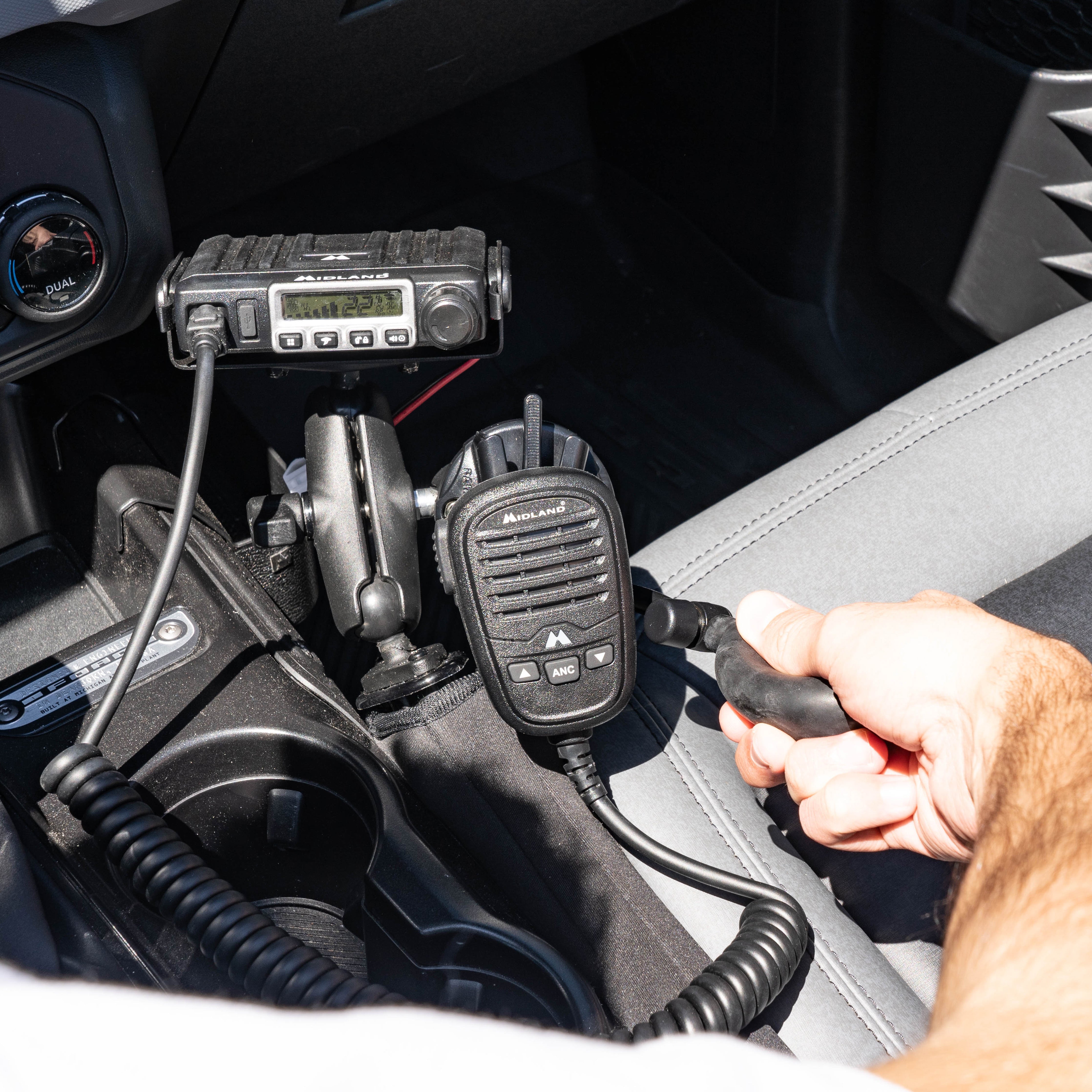

The Tough-Wedge is a mount that fits in the gap between the vehicle seat and center console or potentially a center seat. This allows for easy access and operation of a mobile device. The Tough-Wedge can also be used for back-seat applications by inserted into the pockets located on the back of the front seats. For capturing video on the go, place the Tough-Wedge in your backpack with a RAM camera mount. The included diamond adapter contains the industry standard AMPS hole pattern that allows attachment to a variety of RAM mounts. Hardware included to attach the Tough-Wedge to the mount. Included in this kit is an innovative Expansion Pouch accessory for the RAM Tough-Wedge. This optional accessory is designed to add stability to your wedge mount, creating a more snug fit between the seat and center console. The Expansion Pouch fits inside the Tough-Wedge sleeve and is then inflated with the hand pump to the desired level, ensuring your device stays firmly in place.

Information

Resources

Information

Product Weight
0.73 kg (1.60 lbs)
Hardware Included
(2) #8-32 Nylock Nuts(2) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws
Wedge Dimensions
Length: 33.66cm (13.25") Height: 20.96cm (8.25") Thickness: 2.54cm (1")
Hole Pattern
2-Hole AMPS: 4.86cm (1.912")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-407-PUMPU
RAM® Tough-Wedge™ Expansion Pouch Accessory
RAM Mounts
Copy SKU
RAP-407BU
RAM® Tough-Wedge™ Base
