World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

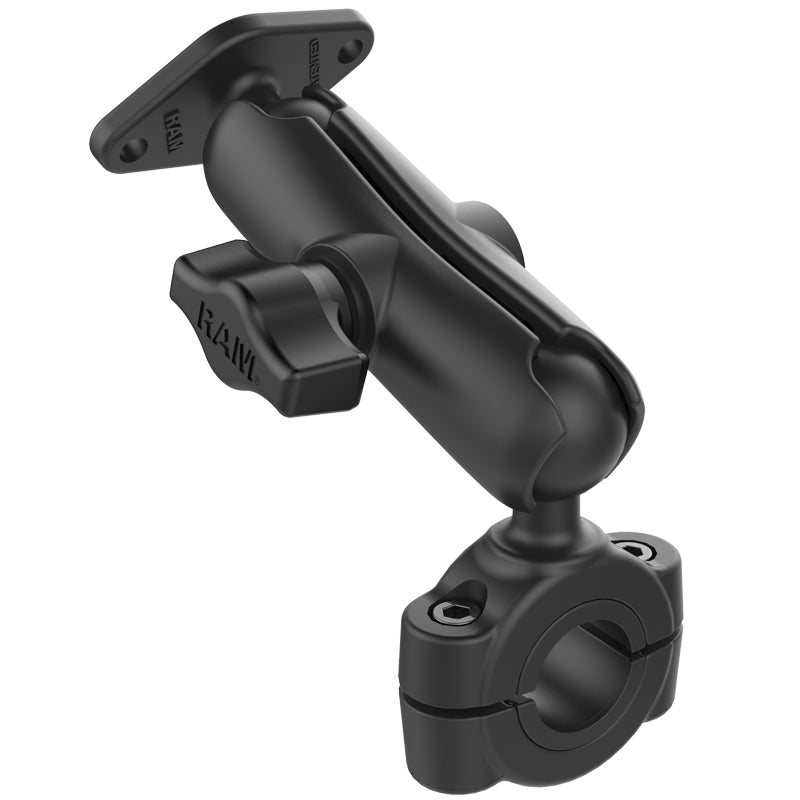

RAM® Torque™ Medium Rail Double Ball Mount with Diamond Plate

SKU Copied

SKU: RAM-B-408-75-1-238U

UPC Copied

UPC: 793442951152







RAM® Torque™ Medium Rail Double Ball Mount with Diamond Plate

Copy SKU
RAM-B-408-75-1-238U SKU: RAM-B-408-75-1-238U

Copy UPC
793442951152 | UPC: 793442951152

B SIZE

MEDIUM ARM

Size Guide

Take your mobile entertainment on the road with the new RAM Torque handlebar and rail mounting base. Weve paired a B-size 2.54cm (1") ball base that accommodate bars 7.62 cm (3")/10.16 cm (4") to 2.54cm (1") in diameter with a B-size standard length arm and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.

Tags: .75" - 1", AMPS 2-Hole, B Size 1" (Holds 2 lbs), b-408-75-1, Complete kits, Diamond Plate, Handlebar, Medium Arm, Motorcycle, Motorcycle - Handlebar, Rail, RAM-B-408-75-1-238U, Torque™

Information

Resources

Information

Product Weight

0.28 kg (0.62 lbs)

Hardware Included

(2) #10-24 x 2.54cm (1") Socket Head Cap Screws(2) #10-24 Nylock Nuts(2) 1.91cm (0.75") Composite Bushings(2) 2.29cm (0.9") Composite Bushings(1) 88.9mm Rubber Strip(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench

Clamp Range

1.91cm (0.75") - 2.54cm (1") diameter

Socket To Socket Length

7.62cm (3")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum
